Intellinet 561518 PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
EAN:
Part number:
Item no:
Datasheet (PDF)

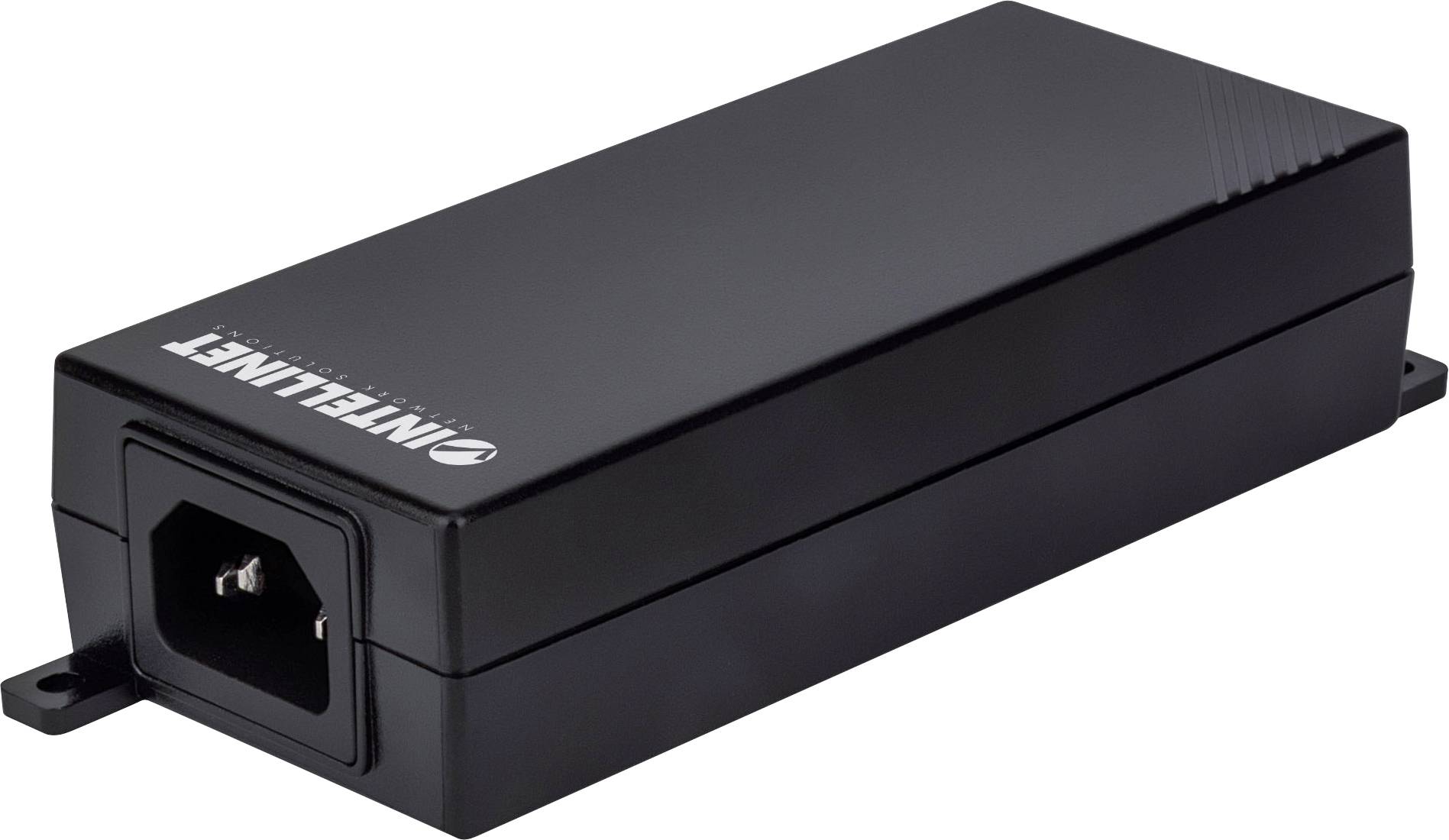

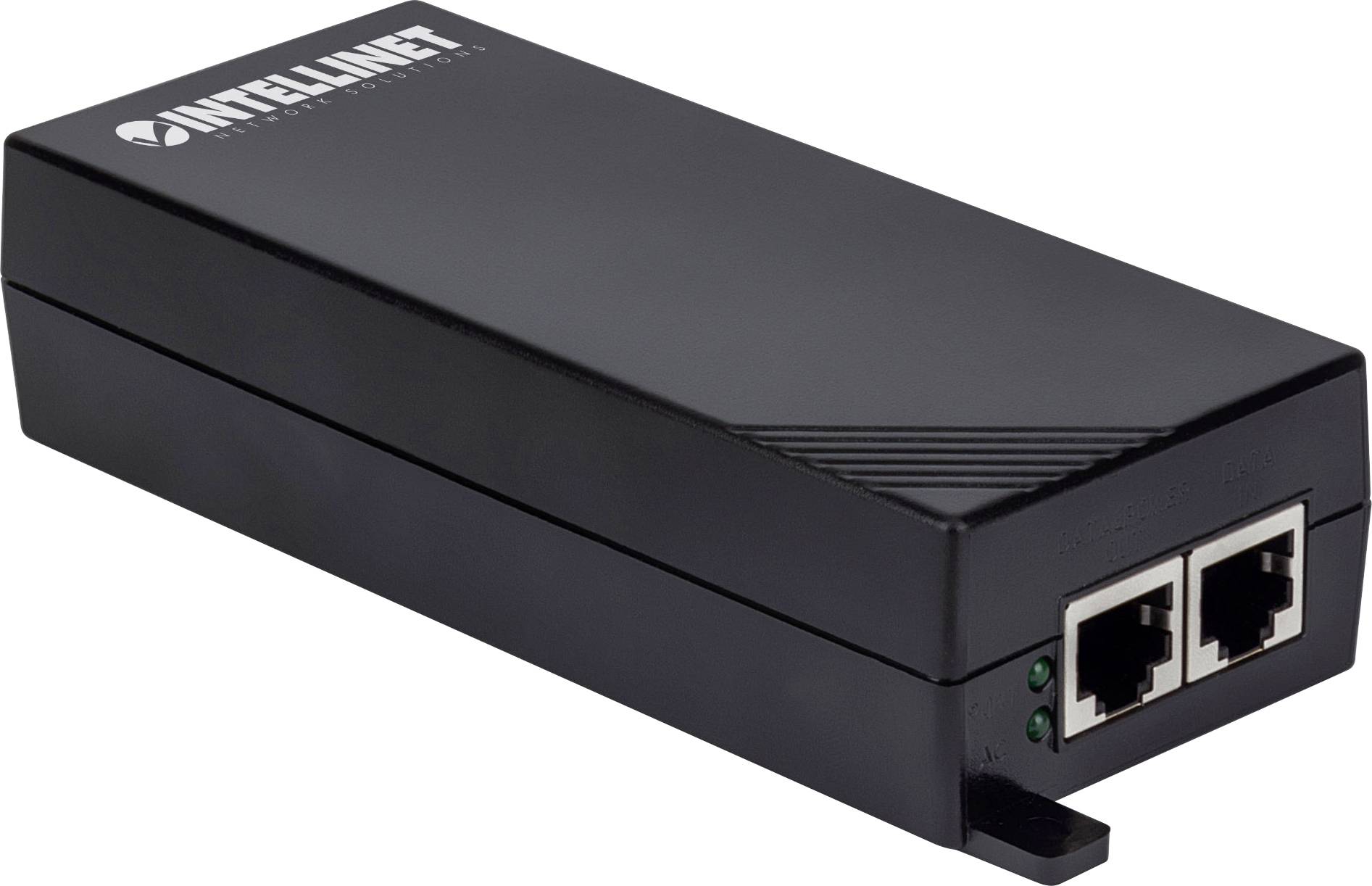

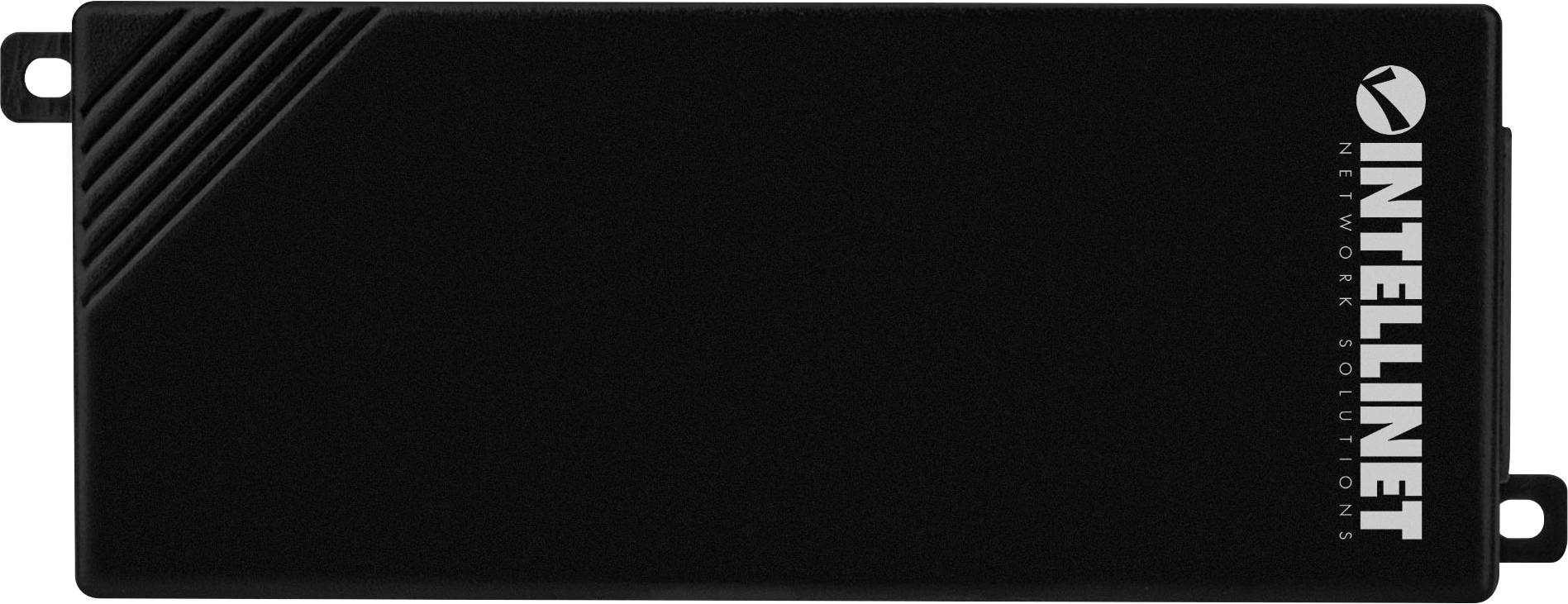

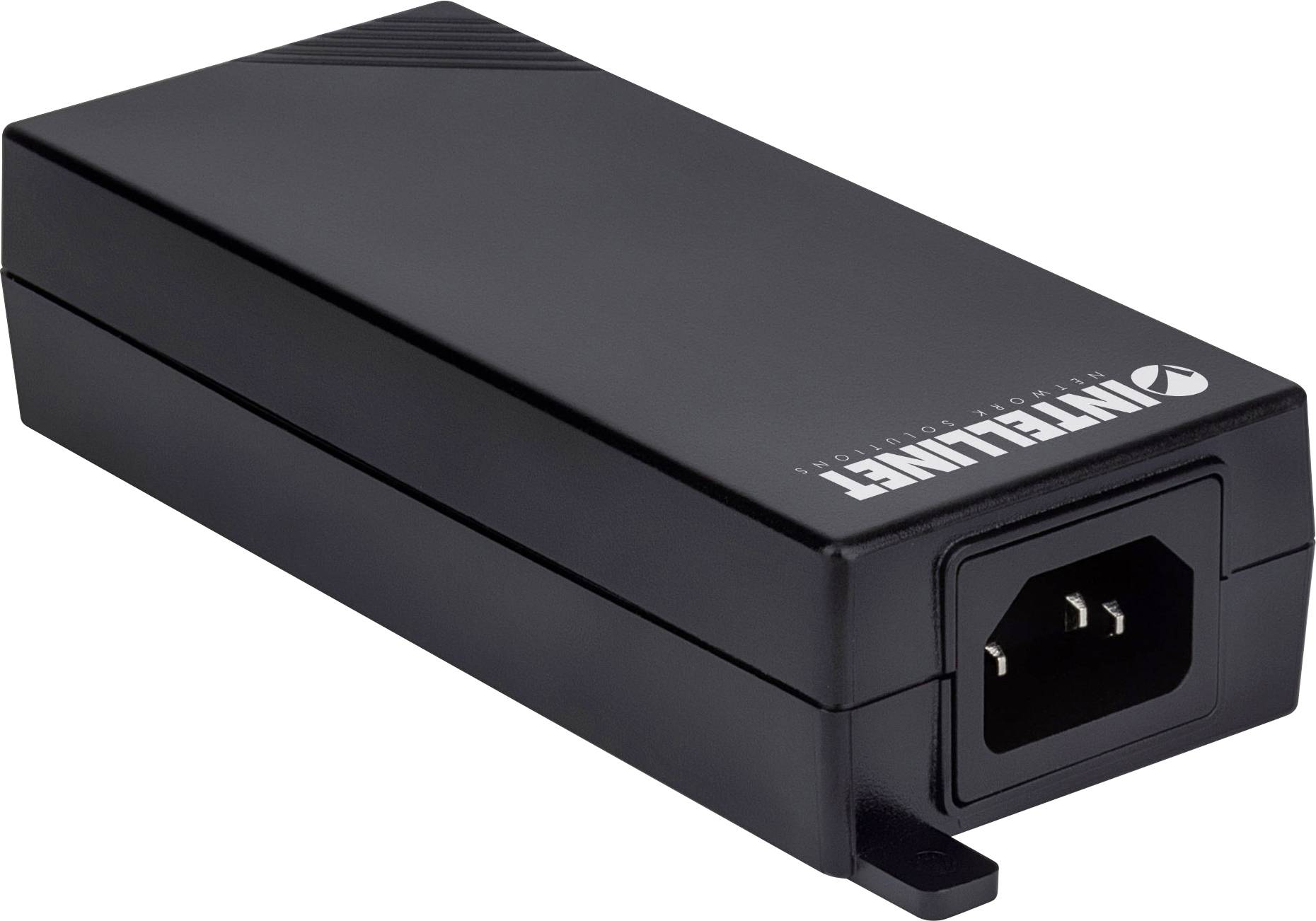

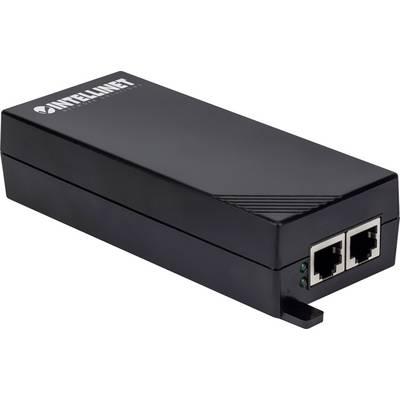

INTELLINET Gigabit High-Power PoE+ injector 1 x 30 watt port, IEEE 802.3at/af power over Ethernet (PoE+/PoE), plastic housing
Highlights & Details
- Saves time and installation costs by transferring data and power via the existing network cables
- IEEE 802.3at compliant (PoE+)
- Output power up to 30 watts
- Supported range: Up to 100 m.
- Supports all IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless access points and bridges, VoIP phones, network cameras)
- It supports IEEE 802.3at/af-detection as well as protection against short circuit, overload and voltage
- Internal power supply
- Fan-free design for quiet operation
- CE
Technical specifications
- Weight 0.19 kg
- Operating temperature: 0 – 50°C
- Humidity: 5% – 90% RH, non-condensing
- Storage temperature: -20 – 80°C.
- Product type
PoE injector
- PoE
IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
67 mm
- Height
34 mm
- Length
136 mm
- Depth
140 mm
- Factory colour
Multicolour
- Weight
0.491
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2270498 Intellinet 561518 PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
User & Safety Instructions
User & Safety Instructions 2270498 Intellinet 561518 PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
Description
Save installation costs and time with PoE
With the PoE injector from INTELLINET Network Solutions, you can supply IEEE 802.3af and IEEE 802.3at-compliant PoE components with power as well as data via a single network cable. Do you have only one non-PoE enabled switch in your existing network, but multiple PoE components such as access points, IP cameras, and VoIP phones? This means a lot of effort with double cabling, because all these devices have to be connected with a power cable as well as with a network cable. It becomes particularly expensive when additional sockets have to be laid, because they are not always in the immediate range. With this PoE injector you avoid this effort. In addition, older network switches can be used longer without having to upgrade to expensive new PoE switches. The safety of your network equipment is not endangered because the injector protects reliably against overvoltage.
This text is machine translated.
With the PoE injector from INTELLINET Network Solutions, you can supply IEEE 802.3af and IEEE 802.3at-compliant PoE components with power as well as data via a single network cable. Do you have only one non-PoE enabled switch in your existing network, but multiple PoE components such as access points, IP cameras, and VoIP phones? This means a lot of effort with double cabling, because all these devices have to be connected with a power cable as well as with a network cable. It becomes particularly expensive when additional sockets have to be laid, because they are not always in the immediate range. With this PoE injector you avoid this effort. In addition, older network switches can be used longer without having to upgrade to expensive new PoE switches. The safety of your network equipment is not endangered because the injector protects reliably against overvoltage.
This text is machine translated.
Features
- Plastic housing
Scope of delivery
- Gigabit high-power PoE+ injector
- Power Cables
- Quick guide
Hints
Protection functions:
- Protection against short-circuit/ground fault
- Overload protection for current above 0.6 A.
PoE pin assignment: IEEE 802.3af/at standard mode A.
- Pin 1: (+)
- Pin 2: (+)
- Pin 3: (-)
- Pin 6: (-)
