Intellinet 561693 PoE splitter 10 / 100 / 1000 MBit/s IEEE 802.3bt
EAN:
Part number:
Item no:

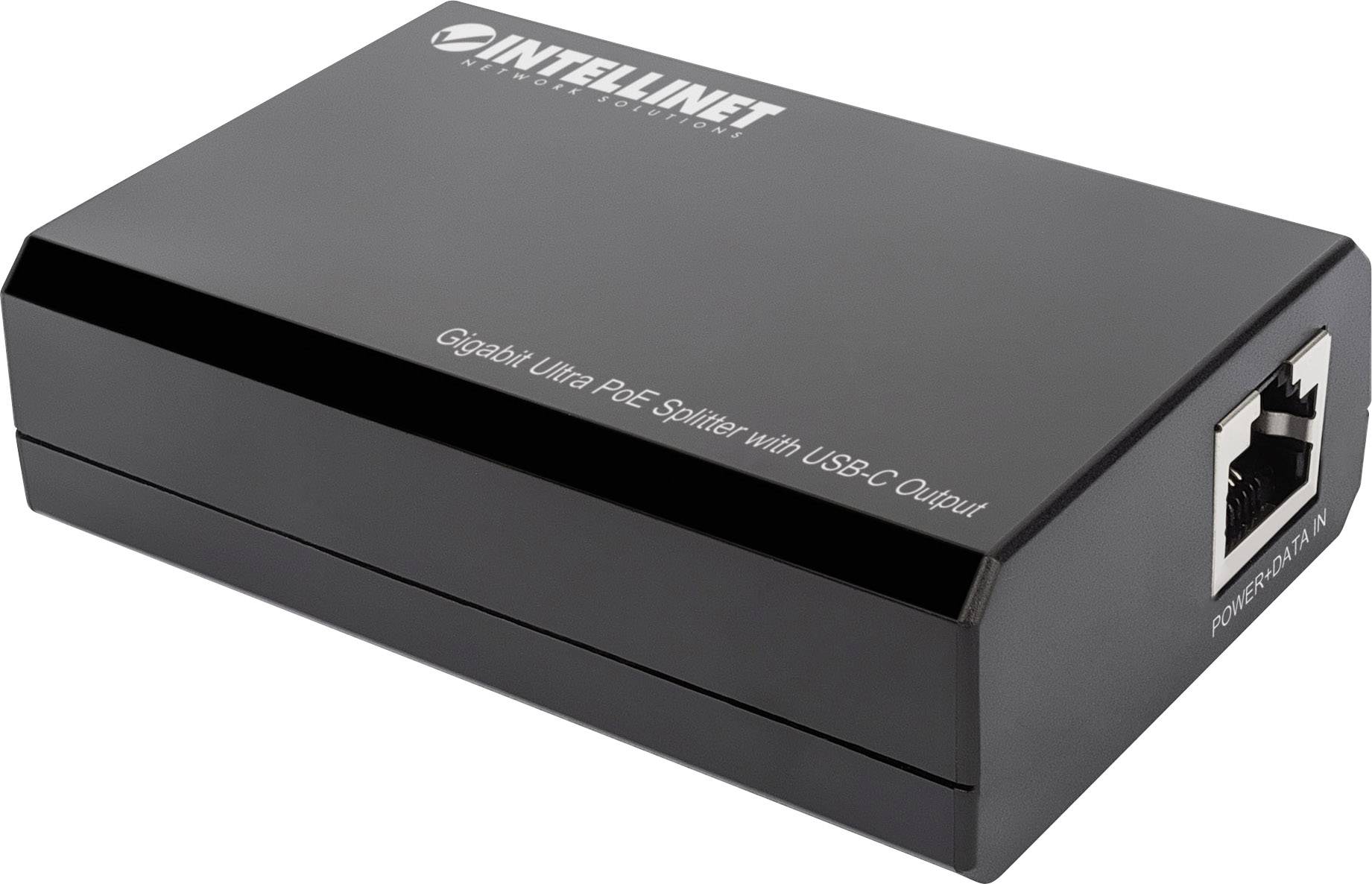

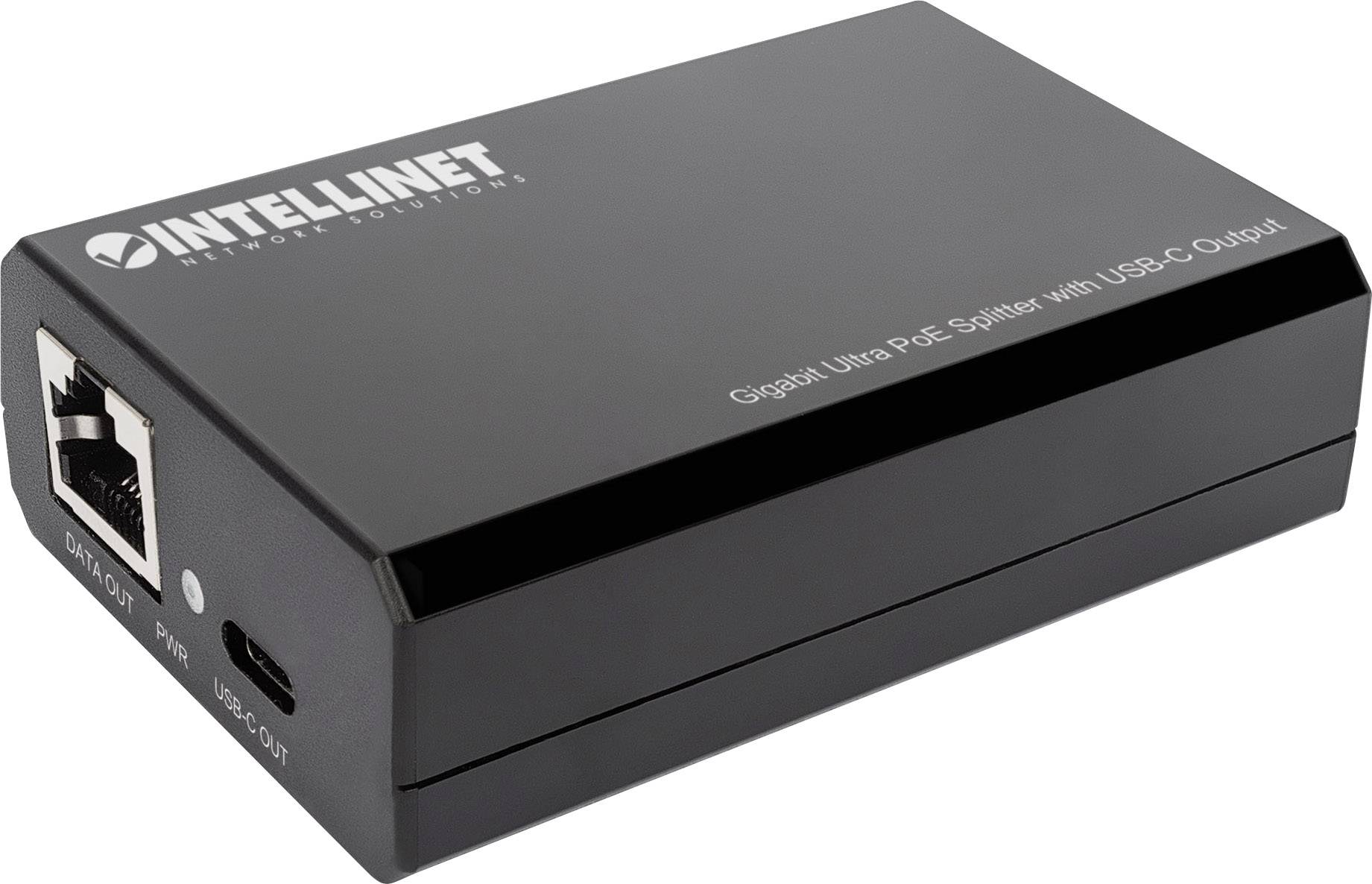

INTELLINET Gigabit Ultra PoE Splitter with USB-C output IEEE 802.3bt-compliant (PoE++ / 4PPoE), RJ45 in-/out ports
Highlights & Details
- Charges devices with USB-C power input such as notebook, MacBook Pro® or tablet from an IEEE 802.3bt/at/af PoE connection
- Delivers Gigabit Ethernet to a RJ45-enabled device
- PoE power budget of 45 W at 60 W input current via IEEE 802.3bt connection
- PoE power budget of 23 W via IEEE 802.3at connection and 12 W via IEEE 802.3af connection
- Saves time and installation costs by transferring data and power via the existing network cables
Technical specifications

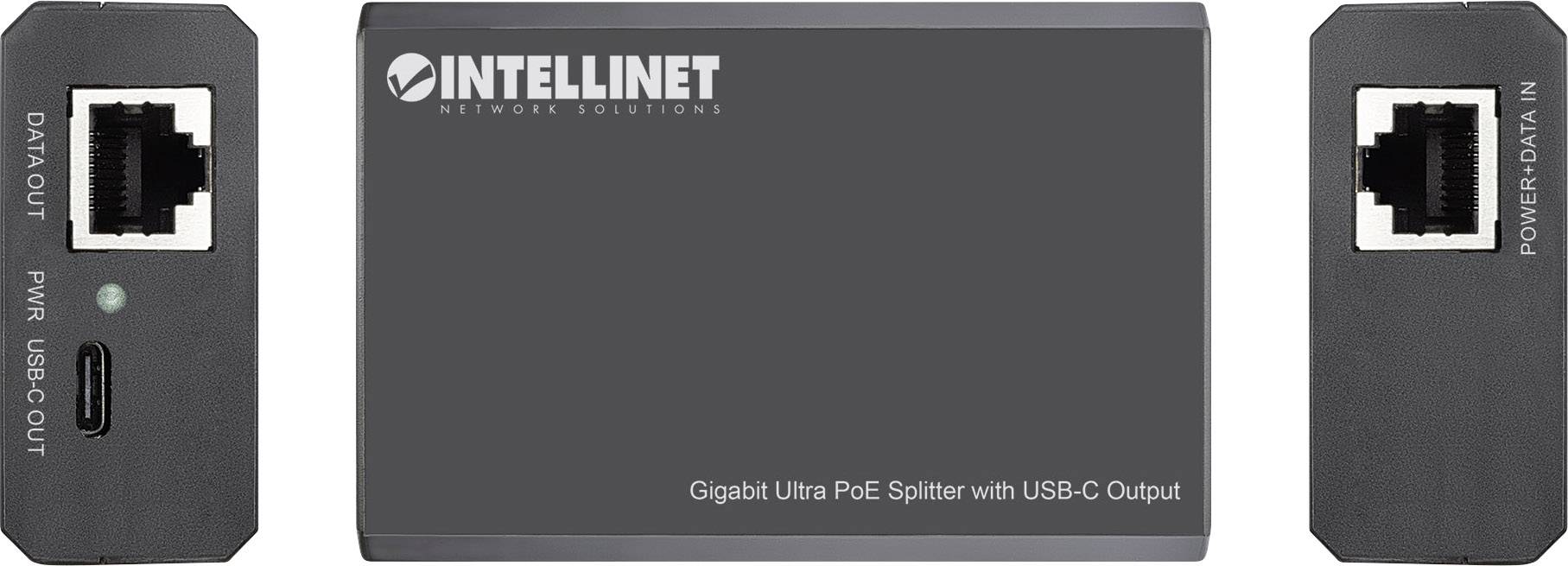

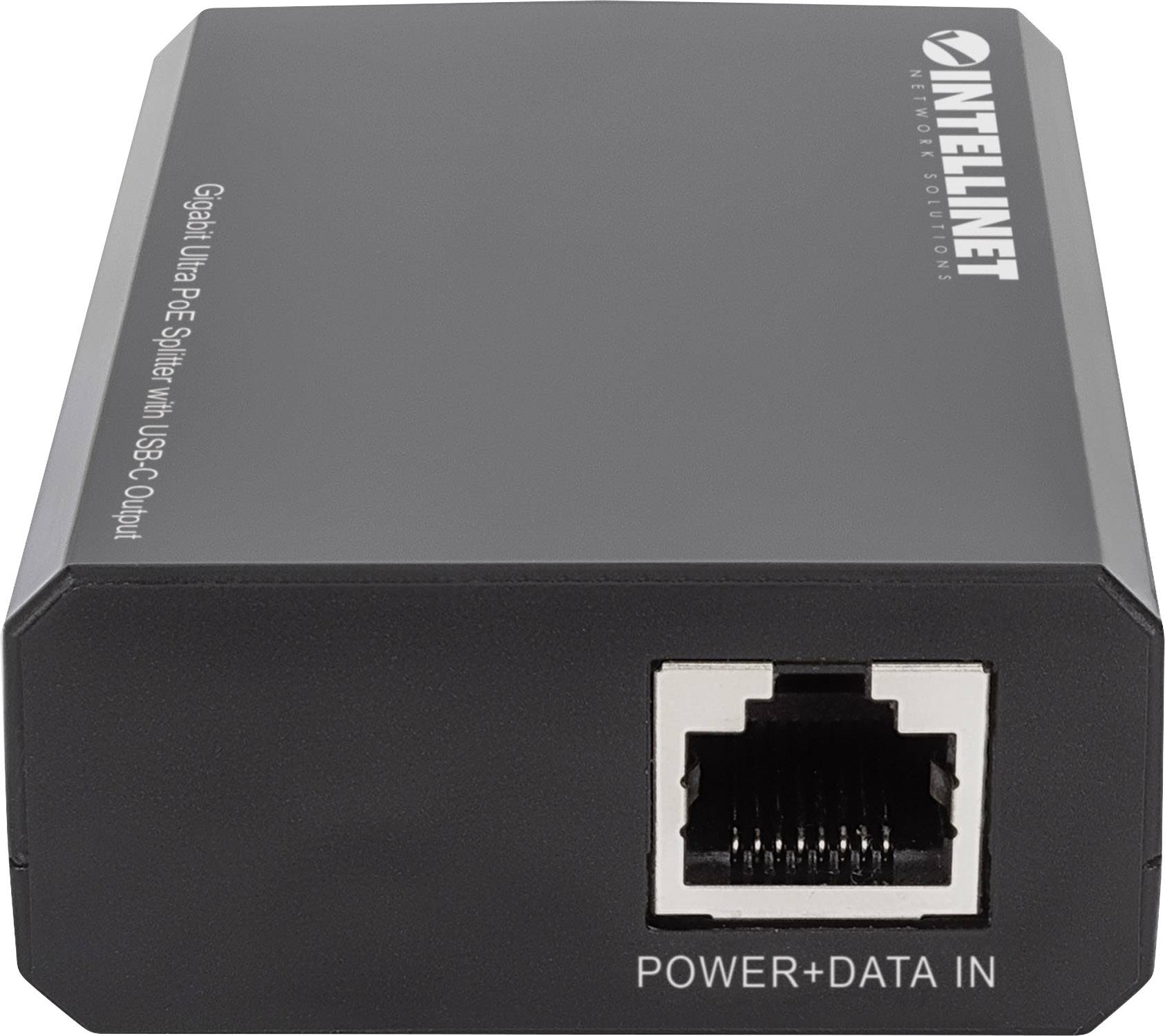

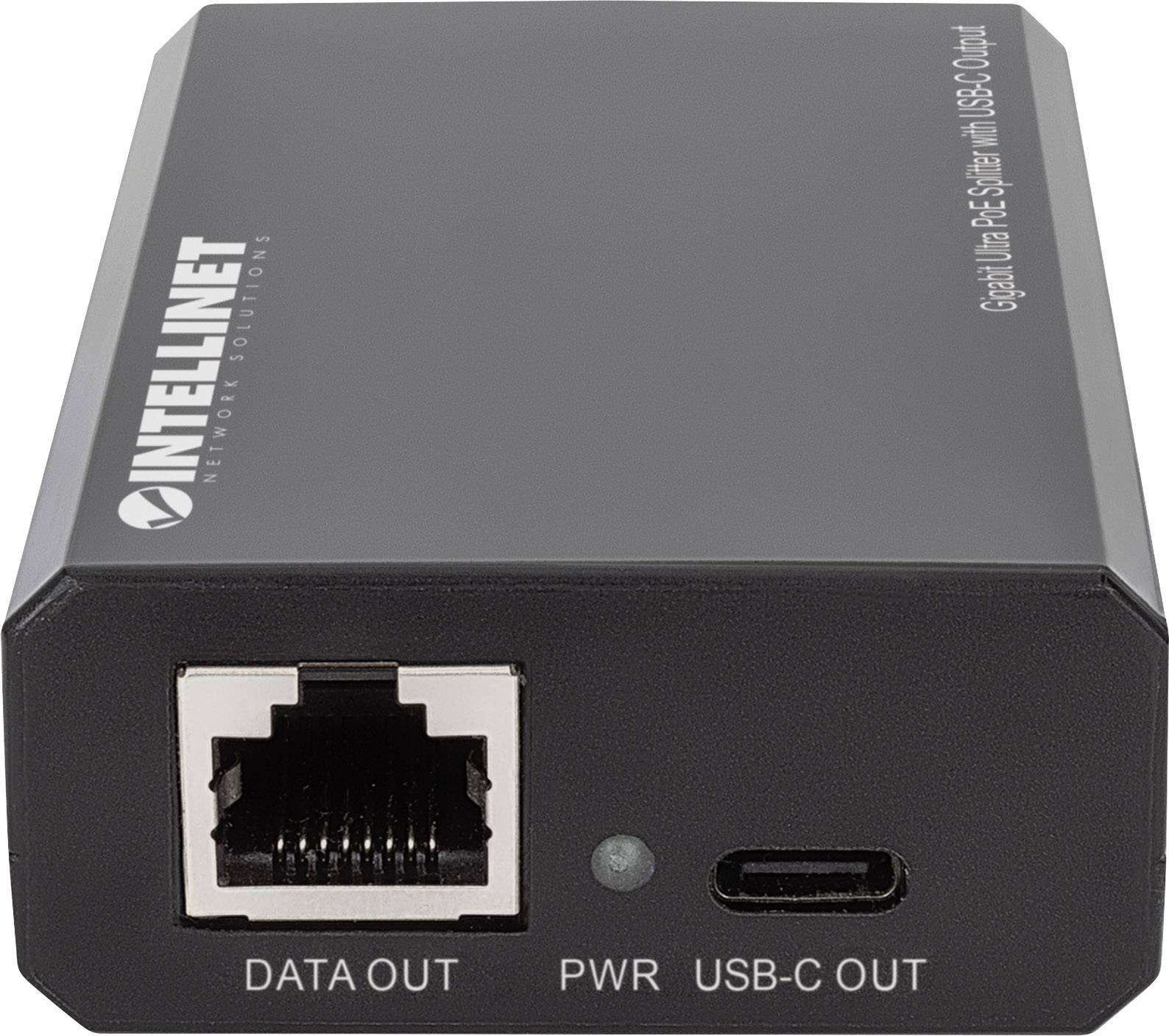

- Ports : One RJ45 10/100/1000 Mbps PoE input port, one RJ45 10/100/1000 Mbps output port, one USB-C power output port
- Max. Current USB-C POWER DELIVERY (PD) OUTPUT CURRENT - 45 W: 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 2.25 A
- Input current : IEEE 802.3bt/at/af-compliant PSE, 51 W max., 36 - 57 V.
- Protective measures: Short Circuit Protection (SCP) with Auto Recovery Mode, Overvoltage Protection (OVP) with Auto Recovery Mode, Overcurrent Protection (OCP) — Voltage limit: 150% (max), Over-temperature Protection (OTP)
- Physical details: Plastic housing, weight 170 g, operating temperature 0 - 40°C (32 - 104°F), storage temperature -20 - 70°C, operating humidity 5 - 95% RH, non-condensing
- Product type
PoE splitter
- PoE
IEEE 802.3bt
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
54 mm
- Height
24 mm
- Length
80 mm
- Factory colour
Multicolour
- Weight
0.102
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2386659 Intellinet 561693 PoE splitter 10 / 100 / 1000 MBit/s IEEE 802.3bt
Description
power over Ethernet splitter – delivers up to 45 W charging power via USB-C and gigabit speed via RJ45
Your network can do more – use your existing PoE++ (4PPoE) connection and charge USB-C devices such as notebooks, MacBooks Pro®, Ultrabooks™ or tablets with the Gigabit Ultra PoE Splitter from INTELLINET Network Solutions. It is connected to an IEEE 802.3bt-compliant PoE injector or PoE switch with a single RJ45 network cable and splits this line into a USB-C power delivery port (PD) and a Gigabit Ethernet port. IEEE 802.3bt is no need, it is backward compatible with IEEE 802.3at and IEEE 802.3af, where it still delivers 23 W or 12 W via USB-C, sufficient for smartphones and many other USB devices. For maximum device safety an over-charge, over-voltage and over-heating protection provides
This text is machine translated.
Your network can do more – use your existing PoE++ (4PPoE) connection and charge USB-C devices such as notebooks, MacBooks Pro®, Ultrabooks™ or tablets with the Gigabit Ultra PoE Splitter from INTELLINET Network Solutions. It is connected to an IEEE 802.3bt-compliant PoE injector or PoE switch with a single RJ45 network cable and splits this line into a USB-C power delivery port (PD) and a Gigabit Ethernet port. IEEE 802.3bt is no need, it is backward compatible with IEEE 802.3at and IEEE 802.3af, where it still delivers 23 W or 12 W via USB-C, sufficient for smartphones and many other USB devices. For maximum device safety an over-charge, over-voltage and over-heating protection provides
This text is machine translated.
Scope of delivery
- Gigabit Ultra PoE Splitter with USB-C-output Quick start guide
