Intellinet 561792 Network switch 10 / 100 / 1000 MBit/s IEEE802.3af (15.4 W), IEEE802.3at (30 W)
EAN:
Part number:
Item no:

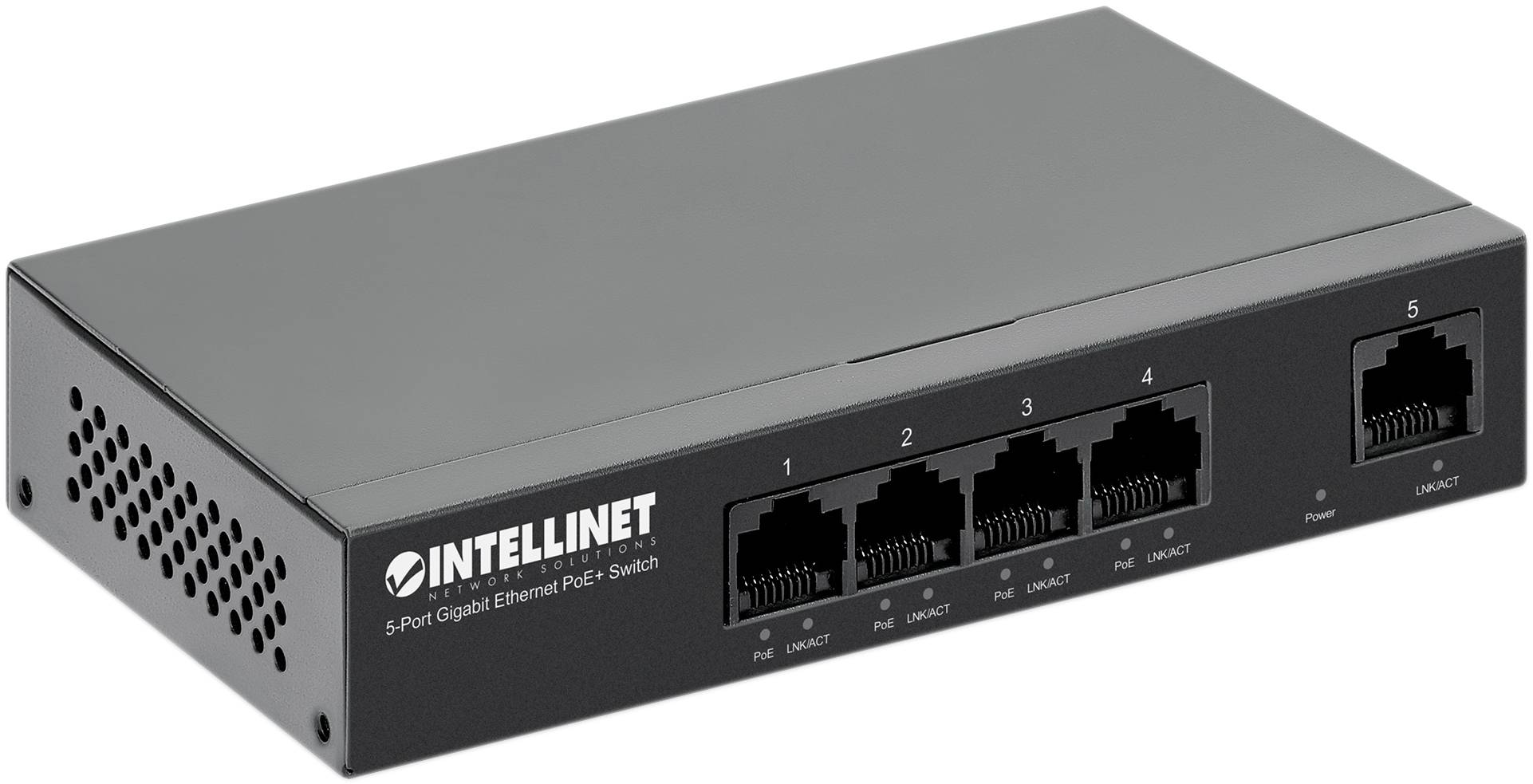

Intellinet 5 ports gigabit Ethernet PoE+ switch
Highlights & Details
- Power and data connection for up to four PoE network devices
- PoE power budget 40 Watt
- 10 Gbit/s switching capacity
- 10/100/1000 Auto-Sensing ports automatically detect the optimal network speed
- Compatible with IEEE 802.3at/AF-compliant powered devices (PD) such as network cameras, WLAN access points, VoIP phones and more
Technical specifications
- Product type
Network switch
- PoE
IEEE802.3af (15.4 W)
IEEE802.3at (30 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
77 mm
- Height
27 mm
- Length
140 mm
- Factory colour
Multicolour
- Weight
0.587
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3338802 Intellinet 561792 Network switch 10 / 100 / 1000 MBit/s IEEE802.3af (15.4 W), IEEE802.3at (30 W)
Description
Low-cost desktop 5-port PoE switch – supports 10/100/1000 Mbit/s and Power over Ethernet 802.3at
The 5-port Gigabit Ethernet PoE+ switch from Intellinet network solutions provides data and power to PoE-compatible devices via Cat5e or Cat6 network cable. Equipped with five gigabit Ethernet ports – four of them with high-Power PoE+ PSE ports – this switch can provide power to WLAN access points, bridges, VoIP phones, IP cameras and more as well as network speeds of up to 1000 Mbit/s.
High-Power PoE+ with up to 30 watt output current per port
This switch supports the IEEE 802.3at protocol that enables up to 30 W output current per port. IEEE802.3af or IEEE802.3at-compliant devices connected to the switch do not require an additional power supply, WAS saves time and money for electrical installations. In addition, power supplies and separate power cables become unnecessary, which provide for an unattractive cable mess especially in case of terminal installations at ceilings and walls. Every combination of PoE and non-PoE devices is supported; the PoE protection function against short circuit, overload and overvoltage protects your network equipment.
This text is machine translated.
The 5-port Gigabit Ethernet PoE+ switch from Intellinet network solutions provides data and power to PoE-compatible devices via Cat5e or Cat6 network cable. Equipped with five gigabit Ethernet ports – four of them with high-Power PoE+ PSE ports – this switch can provide power to WLAN access points, bridges, VoIP phones, IP cameras and more as well as network speeds of up to 1000 Mbit/s.
High-Power PoE+ with up to 30 watt output current per port
This switch supports the IEEE 802.3at protocol that enables up to 30 W output current per port. IEEE802.3af or IEEE802.3at-compliant devices connected to the switch do not require an additional power supply, WAS saves time and money for electrical installations. In addition, power supplies and separate power cables become unnecessary, which provide for an unattractive cable mess especially in case of terminal installations at ceilings and walls. Every combination of PoE and non-PoE devices is supported; the PoE protection function against short circuit, overload and overvoltage protects your network equipment.
This text is machine translated.
Features
- Standards
- IEEE 802.3af (power over Ethernet)
- IEEE 802.3at (high power PoE+ power over Ethernet)
- IEEE 802.3i 10Base-T Ethernet
- IEEE 802.3u (100Base-TX Fast Ethernet).
- IEEE 802.3ab (1000Base-T Gigabit Ethernet)
- IEEE 802.3x (Flow Control for full duplex mode)
- General

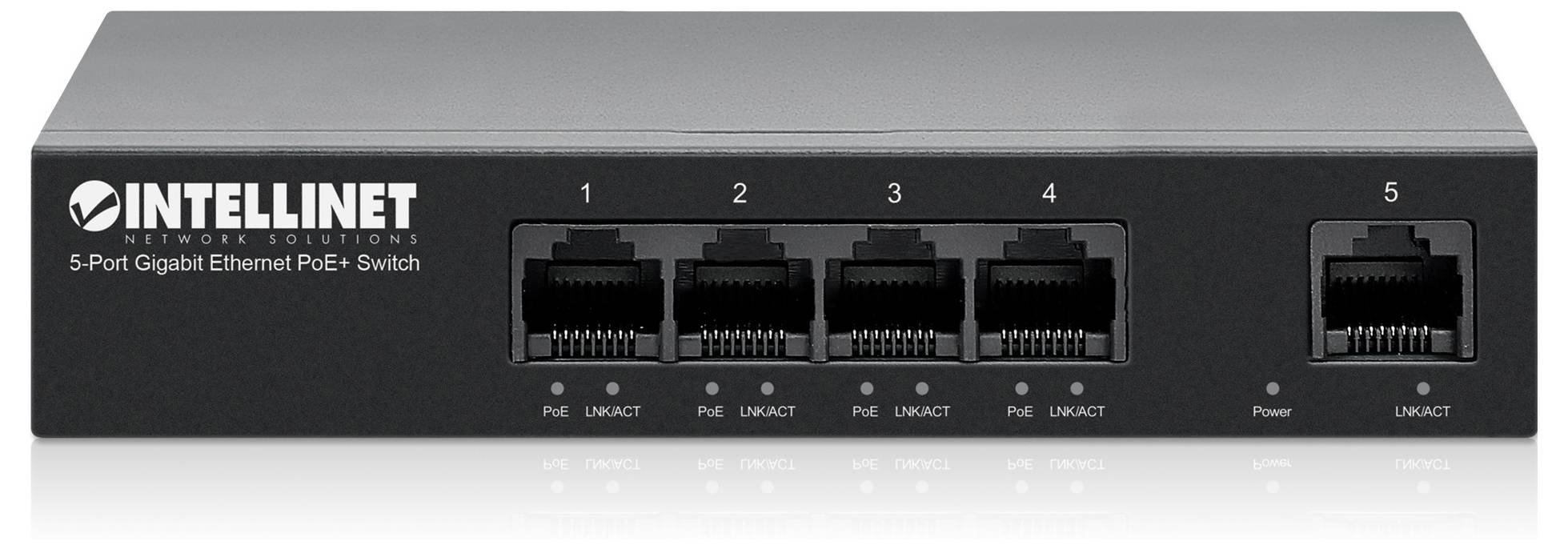

- Ports: Five 10/100/1000 Mbit/s RJ45
- Cat5e/6/6a UTP/STP cables
- Duplex mode: All ports (up to 2000 Mbit/s)
- Forwarding rate: 7.44 Mpps
- Intermediate storage:
- MAC address table: 2,000 entries
- Backplane speed / switching capacity: 10 Gb/s.
- Store-and-forward architecture
- FCC Class A, CE, RoHS
- Current

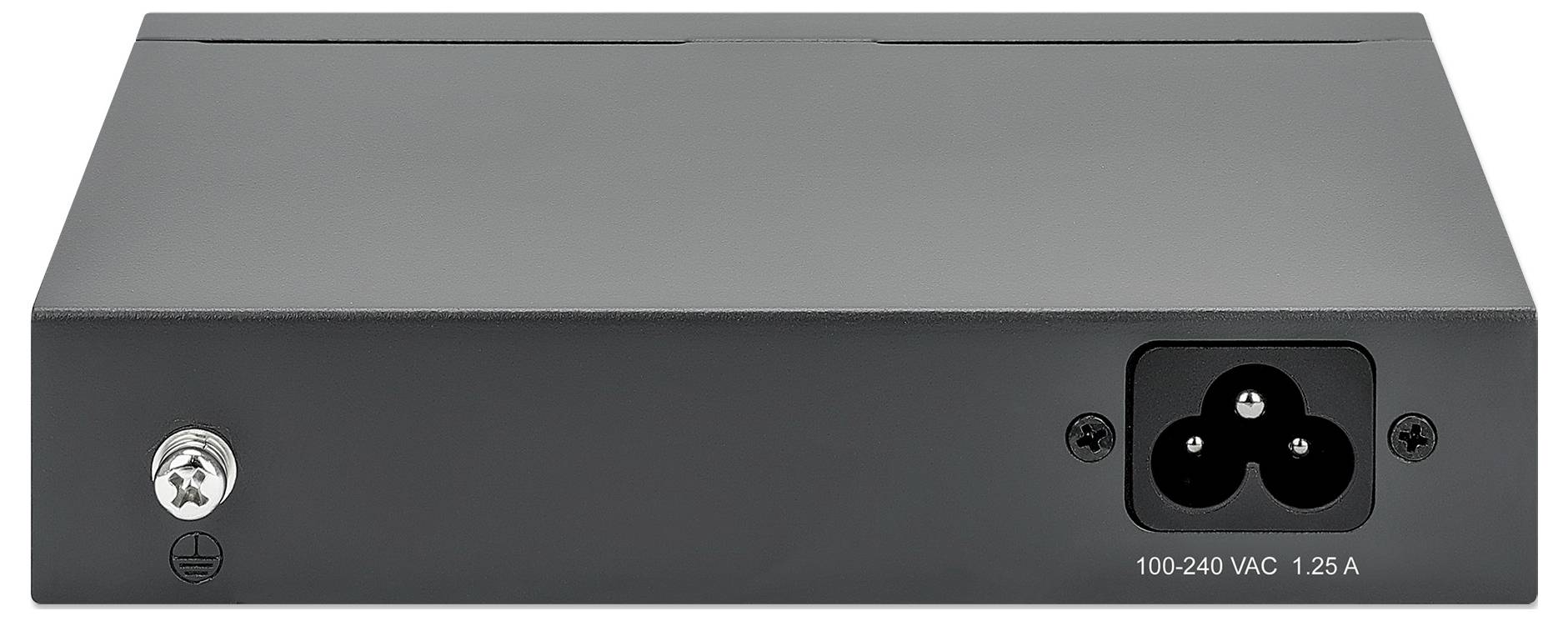

- Input 100.0 – 240.0 VAC, 50 – 60 Hz; 1.5 A
- - PoE power budget: 40.0 watts
- PoE pins
- - Pin 1: DC (+)
- - Pin 2: DC (+)
- - Pin 3: DC (-)
- - Pin 6: DC (-)
- LEDs
- Current
- PoE
- Connection/Activity

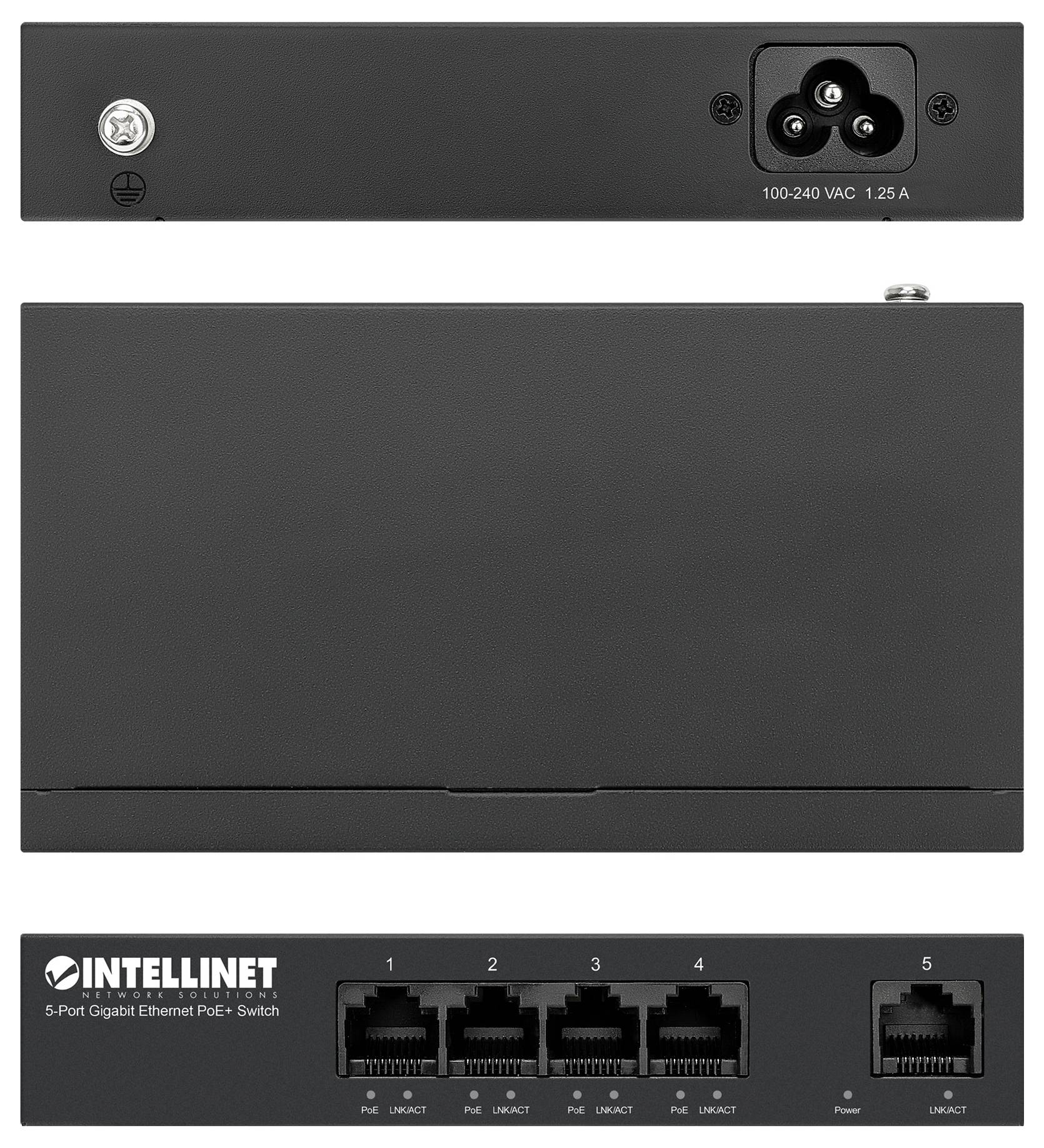

- Physical details
- Dimensions (L x W x H) 140 x 77 x 27 mm
- Weight: 344 g
- Case material: metal
- Operating temperature 0 °C - 40 °C (32 - 104 °F)
- Ambient temperature during storage -40 - 70°C.
- Operating humidity: 10 - 90% RH, non-condensing
- Storage humidity 5 - 90% RH, non-condensing
Scope of delivery
- 5 ports Gigabit Ethernet PoE+ switch
- Power Cables
- User manual.
