Intellinet 562096 562096 Network switch 2.5 GBit/s
EAN:
Part number:
Item no:

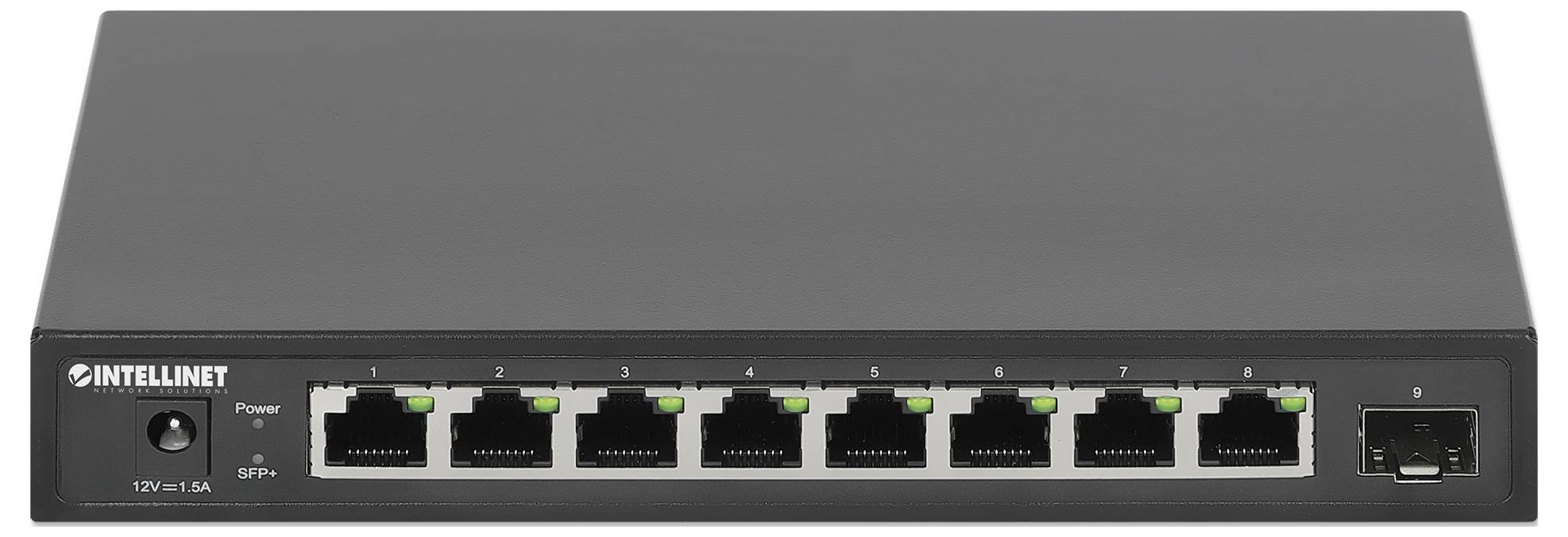

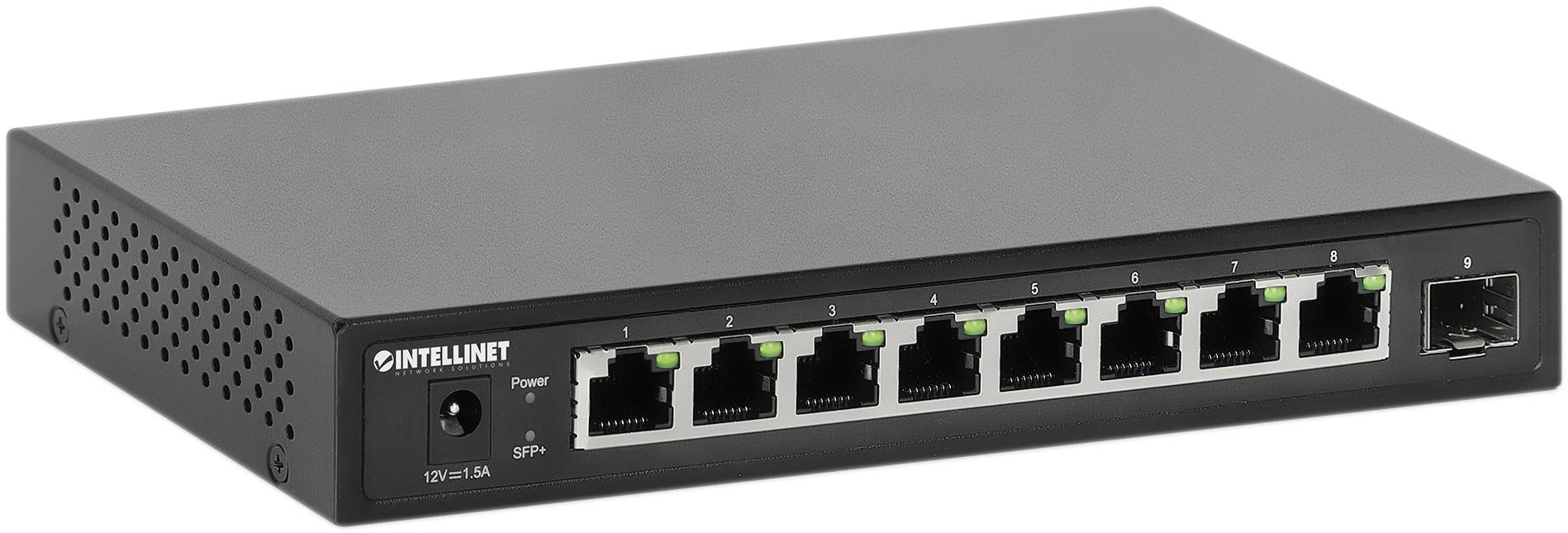

Intellinet 9 port switch with 8 x 2.5G Ethernet ports and 1 SFP+ uplink
Highlights & Details
- Eight ultra-fast 2.5BASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
- 10/100/1000/2500 Mbit/s Auto-Sensing ports automatically detect the optimal network speed
- One GBIC module slot (SFP/SFP+) for 10G uplink capability
- 60 Gbit/s switching capacity
- Downward compatibility with 10/100/1000 Mbit/s devices
Technical specifications
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
2500 MBit/s
- Transfer rate
2.5 GBit/s
- Working principle
Unmanaged switch
- Ethernet ports
8
- SFP+ ports
1 x
- SFP ports
1 x
- Fibre-optic ports
1
- Auto-uplink at each port
No
- Jumbo frames
Yes
- Power supply (LOV)
mains-powered
- MAC addresses
4000
- Weight
500 g
- Width
190 mm
- Height
28 mm
- Depth
100 mm
- Type
562096
- Factory colour
Black
- Max. ambient temperature
40 °C
- Min. ambient temperature
0 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3338800 Intellinet 562096 562096 Network switch 2.5 GBit/s
Description
Next-Gen 2.5 Gbit desktop 8+1 network switch - supports 10/100/1000/2500 Mbit/s and 10G uplink
The 9-port switch with 8 x 2.5G Ethernet ports and 1 SFP+ uplink from Intellinet network solutions delivers data at maximum speed to devices. Equipped with eight Multi-Gigabit-Ethernet PoE+ copper ports, this switch offers data transfer rates of up to 2500 Mbit/s.
2.5G capability opens bottleneck - Ideal for bandwidth-intensive Wi-Fi 6 IEEE 802.11ax access points and more
Since the introduction of Wi-Fi 6 (but already the predecessor Wi-Fi 5 / 802.11ac), "regular" Gigabit Ethernet ports have come up against their bandwidth limits when it comes to connection to high-speed WLAN networks. The support of 2.5GBASE-T can provide access points faster and better, as can other network devices in their enterprise network.
10 Gigabit Ethernet (IEEE 802.3ae) on the SFP+ uplink
Equipped with a 10G SFP+ slot, this switch is the ideal solution for cost-conscious companies that are planning with 10G Ethernet. With 10G technology becoming increasingly popular in business, the need to upgrade more bandwidth is more urgent than ever - even in smaller networks. No matter whether you want to connect servers, NAS or NVRs with 10 Gbit/s or simply want to connect to another gigabit switch without having to use LACP-technologies - 10G offers the solution. If you are not ready for 10G, you can easily use standard 1G SFP modules until you upgrade.
This text is machine translated.
The 9-port switch with 8 x 2.5G Ethernet ports and 1 SFP+ uplink from Intellinet network solutions delivers data at maximum speed to devices. Equipped with eight Multi-Gigabit-Ethernet PoE+ copper ports, this switch offers data transfer rates of up to 2500 Mbit/s.
2.5G capability opens bottleneck - Ideal for bandwidth-intensive Wi-Fi 6 IEEE 802.11ax access points and more
Since the introduction of Wi-Fi 6 (but already the predecessor Wi-Fi 5 / 802.11ac), "regular" Gigabit Ethernet ports have come up against their bandwidth limits when it comes to connection to high-speed WLAN networks. The support of 2.5GBASE-T can provide access points faster and better, as can other network devices in their enterprise network.
10 Gigabit Ethernet (IEEE 802.3ae) on the SFP+ uplink
Equipped with a 10G SFP+ slot, this switch is the ideal solution for cost-conscious companies that are planning with 10G Ethernet. With 10G technology becoming increasingly popular in business, the need to upgrade more bandwidth is more urgent than ever - even in smaller networks. No matter whether you want to connect servers, NAS or NVRs with 10 Gbit/s or simply want to connect to another gigabit switch without having to use LACP-technologies - 10G offers the solution. If you are not ready for 10G, you can easily use standard 1G SFP modules until you upgrade.
This text is machine translated.
Features
- Standards
- IEEE 802.3i 10Base-T Ethernet
- IEEE 802.3ab (twisted pair gigabit Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet).
- IEEE 802.3x (Flow Control for full duplex mode)
- IEEE 802.3bz (2.55GBASE-T Ethernet)
- IEEE 802.3ae (10 gigabit Ethernet over fiber)
- General:
- Media Support:
- - 10Base-T Cat. 3/4/5/5e/6/6A UTP/STP RJ45
- - 100Base-TX Cat5/5e/6/6A UTP/STP RJ45
- - 1000Base-T Cat 5e/6/6A UTP/STP RJ45
- - 2.5BASE-T UTP/STP RJ45, 8-pin
- MAC address entries: 4,000
- Intermediate memory: 8.1 Mbits
- Forwarding-rate: 44.64 Mpps
- 60 Gbps switching capacity
- Switch architecture: Store and forward
- FCC, CE, RoHS, UKCA, NDAA
- LEDs
- Current
- Link/Act
- Current
- External power supply included in delivery:
- - Input 100.0 - 240.0 VAC, 50 - 60 Hz, 18.0 W.
- - OUTPUT: DC, 12.0 V, 1.5 A
- Physical details
- Metal housing
- Dimensions (L x W x H) 100 x 190 x 28 mm
- Net weight: 500 g
- Gross weight 750 g
- Operating ambient temperature 0 - 40°C.
- Ambient temperature during storage -40 - 70°C.
- Operating humidity: 10 - 90% RH, non-condensing
- Humidity during storage 5 - 90% RH, non-condensing
Scope of delivery
- Standards
- IEEE 802.3i 10Base-T Ethernet
- IEEE 802.3ab (twisted pair gigabit Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet).
- IEEE 802.3x (Flow Control for full duplex mode)
- IEEE 802.3bz (2.55GBASE-T Ethernet)
- IEEE 802.3ae (10 gigabit Ethernet over fiber)
- General:
- Media Support:
- - 10Base-T Cat. 3/4/5/5e/6/6A UTP/STP RJ45
- - 100Base-TX Cat5/5e/6/6A UTP/STP RJ45
- - 1000Base-T Cat 5e/6/6A UTP/STP RJ45
- - 2.5BASE-T UTP/STP RJ45, 8-pin
- MAC address entries: 4,000
- Intermediate memory: 8.1 Mbits
- Forwarding-rate: 44.64 Mpps
- 60 Gbps switching capacity
- Switch architecture: Store and forward
- FCC, CE, RoHS, UKCA, NDAA
- LEDs
- Current
- Link/Act
- Current
- External power supply included in delivery:
- - Input 100.0 - 240.0 VAC, 50 - 60 Hz, 18.0 W.
- - OUTPUT: DC, 12.0 V, 1.5 A
- Physical details
- Metal housing
- Dimensions (L x W x H) 100 x 190 x 28 mm
- Net weight: 500 g
- Gross weight 750 g
- Operating ambient temperature 0 - 40°C.
- Ambient temperature during storage -40 - 70°C.
- Operating humidity: 10 - 90% RH, non-condensing
- Humidity during storage 5 - 90% RH, non-condensing
System requirements
- This product is available in the following variants:
#562058 - 5-port switch with 4 x 2.5G Ethernet ports and 1 SFP+ uplink
#562096 - 9-port switch with 8 x 2.5G Ethernet ports and 1 SFP+ uplink
