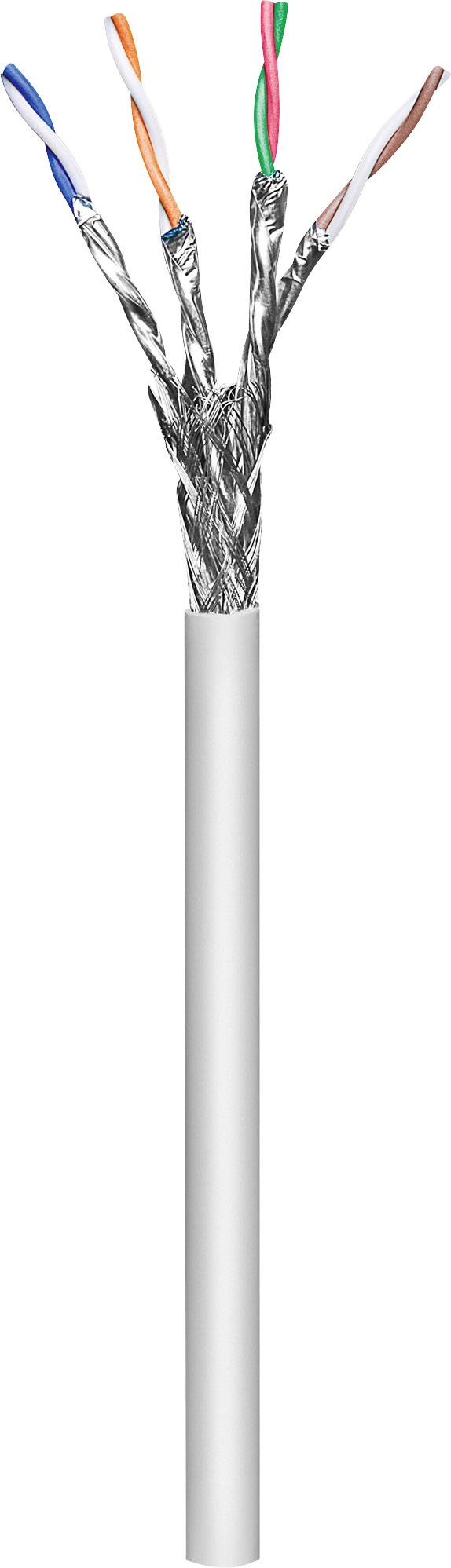

Intellinet 705035 Electrical wiring CAT 6A S/FTP 4 x 2 x 0.56 mm Grey 305 m
EAN:
Part number:
Item no:
Product type
Electrical wiring
Specification
CAT 6A
Shielding
S/FTP
No. of leads
8 x
Cross section (each core)
0.56 mm
INTELLINET cable Cat6a S/FTP 305 m cable drum LS0H CPR DCA-classified AWG 23 solid wire gray
Highlights & Details
- CPR-DCA-classified (according to regulation for the marketing of construction products EU-BauPVO)
- Tested for standards, conforms to current Cat6a standards
- Suitable for structured building cabling for secondary and tertiary areas
- Recommended for applications with 10/100/1000/10GBase-T, ATM, FDDI, Video, ISDN, Multimedia and PoE
- 305 m cable reel
Technical specifications
- Inner conductor: Copper
- Cable shape: Round
- Product type
Electrical wiring
CAT 6A
S/FTP
- No. of leads
8 x
- Cross section (each core)
0.56 mm
- Cross section
4 x 2 x 0.56 mm
- Cable features
Halogen-free
- Factory colour
Grey
- Content
305 m
- AWG max.
23
- Packaged
Yes
- Sold per metre
No
- Manufacturer part #
705035
- Type
705035
- Insulation material
LSZH
- Halogen-free
Yes
- Max. length sold by the metre
305 m
- Twisted pair cabling (part 1)
Yes (1)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2265716 Intellinet 705035 Electrical wiring CAT 6A S/FTP 4 x 2 x 0.56 mm Grey 305 m
Description
Laying cable for highest network requirements
This INTELLINET Network Solutions Cat6a installation cable has the characteristics to meet the highest requirements: It is suitable for networks up to 10 Gigabit/s on 500 MHz and sheathed with halogen-free LSZH-3 material, conforming to IEC 60332-3-24, FRNC-C and CPR-DCA. This solid wire cable is therefore particularly suitable for extensive building cabling in secondary and tertiary areas. It is supplied on a robust 305 m cable reel.
This text is machine translated.
This INTELLINET Network Solutions Cat6a installation cable has the characteristics to meet the highest requirements: It is suitable for networks up to 10 Gigabit/s on 500 MHz and sheathed with halogen-free LSZH-3 material, conforming to IEC 60332-3-24, FRNC-C and CPR-DCA. This solid wire cable is therefore particularly suitable for extensive building cabling in secondary and tertiary areas. It is supplied on a robust 305 m cable reel.
This text is machine translated.
Features
- IEC61156-5
- ISO/IEC 11801
- CPR-DCA
- RoHS, REACH
- conductor: Bare solid copper wire
- conductor diameter: 1/0.56 mm ± 0.008 mm
- insulation: FMPE
- average thickness: 0.4 mm
- insulation diameter: 1.35 mm ± 0.05 mm
- aluminum foil shielding around each pair
- of wire braid shielding: Tin-plated copper
- halogen-free sheath (LS0H)
- tear-proof separating thread as stripping aid
- Max. Conductor resistance 20°C: 93.8 Ω/km
- Delay skew: ≤ 45 ns/100 m
- asymmetry capacitance pair/earth: ≤ 330 pF/100 m
- minimum insulation resistance: 5000 MΩ/km
- asymmetry resistance: ≤ 4%
- minimum bending radius: 8 mm outer diameter
