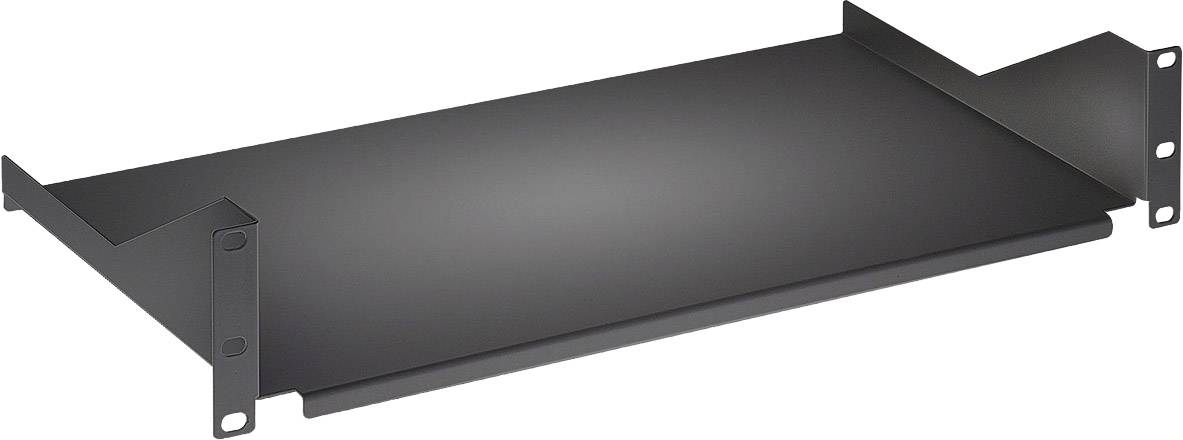

Intellinet 710916 19 inch Server rack cabinet shelf 2 U Suitable for (cabinet depths): 600 mm Black (RAL 9005)
EAN:
Part number:
Item no:
INTELLINET 19" shelf for front mounting 2 HE mounting on the Both front profiled rails shelf depth 400 mm black
Highlights & Details
- 2-point attachment to the two front 19" rails
- For wall and stand distributors with a depth of at least 520 mm
Technical specifications
- Product type
Server rack cabinet shelf
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
2 U
- Suitable for (cabinet depths)
600 mm
- Load capacity (max.)
25 kg
- Dim
(W x H x D) 482 x 88 x 400 mm
- Material
Steel
- Content
1 pc(s)
- Factory colour
Black (RAL 9005)
- Width
482 mm
- Height
88 mm
- Depth
400 mm
- Weight
2.650
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2356828 Intellinet 710916 19 inch Server rack cabinet shelf 2 U Suitable for (cabinet depths): 600 mm Black (RAL 9005)
Description
The INTELLINET 19" shelves are the ideal supplement for your server and network installations. Choose from four versions, suitable for every requirement: For fixed mounting, for front mounting, with particularly high load capacity (up to 100 kg) or extendable. In addition, they are flexible with depths from 150 mm to 900 mm as well as in the colors black (RAL9005) and gray (RAL7035).
This text is machine translated.
This text is machine translated.
Features
- Color: RAL 9005 black
- Max. bearing load: 25 kg
- Dimensions 102 (H) x 482 (W) x 400 (D) mm
