Buy Intellinet 711760 19" server rack cabinet (W x H x D) 600 x 370 x 450 mm 6 U Grey-white (RAL 7035)

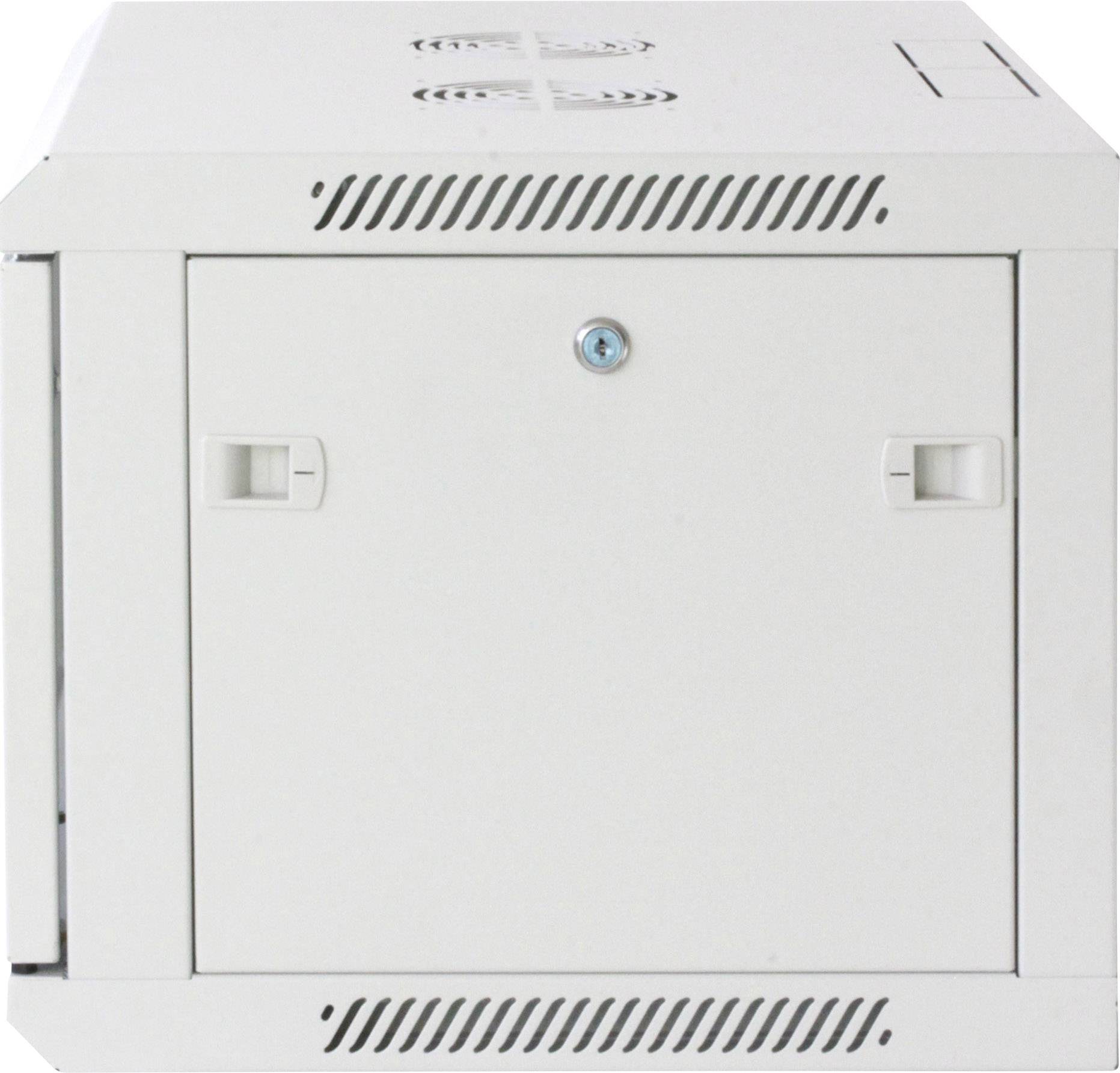

A white wall-mounted cabinet with ventilation slots at the top and on the door. The cabinet is lockable and suitable for storing equipment.

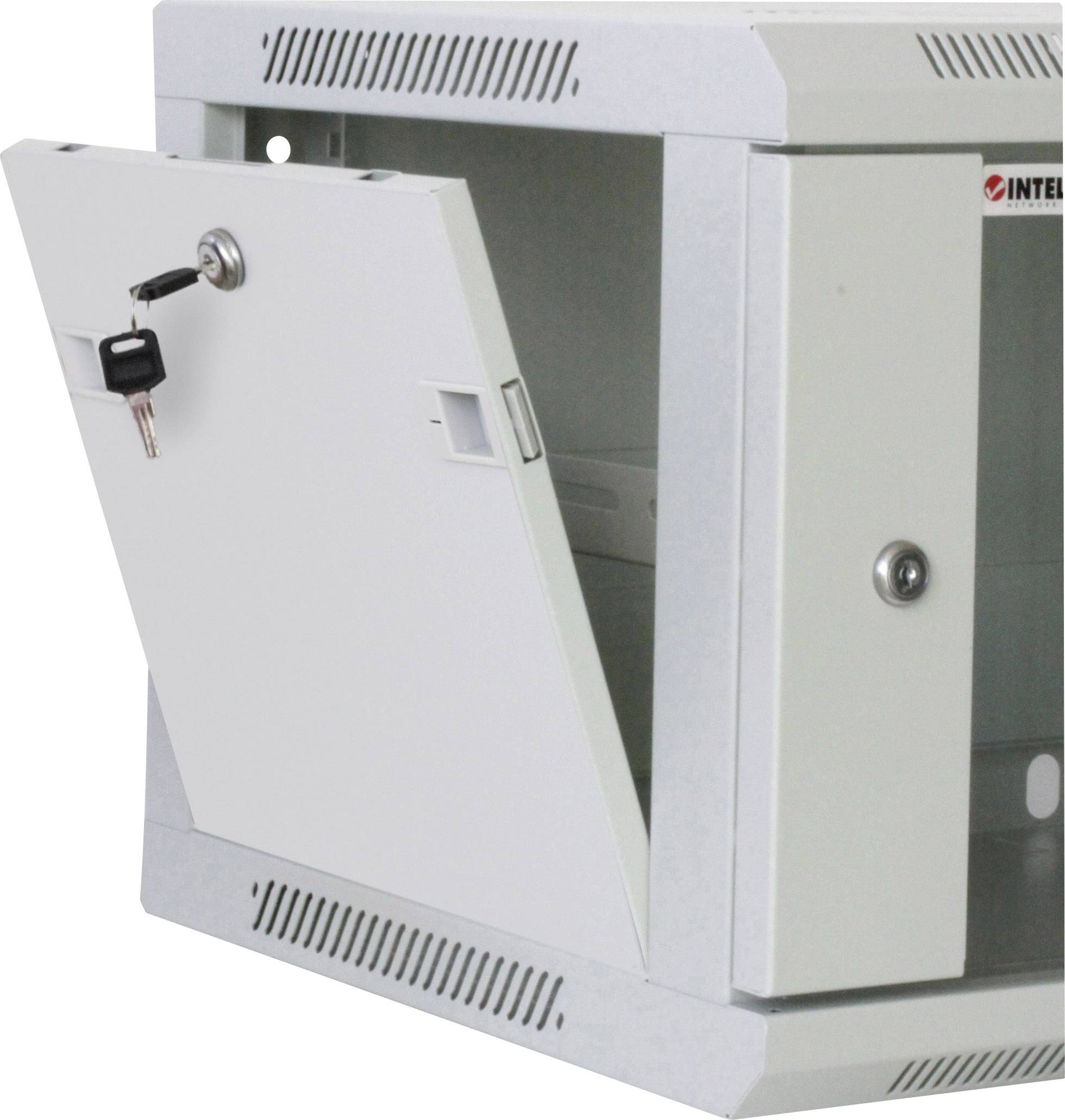

An open, lockable network cabinet with the key inserted demonstrates the security provision.

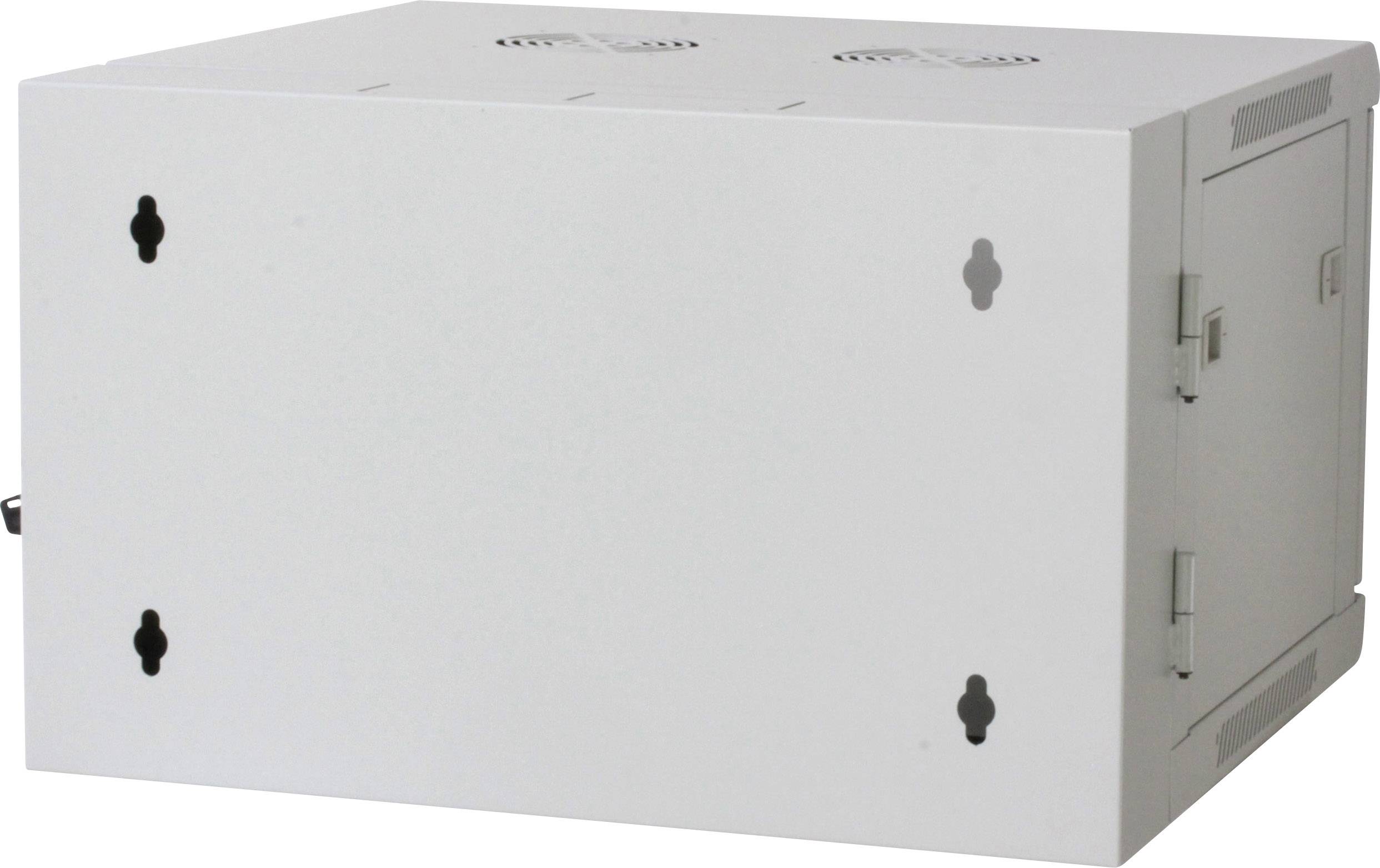

A white rectangular box with holes for wall mounting. It has ventilation openings at the top and a side door with a handle.

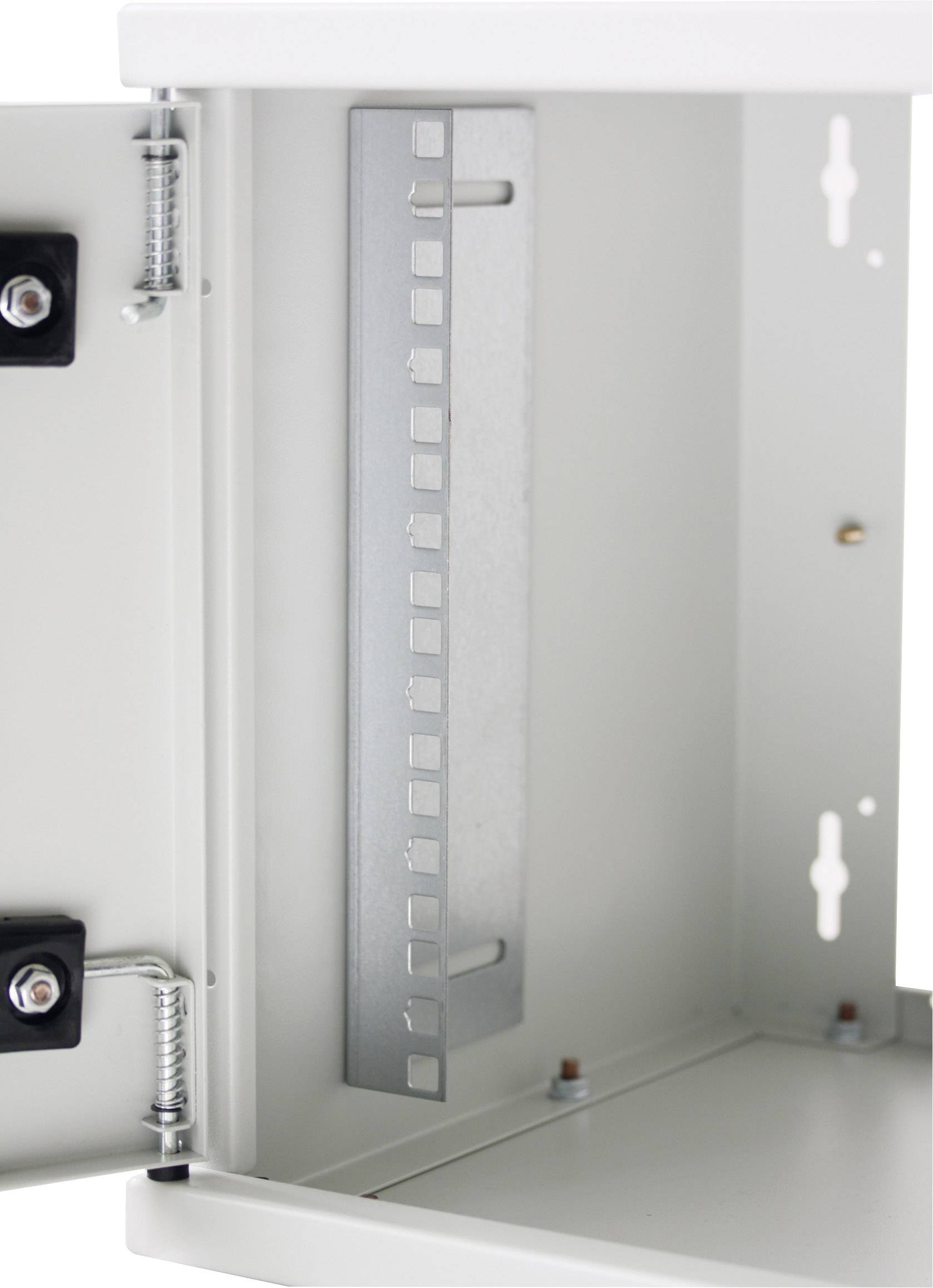

'Open metal enclosure with screws and hinges, showing mounting points and cable attachment openings, suitable for electrical installations.'

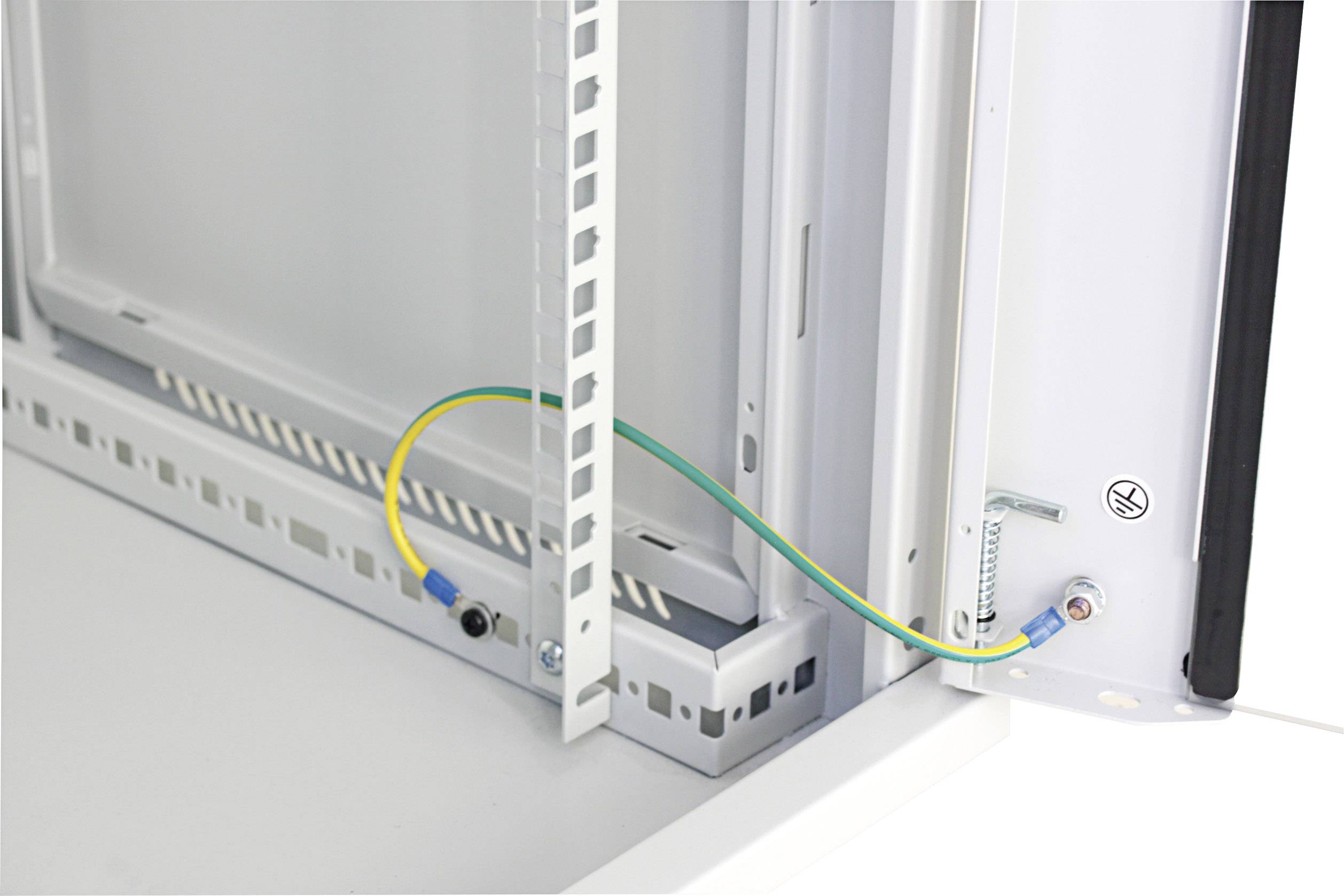

An open electrical cabinet with an attached earthing cable for discharging electrical currents to ensure safety.

1/6

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€ 100.83

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Intellinet 19" Wall distributor, 6 HE, 450 mm deep, gray

Highlights & Details

ideal for 19" applications
Maximum load capacity 60 kg
Safety glass door can be opened by more than 180°
Cold-rolled, galvanized SPCC steel frame with a thickness of up to 1.2 mm
Anti-static powder coating on all sides
Removable, lockable side walls
Supplied fully assembled

Technical specifications

Product type: 19" server rack cabinet

Rack unit: 6 U

Width: 600 mm

Height: 370 mm

Depth: 450 mm

Material: Safety glass
Steel

Dim: (W x H x D) 600 x 370 x 450 mm

Weight: 17 kg

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

Cable length: 0 cm

Product type description: Rack

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1337016 Intellinet 711760 19" server rack cabinet (W x H x D) 600 x 370 x 450 mm 6 U Grey-white (RAL 7035)

User & Safety Instructions

User & Safety Instructions 1337016 Intellinet 711760 19" server rack cabinet (W x H x D) 600 x 370 x 450 mm 6 U Grey-white (RAL 7035)

Description

The Intellinet wall distributor offer a flexible and comprehensive solution for your network installations. We will be happy to come already during the delivery counter - let yourself be comfortable fully assembled wall distributor or save space and money with the respective flat-pack version.

With the enclosures, you can use besides the particularly compact 10" cabinets from numerous 19" options. From 6 to 20 height units, installation depths of 300 to 600 mm as well as each in black (RAL 9005) or gray (RAL 7035) we offer you suitable for every need. The removable side walls, the lockable, over 180° to open safety glass door and the optional swivel frame make wiring and components exchange especially comfortable.

When we pay attention on top quality materials and workmanship. This includes a spcc kaltgewalzter-steel frame and anti-static powder coating on all sides.

This text is machine translated.
