Buy Intellinet 713085 19" server rack cabinet (W x H x D) 600 x 1120 x 800 mm 22 U Black (RAL 9005)

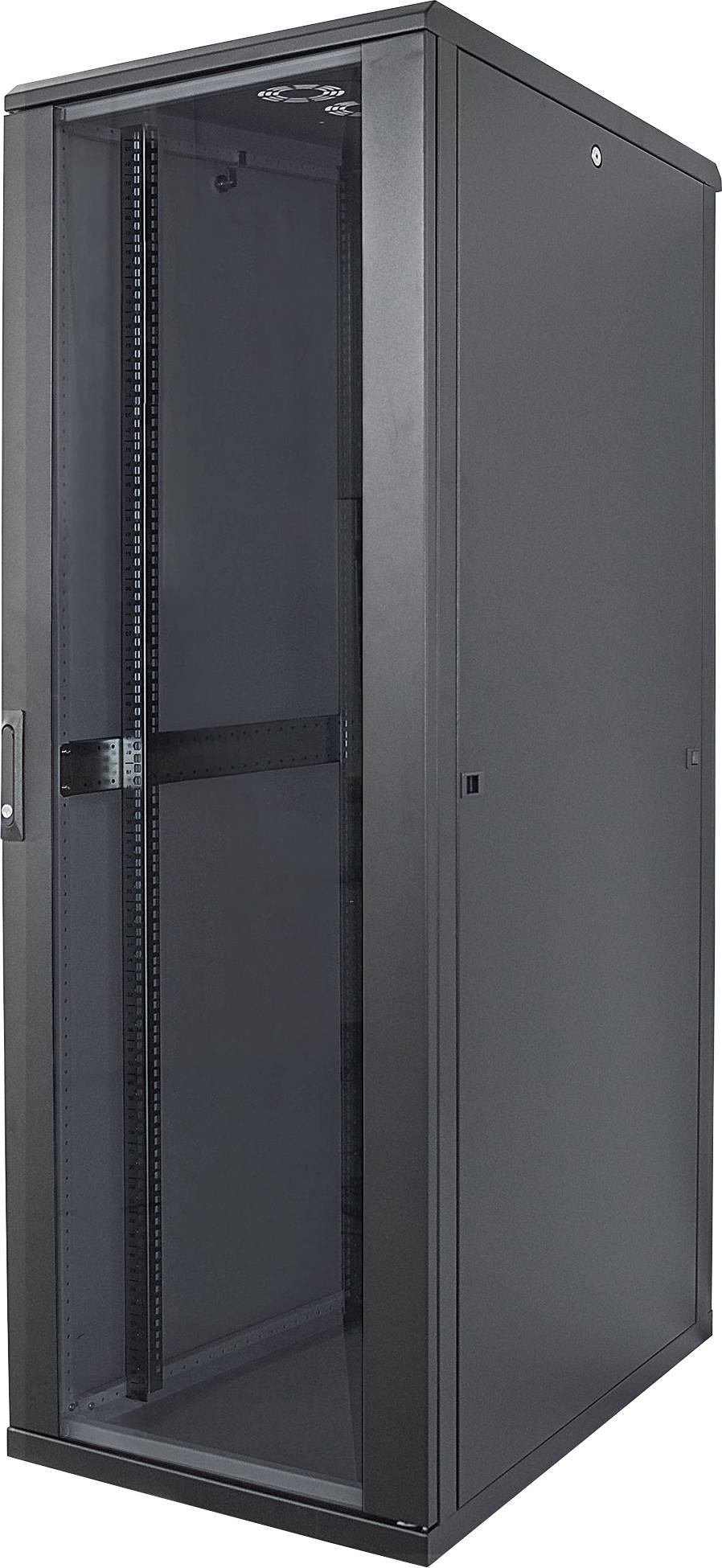

A blank black server cabinet with a glass door, suitable for IT equipment.

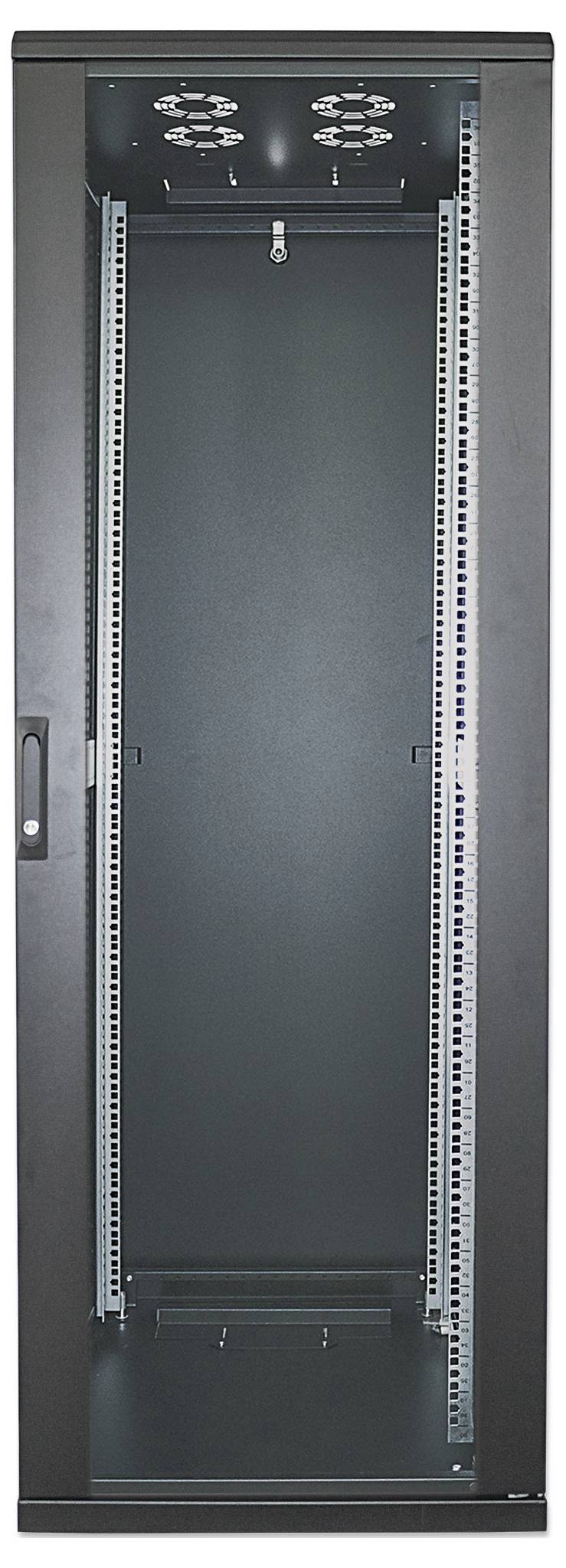

Black server rack enclosure, empty, with side rails and ventilation holes on top, for installing network hardware.

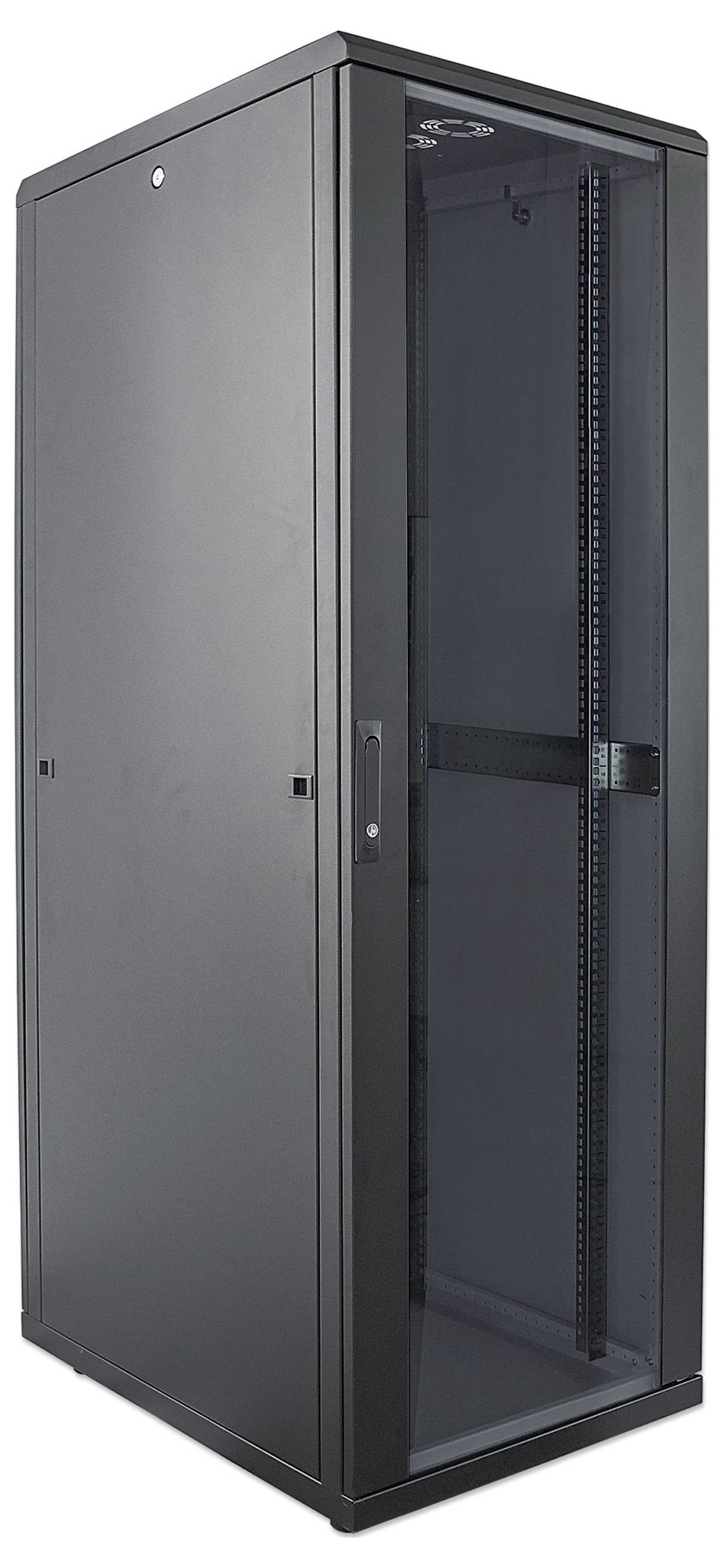

Grey network cabinet with glass door, suitable for storing servers and network devices in a data centre.

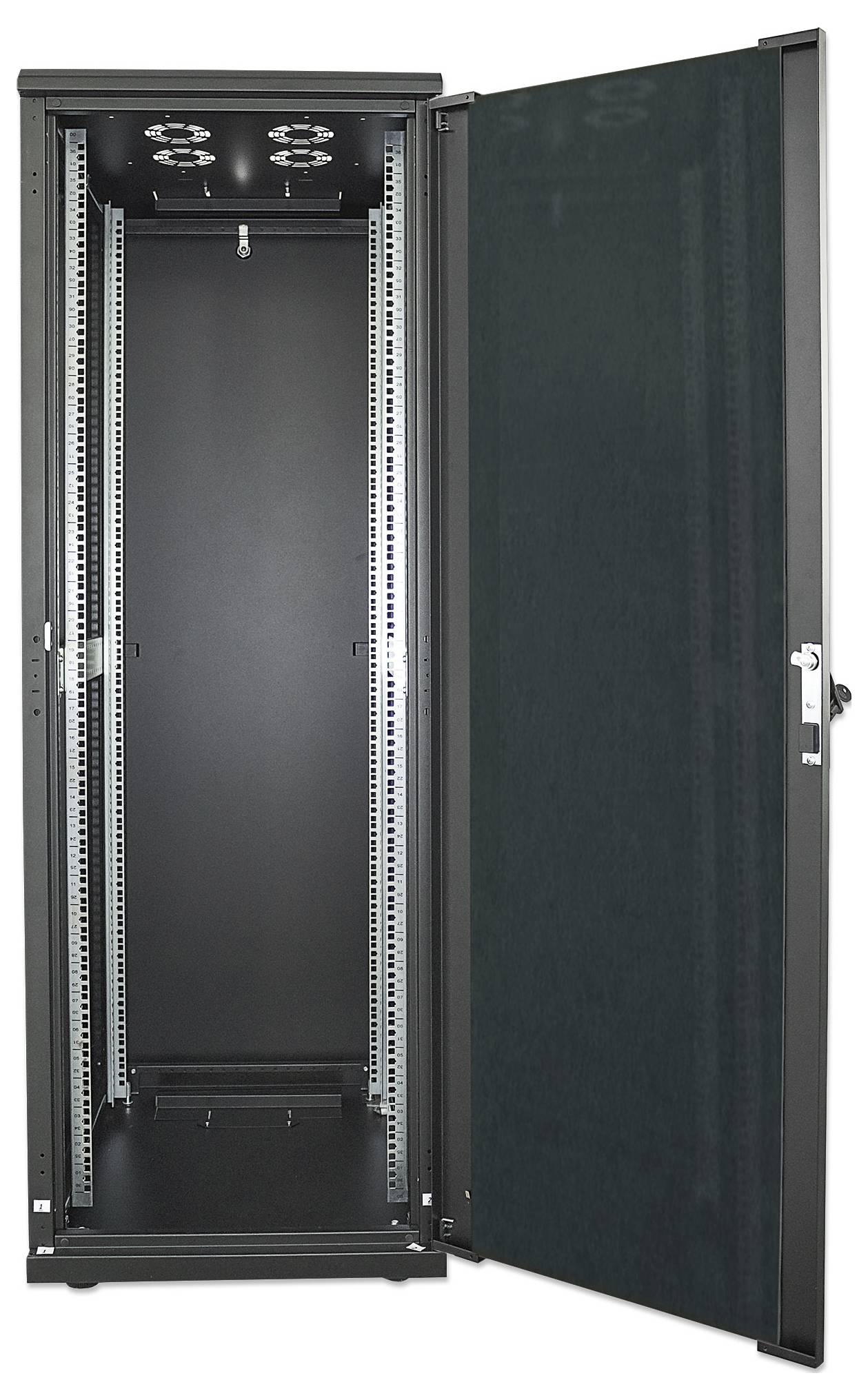

An open, empty server rack cabinet with a black enclosure, showing the inner rails and ventilation holes at the top.

1/4

Datasheet (PDF)

Dispatches on Thu, 19 Nov

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 301.68 / piece)

€ 301.68

plus VAT.

14-day return policy included

Report legal concerns

Intellinet 19" network cabinets, 22 HE, 800 mm deep, black

Highlights & Details

Ideal for all 19" applications
Maximum load-carrying capacity 1500 kg
Safety glass door
Galvanised 19" Rails
Anti-static powder coating on all sides.
Steel frame with 2 mm thickness
Housing with protection class IP20
Simply participating side and rear walls
Lockable front door with pivot lever handle
Two openings enables the cable bushing top or bottom
Ventilation slots for optimal air circulation
Supplied as a flat-pack

Technical specifications

Product type: 19" server rack cabinet

Rack unit: 22 U

Width: 600 mm

Height: 1120 mm

Depth: 800 mm

Material: Safety glass
Steel

Dim: (W x H x D) 600 x 1120 x 800 mm

Weight: 84 kg

Factory colour: Black (RAL 9005)

Rack size: 483 mm (19")

Cable length: 0 cm

Product type description: Rack

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1336932 Intellinet 713085 19" server rack cabinet (W x H x D) 600 x 1120 x 800 mm 22 U Black (RAL 9005)

User & Safety Instructions

User & Safety Instructions 1336932 Intellinet 713085 19" server rack cabinet (W x H x D) 600 x 1120 x 800 mm 22 U Black (RAL 9005)

Description

The Intellinet network cabinets offer a flexible and comprehensive solution for your network installations. We will be happy to come already during the delivery counter - let yourself be comfortable fully assembled network cabinet deliver or save space and money with the respective flat-pack version.

For the enclosures, you can choose from a variety of 19" options. From 16 to 42 height units, installation depths of 600 to 800 mm as well as each in black (RAL 9005) or gray (RAL 7035) we offer you suitable for every need. The removable side walls and lockable safety glass door make wiring and components exchange especially comfortable.

When we pay attention on top quality materials and workmanship. This includes a kaltgewalzter galvanised steel frame, 19" rails and anti-static powder coating on all sides.

This text is machine translated.
