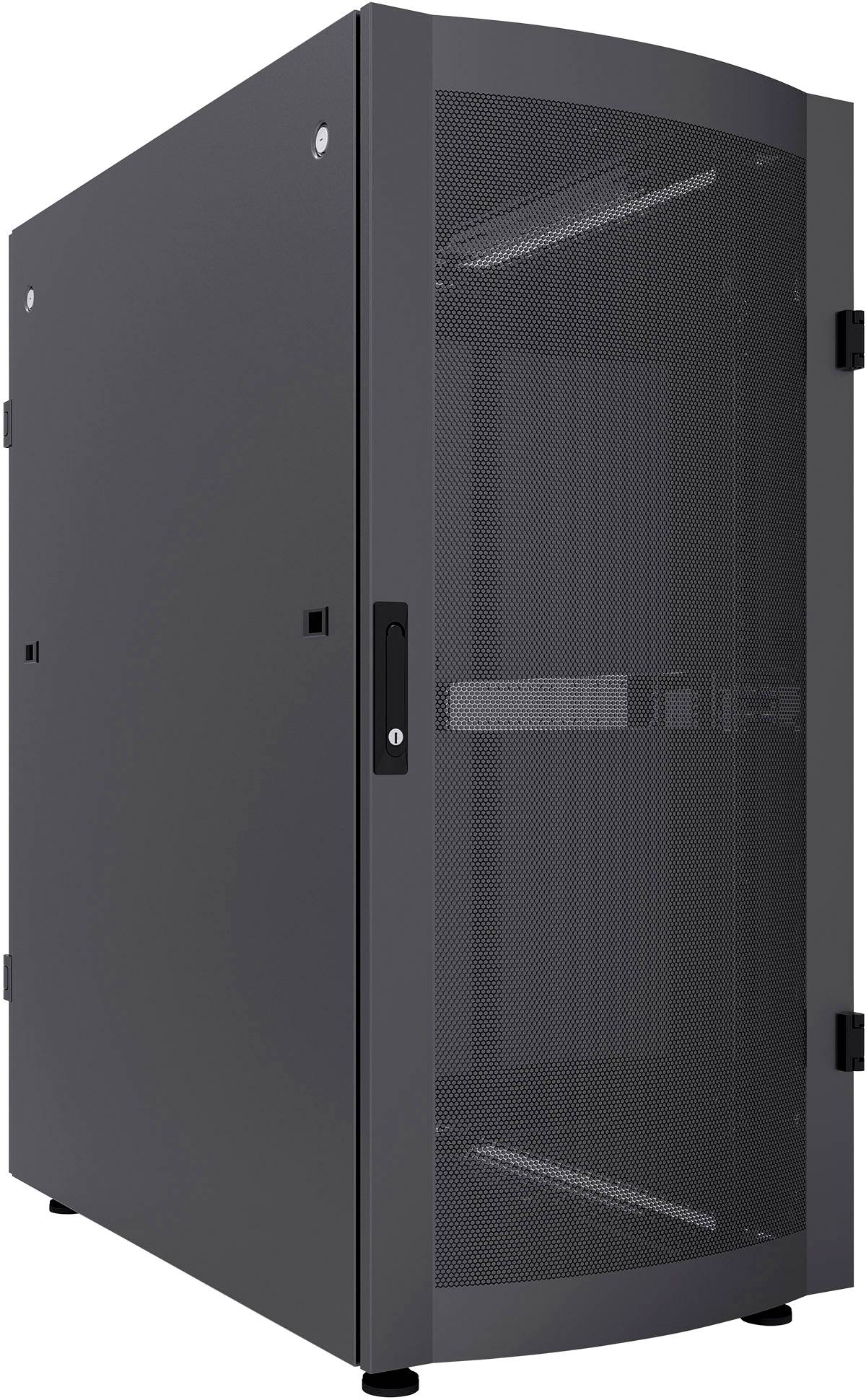

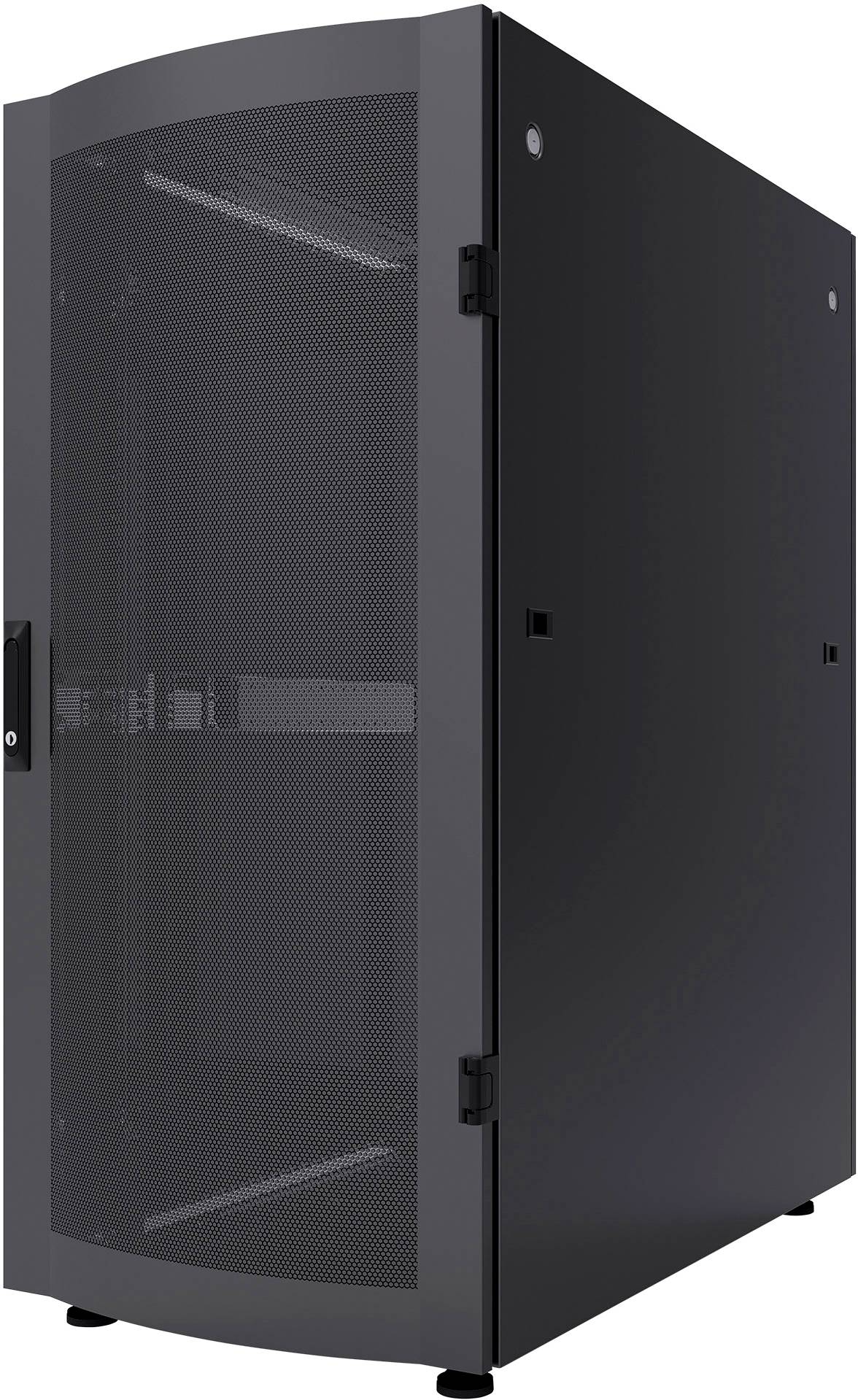

Intellinet 713696 19" server rack cabinet (W x H x D) 600 x 1766 x 1200 mm 36 U Black (RAL 9005)
EAN:
Part number:
Item no:
INTELLINET 19" server cabinet 36 HE 1728 (H) x 600 (W) x 1200 (T) mm Protection class IP20 Flatpack black
Highlights & Details
- Maximum load capacity 1500 kg

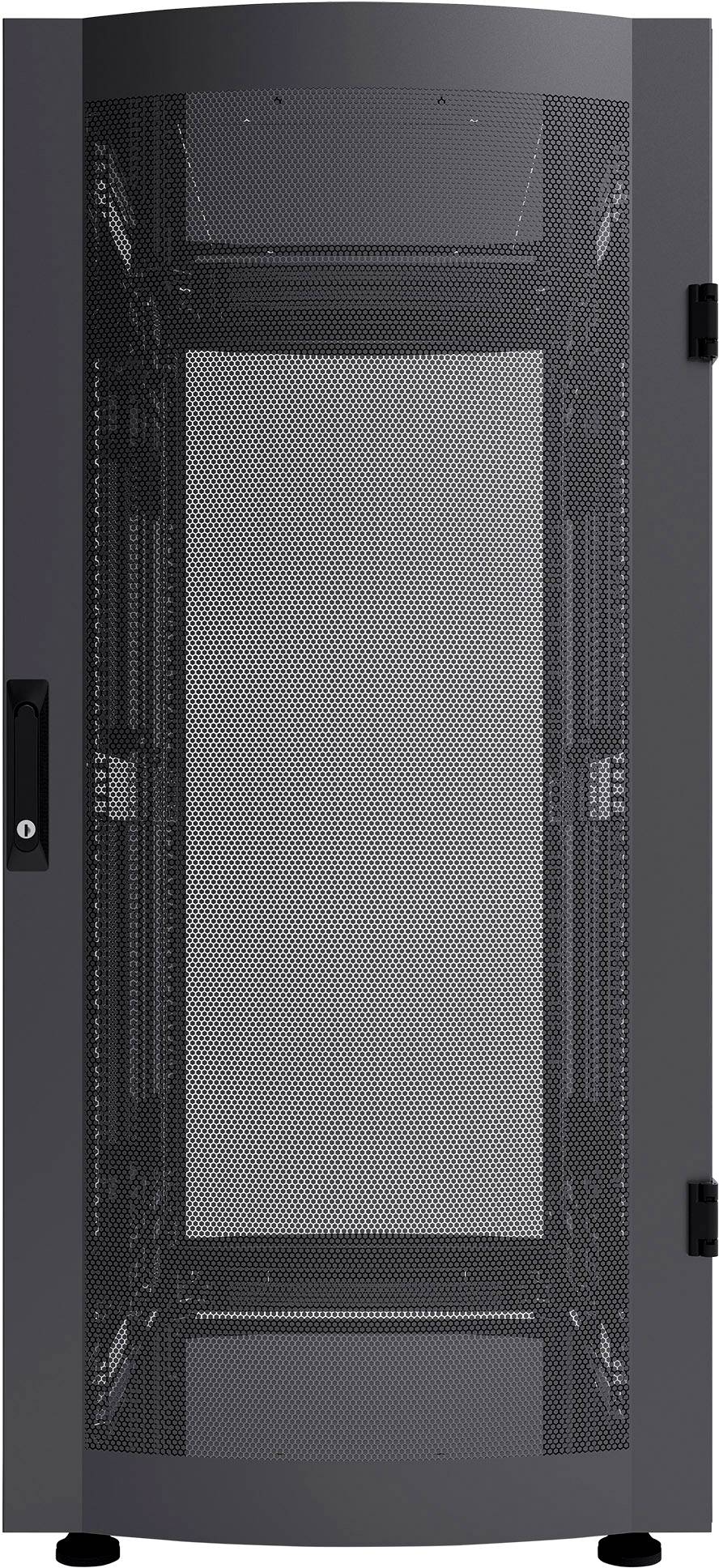

- Perforated doors at the front and back for optimum air circulation
- Housing with protection class IP20
- Lockable doors with pivot lever handle
- Two openings allow the cable gland at the top or bottom
Technical specifications
- Product type
19" server rack cabinet
- Rack unit
36 U
- Width
600 mm
- Height
1766 mm
- Depth
1200 mm
- Material
Steel
- Dim
(W x H x D) 600 x 1766 x 1200 mm
- Weight
121 kg
- Factory colour
Black (RAL 9005)
- Rack size
483 mm (19")
- Cable length
0 cm
- Product type description
Rack
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2270492 Intellinet 713696 19" server rack cabinet (W x H x D) 600 x 1766 x 1200 mm 36 U Black (RAL 9005)
Description
The INTELLINET server cabinets offer you a flexible and comprehensive solution for your server installations. We will be happy to meet you at the time of delivery – you can comfortably supply the fully assembled server rack or save space and money with the respective Flatpack version.
There are a number of 19" options available for the enclosures. From 26 to 47 height units, a mounting depth of 1000 or 1200 mm as well as in black (RAL9005) or gray (RAL7035) we offer you suitable for every requirement. The removable side walls and lockable doors make wiring and component replacement particularly comfortable. Perforation at the front and back side also provides for optimal air circulation.
We pay attention to top quality in materials and workmanship. This includes a cold-rolled steel frame, galvanized 19” rails and antistatic powder coating on all sides.
This text is machine translated.
There are a number of 19" options available for the enclosures. From 26 to 47 height units, a mounting depth of 1000 or 1200 mm as well as in black (RAL9005) or gray (RAL7035) we offer you suitable for every requirement. The removable side walls and lockable doors make wiring and component replacement particularly comfortable. Perforation at the front and back side also provides for optimal air circulation.
We pay attention to top quality in materials and workmanship. This includes a cold-rolled steel frame, galvanized 19” rails and antistatic powder coating on all sides.
This text is machine translated.
Features
- 19"
- 36 rack units
- Color: Black RAL9005
- galvanized 19" rails
- Anti-static powder coating on all sides
- Steel frame with 2 mm thickness

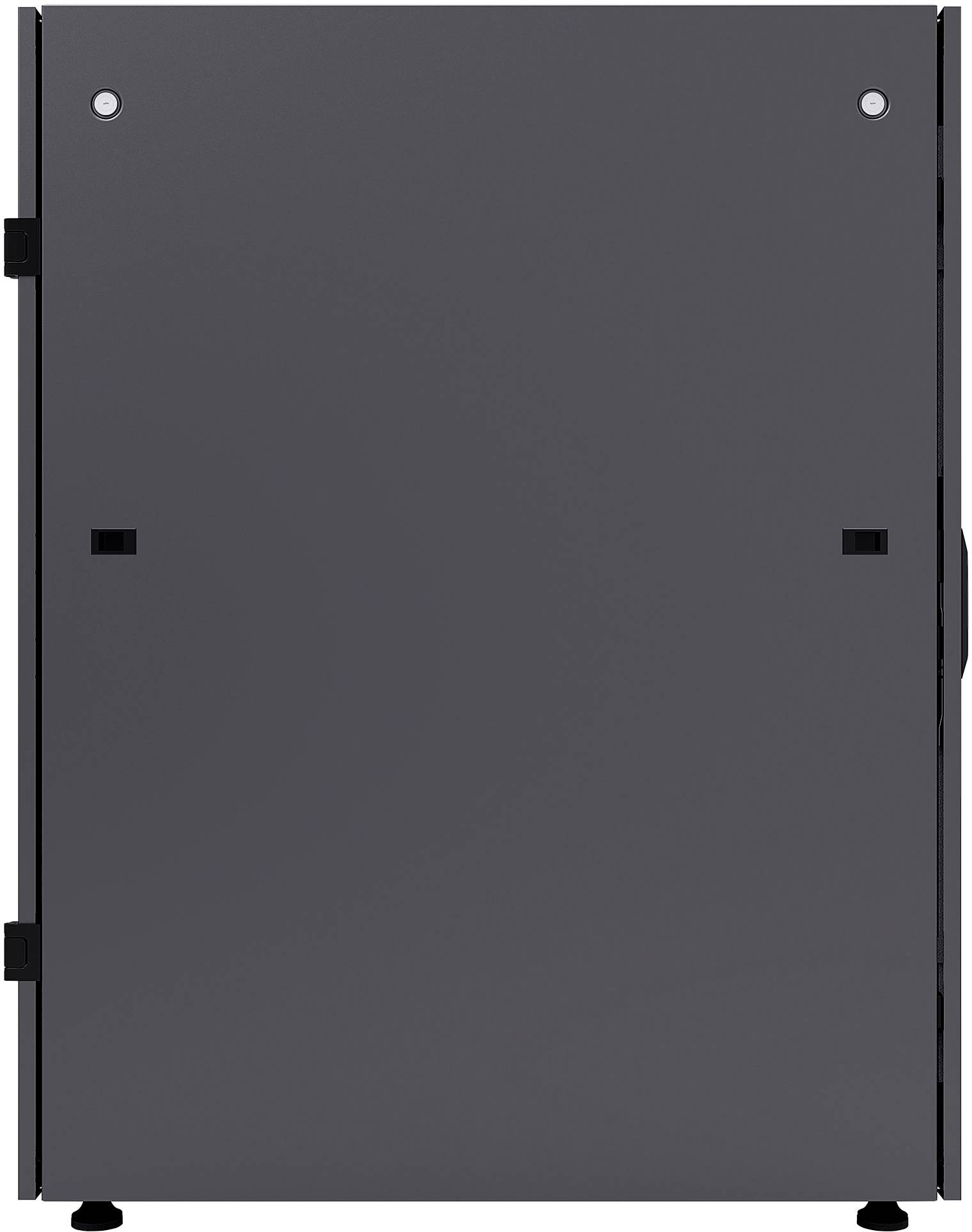

- easy to remove side walls
- Certificates: RoHS, UL, Gost-R
- protection class: IP20
Scope of delivery
- 19" server cabinet
- 4 depth-adjustable mounting rails
- 4 levelling feet
- Fitting Material
