Intellinet 713795 19" wall cabinet (W x H x D) 540 x 593 x 450 mm 12 U Grey-white (RAL 7035)
EAN:
Part number:
Item no:
Intellinet 19" Wall distributor with swivel frame 12 HE 450 mm (T) flat-pack gray
Highlights & Details

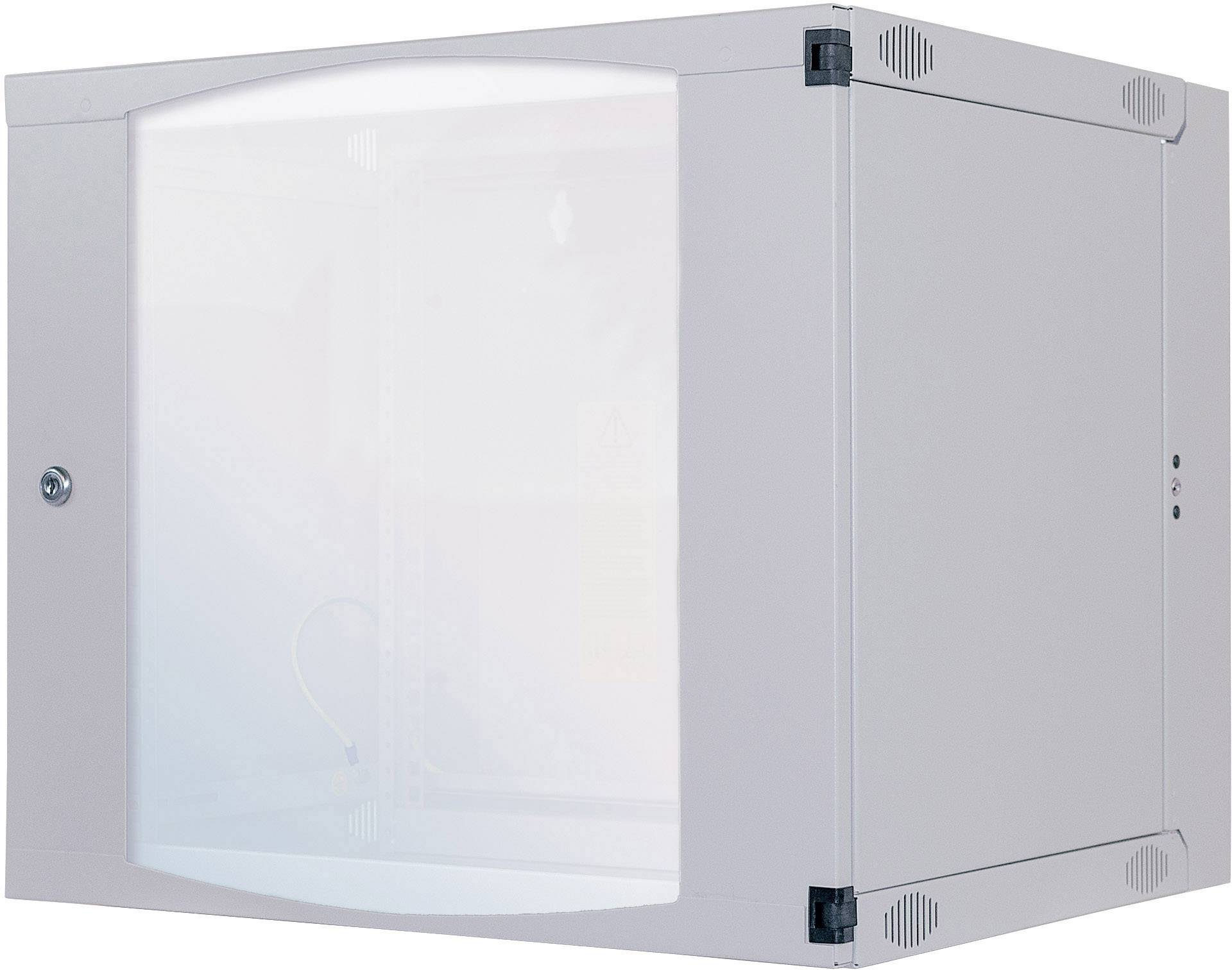

- Safety glass door with 4 mm thickness

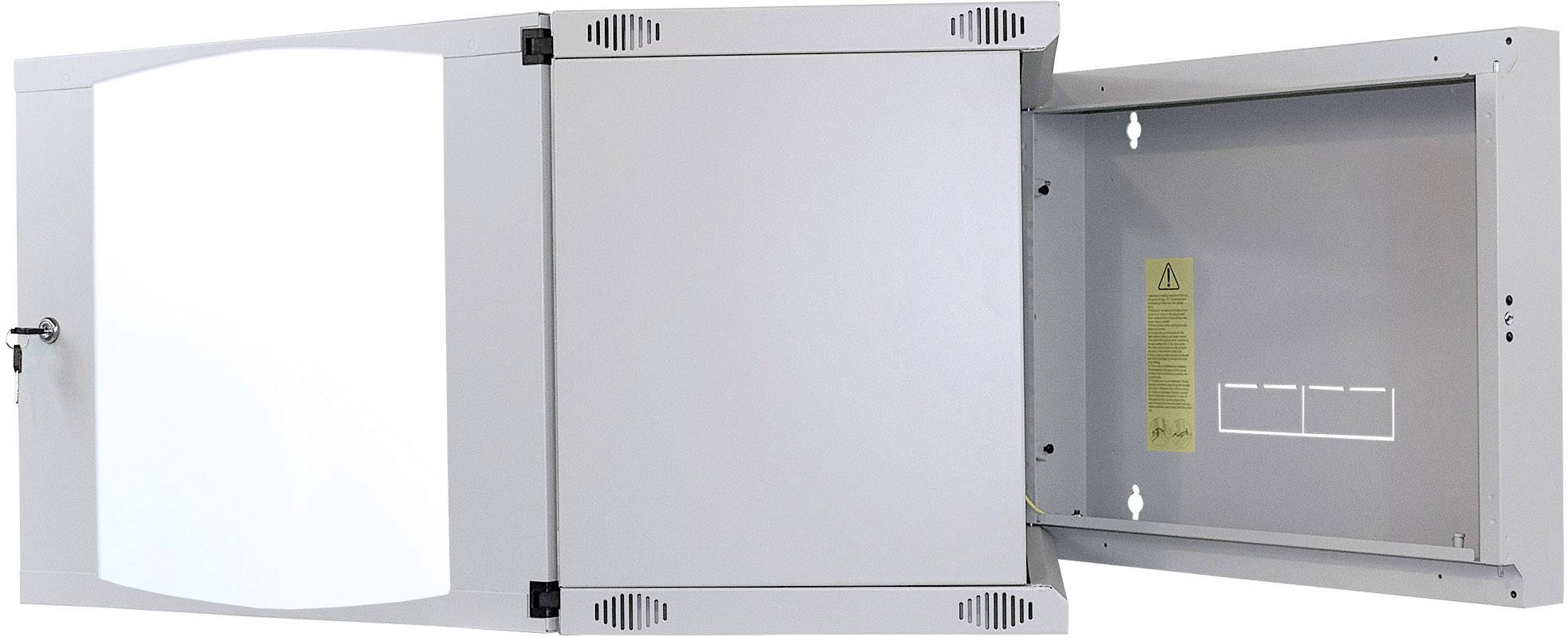

- Swivel frame for easy access to the back of the cabinet
- SPCC kaltgewalzter, galvanised steel frame with up to 1.5 mm thickness
- Supplied as a flat-pack
Technical specifications
- Product type
19" wall cabinet
- Rack unit
12 U
- Width
540 mm
- Height
593 mm
- Depth
450 mm
- Material
Safety glass
Steel
- Dim
(W x H x D) 540 x 593 x 450 mm
- Weight
20.5 kg
- Factory colour
Grey-white (RAL 7035)
- Rack size
483 mm (19")
- Cable length
0 cm
- Product type description
Rack
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1514577 Intellinet 713795 19" wall cabinet (W x H x D) 540 x 593 x 450 mm 12 U Grey-white (RAL 7035)
Description
The Intellinet wall distributor offer a flexible and comprehensive solution for your network installations. We will be happy to come already during the delivery counter - let yourself be comfortable fully assembled wall distributor or save space and money with the respective flat-pack version.
With the enclosures, you can use besides the particularly compact 10" cabinets from numerous 19" options. From 6 to 20 height units, installation depths of 300 to 600 mm as well as each in black or gray, we offer you suitable for every need. The removable side walls, the lockable, over 180° to open safety glass door and the optional swivel frame make wiring and components exchange especially comfortable.
When we pay attention on top quality materials and workmanship. This includes a spcc kaltgewalzter-steel frame and anti-static powder coating on all sides.
This text is machine translated.
With the enclosures, you can use besides the particularly compact 10" cabinets from numerous 19" options. From 6 to 20 height units, installation depths of 300 to 600 mm as well as each in black or gray, we offer you suitable for every need. The removable side walls, the lockable, over 180° to open safety glass door and the optional swivel frame make wiring and components exchange especially comfortable.
When we pay attention on top quality materials and workmanship. This includes a spcc kaltgewalzter-steel frame and anti-static powder coating on all sides.
This text is machine translated.
Features
- Color: gray RAL 7035
- Complies with standards: ANSI/EIA RS-310-D, IEC 60297-2, DIN 41494; Section 1; DIN 41494; Section 7.
Scope of delivery
- The top and bottom and front, rear and side parts
- Fixings
- 4 Profiled rails
