Intellinet 713849 19" wall cabinet (W x H x D) 540 x 460 x 600 mm 9 U Black, Grey
EAN:
Part number:
Item no:
Intellinet 19" Wall distributor with swivel frame, 9 HE, 600 mm deep, flat-pack, black
Highlights & Details
- Ideal for 19" applications
- Safety glass door with 4 mm thickness

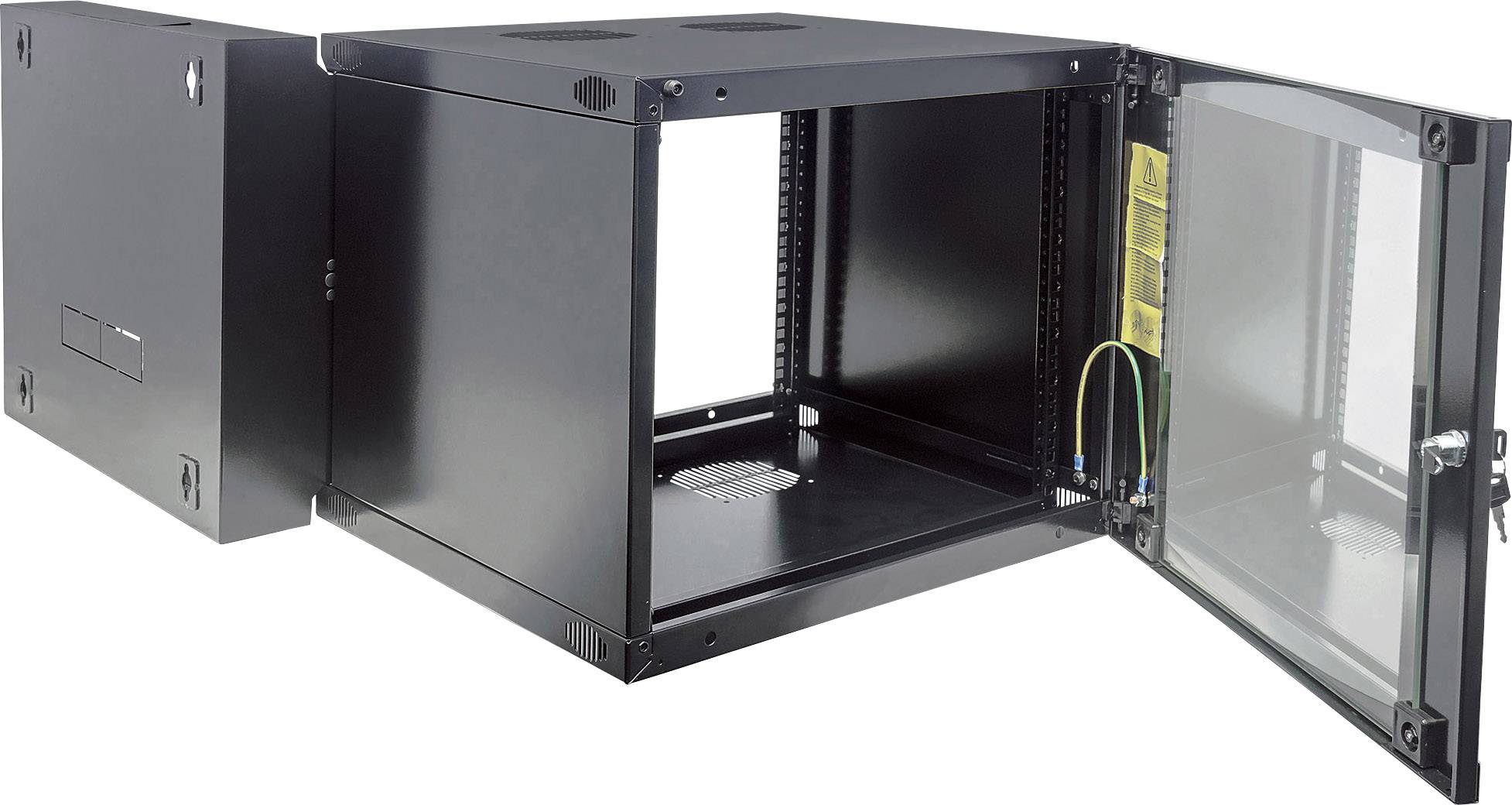

- Swivel frame for easy access to the back of the cabinet
- SPCC kaltgewalzter, galvanised steel frame with up to 1.5 mm thickness
- Supplied as a flat-pack
Technical specifications
- Product type
19" wall cabinet
- Rack unit
9 U
- Width
540 mm
- Height
460 mm
- Depth
600 mm
- Material
Safety glass
Steel
- Dim
(W x H x D) 540 x 460 x 600 mm
- Weight
23 kg
- Factory colour
Black
Grey
- Rack size
483 mm (19")
- Cable length
0 cm
- Product type description
Rack
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1437169 Intellinet 713849 19" wall cabinet (W x H x D) 540 x 460 x 600 mm 9 U Black, Grey
Description
The Intellinet wall distributor offer a flexible and comprehensive solution for your network installations. We will be happy to come already during the delivery counter - let yourself be comfortable fully assembled wall distributor or save space and money with the respective flat-pack version.
With the enclosures, you can use besides the particularly compact 10" cabinets from numerous 19" options. From 6 to 20 height units, installation depths of 300 to 600 mm as well as each in black or gray, we offer you suitable for every need. The removable side walls, the lockable, over 180° to open safety glass door and the optional swivel frame make wiring and components exchange especially comfortable.
When we pay attention on top quality materials and workmanship. This includes a spcc kaltgewalzter-steel frame and anti-static powder coating on all sides.
This text is machine translated.
With the enclosures, you can use besides the particularly compact 10" cabinets from numerous 19" options. From 6 to 20 height units, installation depths of 300 to 600 mm as well as each in black or gray, we offer you suitable for every need. The removable side walls, the lockable, over 180° to open safety glass door and the optional swivel frame make wiring and components exchange especially comfortable.
When we pay attention on top quality materials and workmanship. This includes a spcc kaltgewalzter-steel frame and anti-static powder coating on all sides.
This text is machine translated.
Features
- Complies with standards: ANSI/EIA RS-310-D, IEC 60297-2, DIN 41494; Section 1; DIN 41494; Section 7.
Scope of delivery
- The top and bottom and front, rear and side parts
- Fixings
- 4 Profiled rails
Hints
Please provide a phone number when placing your order, to allow us to arrange for a delivery date.
