Intellinet 714136 19 inch Server rack cabinet shelf 1 U Suitable for (cabinet depths): 1000 mm Grey (RAL 7035)
EAN:
Part number:
Item no:

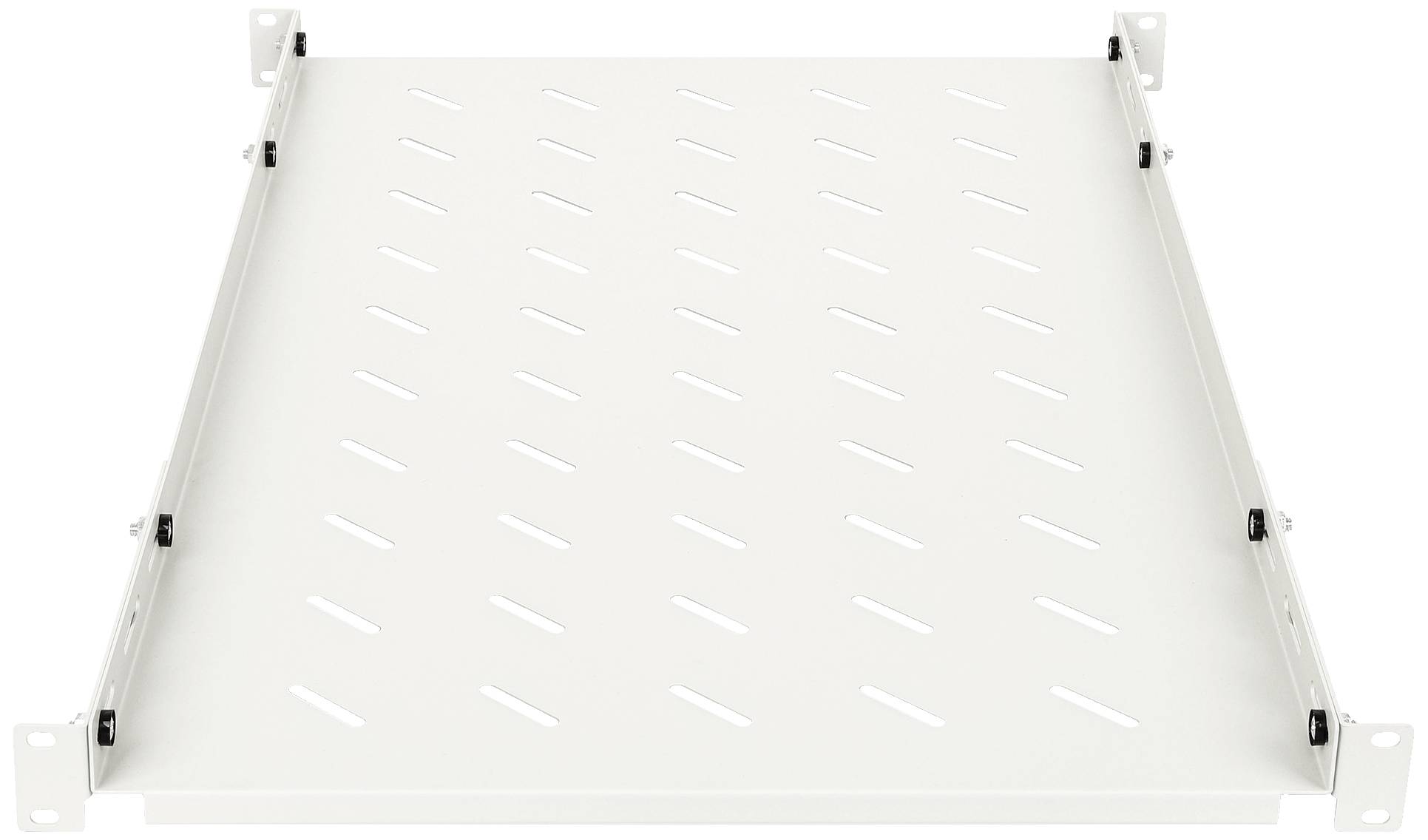

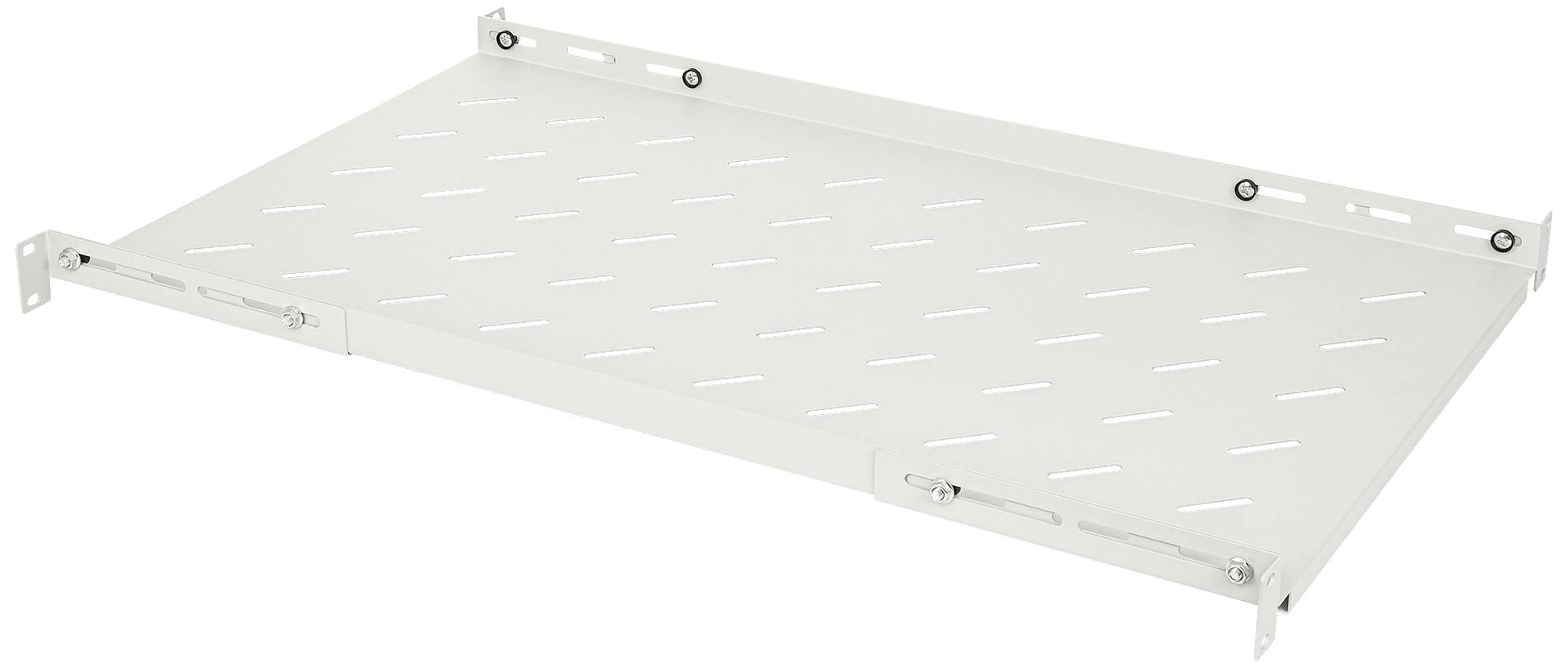

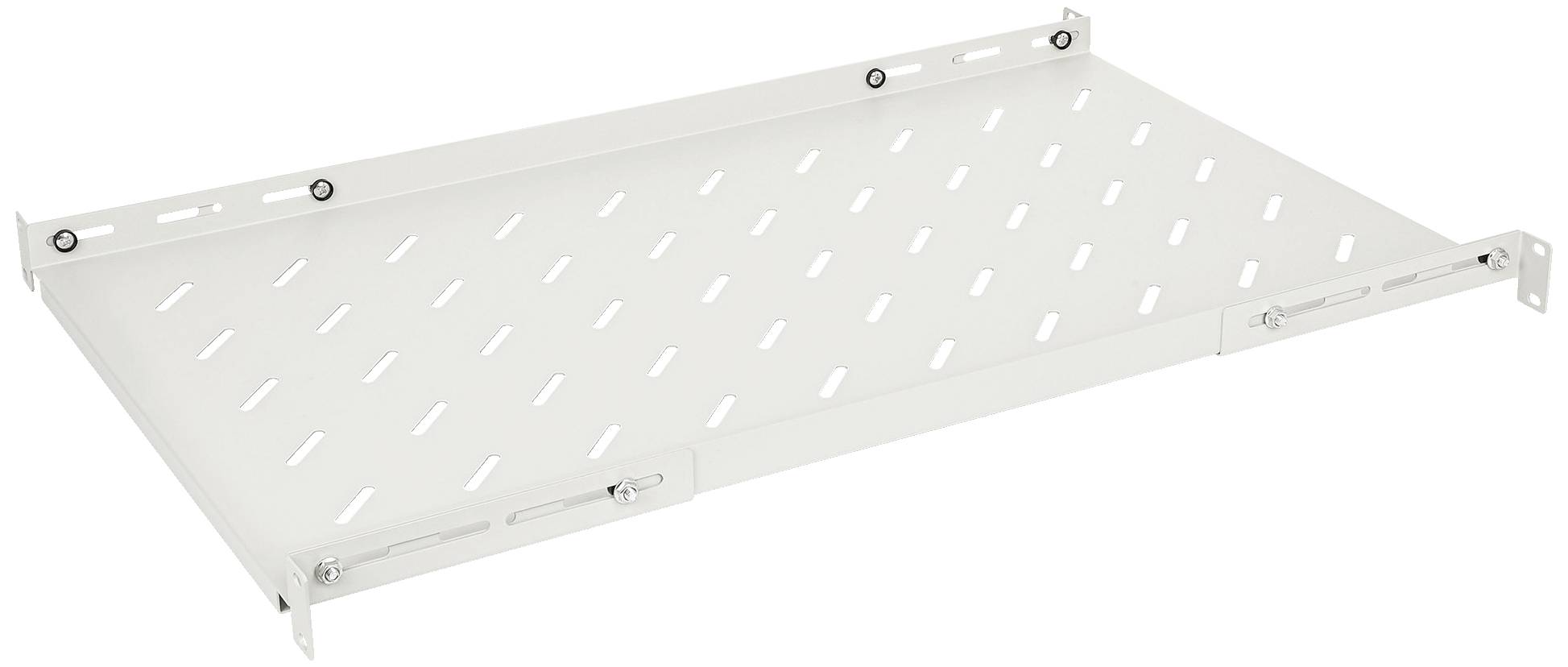

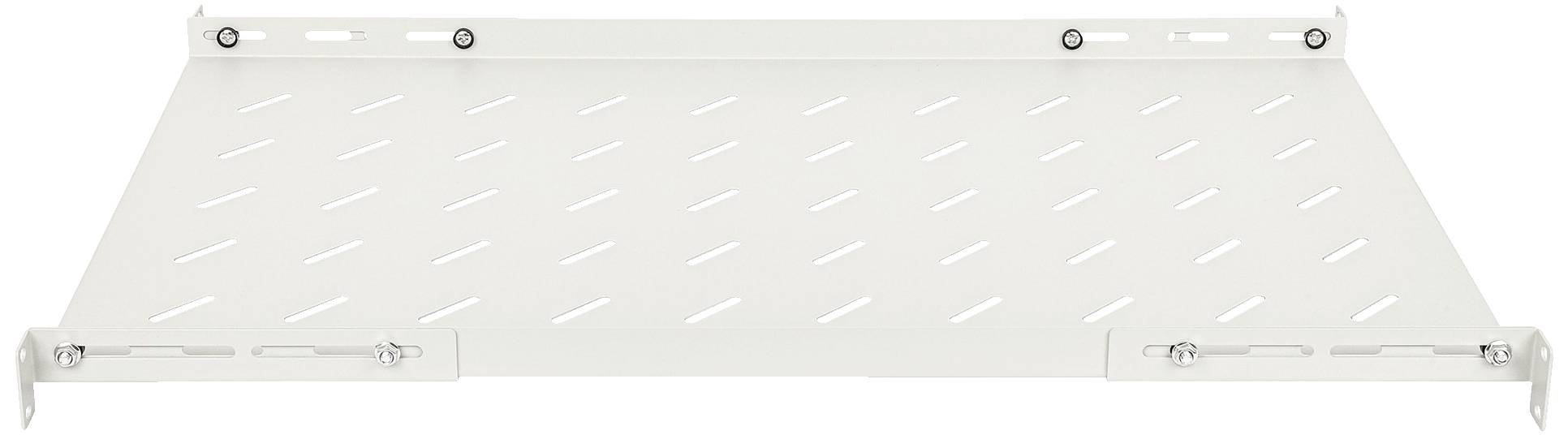

Intellinet 19" lower shelf with variable rails
Highlights & Details

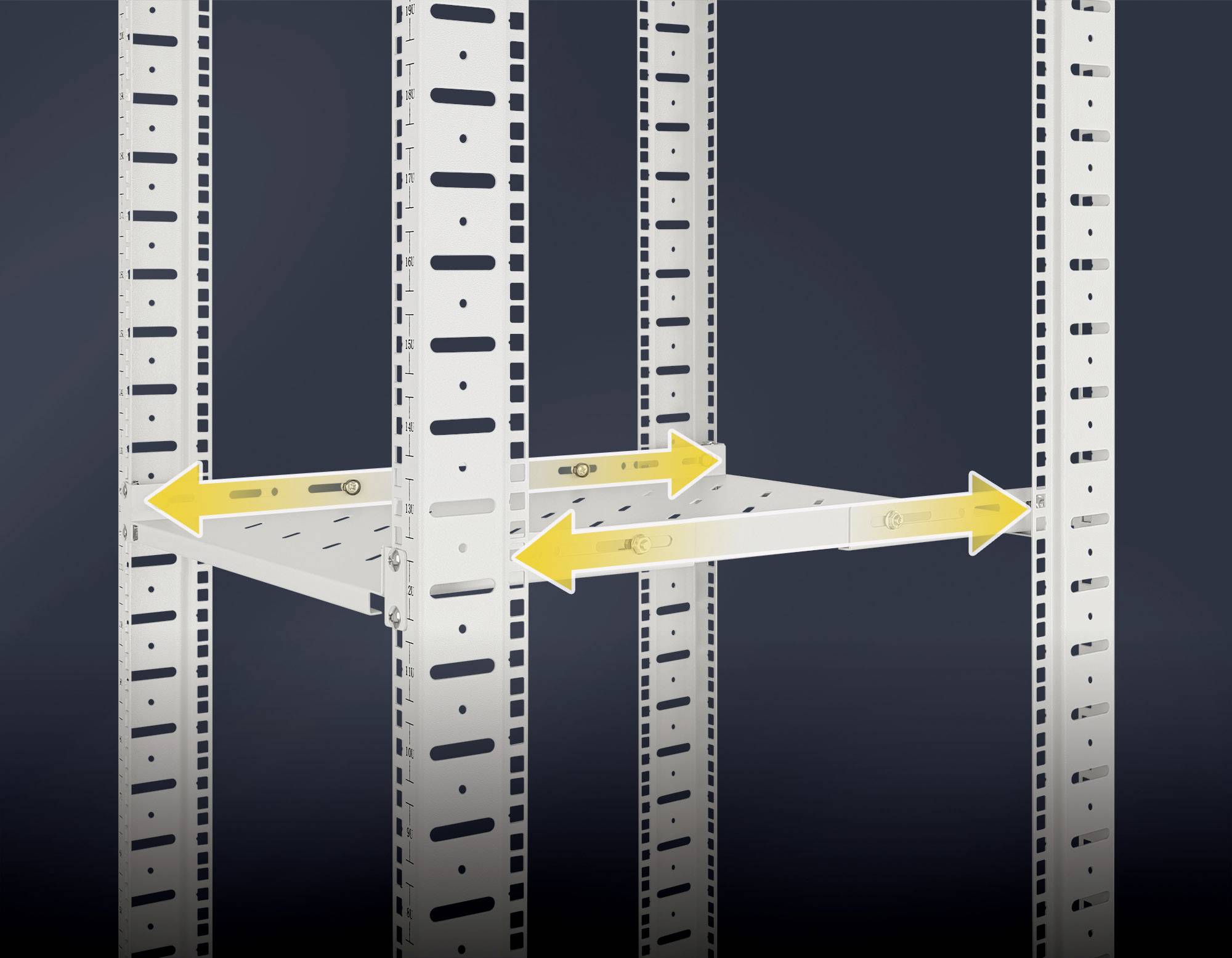

- Base plate for permanent installation with extendable rails from 750 to 950 mm depth for flexible installations in cabinets with a depth of 1000 mm
- Mounting surface 750 mm depth
- Universally suitable for most cabinet and laboratory brands
- Robust steel sheet with anti-static powder coating
- Perforation for increased air throughput keeps your components cool and prevents overheating
Technical specifications
- Product type
Server rack cabinet shelf
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
1 U
- Suitable for (cabinet depths)
1000 mm
- Rail set length (min.)
750 mm
- Rail set length (max.)
950 mm
- Load capacity (max.)
20 kg
- Dim
(W x H x D) 483 x 15 x 750 mm
- Material
Steel
- Content
1 pc(s)
- Factory colour
Grey (RAL 7035)
- Width
483 mm
- Height
15 mm
- Depth
750 mm
- Rack size
483 mm (19")
- Weight
4.435
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896538 Intellinet 714136 19 inch Server rack cabinet shelf 1 U Suitable for (cabinet depths): 1000 mm Grey (RAL 7035)
Description
19" shelf 1HE with depth-adjustable rails for universal flexibility in your server rack
A shelf for fixed installation with 4-point mounting is superior to each shelf for front mounting or drawer shelf for stability and load capacity. Its only traditional weakness: It is limited to a certain depth of installation. This weakness eliminates this variable rail base from Intellinet NETWORK SOLUTIONS, which can be adjusted to depths between 750 and 950 mm. As a flexible network accessory, it is suitable for universal use in cabinets with a depth of 1000 mm from Intellinet and other manufacturers.
This text is machine translated.
A shelf for fixed installation with 4-point mounting is superior to each shelf for front mounting or drawer shelf for stability and load capacity. Its only traditional weakness: It is limited to a certain depth of installation. This weakness eliminates this variable rail base from Intellinet NETWORK SOLUTIONS, which can be adjusted to depths between 750 and 950 mm. As a flexible network accessory, it is suitable for universal use in cabinets with a depth of 1000 mm from Intellinet and other manufacturers.
This text is machine translated.
Features
- General
- Form factor standard IEC 60297, 482.6 mm (19")
- Carry load: 20 kg
- Colour: Grey RAL7035
- Height units 1 HE
- Suitable cabinet depth 1000 mm
Scope of delivery
- 19" shelf with variable rails for fixed mounting
- Fitting Material
