Intellinet 716154 Fan units (W x H x D) 120 x 120 x 38 mm Carton 1 Set
EAN:
Part number:
Item no:
Packaging type
Carton
Product type
Fan units
Noise emission (max.)
24.9 dB
Width
120 mm
Height
120 mm

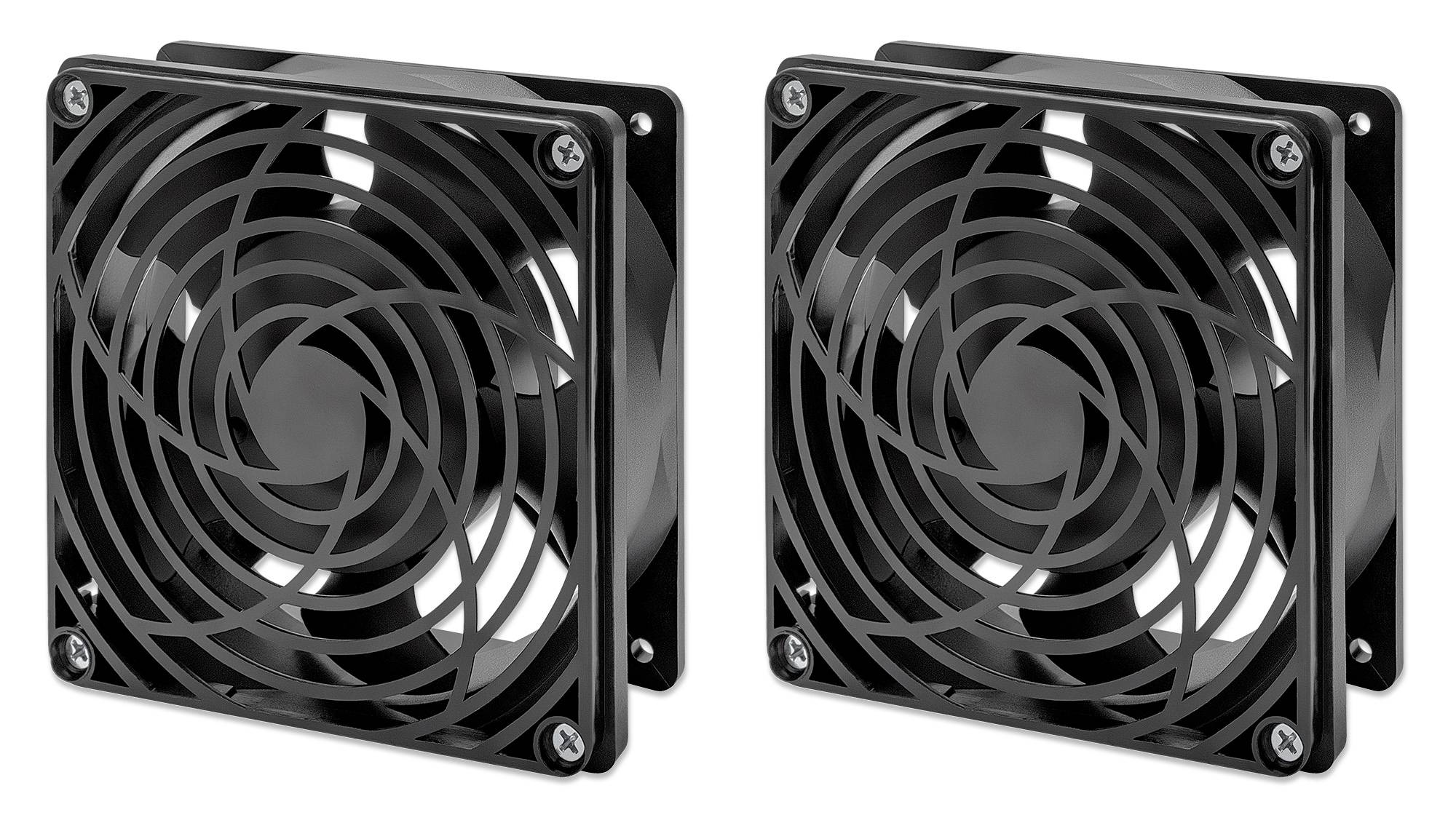

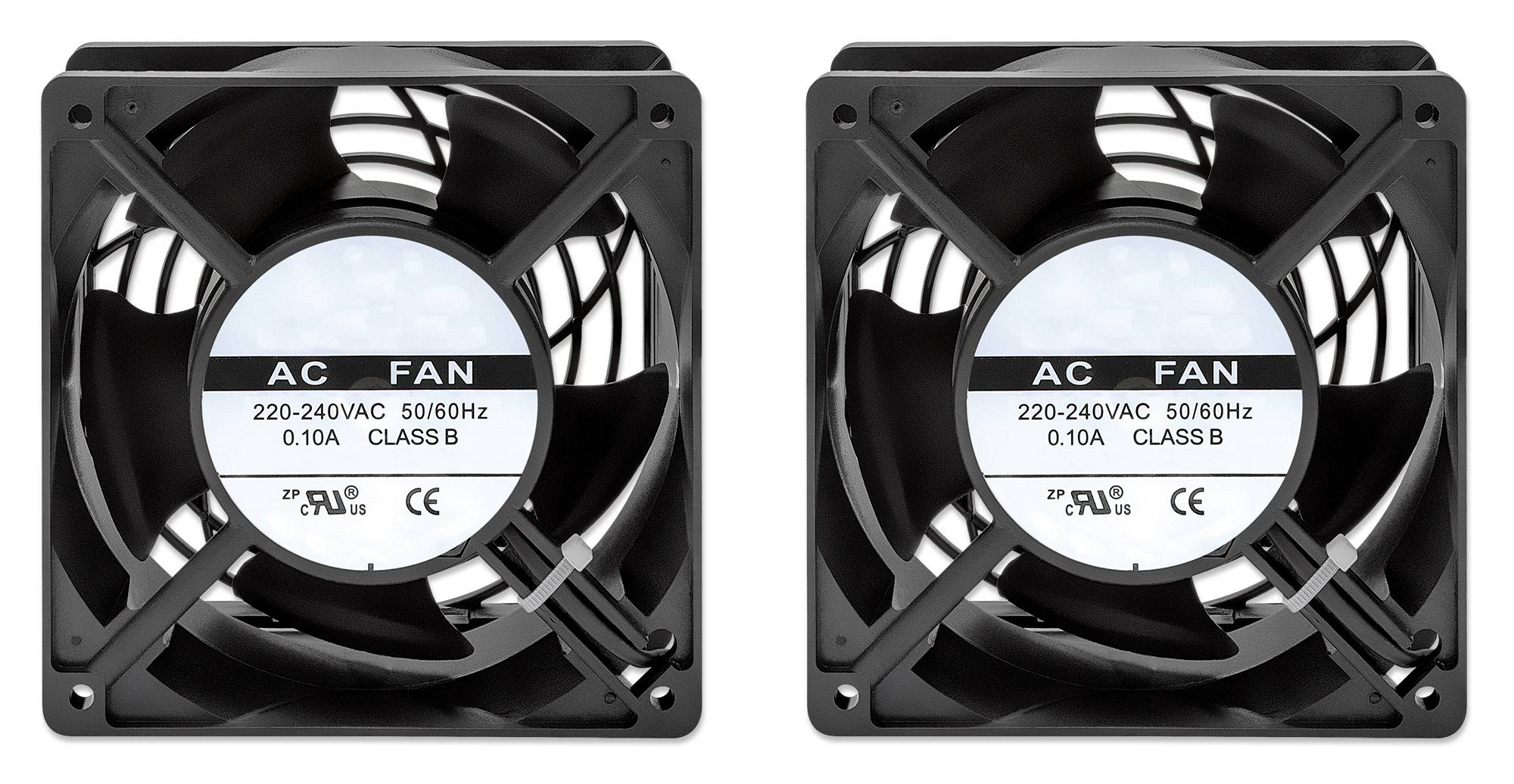

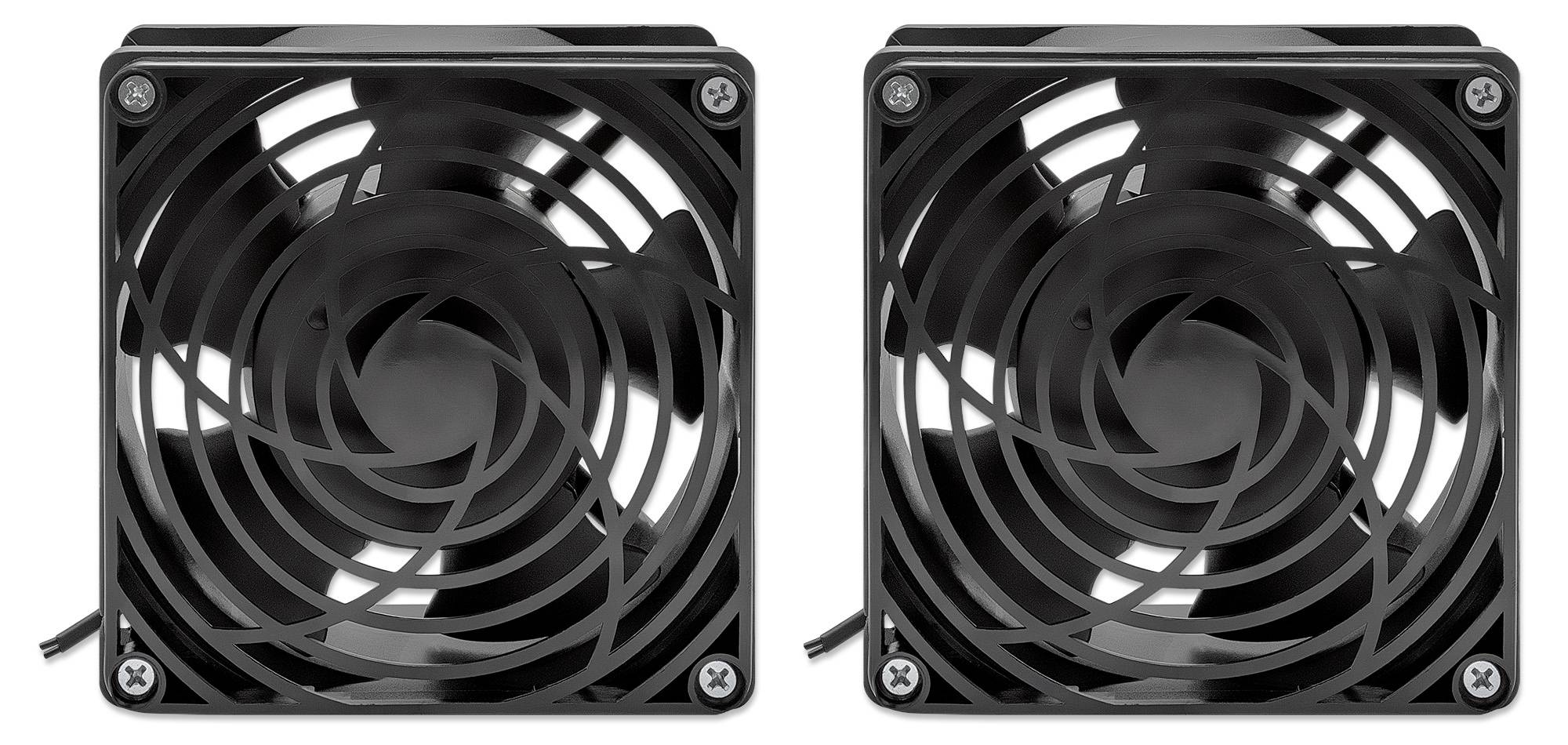

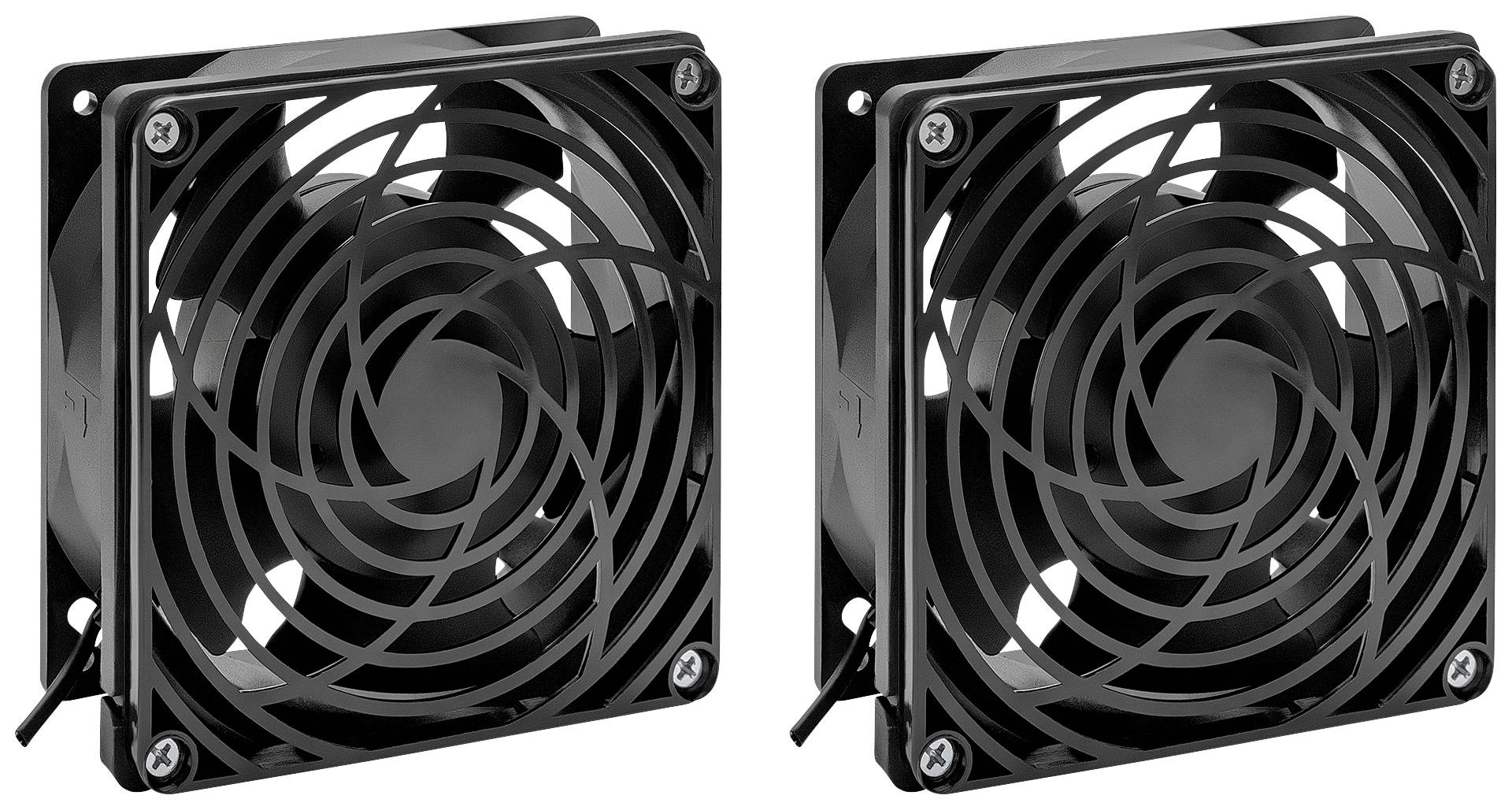

Intellinet 2-way roof fan for 19" network cabinet (wall distributor) cooling unit for roof mounting in wall cabinet, 1.8 m power cable with EU CEE 7/7-plug, black
Highlights & Details
- Ceiling mount fan for reliable, energy-efficient cooling in Intellinet network solutions wall distributors and other brands
- 1.8 m power cable with EU CEE 7/7 safety plug (type E/F)
- Efficient heat dissipation for wide operating temperature range up to 50 °C.
- Quiet fans with sound level of only 24.9 dB (A)
- Earthing kit included in the delivery
Technical specifications
- Standards and certificates: CE, RoHS, REACH
- Volume flow: 85 m³/h (50 cfm)
- Sound level 24.9 dB (A)
- Temperature range -10 – 50°C
- Operating voltage 220.0 - 240.0 V AC, 50 - 60 Hz, 0.1 A
- Packaging type
Carton
- Product type
Fan units
- Type
716154
- Max. current consumption
0.1 A
- Noise emission (max.)
24.9 dB
- Air flow rate
85 m³/h
- Compatible with
uniwersalny
- Factory colour
Black
- Min. temperature
-10 °C
- Max. temperature
50 °C
- Connection
CEE 7/4 plug
- Cable length
1.8 m
- Width
120 mm
- Height
120 mm
- Depth
38 mm
- Dim
(W x H x D) 120 x 120 x 38 mm
- Weight
900 g
- Content
1 Set
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2869452 Intellinet 716154 Fan units (W x H x D) 120 x 120 x 38 mm Carton 1 Set
Description
Cooling for equipment in 19 inch wall housings
This roof ventilator from Intellinet NETWORK SOLUTIONS provides reliable cooling and optimal air circulation in 19"-wall cabinets and thus for higher performance and longer service life of your network components. It is suitable for the standard openings at the top of the cabinet and is therefore compatible with the standard models of Intellinet network solutions as well as other brands. For further options on cabinet fans, you can find our 1 HE cooling units for mounting on the profile rails, article #712668 (black) and #712378 (gray).
This text is machine translated.

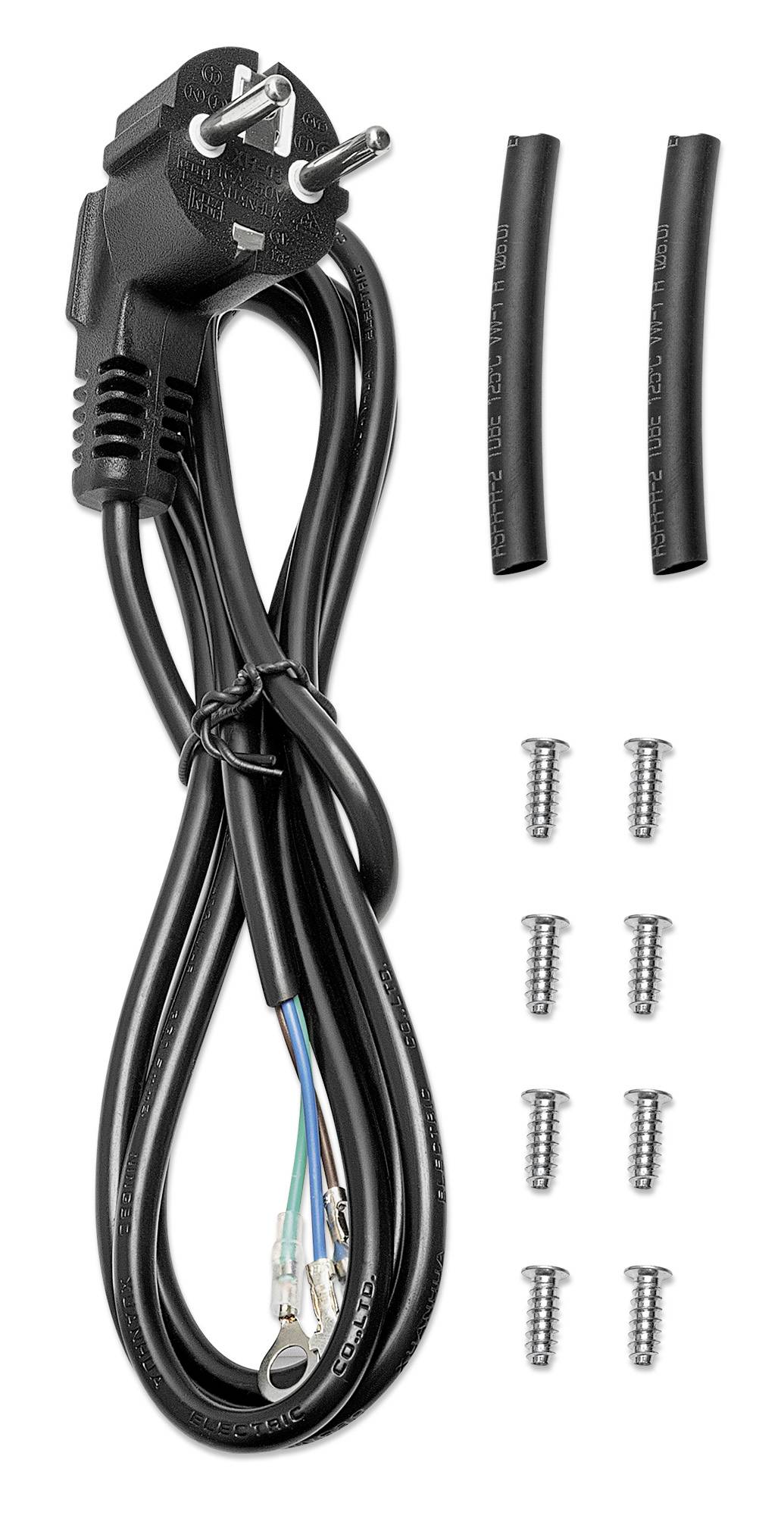

Scope of delivery
- 2-way roof fan for 19" wall distributor
- Grounding kit
- 1.8 m power cable
- Quick guide
