Intellinet 720915 12 ports Patch panel CAT 6A Black Equipped
EAN:
Part number:
Item no:

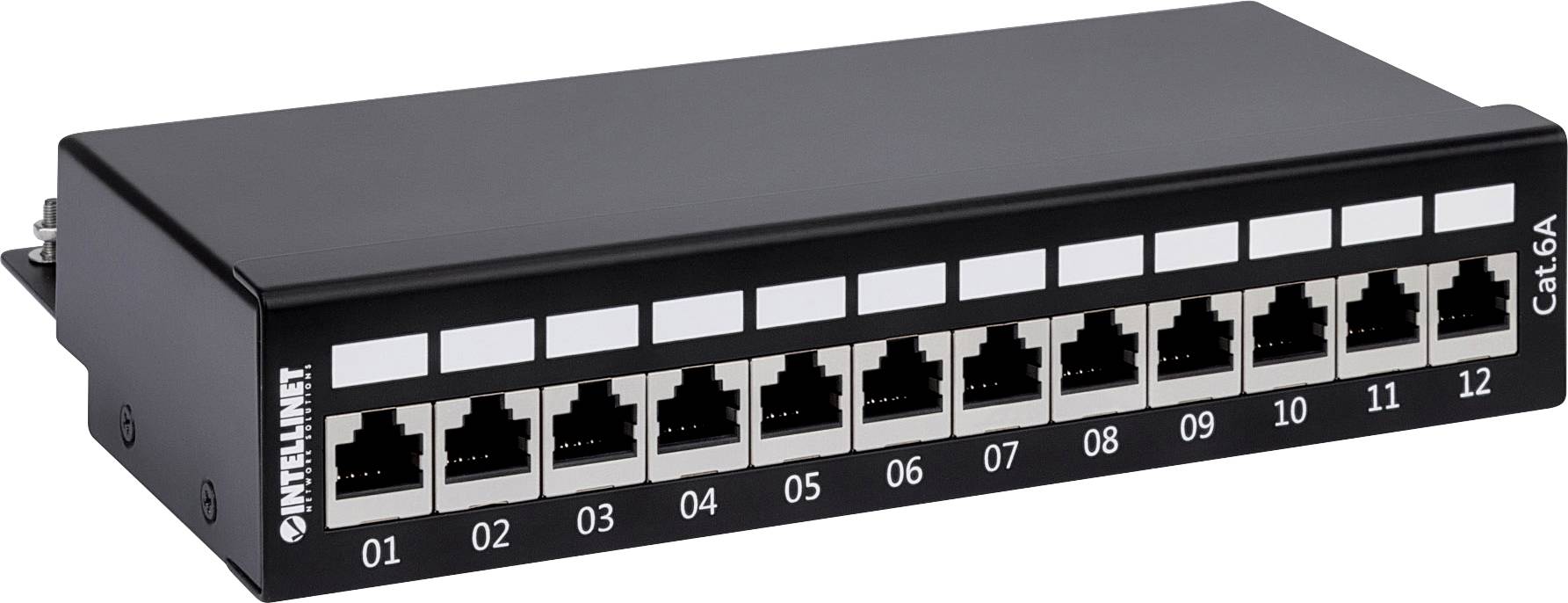

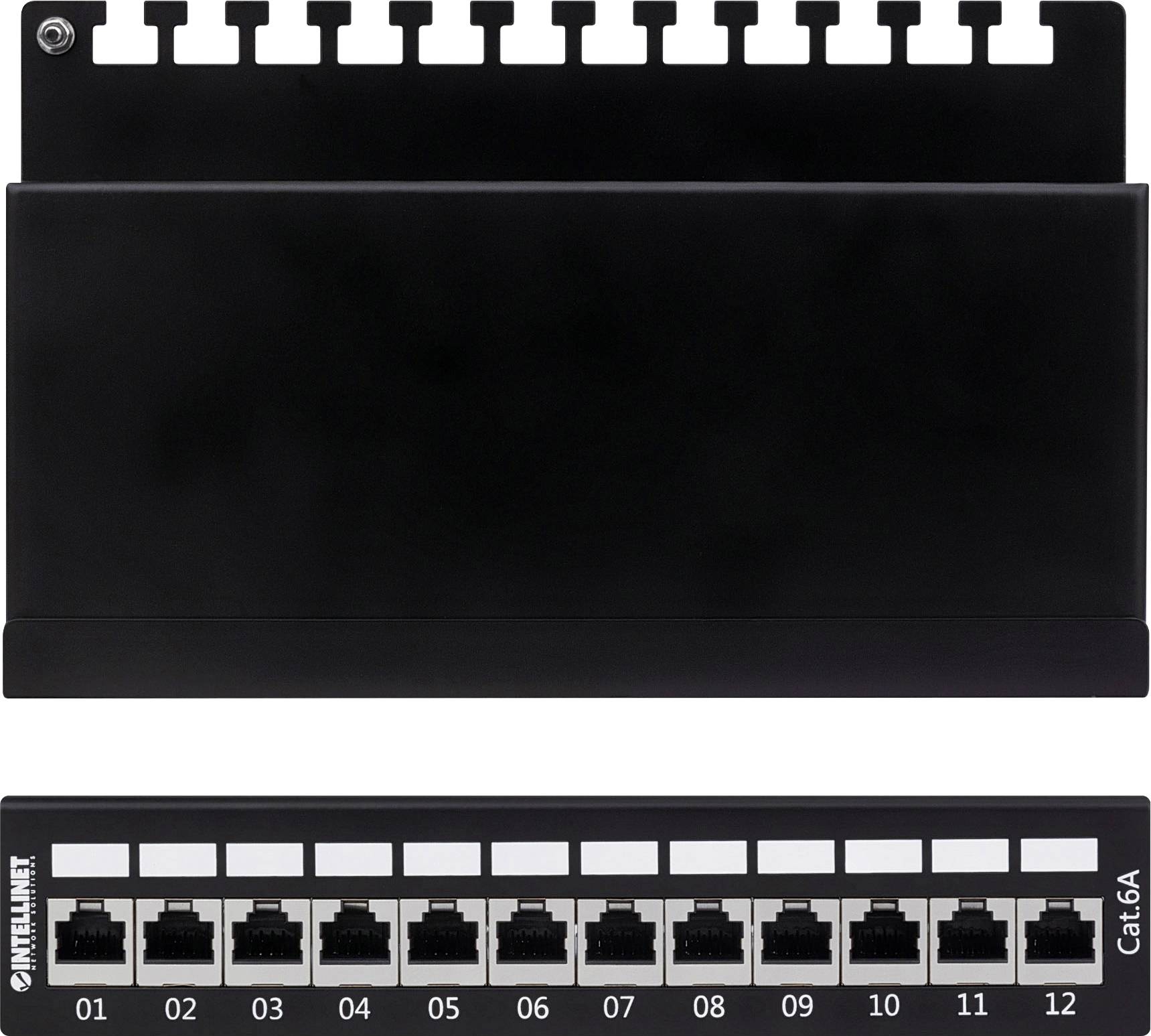

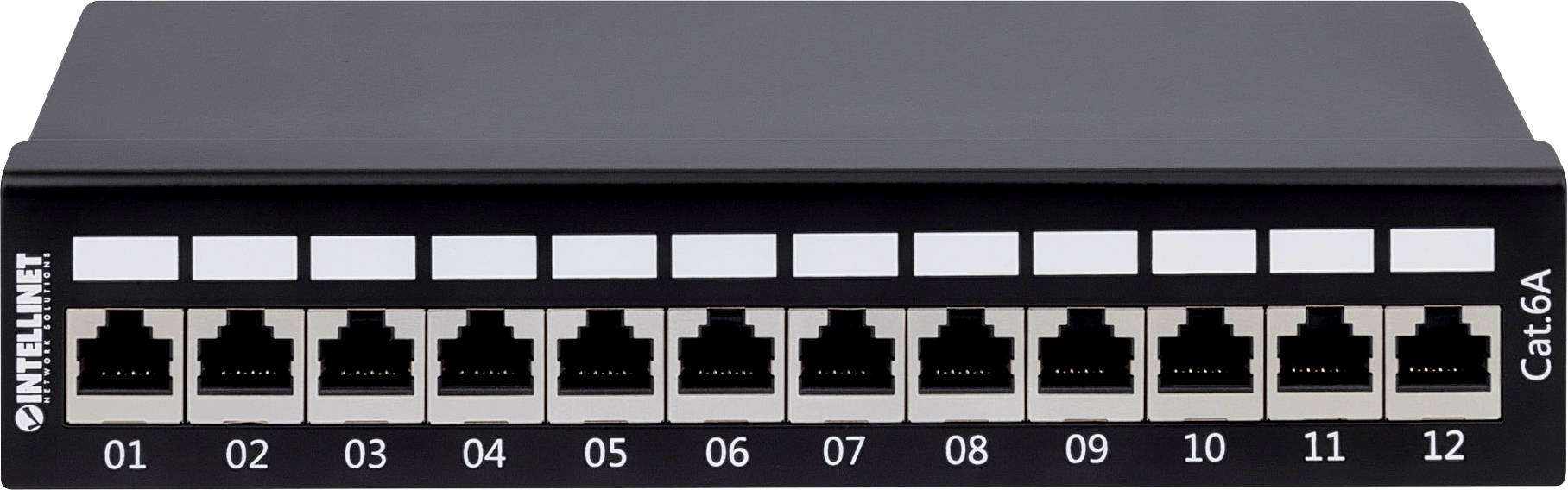

INTELLINET 12-Port Cat6a patch panel shielded Desktop FTP terminal strips with 90 degree angled cable entries black
Highlights & Details
- Contacts coated with at least 3 μm gold for maximum connection quality of your network cables

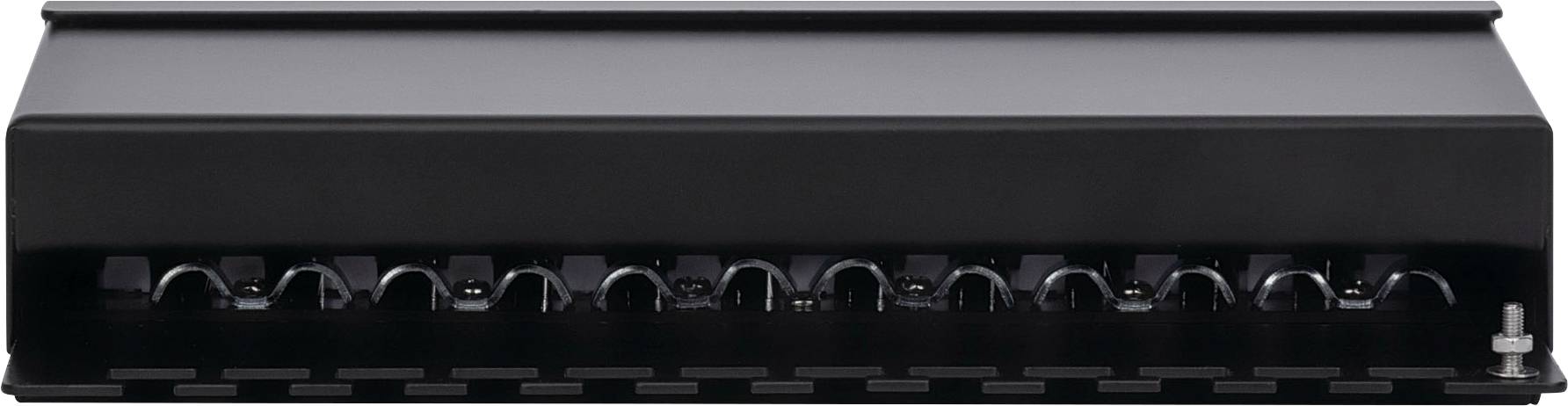

- Terminal strips with 90 degree angled cable entries for easy installation
- Suitable for Krone LSA+ insertion tools
- Suitable for wire and solid wire cables from 23 to 26 AWG
- Suitable for shielded Cat6a network cable (FTP)
- This text is machine translated.
Technical specifications
- Product type
Patch panel
CAT 6A
- Transfer rate
1 GBit/s
- Port
12 ports
- Patch panel design
Equipped
- Width
212 mm
- Height
44 mm
- Factory colour
Black
- Length
128 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2270499 Intellinet 720915 12 ports Patch panel CAT 6A Black Equipped
Description
Features
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3ab (1000Base-T Gigabit Ethernet)
- ISO/IEC 11801
- ANSI/TIA
- 568 A/B color-coded
- Operating temperature: 10 – 60°C
- Humidity: 10% – 90% RH, non-condensing
- Storage temperature: -40 – 70°C.
Scope of delivery
- 12-port Cat6a patch panel, shielded
- PG cable
- Quick guide
