Buy Intellinet 772211 2x USB charging socket incl. USB IP20 White

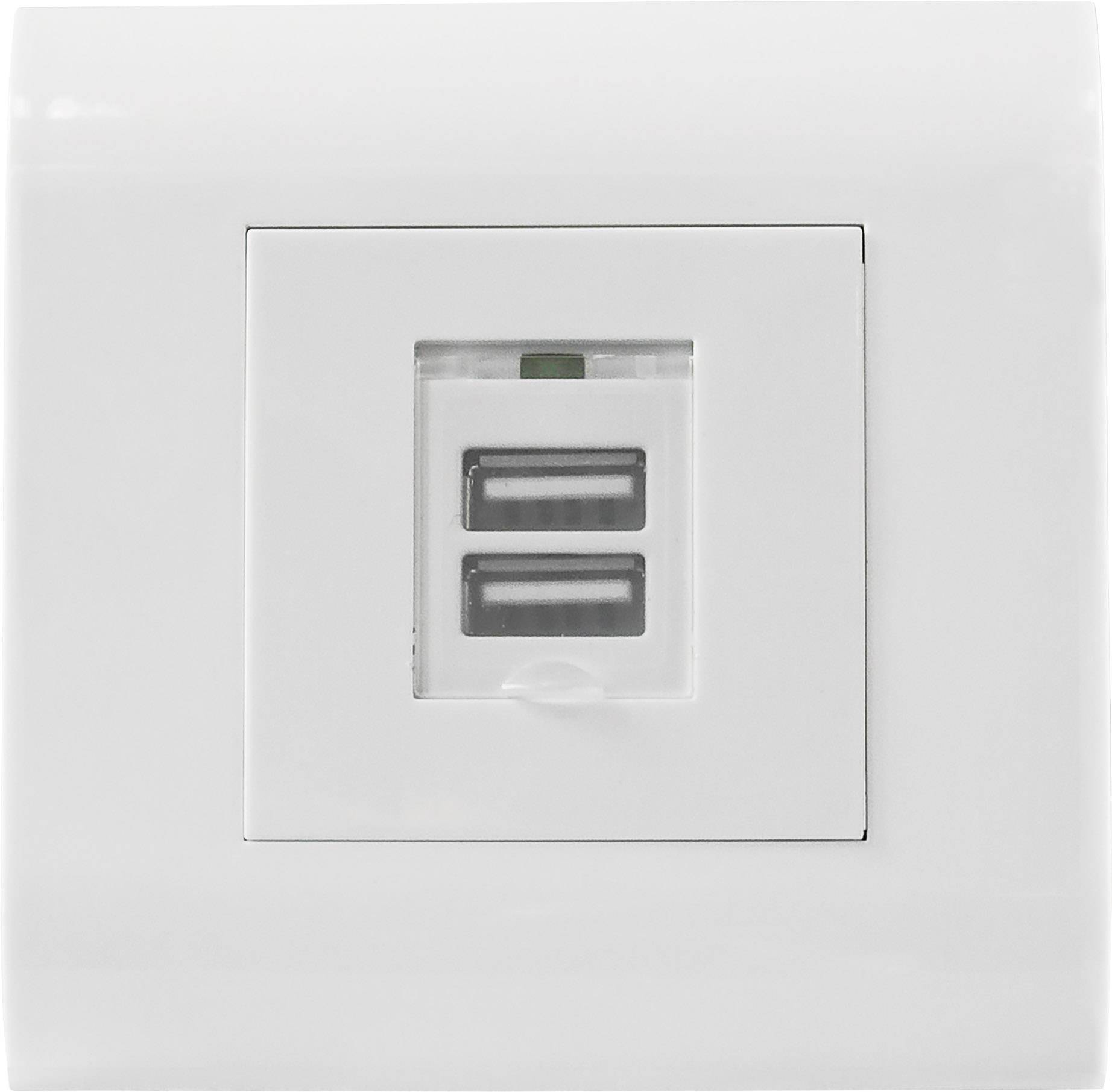

White USB socket with two USB ports in a square wall plate, suitable for charging devices.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Intellinet flush-mounted socket with two type A USB charging ports two USB type A ports with dust protection flap and 5 V/2.1A output power front panel in the European Format 80 x 80 mm

Highlights & Details

Two USB type A Ports
Charging ports with 5 V/2.1 A output power
Cover plate with integrated dust protection flap
Front panel in the European Format 80 x 80 mm

Technical specifications

Output voltage tolerance: +/- 5%
Output: 2100 mA, 10.5 W Max.
Power consumption when not in use: 0.2 W Max.
Input voltage: 100 - 240 V, 50 - 60 Hz
Operating temperature: -10°C - 40°C
Storage temperature: -20°C - 85°C.

Product type: USB charging socket

Light bulb features: incl. USB

Outlets: 2

Nominal voltage: 230 V

Nominal current: 2.1 A

Mounting type: Flush mount

Design type: Flush-mounted

Differential current rating: 0.1 A

Mounting depth: 28 mm

Factory colour: White

: IP20

Dim: (L x W x H) 80 x 80 x 37 mm

Length: 80 mm

Width: 80 mm

Height: 37 mm

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1889570 Intellinet 772211 2x USB charging socket incl. USB IP20 White

User & Safety Instructions

User & Safety Instructions 1889570 Intellinet 772211 2x USB charging socket incl. USB IP20 White

Description

The Intellinet network solutions flush-mounted socket with two type A USB charging ports and front panel you can connect up to 2 mobile devices such as mobile phones and tablets directly with type A USB cables to charge. The need for a charger is not necessary. This provides for order otherwise would like crowded sockets, this can be used for other purposes. Worktops, tables and work areas remain clean and tidy. The Intellinet network solutions flush-mounted socket with two type A USB charging ports and front panel makes it easy to charge your mobile devices and keeps you to always ready for use.

This text is machine translated.
