Intellinet IP55 19" Netzwerkschrank mit integrierten Lüftern 42 HE 800 mm tief grau RAL7035 19" industrial cabinet (W x
EAN:
Part number:
Item no:
Intellinet industrial IP55 19" network cabinet
Highlights & Details
- Protection class IP55 for industrial applications: Protected against dust and water spray from any angle
- Robust, secure steel construction with anti-static powder coating
- Usable installation depth: 157 mm to 687 mm
- Integrated roof-fan unit with air filters and four quiet fans with a volume of only 24.9 dB (A)
- Efficient heat dissipation for wide operating temperature range up to 50°C.
Technical specifications
- Product type
19" industrial cabinet
- Rack unit
42 U
- Width
600 mm
- Height
2145 mm
- Depth
800 mm
- Material
Steel
- Dim
(W x H x D) 600 x 2145 x 800 mm
- Weight
110 kg
- Factory colour
Grey (RAL 7035)
- Rack size
483 mm (19")
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896528 Intellinet IP55 19" Netzwerkschrank mit integrierten Lüftern 42 HE 800 mm tief grau RAL7035 19" industrial cabinet (W x
Description

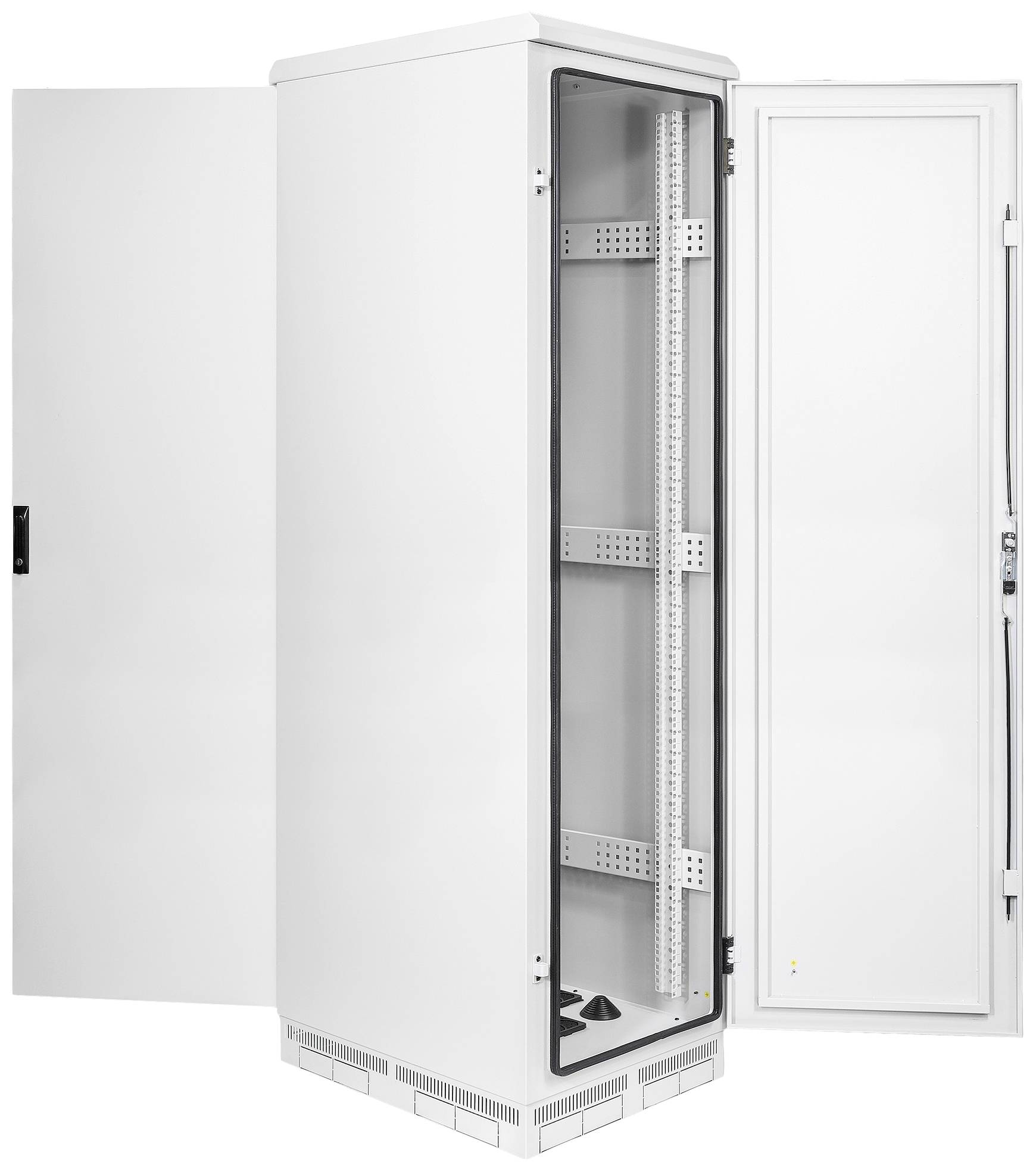

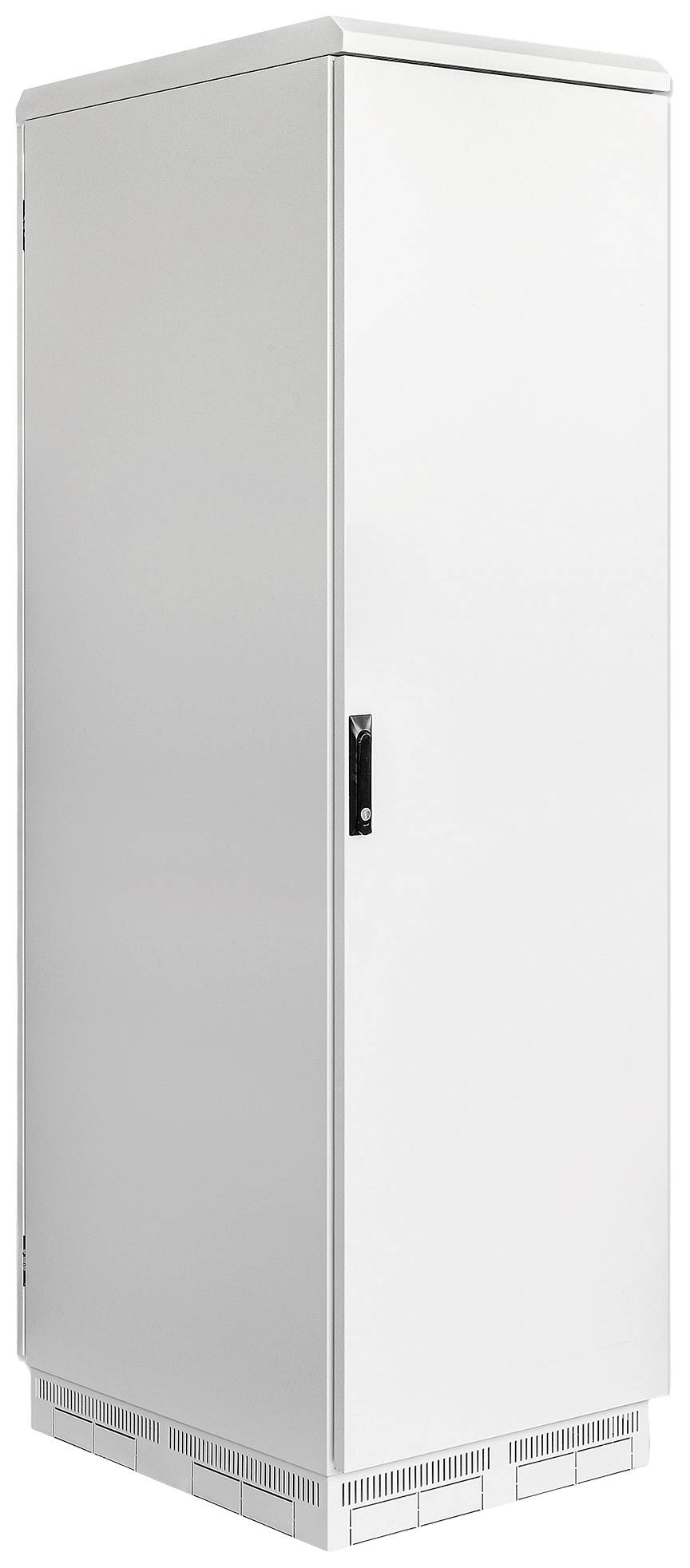

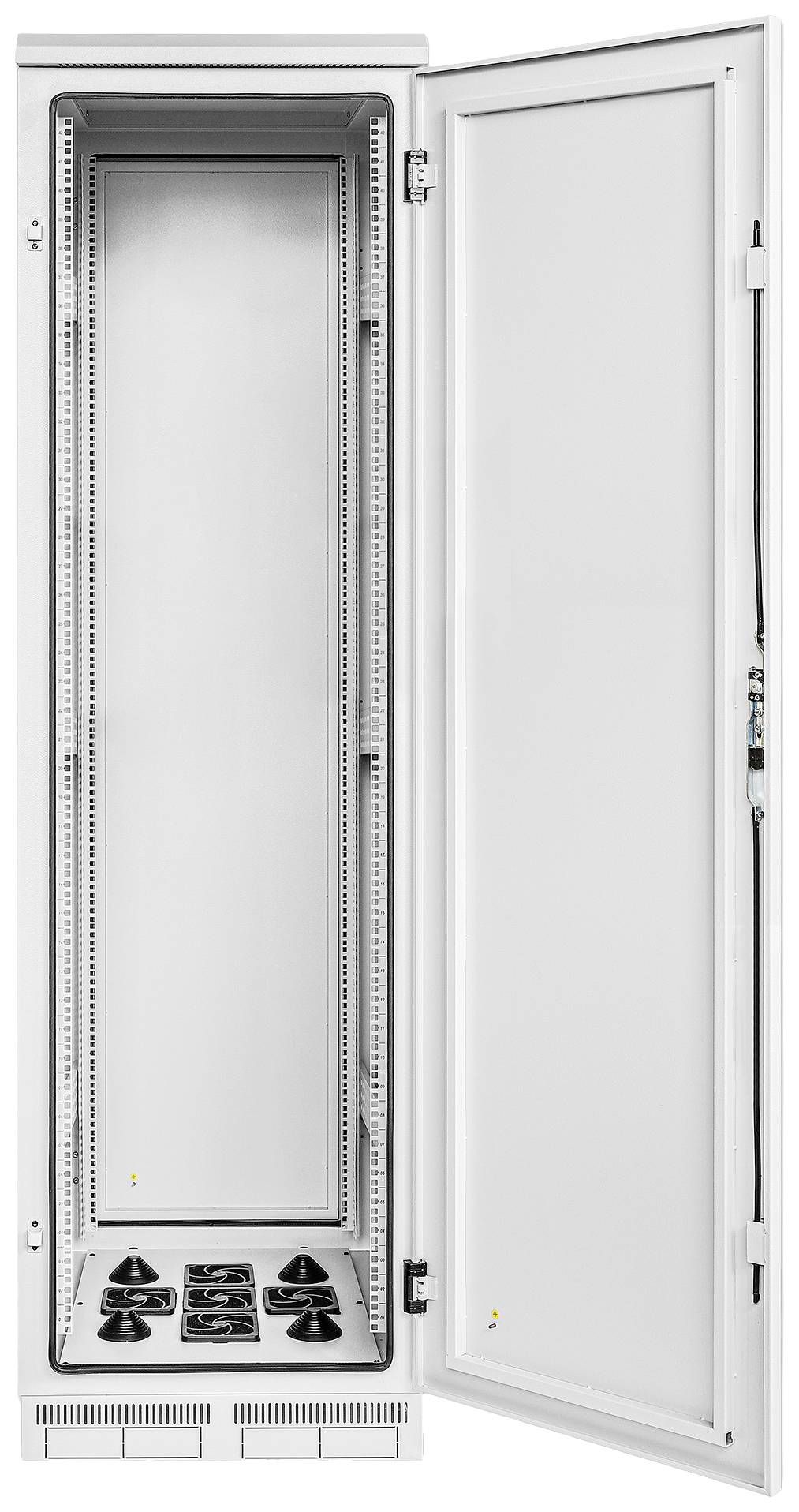

19-inch network cabinet with IP55 protection for industrial applications - dust-proof and waterproof
The IP55 standing distributor by Intellinet NETWORK SOLUTIONS is suitable because of its equipment even for rough industrial environments. Its antistatic coated steel housing complies with IEC Standard 60529 for secure protection against dust and water jets from any angle. Four cable entries on the underside with blind plugs are securely sealed. To ensure this safety, the cabinet is supplied fully assembled and WAS ensures quick and convenient use. The robust steel construction carries heavy 19" network components with a total load of 1000 kg and can be locked by a 3-point lock in the pivot lever handle. This free-standing IP55 network rack is available in 27 and 42 HE.

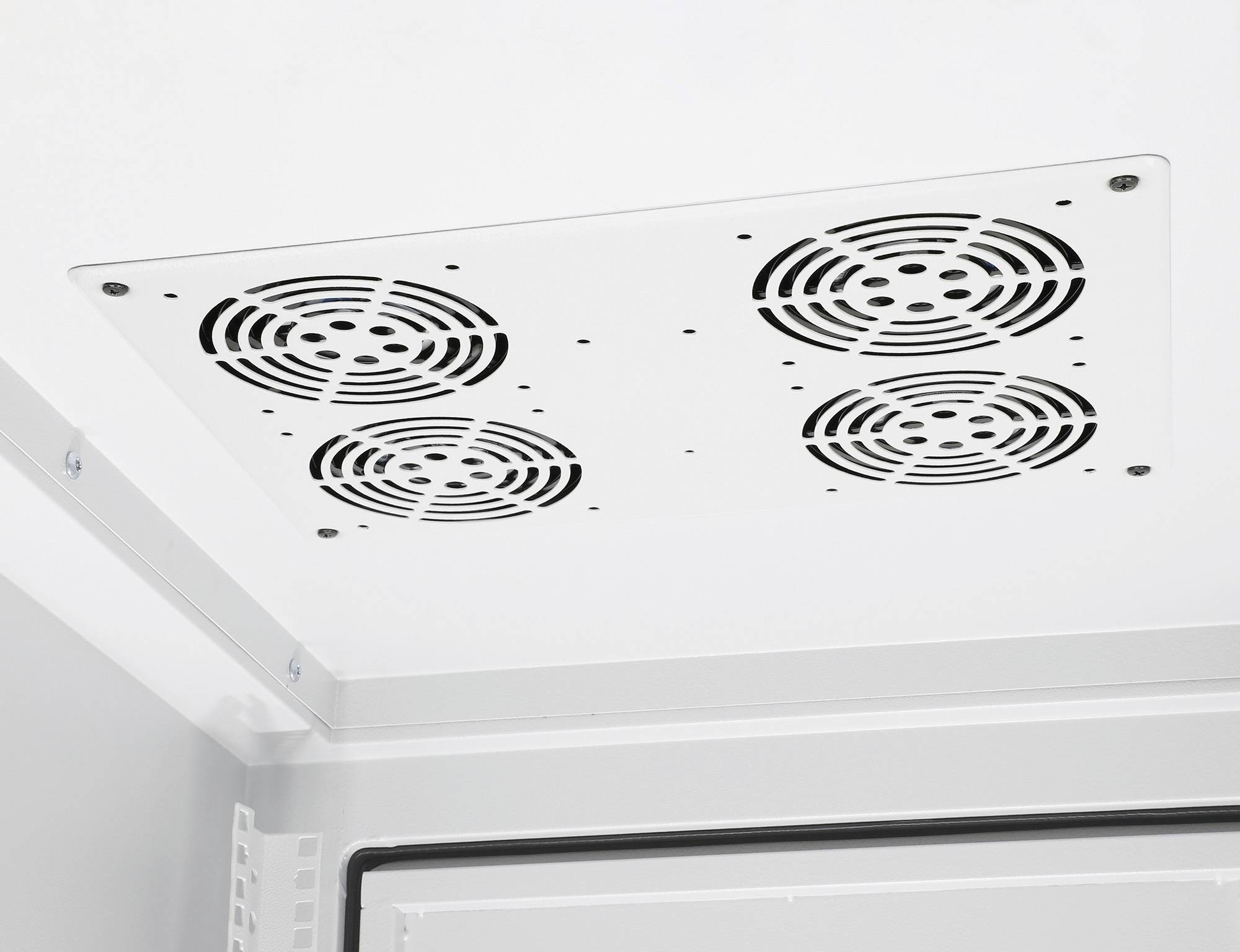

Efficient cooling with the integrated roof fan unit
To cool your network equipment, this cabinet has a roof mounted cooler unit with four quiet fans. The heat dissipation and air circulation ensure higher performance and longer life of your network components.
This text is machine translated.
The IP55 standing distributor by Intellinet NETWORK SOLUTIONS is suitable because of its equipment even for rough industrial environments. Its antistatic coated steel housing complies with IEC Standard 60529 for secure protection against dust and water jets from any angle. Four cable entries on the underside with blind plugs are securely sealed. To ensure this safety, the cabinet is supplied fully assembled and WAS ensures quick and convenient use. The robust steel construction carries heavy 19" network components with a total load of 1000 kg and can be locked by a 3-point lock in the pivot lever handle. This free-standing IP55 network rack is available in 27 and 42 HE.
Efficient cooling with the integrated roof fan unit
To cool your network equipment, this cabinet has a roof mounted cooler unit with four quiet fans. The heat dissipation and air circulation ensure higher performance and longer life of your network components.
This text is machine translated.
Features
- Standards and certificates
- CE
- RoHS
- Protection class IP55 (according to EN 60529)
- ANSI/EIA RS-310-D
- IEC 60297-2
- DIN41494 pieces 1 and 7
- General - Cabinet
- Dimensions (D x W x H) 800 x 600 x 2145 mm
- Net weight: 115 kg
- Gross weight: 128 kg
- Maximum load capacity 1000 kg

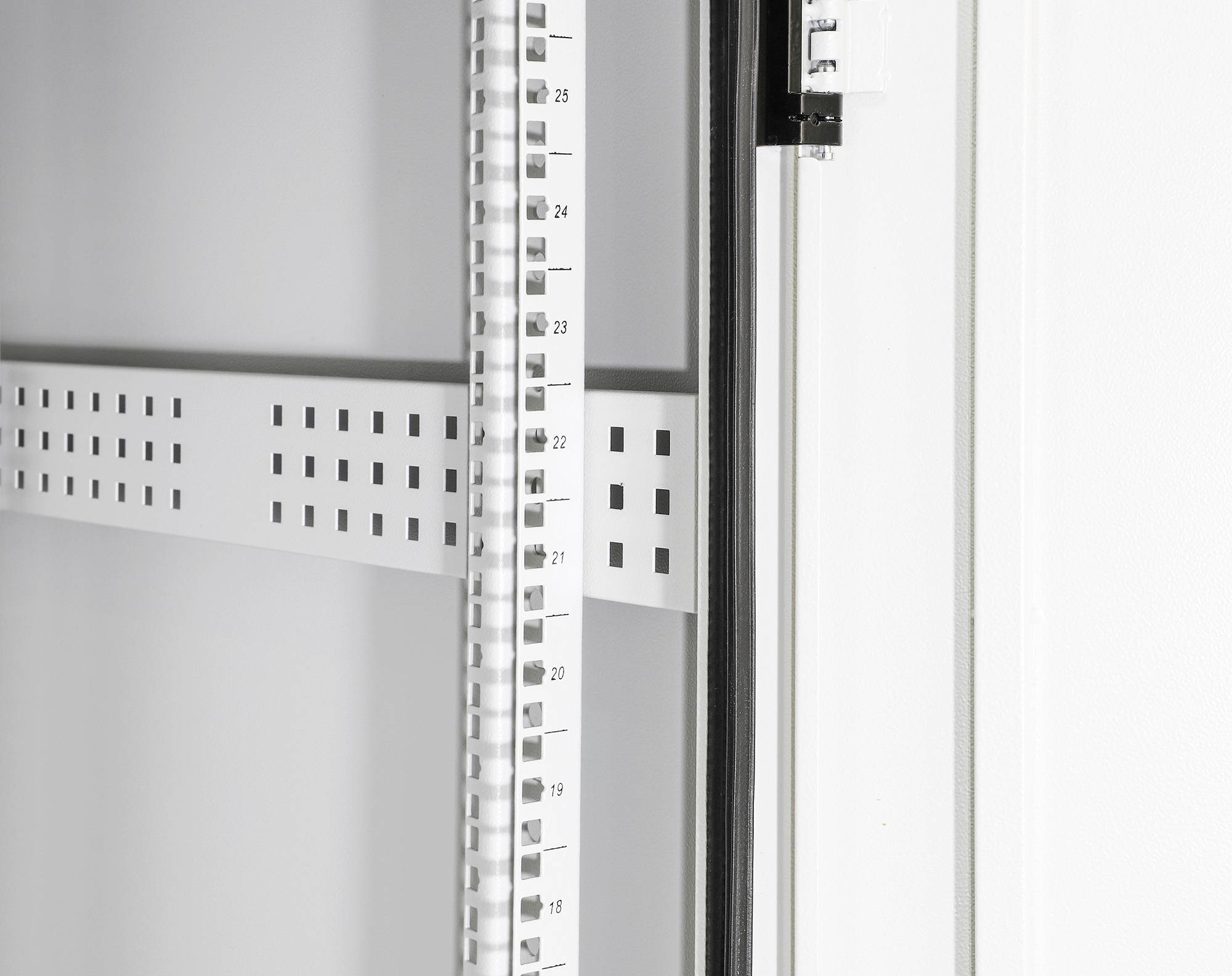

- Material: 2 mm steel (rails), 1.2 mm steel (various)
- Colour: Light gray RAL7035
- General - Cooling unit
- Four fans with air filters
- Volume flow: 85 m³/h per fan
- Sound level 24.9 dB (A)
- Power cable length 1.8 m.
- Temperature range -10 – 50°C
- Operating voltage 110.0 - 240.0 VAC, 50 - 60 Hz, 10.0 A.
Scope of delivery
- Industrial IP55 19" Network cabinet with integrated fans, 42 HE
- Integrated roof cooler unit with four fans
- Rack mounting materials: 10 M6 screws, 10 M6 cage nuts and 10 washers
- Two keys
Hints
Please provide a phone number when placing your order, to allow us to arrange for a delivery date.
