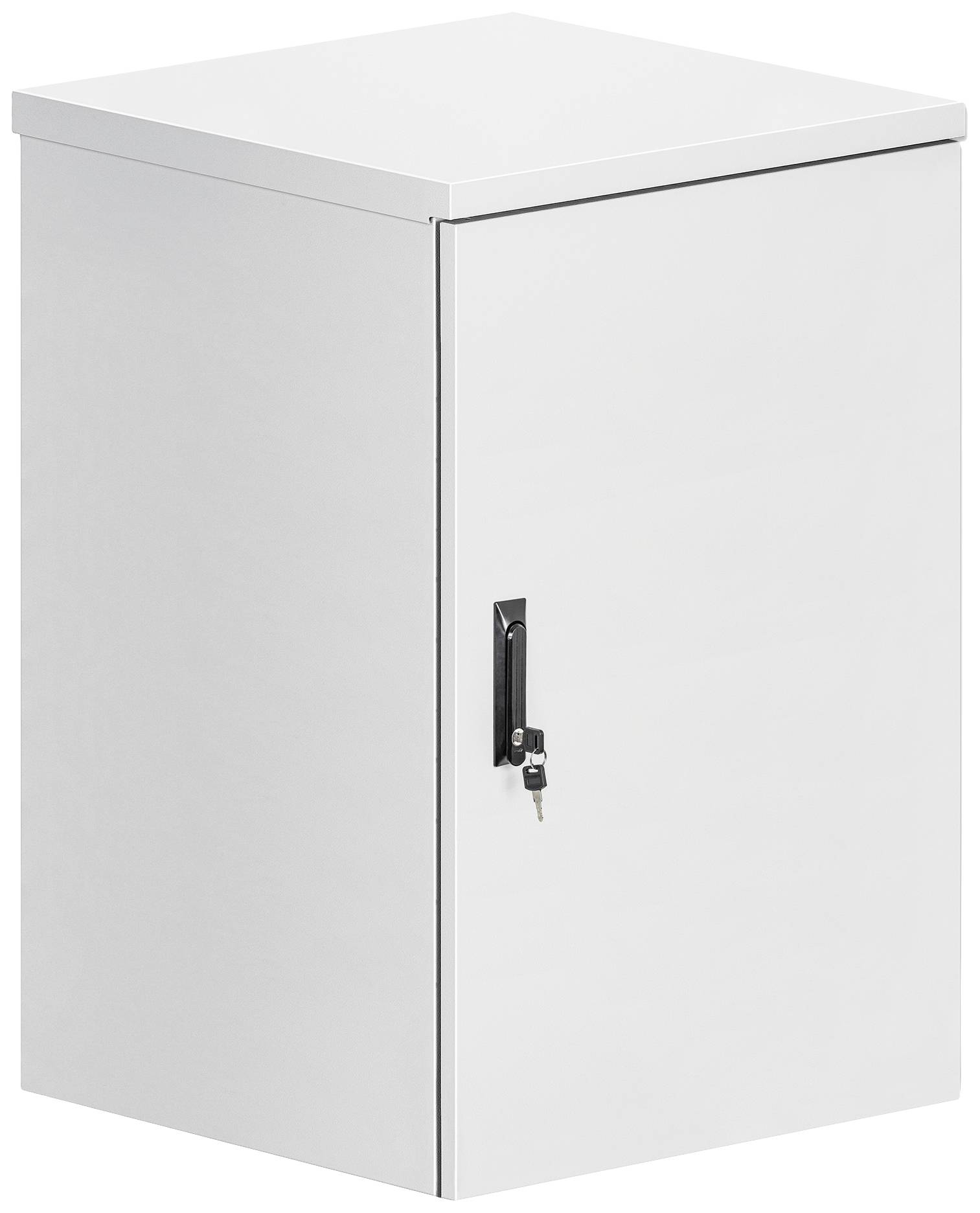

Metal cabinet with lock and key on the front. Square in shape, in a closed position.

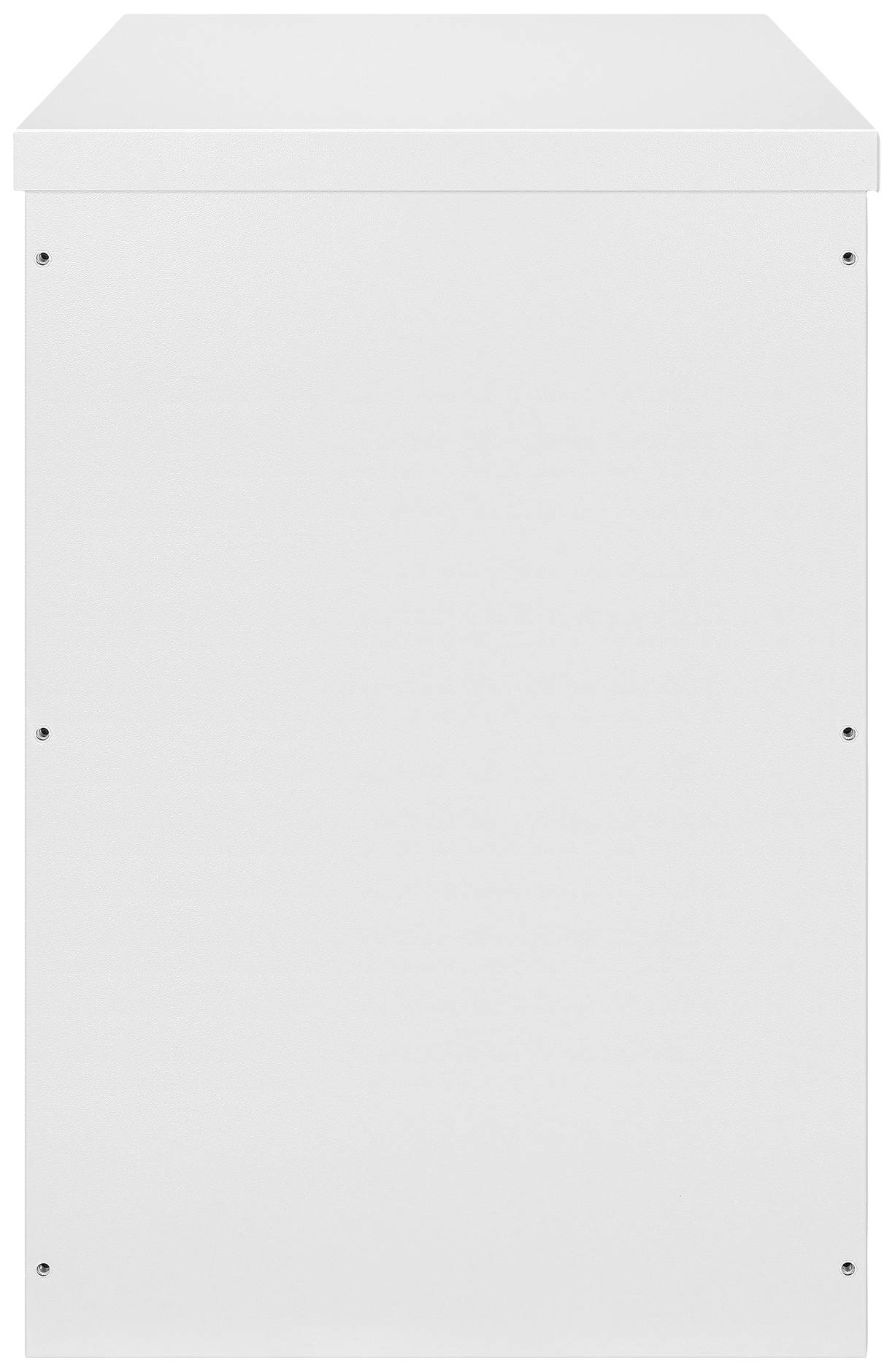

A white, rectangular box with visible screws on the sides. Minimalist design, typical of contemporary furniture.

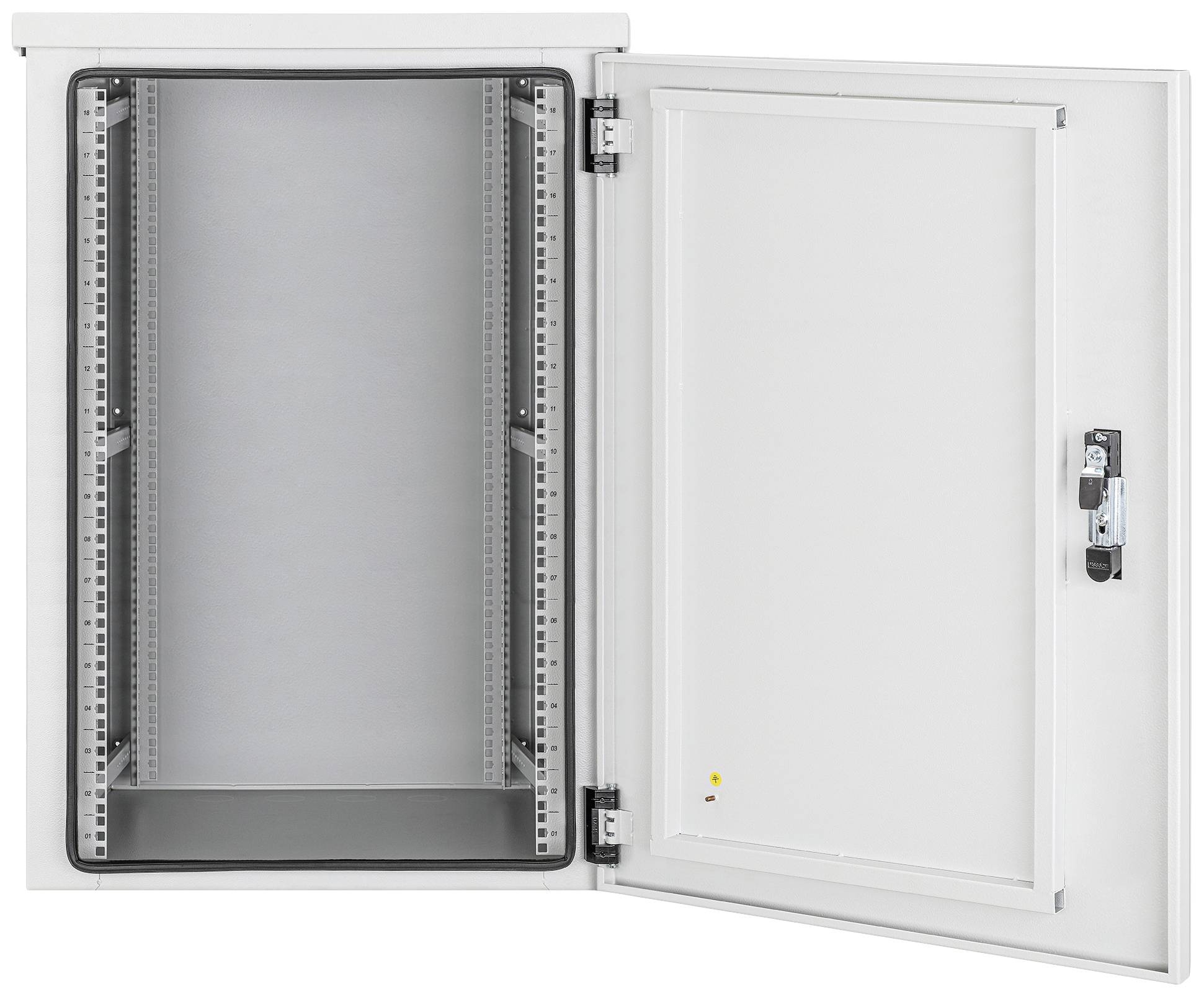

An open electrical control cabinet with visible mounting rails and hinges. The cabinet is empty and situated in a neutral environment.

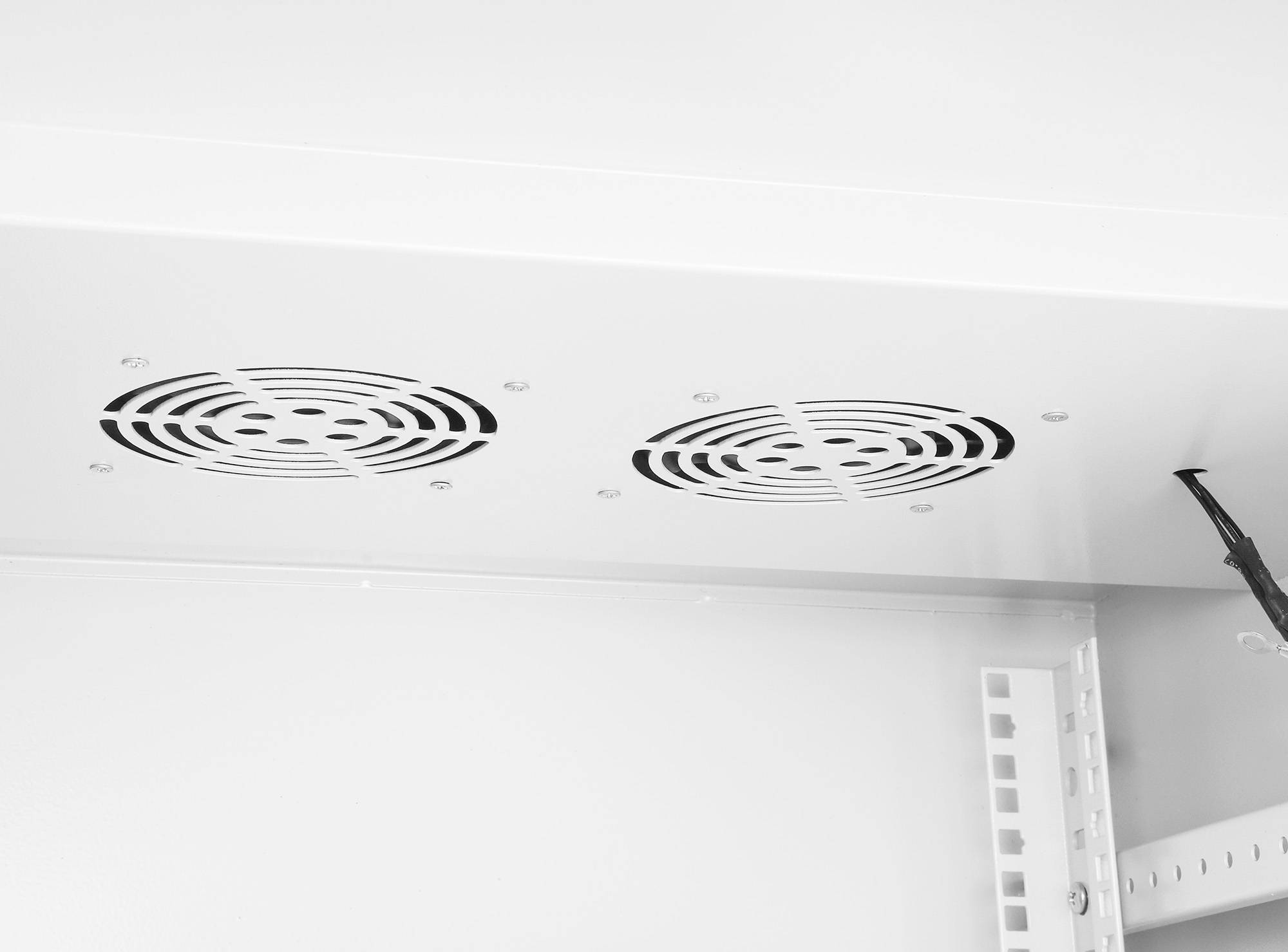

White surface with two round ventilation grilles and a cable hanging down the side.

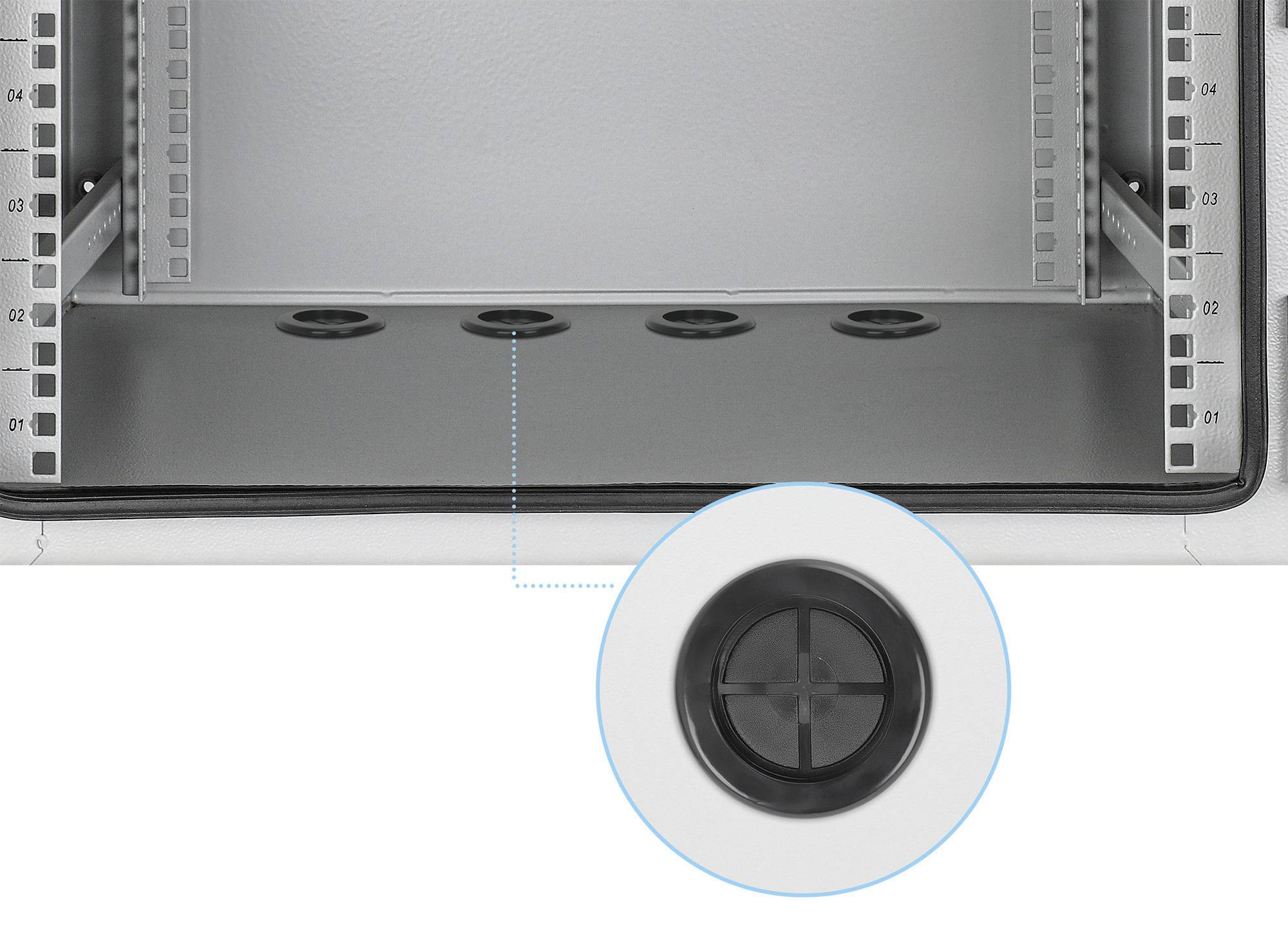

An open metal frame with a circular cable aperture, highlighted in a close-up, shows the cable entry opening.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Intellinet industrial IP55 19" wall distributor

Protection class IP55 for industrial applications: Protected against dust and water spray from any angle
Robust, secure steel construction with anti-static powder coating
Usable installation depth: 169 mm to 549 mm
Integrated roof-fan unit with air filters and two quiet fans with a volume of only 24.9 dB (A)
Efficient heat dissipation for wide operating temperature range up to 50°C.

Technical specifications

Product type: 19" industrial cabinet

Rack unit: 18 U

Width: 615 mm

Height: 902 mm

Depth: 600 mm

Material: Steel

Dim: (W x H x D) 615 x 902 x 600 mm

Weight: 44 kg

Factory colour: Grey (RAL 7035)

Rack size: 483 mm (19")

Wireless charging: No

Product type description: Rack

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2896526 Intellinet IP55 19" Wandverteiler mit integrierten Lüftern 18 HE 600 mm tief grau RAL7035 19" industrial cabinet (W x H

Description

19" wall housing with protection class IP55 as network cabinet for industrial applications - dust-proof and waterproof
The IP55 wall cabinet from Intellinet NETWORK SOLUTIONS is suitable because of its equipment even for harsh industrial environments. Its antistatic coated steel housing complies with IEC Standard 60529 for secure protection against dust and water jets from any angle. Four cable entries on the underside with blind plugs are securely sealed. To ensure this safety, the cabinet is supplied fully assembled and WAS ensures quick and convenient use. The robust steel construction carries heavy 19" network components with a total load of 100 kg and can be locked by a 3-point lock in the pivot lever handle. This IP55 wall housing is available in 6, 9, 12 and 18 HE.

Efficient cooling with the integrated roof fan unit
To cool your network equipment, this cabinet has a roof mounted cooler unit with two quiet fans. The heat dissipation and air circulation ensure higher performance and longer life of your network components.
