Intellinet RJ45 Networks Adapter CAT 5 [1x RJ45 plug - 2x RJ45 socket] 0 mm Silver, White
EAN:
Part number:
Item no:
Datasheet (PDF)

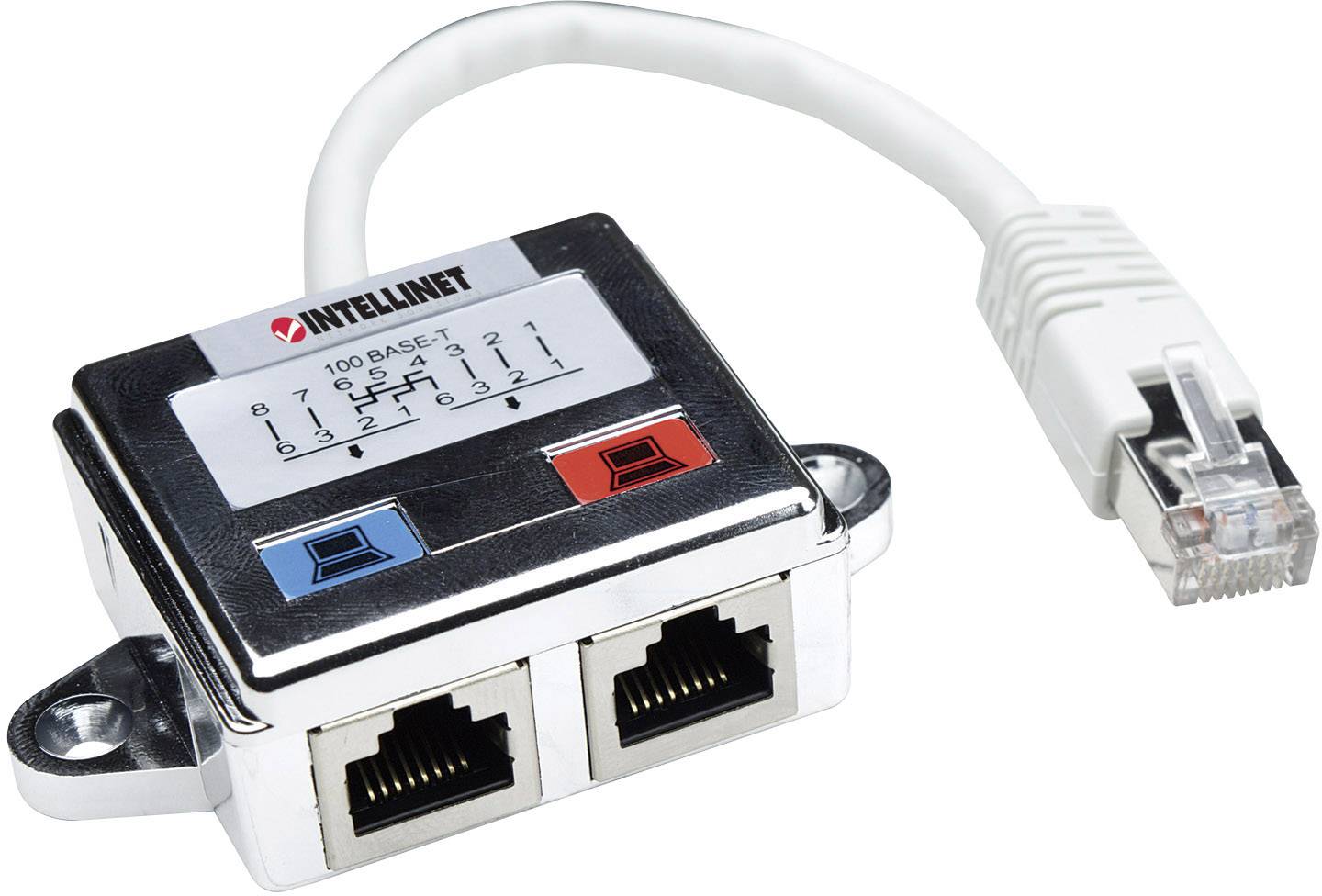

Intellinet 2 port RJ 45-distributor shielded
Highlights & Details
- Enables two RJ45 connections the joint usage of a shielded network cable
- Only use a cable for two connections
- Application in pairs (a distributor at each end of the network cable)
- Requires a coupler (female to female) at each end of the network cable
Technical specifications
- Product type
Networks Adapter
CAT 5
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
2 x
- Type B
RJ45 socket
- Cable length
0 mm
- Factory colour
Silver
White
- Connector version
straight
- Cable use
Networks
- Version
Adapter
Copper
- Cable design
Round
- Weight
0.045
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1529373 Intellinet RJ45 Networks Adapter CAT 5 [1x RJ45 plug - 2x RJ45 socket] 0 mm Silver, White
User & Safety Instructions
User & Safety Instructions 1529373 Intellinet RJ45 Networks Adapter CAT 5 [1x RJ45 plug - 2x RJ45 socket] 0 mm Silver, White
Description
Saves you money on the building cabling.
The Intellinet 2 port RJ45 Splitter reduces the cost of your installation routes clear. Instead of two cable from a patch panel to a network socket, you can use one of these often over large distances installed cable. Simply connect both wires to the distributor and then engage the integrated network cable with your laying cable. The distributor is used in pairs, each at the beginning and at the end of the installation path. Therefore, please note that you need both two pieces of this article as well as two RJ45 sockets (female to female, not included in the delivery). This RJ45 distributor is only for shielded Cat5 network cable.
This text is machine translated.
The Intellinet 2 port RJ45 Splitter reduces the cost of your installation routes clear. Instead of two cable from a patch panel to a network socket, you can use one of these often over large distances installed cable. Simply connect both wires to the distributor and then engage the integrated network cable with your laying cable. The distributor is used in pairs, each at the beginning and at the end of the installation path. Therefore, please note that you need both two pieces of this article as well as two RJ45 sockets (female to female, not included in the delivery). This RJ45 distributor is only for shielded Cat5 network cable.
This text is machine translated.
Features
- IEEE 802.3i 10Base-T Ethernet
- IEEE 802.3u (100Base-TX Fast Ethernet).
- LAN ports: 2 RJ-45 10/100Mbps data ports
- Double shielded.
Hints

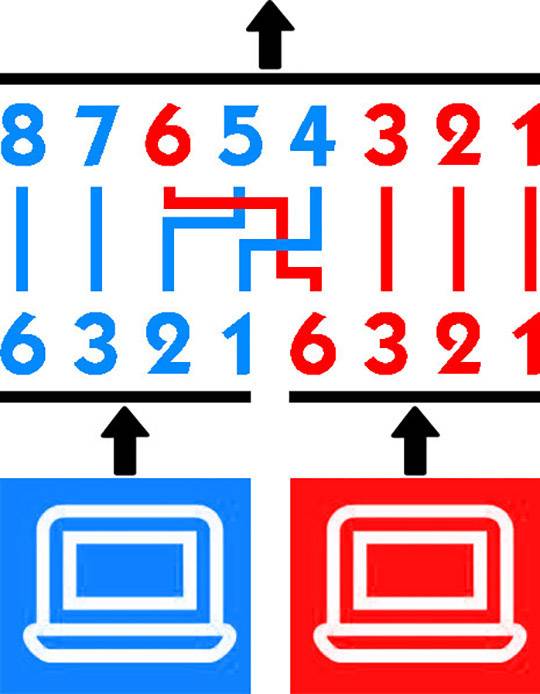

Please check the adapter pin layout. Depending on use, required pin layouts may differ.
