Inter-Tech 88882190 Surge protection module 200 W Mini-ITX
EAN:
Part number:
Item no:
Product type
Surge protection module
PSU output power
200 W
Modular
Yes
Form factor
Mini-ITX
Factory colour
Black
Highlights & Details
Inter-Tech 88882190 Surge protection module
- Power supply unit output 200 W
- PCI-Express (6+2-Pin) x
- Cable management Yes
Technical specifications
- Product type
Surge protection module
- PSU output power
200 W
- Modular
Yes
- Form factor
Mini-ITX
- Factory colour
Black
- Dim
(W x H x D) 63 x 20 x 40 mm
- Depth
40 mm
- Height
20 mm
- Width
63 mm
- Weight
90 g
- 24-pin
1
- 4-pin 12 V
1
- 20+4-pin.
2
- 4-pin Molex
2
- 5-pin SATA
2
- Output rating < 500 W
200 W
- Power rating
0 - 500 W
- Design height
20 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896175 Inter-Tech 88882190 Surge protection module 200 W Mini-ITX
Description

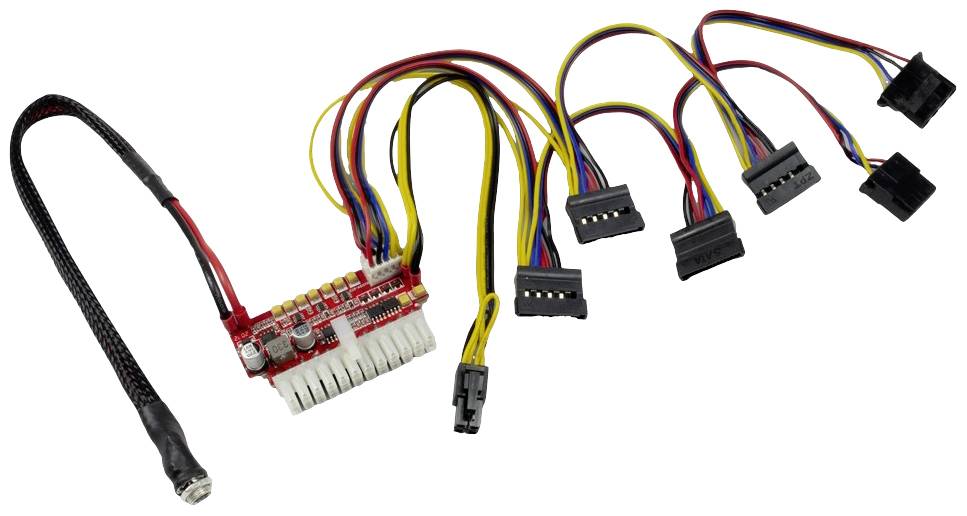

The compact design of this Mini-ITX PSU allows you to supply power even in narrow housings.
A cable with a socket and a coupling nut is attached to a suitable hole on the housing wall and serves to connect an external 12V power supply which may have a power of up to 200W.

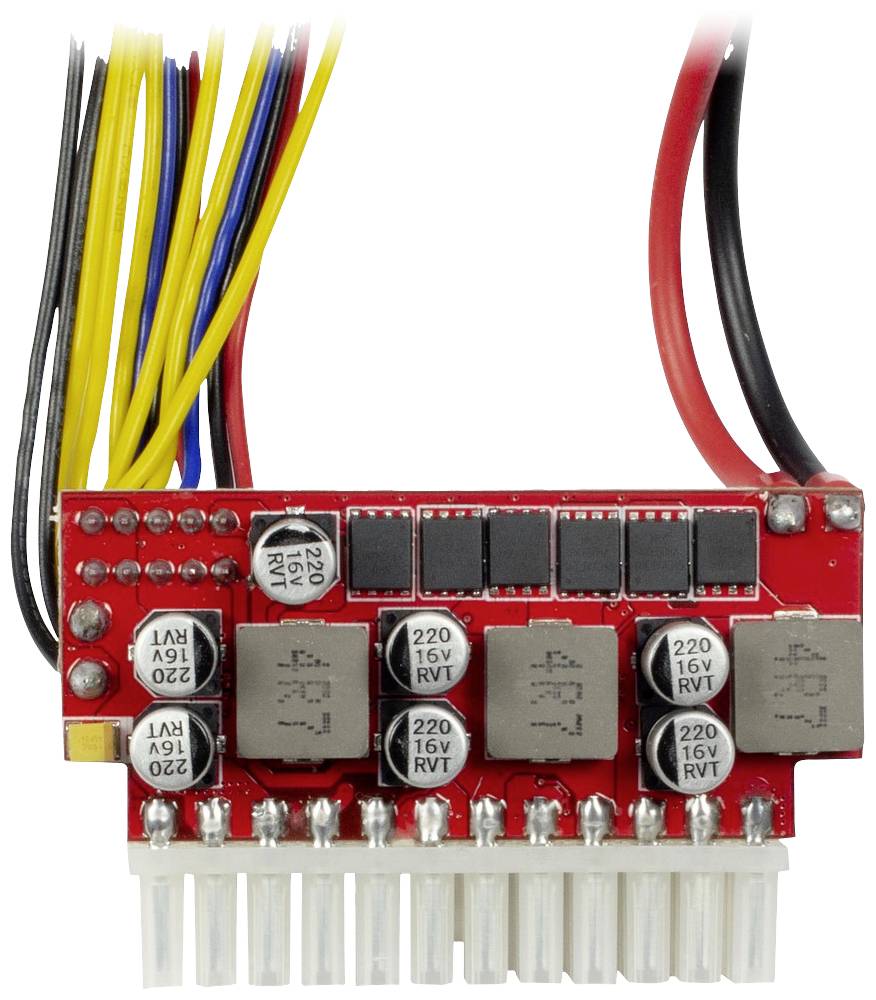

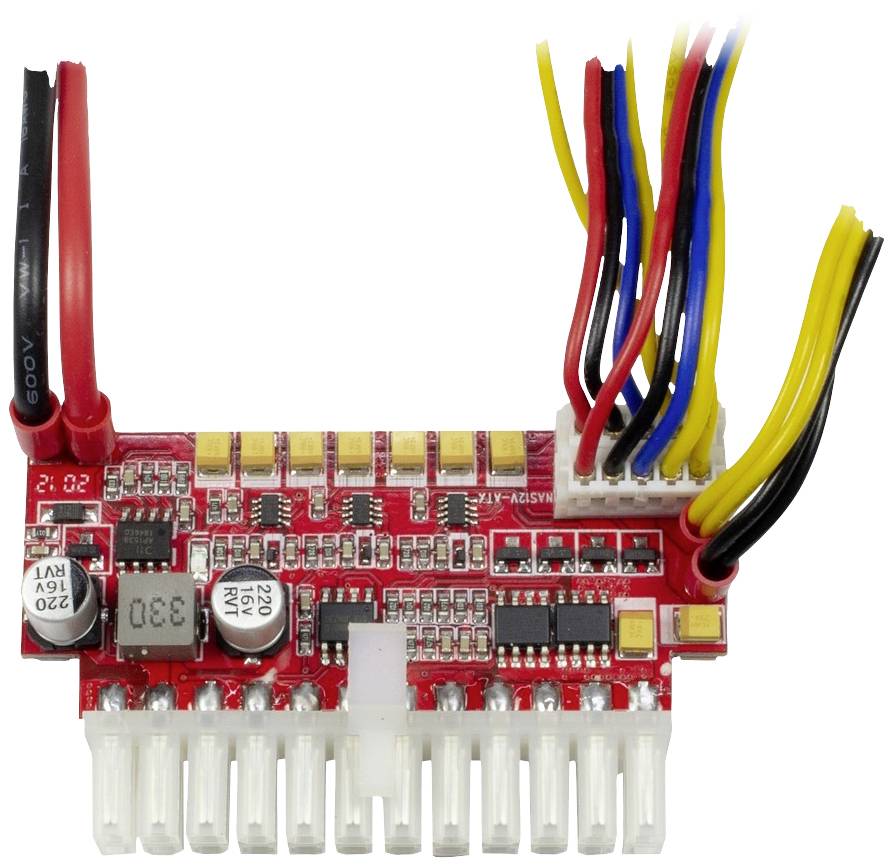

The board is equipped with the 24-pin main power cable, two strands each with 1x Molex-plug, 2x S-ATA-plug and a string with 1x 4-pin-plug.
This text is machine translated.
A cable with a socket and a coupling nut is attached to a suitable hole on the housing wall and serves to connect an external 12V power supply which may have a power of up to 200W.
The board is equipped with the 24-pin main power cable, two strands each with 1x Molex-plug, 2x S-ATA-plug and a string with 1x 4-pin-plug.
This text is machine translated.
Features
- 200 W. Motherboard connector 20+4 pin ATX Purpose: Server. Product color: Black. Width 63 mm
- Depth: 40 mm
- Height: 20 mm
