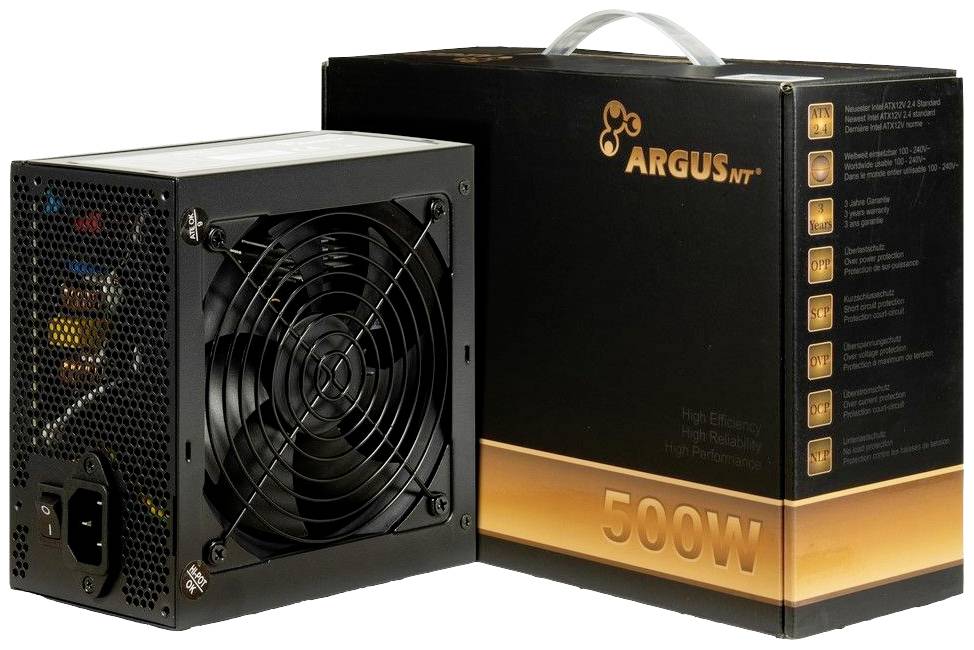

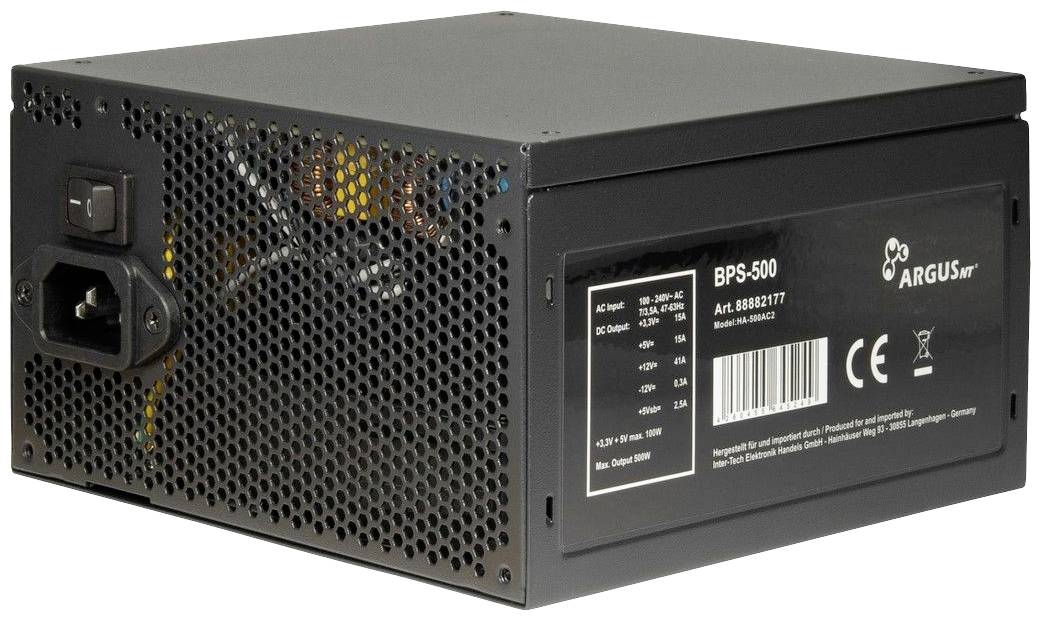

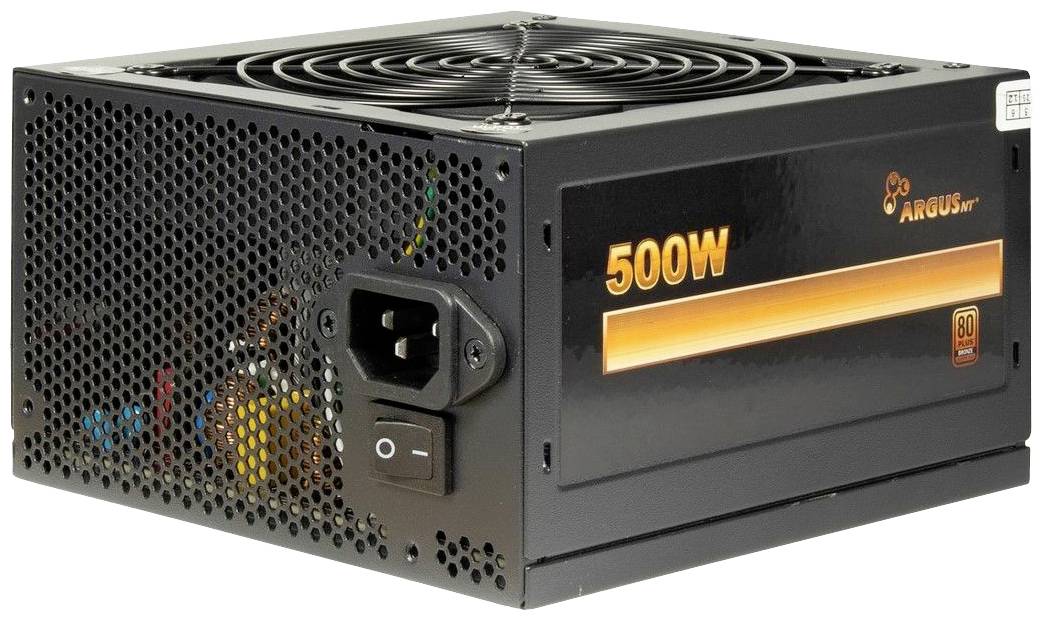

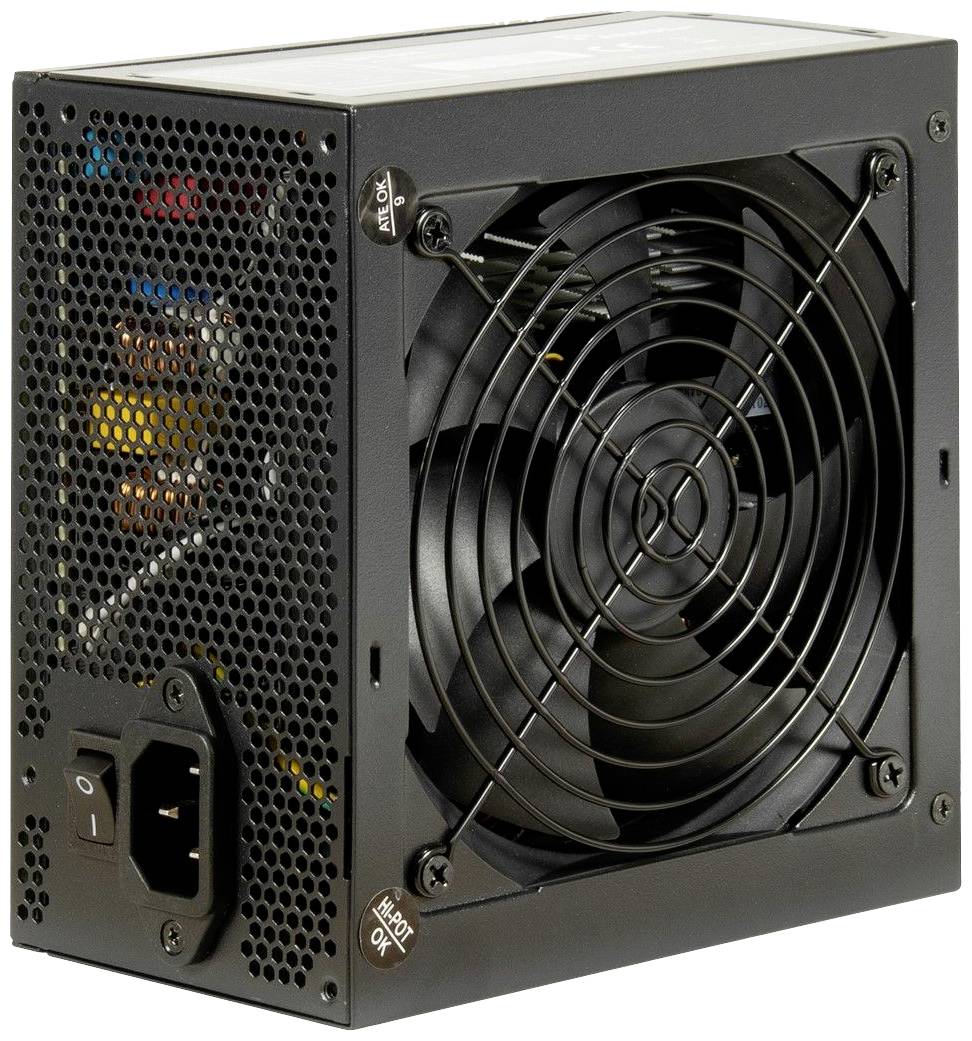

Inter-Tech ArgusNT BPS-500 PC power supply unit 500 W ATX 80 PLUS Bronze
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
500 W
Modular
No
Certification
80 PLUS Bronze
Form factor
ATX
Inter-Tech ArgusNT BPS-500 PC power supply unit
Highlights & Details
- Power supply unit output 500 W
- PCI-Express (6+2-Pin) 2x
- Cable management No
- 80 PLUS Bronze
Technical specifications
- Product type
PC power supply unit
- PSU output power
500 W
- Modular
No
- Certification
80 PLUS Bronze
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
1.67 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
41 A
- 5 V DC
15 A
- +5V / DC SB
2.5 A
- 4-pin 12 V
1
- 20+4-pin.
1
- 4-pin Molex
3
- 4+4 pin ATX/EPS 12V
1
- 6-pin PCIe
2
- 5-pin SATA
6
- Output rating > 500 W
500 W
- Power rating
0 - 500 W
- 3.3V DC
15 A
- Operating voltage
100 - 240 V / AC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898467 Inter-Tech ArgusNT BPS-500 PC power supply unit 500 W ATX 80 PLUS Bronze
Description
The BPS series of Argus stands for powerful and reliable power supplies. Whether it is for upgrading existing or for configuring new systems, thanks to 80PLUS Bronze 230V EU-certification and latest components you are up to date with the BPS series. To secure the installed hardware and the power supply itself the power supplies of the BPS series have been equipped with a total of five protective circuits (OPP, SCP, OVP, OCP and NLP).
Even in the variety of connections, one eye was put on the highest possible efficiency and except for the 20+4Pin connection all the other cables are designed as flat band version - saves space and time when laying. Thus, the BPS-500 features two PCIe 6+2pin and six S-ATA connections. With 41A on the 12V line there is more than sufficient power for potential hardware.
This text is machine translated.
Even in the variety of connections, one eye was put on the highest possible efficiency and except for the 20+4Pin connection all the other cables are designed as flat band version - saves space and time when laying. Thus, the BPS-500 features two PCIe 6+2pin and six S-ATA connections. With 41A on the 12V line there is more than sufficient power for potential hardware.
This text is machine translated.
