Inter-Tech SAMA FTX-850-B PC power supply unit 850 W ATX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
850 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
ATX
Highlights & Details
Inter-Tech SAMA FTX-850-B PC power supply unit
- Power supply unit output 850 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Gold
Technical specifications
- Product type
PC power supply unit
- PSU output power
850 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
Multicolour
- Dim
(W x H x D) 150 x 86 x 180 mm
- Depth
180 mm
- Height
86 mm
- Width
150 mm
- Weight
1.77 kg
- -12V / DC
0.2 A
- +12 V/DC (1)
69 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 20+4-pin.
1
- 4-pin Molex
3
- 4+4 pin ATX/EPS 12V
2
- 6-pin PCIe
4
- 5-pin SATA
9
- Output rating > 700 W
850 W
- Power rating
751 W -
- 3.3V DC
20 A
- Operating voltage
110 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898482 Inter-Tech SAMA FTX-850-B PC power supply unit 850 W ATX 80 PLUS Gold
Description
The 850W high power supply of SAMA is 80PLUS Gold certified and equipped with the latest technology! The DC/DC-technology thereby provides for highest efficiency and stable voltages. With the +12V single-rail technology a full 69A is available for performance-hungry graphics cards. 105°C certified A+ Premium capacitors from Nichicon Japan offer maximum reliability for well over 100,000 operating hours (MTBF) at over 90% efficiency.

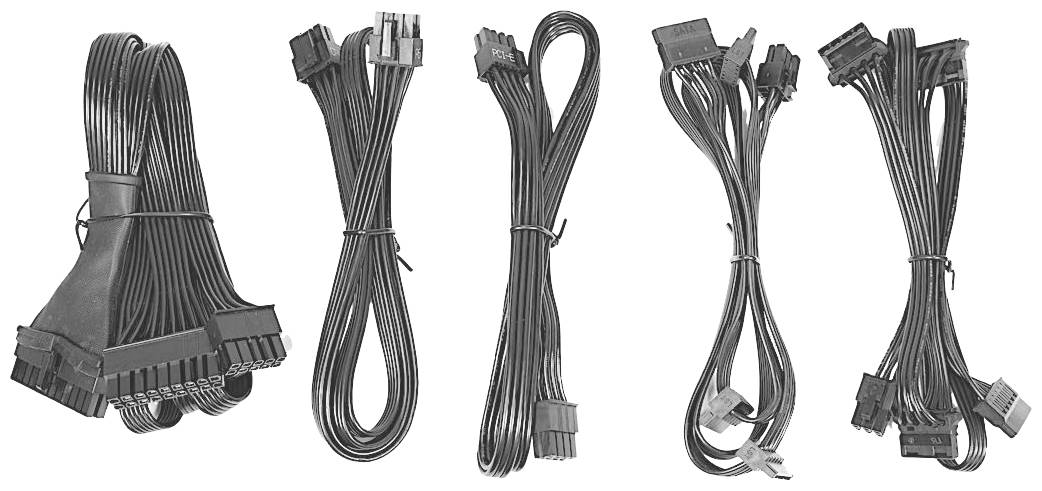

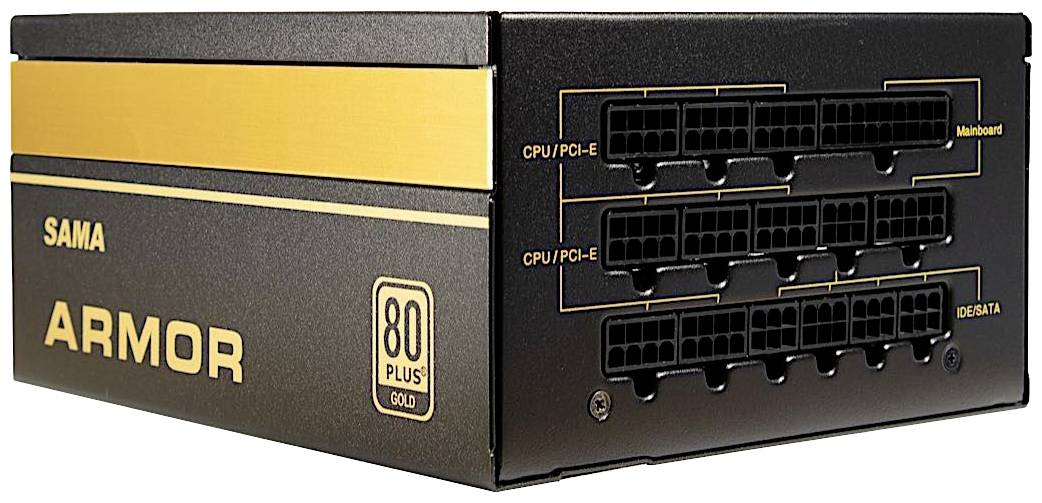

The fully modular cable design gives you free choice for connections. Thus, in addition to two 4+4-pin connections for dual-CPU systems, the SAMA FTX-850-B Armor becomes available, three additional S-ATA, three Molex and four PCIe 6+2-pin connections, whose connection cable are all designed in flat-cable design, WAS contributes to a clean cable management in the housing.

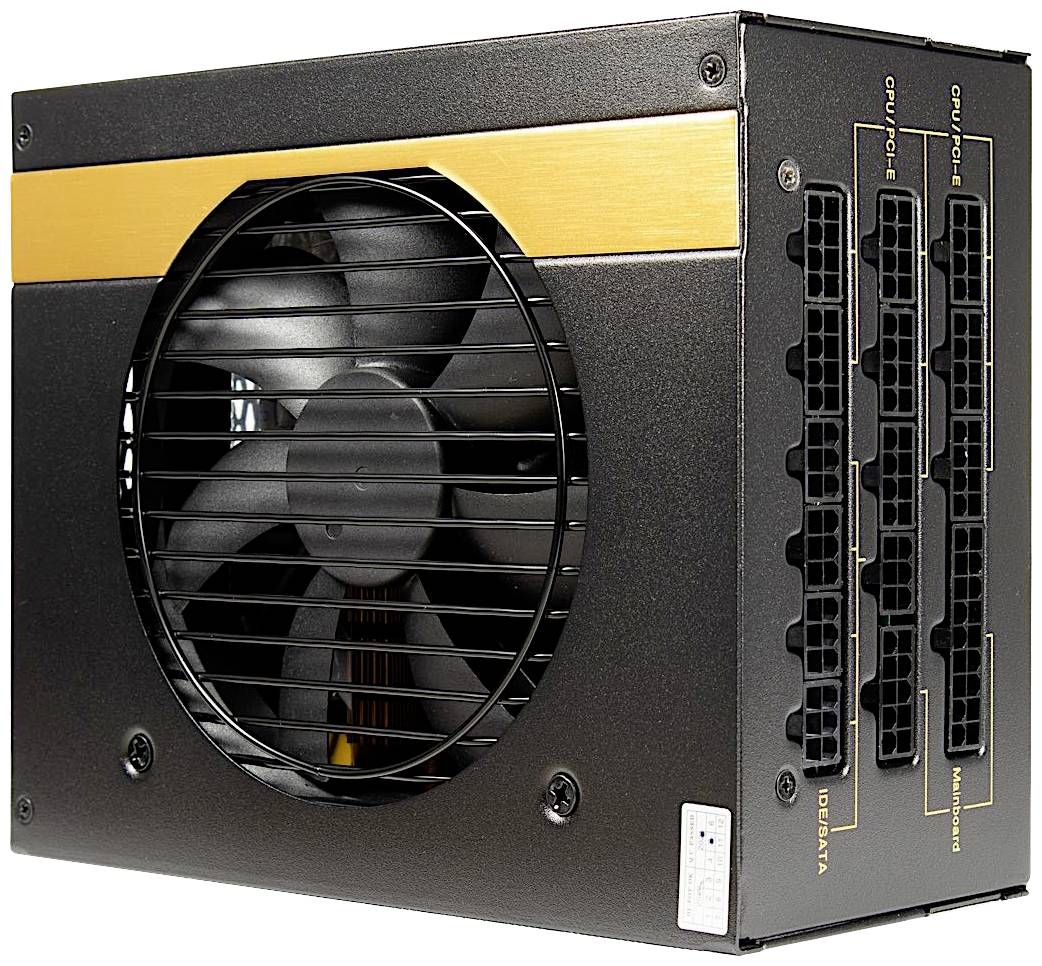

The high-quality power supply housing, which is provided with golden aluminum applications, sits the run-quiet, temperature-controlled 120mm fan, which reliably cools the inner life of the power supply.
This text is machine translated.
The fully modular cable design gives you free choice for connections. Thus, in addition to two 4+4-pin connections for dual-CPU systems, the SAMA FTX-850-B Armor becomes available, three additional S-ATA, three Molex and four PCIe 6+2-pin connections, whose connection cable are all designed in flat-cable design, WAS contributes to a clean cable management in the housing.
The high-quality power supply housing, which is provided with golden aluminum applications, sits the run-quiet, temperature-controlled 120mm fan, which reliably cools the inner life of the power supply.
This text is machine translated.
