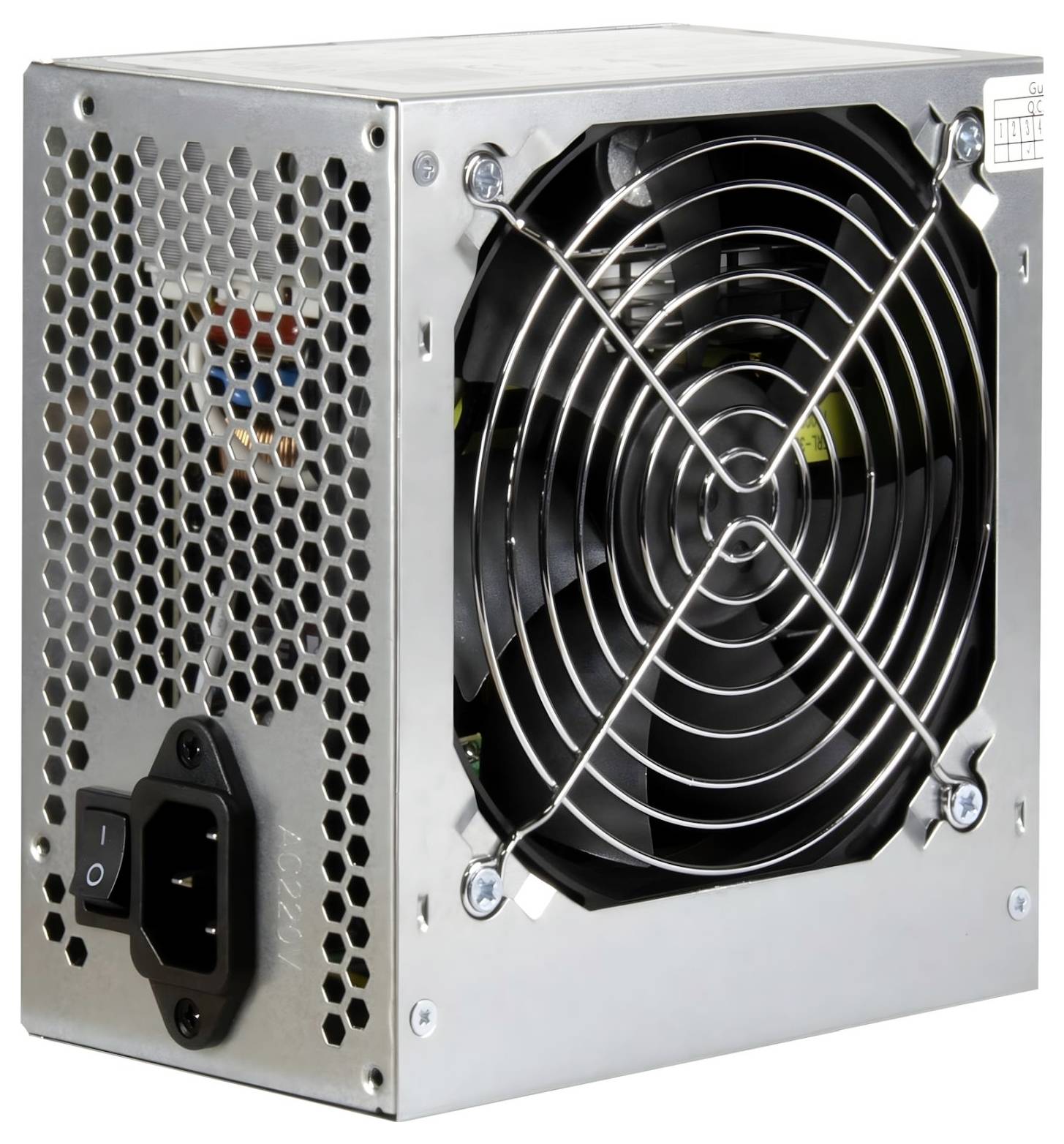

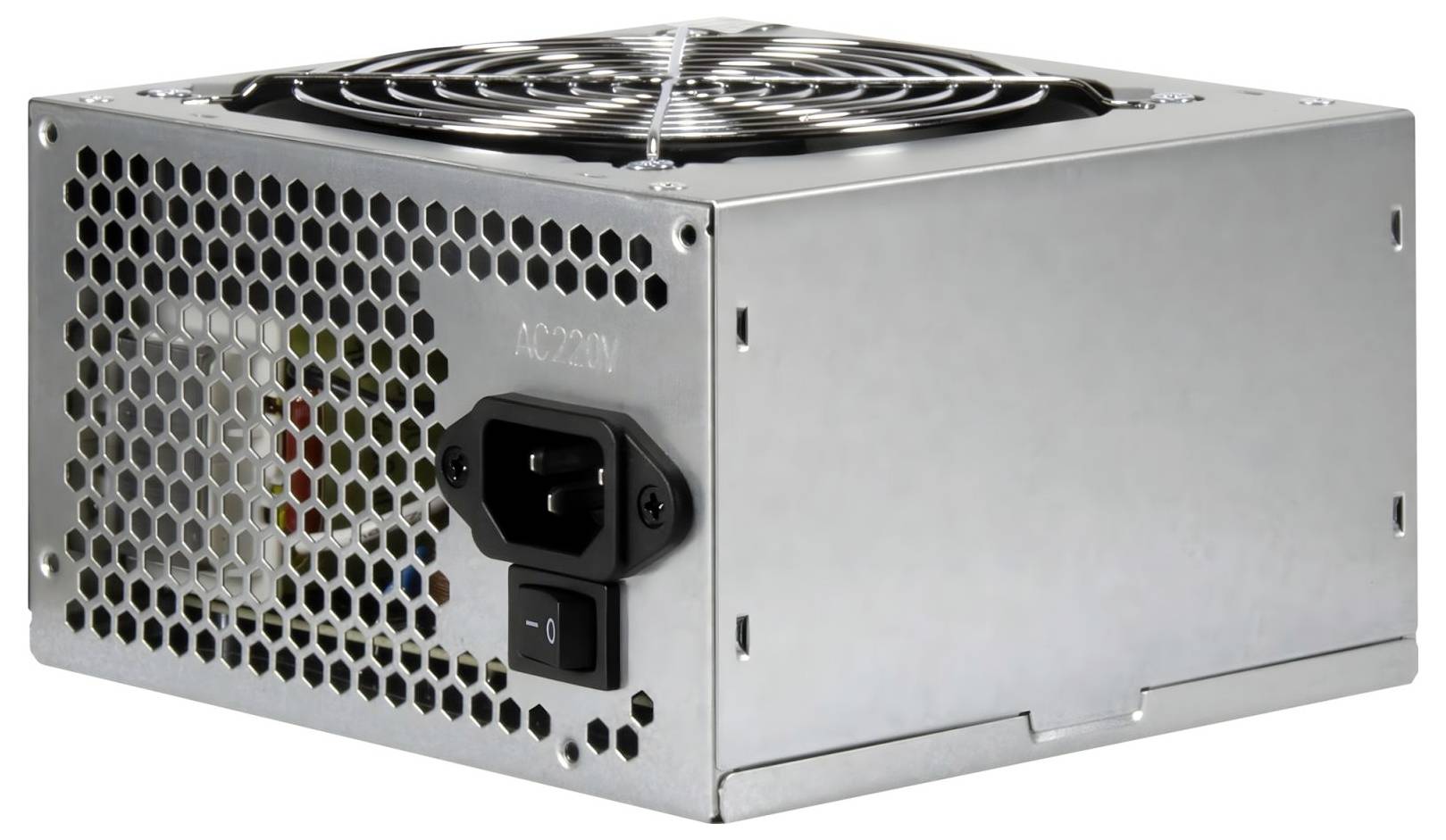

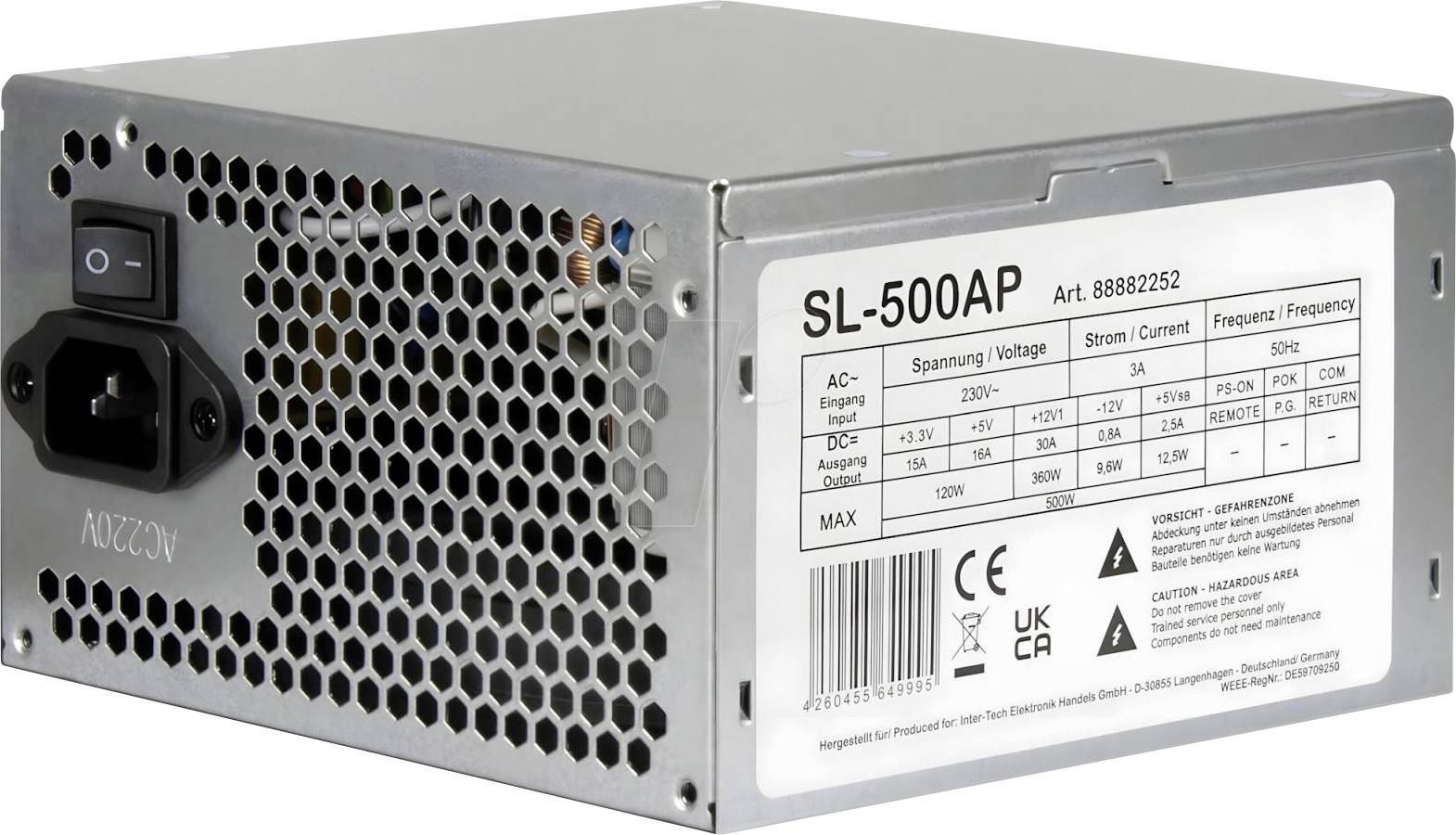

Inter-Tech SL-500AP PC power supply unit 500 W ATX
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
500 W
Form factor
ATX
Dim
(W x H x D) 150 x 86 x 140 mm
Depth
140 mm
Datasheet (PDF)
Highlights & Details
Inter-Tech SL-500AP PC power supply unit
- Power supply unit output 500 W
- PCI-Express (6+2-Pin) x
- Cable management
Technical specifications
- Protection: Overvoltage protection, under-voltage protection, short-circuit protection, over-current protection
- Product type
PC power supply unit
- PSU output power
500 W
- Form factor
ATX
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
1.185 kg
- -12V / DC
0.8 A
- +12 V/DC (1)
30 A
- 5 V DC
16 A
- +5V / DC SB
2.5 A
- 20+4-pin.
1
- 4-pin floppy
1
- 4-pin Molex
2
- 4+4 pin ATX/EPS 12V
1
- 5-pin SATA
3
- Power rating
0 - 500 W
- 3.3V DC
15 A
- Operating voltage
230 V / AC
Documents & Downloads
Datasheet
Datasheet 3788800 Inter-Tech SL-500AP PC power supply unit 500 W ATX
User & Safety Instructions
User & Safety Instructions 3788800 Inter-Tech SL-500AP PC power supply unit 500 W ATX
Description
The popular and inexpensive entry-level power supply SL-500AP now with revised layout.
Suitable for standard computer systems or as replacement power supply for your old system.
This text is machine translated.
Suitable for standard computer systems or as replacement power supply for your old system.
This text is machine translated.
Scope of delivery
- PSU
- Power cable;
- Manual
- Screw
- Cable ties
