interBär 8152-008.01 Furniture-fitted dimmer Suitable for light bulbs: LED bulb White
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Only 5 Piece(s) available
Highlights & Details

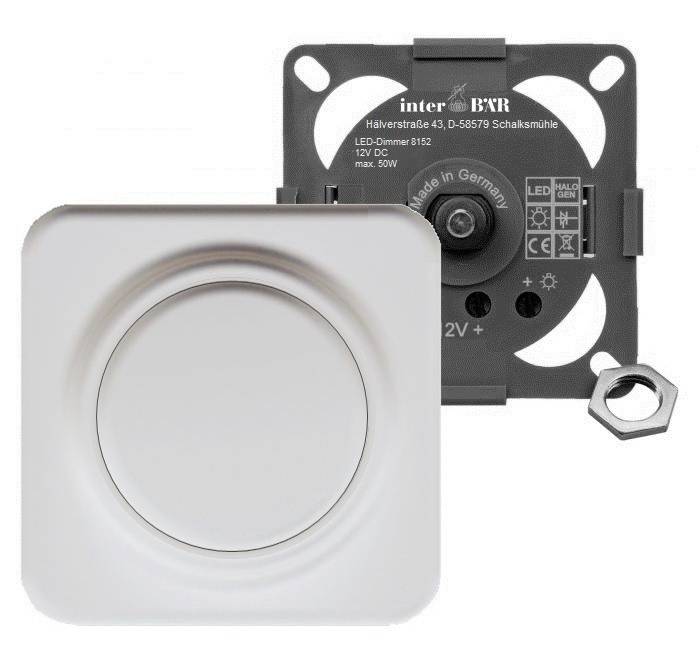

LED furniture dimmer 12 V, flush-mounted rotary dimmer with button and frame white
- Flush-mounted rotary dimmer with touch-changeover switch
- Suitable for dimmable 12 V LED lamps, 12 V bulb and halogen lamps, LED modules and strips with limit resistance
Technical specifications
- Connection: Screw terminals up to 2 x 2.5 mm² (rigid)
- Shaft: Ø 4 mm metal with soft grid
- Protection class: IP20
- Output 3 - 50 W
- Product type
Furniture-fitted dimmer
- Operating voltage
15 V
- Power rating (min.)
3 W
- Power rating (max.)
50 W
- Suitable for light bulbs
LED bulb
- Shaft Ø
4 mm
- Factory colour
White
- Dim
(L x W x H) 54 x 54 x 33 mm
- Length
54 mm
- Width
54 mm
- Height
33 mm
Documents & Downloads
Datasheet
Datasheet 3281300 interBär 8152-008.01 Furniture-fitted dimmer Suitable for light bulbs: LED bulb White
User & Safety Instructions
User & Safety Instructions 3281300 interBär 8152-008.01 Furniture-fitted dimmer Suitable for light bulbs: LED bulb White
Description
The small 12 V LED dimmer is Ideal, perfect for installation in furniture, caravans, or trade fair construction. It reliably dims 12 V LED lamps, 12 V incandescent and halogen lamps, LED modules and strips with limiting resistors.
This text is machine translated.
This text is machine translated.
Features
- PWM (pulse width modulation) operating principle
- No stand-by consumption due to real on/off switch
- Thermal fuse overtemperature protection (permanently switches the device off after being triggered)
Scope of delivery
- With 6 bits. Button and frame white
