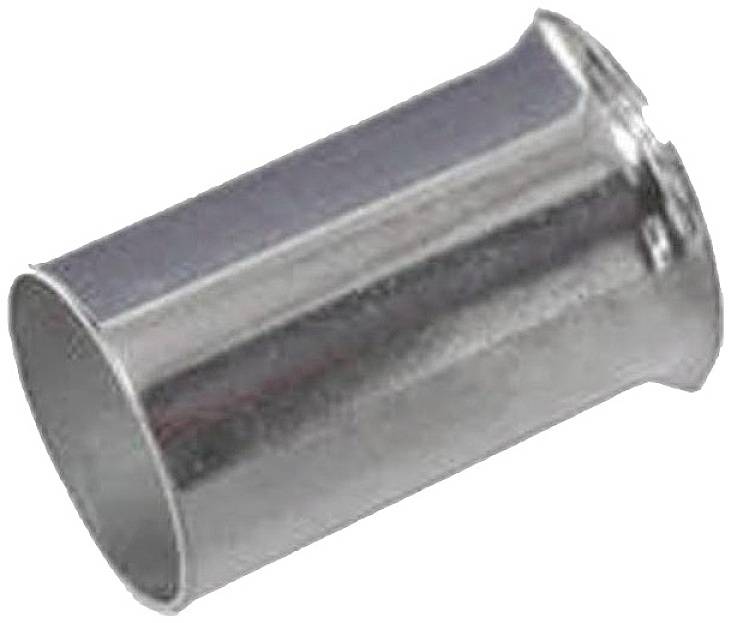

Intercable 180021 Ferrule 16 mm² Not insulated Tin 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ferrule
Cross section per core
16 mm²
Sleeve length
15 mm
Insulation type
Not insulated
Highlights & Details
Intercable ICAE1615 wire-end sleeve DIN46228T1 16qmm 15mm tin-plated
- Tin
Technical specifications
- Packaging type
Piece
- Product type
Ferrule
- Cross section per core
16 mm²
- Sleeve length
15 mm
- Insulation type
Not insulated
- Factory colour
Tin
- Content
1 pc(s)
- Contact material
Tin plated
- AWG max.
6
- Manufacturer part #
180021
- Cross-section x Length
16 mm² x 15 mm
- Features
no insulation
- Type
ICAE1615
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3331858 Intercable 180021 Ferrule 16 mm² Not insulated Tin 1 pc(s) Piece
Description
For fine and ultra-fine stranded and compacted fine strand conductors, in connection with the innovative i-round crimping, the wire end sleeves are optimally suitable for tight chamber dimensions after crimping
