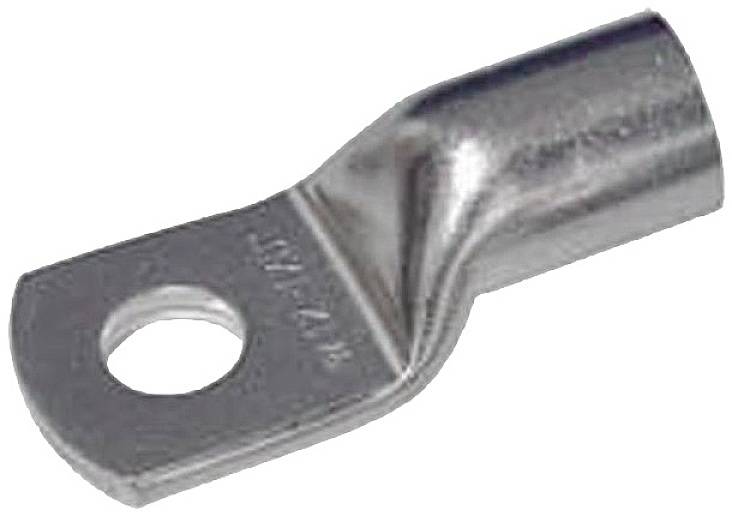

Image similar

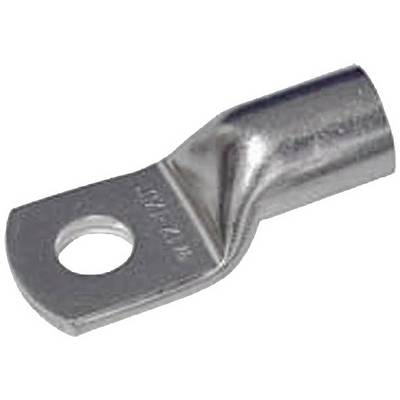

Image similar
Intercable 180430 ICR1610 Crimp cable lug for sectioned multicore cables 180 ° M10 16.00 mm² Hole Ø: 10 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp cable lug
max. cross section
16.00 mm²
Thread size
M10
Hole Ø
10 mm
Highlights & Details
Intercable ICR1610 pipe cable lug 16qmm M10 tin-plated R-series
- Hole Ø: 10 mm
- Cross section (max.): 16.00 mm²
Technical specifications
- Packaging type
Piece
- Product type
Crimp cable lug
- max. cross section
16.00 mm²
- Thread size
M10
- Hole Ø
10 mm
- Connection angle
180°
- Contact material
Copper silver plated
- Content
1 pc(s)
- AWG max.
6
- Manufacturer part #
180430
- Insulation type
Not insulated
- Min. cross section
0.75 mm²
- Features
for sectioned multicore cables
- Type
ICR1610
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2567981 Intercable 180430 ICR1610 Crimp cable lug for sectioned multicore cables 180 ° M10 16.00 mm² Hole Ø: 10 mm 1 pc(s) Piece
Description
For multi-wired, fine-wired, compressed multi-wired and fine-wired round conductors or sector conductors as well as for solid conductors of 0.75-16qmm
