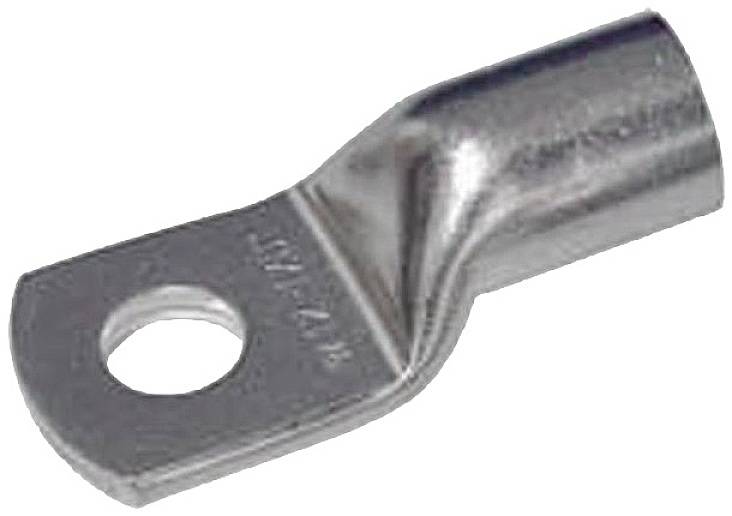

Intercable 180442 ICR3510 Crimp cable lug for sectioned multicore cables 180 ° M10 35.00 mm² 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp cable lug
max. cross section
35.00 mm²
Thread size
M10
Content
1 pc(s)
Highlights & Details
Intercable ICR3510 pipe cable lug 35qmm M10 tin-plated R-series
- Cross section (max.): 35.00 mm²
Technical specifications
- Packaging type
Piece
- Product type
Crimp cable lug
- max. cross section
35.00 mm²
- Thread size
M10
- Connection angle
180°
- Contact material
Copper silver plated
- Content
1 pc(s)
- AWG max.
2
- Manufacturer part #
180442
- Insulation type
Not insulated
- Features
for sectioned multicore cables
- Type
ICR3510
- Factory colour
Multicolour
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2567997 Intercable 180442 ICR3510 Crimp cable lug for sectioned multicore cables 180 ° M10 35.00 mm² 1 pc(s) Piece
Description
For multi-wired, fine-wired, compressed multi-wired and fine-wired round conductors or sector conductors
