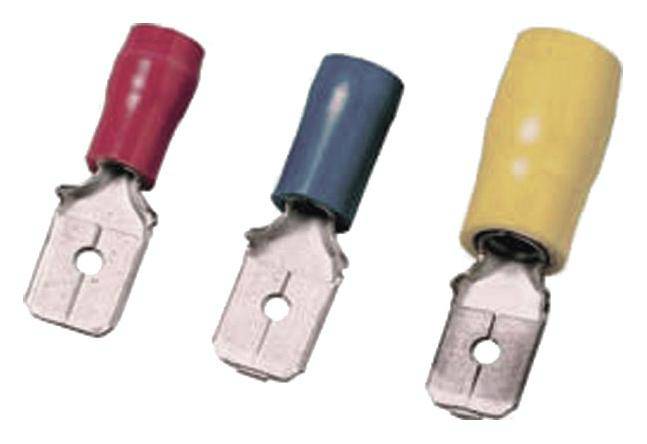

Intercable 180856 Blade terminal Connector width: 6.30 mm Connector thickness: 0.80 mm Partially insulated Red 1 pc(s) P
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Blade terminal
Connector width
6.30 mm
Connector thickness
0.80 mm
Insulation type
Partially insulated
Highlights & Details
Intercable ICIQ168FS Flat plug 0.5-1QMM 6.3x0.8 red brass
- Red
- 6.30 mm x 0.80 mm
- 0.50 mm² - 1 mm²
Technical specifications
- Packaging type
Piece
- Product type
Blade terminal
- Factory colour
Red
- Connector width
6.30 mm
- Connector thickness
0.80 mm
- Insulation type
Partially insulated
- Contact material
Brass tin plated
- Content
1 pc(s)
- Manufacturer part #
180856
- Type
ICIQ168FS
- max. cross section
1 mm²
- Min. cross section
0.50 mm²
- No. of 6.3 mm tabs
1
- Sheet thickness
0.80 mm
- Insulation material
PVC
- Cross-section range
0.50 - 1 mm²
- Size
6.30 x 0.80 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3331894 Intercable 180856 Blade terminal Connector width: 6.30 mm Connector thickness: 0.80 mm Partially insulated Red 1 pc(s) P
Description
For multi-strand and fine-strand conductors
