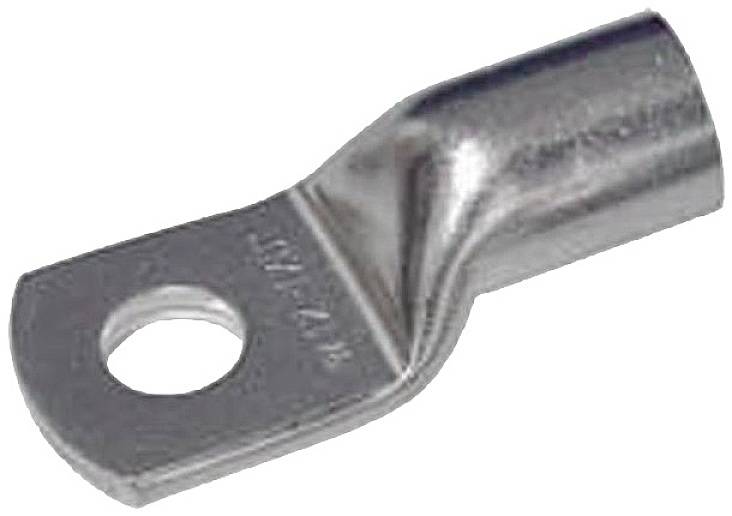

Intercable 181165 ICR9512 Crimp cable lug for sectioned multicore cables 180 ° M12 95.00 mm² Hole Ø: 12 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp cable lug
max. cross section
95.00 mm²
Thread size
M12
Hole Ø
12 mm
Highlights & Details
Intercable ICR9512 pipe cable lug 95mm2 M12 tin-plated R-series
- Hole Ø: 12 mm
- Cross section (max.): 95.00 mm²
Technical specifications
- Packaging type
Piece
- Product type
Crimp cable lug
- max. cross section
95.00 mm²
- Thread size
M12
- Hole Ø
12 mm
- Connection angle
180°
- Contact material
Copper silver plated
- Content
1 pc(s)
- Manufacturer part #
181165
- Insulation type
Not insulated
- Features
for sectioned multicore cables
- Type
ICR9512
- Factory colour
Multicolour
FALSE
Tinned
95 mm²
Several
Copper
12
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3331940 Intercable 181165 ICR9512 Crimp cable lug for sectioned multicore cables 180 ° M12 95.00 mm² Hole Ø: 12 mm 1 pc(s) Piece
Description
For multi-wire, fine wire, compacted multi-wire and fine strand round conductors or sector conductors
