Intercable MPUSET-2 Squeezer universal 0.14 up to 6 mm² incl. exchangeable crimp insets
EAN:
Part number:
Item no:
Technical specifications
- Press form: universal (changeable inserts)
- Product type
Squeezer
- Manufacturer part #
MPUSET-2
- Range of uses
universal
- Crimp area
0.14 up to 6 mm²
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
6 mm²
- Length
270 mm
- Weight
1040.00
- Features
incl. exchangeable crimp insets
Various applications
270 m
Mechanical
Universal (exchangeable inserts)
TRUE
FALSE
TRUE
3
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2572658 Intercable MPUSET-2 Squeezer universal 0.14 up to 6 mm² incl. exchangeable crimp insets
Description

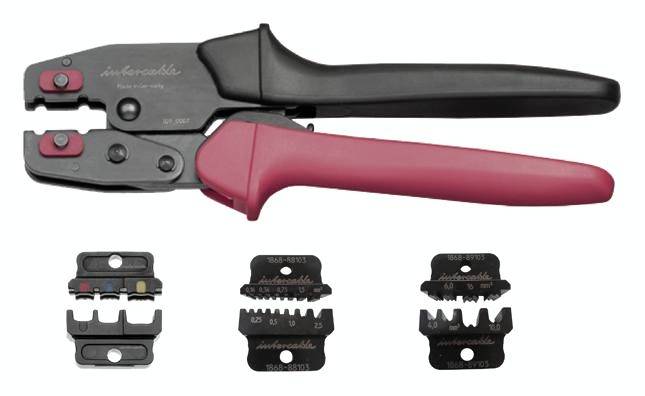

Consisting of MPU basic tool including UEIQ6 crimping inserts for insulated cable connections of 0.5 - 6qmm, UEAE2R for wire-end sleeves 0.14 - 2.5qmm and twin wire-end sleeves of 2 x 0.25 - 2 x 1.5qmm, UEAE16R for wire-end sleeves of 4 - 6qmm and for twin wire-end sleeves 2 x 2.5qmm, in plastic case
