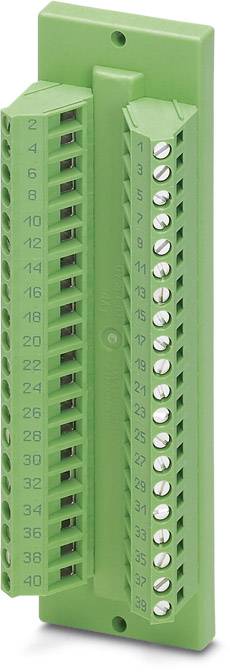

Interface module DFLK 40 2280271 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
40
Connection
IDC-FLK pin strip
Stripping length (max.)
8 mm
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 81.51 / piece)
€ 407.56
plus VAT.
14-day return policy included
Highlights & Details
Interface module DFLK 40
- DFLK40
- Industrial packaging with 5 pieces
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
40
- Connection
IDC-FLK pin strip
- Stripping length (max.)
8 mm
- Connector (field)
Screws
- Connector (control)
IDC/FLK strip
- Industrial packaging
Yes
- Content
5 pc(s)
- Number of pins
40
- Series
Varioface-DFLK
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 588959 Interface module DFLK 40 2280271 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 588959 Interface module DFLK 40 2280271 Phoenix Contact
Description
The VARIOFACE feed-through module implements a 1:1 connection between screw connection terminal blocks and an IDC/FLK pin strip (2.54 mm, number of positions: 40).
