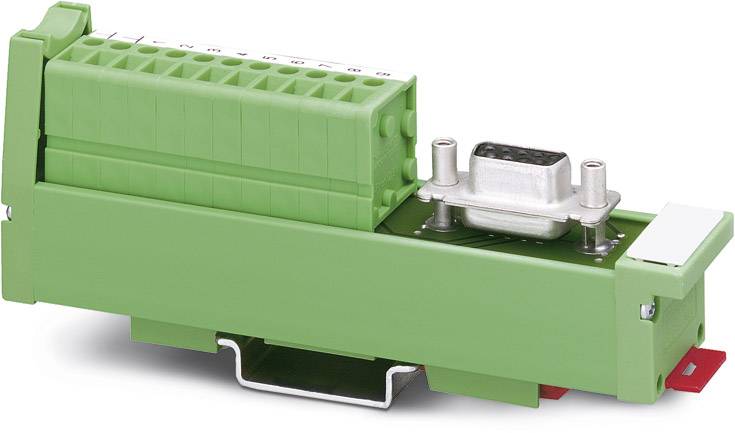

Interface module UM 25-D15SUB/B/FRONT/Q 2959586 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
15
Stripping length (max.)
8 mm
Dim
(L x W x H) 46.5 x 25 x 147 mm
Datasheet (PDF)
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
15
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 46.5 x 25 x 147 mm
- Connector (field)
Screws
- Connector (control)
D-Sub power strip
- Content
1 pc(s)
- Number of pins
15
- Width
25 mm
- Height
147 mm
- Length
46.5 mm
- Series
Varioface-Slim-Line-UM25
- Max. temperature
+50 °C
- Min. temperature
-10 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
DIN rail (top hat rail) 35 mm
25
147 mm
46.49 mm
2.5 A
30 V
15
Screw connection
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 788575 Interface module UM 25-D15SUB/B/FRONT/Q 2959586 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 788575 Interface module UM 25-D15SUB/B/FRONT/Q 2959586 Phoenix Contact
Description
VARIOFACE SLIM LINE, with screw connection and D-subminiature socket strip, for assembly at a right angle on NS 35/7.5, 15 positions
