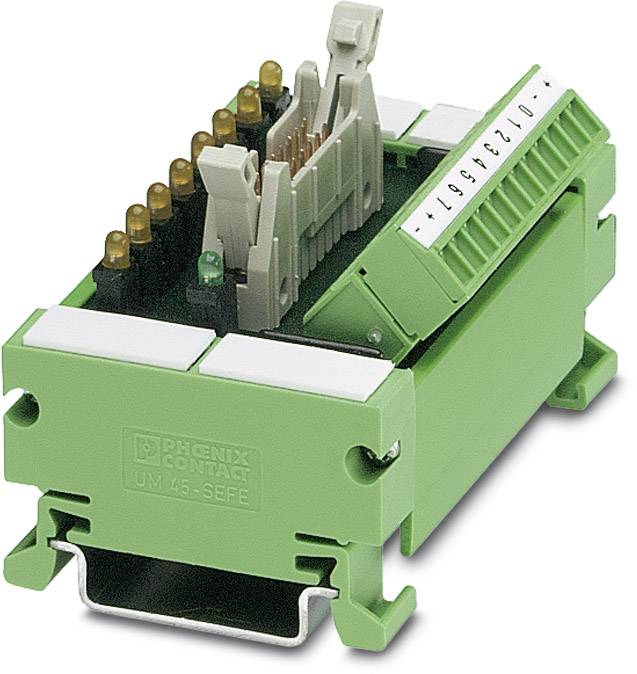

Interface module UM 45-DO/LA/SIM8 2968195 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
14
Connection
CEE 7/16 CEE plug
Stripping length (max.)
8 mm
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
14
- Connection
CEE 7/16 CEE plug
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 51 x 75 x 50 mm
- Connector (field)
Screws
- Connector (control)
IDC/FLK strip
- Content
1 pc(s)
- Number of pins
14
- Width
75 mm
- Height
50 mm
- Length
51 mm
- Series
Varioface-UM45-DO
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Features
Any orientation
+ ribbon cable/Combicon connector
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 773322 Interface module UM 45-DO/LA/SIM8 2968195 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 773322 Interface module UM 45-DO/LA/SIM8 2968195 Phoenix Contact
Description
VARIOFACE indicator module, with flat-ribbon cable and COMBICON plug-in connector, for simulation, for 8 signals, for mounting on NS 35/7.5
Hints
Special order, no right of withdrawal.
