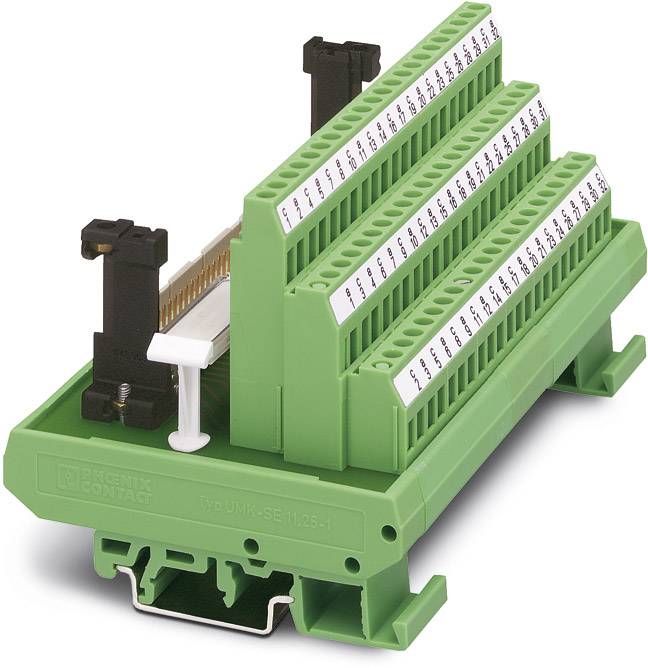

Interface module UMKS- C64M-VS 2970565 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
64
Stripping length (max.)
8 mm
Dim
(W x H) 135 mm x 77 mm
Datasheet (PDF)
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
64
- Stripping length (max.)
8 mm
- Dim
(W x H) 135 mm x 77 mm
- Connector (field)
Screws
- Connector (control)
EC 603/DIN 41612 connector
- Content
1 pc(s)
- Suitable for
DIN 41612 connector
- Number of pins
64
- Width
135 mm
- Height
77 mm
- Series
Varioface-UMKS
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
+ edge connector
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 788402 Interface module UMKS- C64M-VS 2970565 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 788402 Interface module UMKS- C64M-VS 2970565 Phoenix Contact
Description
VARIOFACE module, for IEC 603/DIN 41612 plug-in connector, type C, 64-pos., a, c components mounted, with male connector, cable housing with screw interlock
Hints
Special order, no right of withdrawal.
