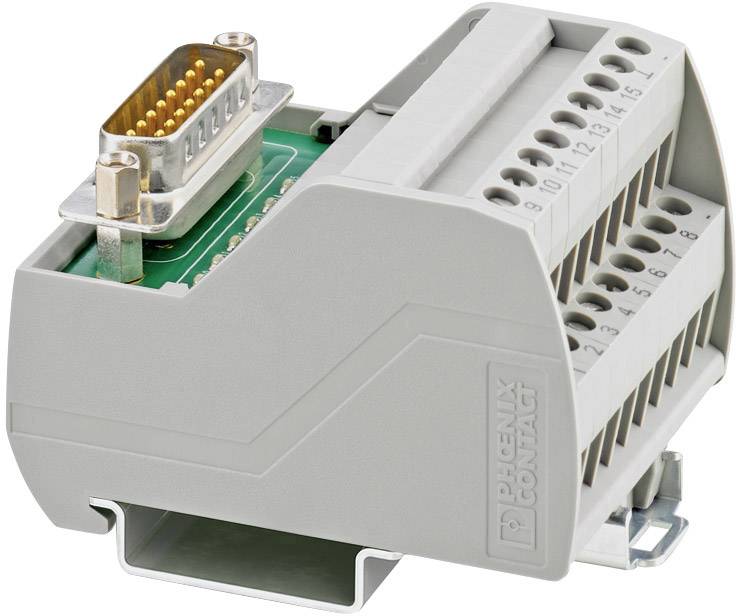

Interface module VIP-2/SC/D15SUB/F/LED 2322207 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
15
Connection
Screw terminal
Stripping length (max.)
8 mm
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
15
- Connection
Screw terminal
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 45.1 x 50 x 65.5 mm
- Connector (field)
Screws
- Connector (control)
D-Sub power strip
- Content
1 pc(s)
- Number of pins
15
- Width
50 mm
- Height
65.5 mm
- Length
45.1 mm
- Series
Varioface-VIP
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
+ LED
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 775670 Interface module VIP-2/SC/D15SUB/F/LED 2322207 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 775670 Interface module VIP-2/SC/D15SUB/F/LED 2322207 Phoenix Contact
Description
VARIOFACE module, with screw connection and D-Subminiature socket strip, for mounting on NS 35 rails, with LED, 15-pos.
Hints
Special order, no right of withdrawal.
