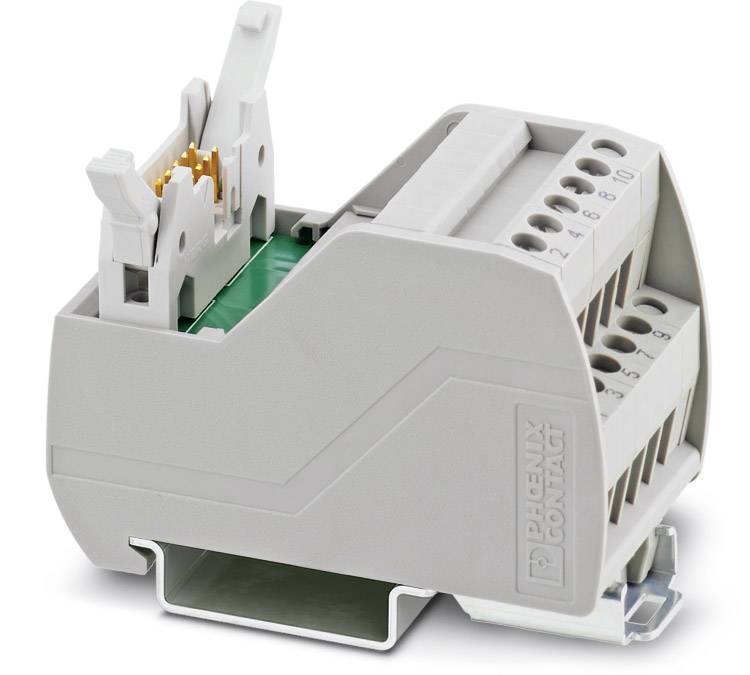

Interface module VIP-2/SC/FLK10 2315010 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
10
Connection
Screw terminal
Stripping length (max.)
8 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
10
- Connection
Screw terminal
- Stripping length (max.)
8 mm
- Dim
(W x H) 34.7 mm x 65.5 mm
- Connector (field)
Screws
- Connector (control)
IDC/FLK strip
- Content
1 pc(s)
- Number of pins
10
- Width
34.7 mm
- Height
65.5 mm
- Series
Varioface-VIP
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
+ ribbon cable
+ latches
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 717336 Interface module VIP-2/SC/FLK10 2315010 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 717336 Interface module VIP-2/SC/FLK10 2315010 Phoenix Contact
Description
VARIOFACE module, with screw connection and flat-ribbon cable plug-in connector, for mounting on NS 35 rails, with pin strip and short and long locking latches for socket strips, 10-pos.
