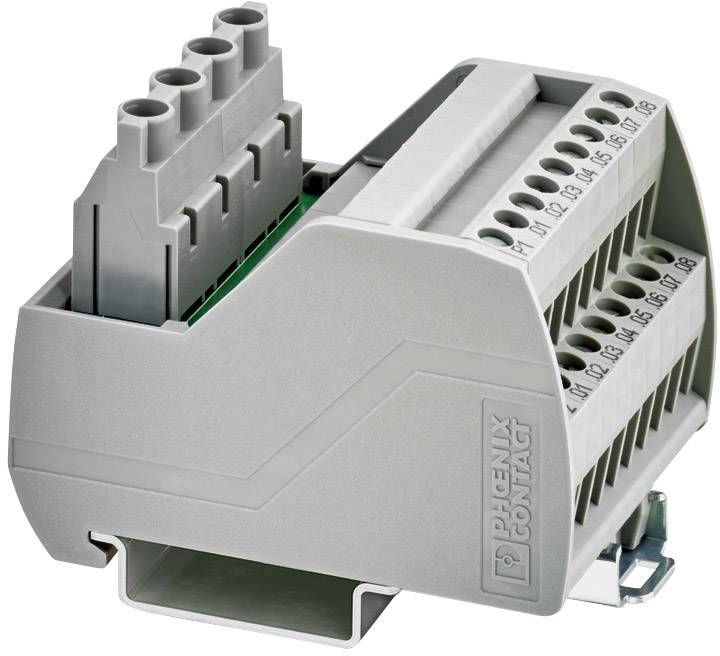

Interface module VIP-2/SC/PDM-2/32 2315272 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
2, 32
Connection
Clamp
Stripping length (max.)
8 mm
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
2, 32
- Connection
Clamp
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 50 x 90.8 x 65.5 mm
- Connector (field)
Screws
- Connector (control)
Screws
- Content
1 pc(s)
- Number of pins
2
32
- Width
90.8 mm
- Height
65.5 mm
- Length
50 mm
- max. cross section
6 mm²
- Min. cross section
0.2 mm²
- Series
Varioface-VIP
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Leading contact (PE)
No
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
+ 2 bonding bars
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 773770 Interface module VIP-2/SC/PDM-2/32 2315272 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 773770 Interface module VIP-2/SC/PDM-2/32 2315272 Phoenix Contact
Description
VARIOFACE module, with two equipotential busbars (P1, P2) for potential distribution, for mounting on NS 35 rails. Module width: 90.8 mm
