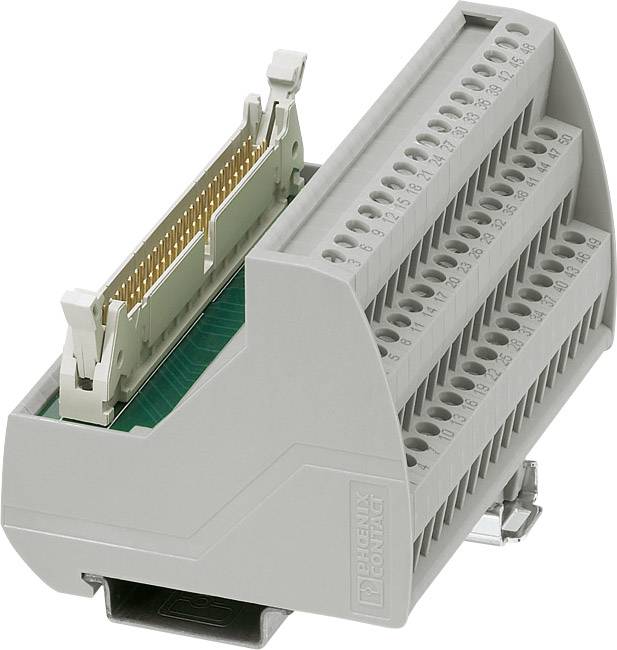

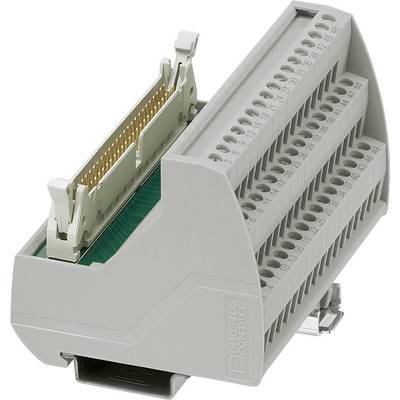

Interface module VIP-3/SC/FLK50 2315081 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
50
Stripping length (max.)
8 mm
Connector (field)
Screws
Connector (control)
IDC/FLK strip
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€
Technical specifications
- Product type
Transfer module
- Total no. of pins
50
- Stripping length (max.)
8 mm
- Connector (field)
Screws
- Connector (control)
IDC/FLK strip
- Content
1 pc(s)
- Number of pins
50
- Series
Varioface-VIP
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
+ ribbon cable
+ latches
Documents & Downloads
Datasheet
Datasheet 788373 Interface module VIP-3/SC/FLK50 2315081 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 788373 Interface module VIP-3/SC/FLK50 2315081 Phoenix Contact
Description
VARIOFACE module, with screw connection and flat-ribbon cable plug-in connector, for mounting on NS 35 rails, with pin strip and short and long locking latches for socket strips, 50-pos.
