Interface module VIP-3/SC/HD62SUB/F 2322430 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
62
Connection
D-Sub power strip
Stripping length (max.)
8 mm
Datasheet (PDF)
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
62
- Connection
D-Sub power strip
- Stripping length (max.)
8 mm
- Connector (field)
Screws
- Connector (control)
D-Sub power strip
- Content
1 pc(s)
- Number of pins
62
- Width
180 mm
- Series
Varioface-VIP
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 788298 Interface module VIP-3/SC/HD62SUB/F 2322430 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 788298 Interface module VIP-3/SC/HD62SUB/F 2322430 Phoenix Contact
Description

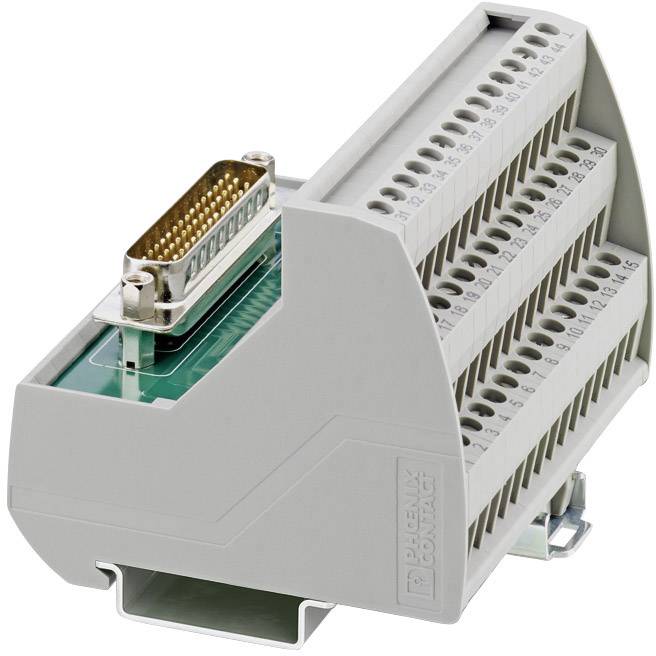

VARIOFACE module, with screw connection and high density D-SUB miniature socket strip, for mounting on NS 35 rails, no. of pos.: 62, width: 180 mm
Hints
Special order, no right of withdrawal.
