Intesis IN7004851000000 HMS Industrial Interface module Modbus-RTU, Modbus-TCP 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details

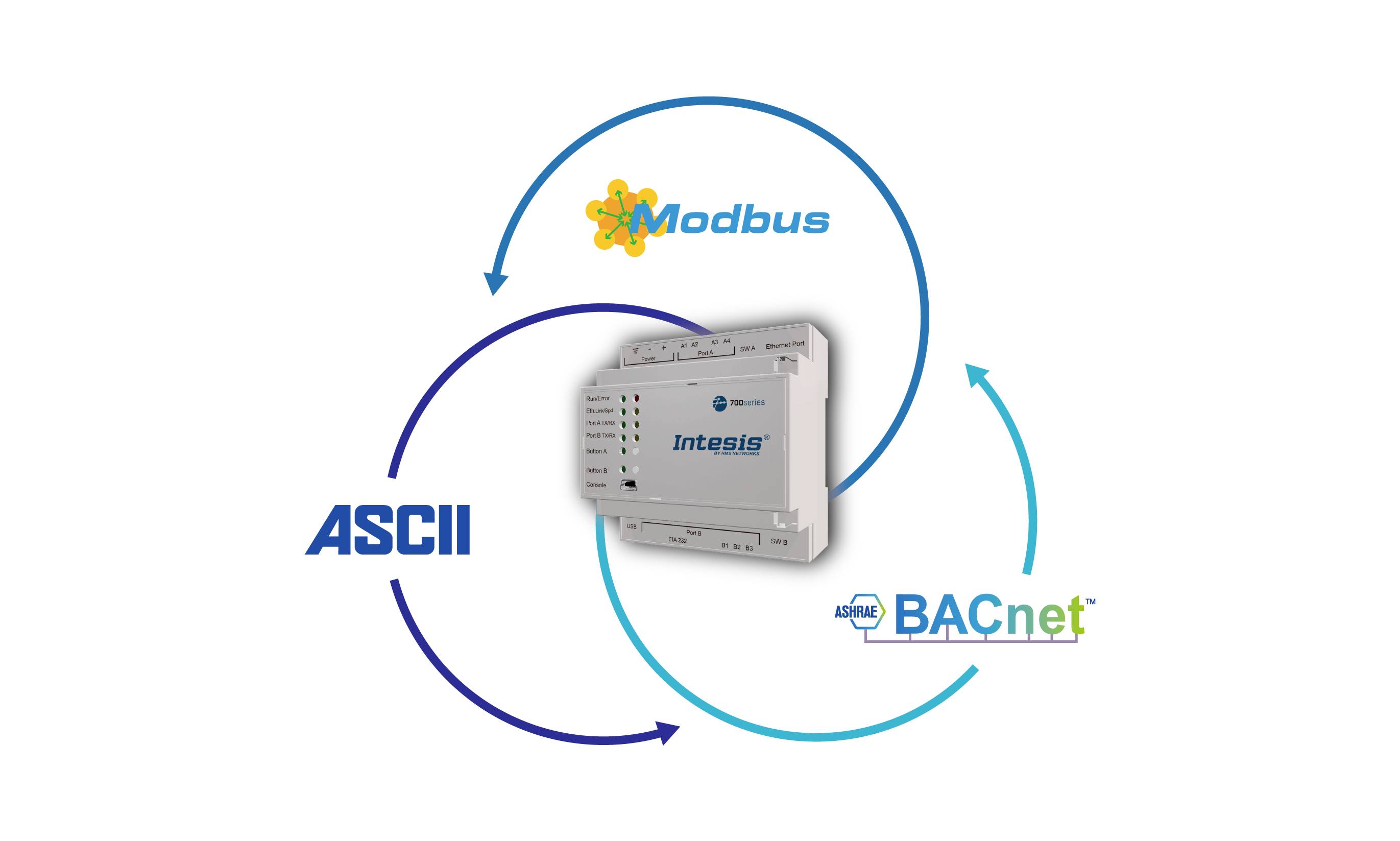

BACnet IP & MS/TP on Modbus-TCP & RTU, Multi-protocol Gateway, 100 data points
- Interchangeable protocol combinationsAbility to search for BACnet devices using BACnet ExplorerSeamless integration with any ASCII BMS or controllerUL certifiedBTL-certified
Technical specifications
- 100 data points
- Product type
Interface module
- Interfaces
Modbus-RTU
Modbus-TCP
- Type
HMS Industrial
- Operating voltage
24 V DC
- Max. operating temperature
60 °C
- Min. operating temperature
0 °C
- Operating voltage
9-36 V DC
- Operating temperature
0 up to 60 °C
- Dim
(W x H) 140 mm x 85 mm
- Height
85 mm
- Width
140 mm
- Manufacturer part #
IN7004851000000
- Interfaces
Modbus® TCP & RTU Client to BACnet®/IP & MSTP Server
BACnet/IP & MSTP Client to Modbus TCP & RTU Server
BACnet/IP & MSTP Client to ASCII IP & Serial Server
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2788306 Intesis IN7004851000000 HMS Industrial Interface module Modbus-RTU, Modbus-TCP 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2788306 Intesis IN7004851000000 HMS Industrial Interface module Modbus-RTU, Modbus-TCP 24 V DC 1 pc(s)
Description

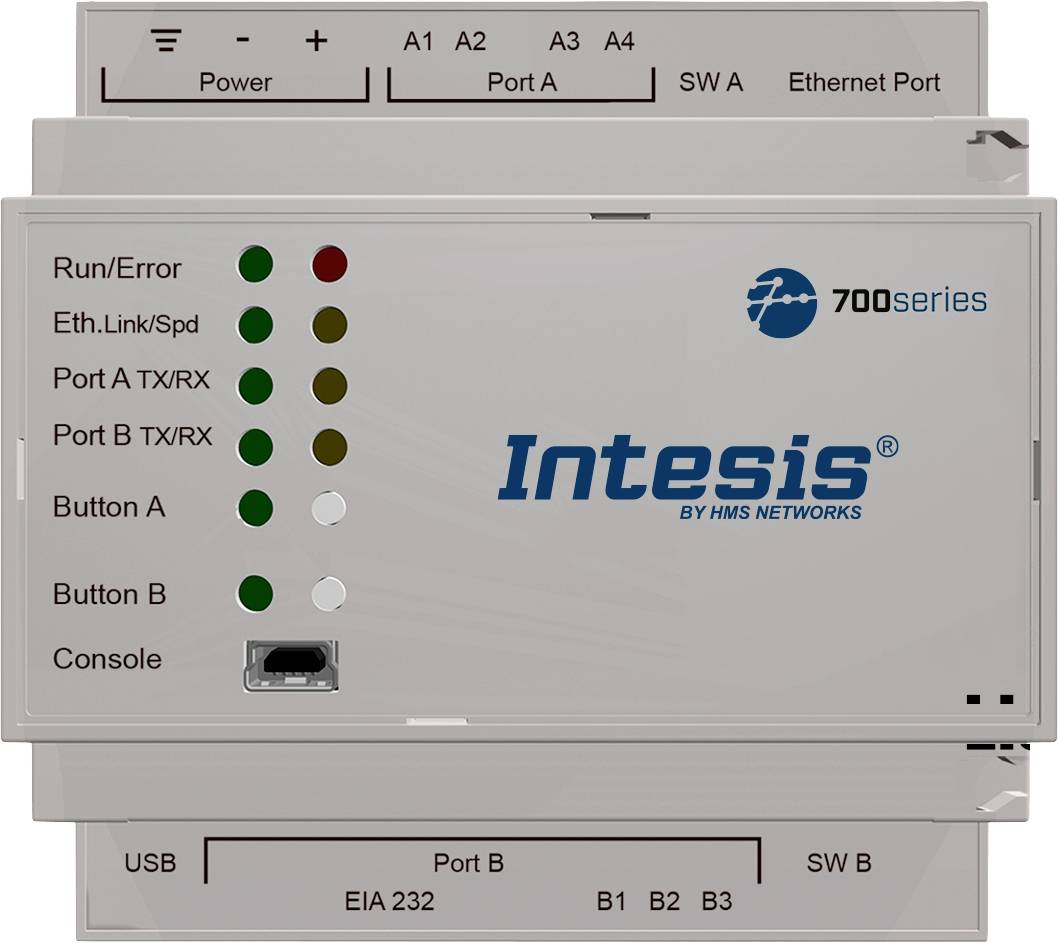

This new 700 series gateway offers the proven quality standard of the Intesis KNX gateways, but much greater flexibility. By selecting different configurations in the Intesis MAPS software, different network combinations can be parameterized quickly and easily depending on the requirements.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Intesis gateway
- USB configuration cable
- User manual
- (Power supply unit not included)
