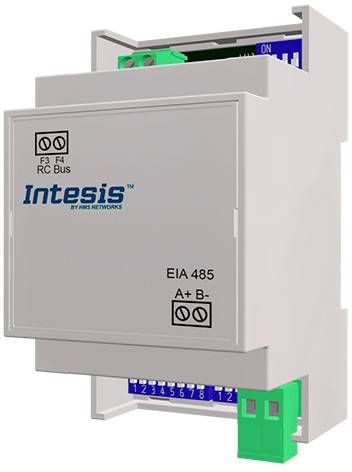

Intesis INMBSSAM001R100 Samsung NASA Gateway Modbus Gateway 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Modbus RTU (EIA485) as slave device
- Configuration via integrated DIP switches as well as via Modbus RTU
- Quick and easy commissioning (setting up DP switches)
- No external power supply required
- Simultaneous control of the AC unit by the IR remote control and by Modbus RTU
- Small design: 93 x 53 x 58 mm
- DIN rail or wall mounting; depending on the model also in the indoor unit of the air conditioning
- Window contact function enables energy savings: The costs associated with HVAC systems are the highest in a building and can be reduced with this function
- Complete control and monitoring of the air conditioners via Modbus RTU, including the internal variables of the air conditioners, the hour meter (for checking the filter maintenance) and the error display.
- Product type
Gateway
- Interfaces
Modbus Gateway
- Type
Samsung NASA
- Dim
(W x H) 93 mm x 53 mm
- Height
53 mm
- Width
93 mm
- Manufacturer part #
INMBSSAM001R100
- Type
Samsung NASA devices on Modbus RTU interface
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2390303 Intesis INMBSSAM001R100 Samsung NASA Gateway Modbus Gateway 1 pc(s)
Information
Information 2390303 Intesis INMBSSAM001R100 Samsung NASA Gateway Modbus Gateway 1 pc(s)
Description

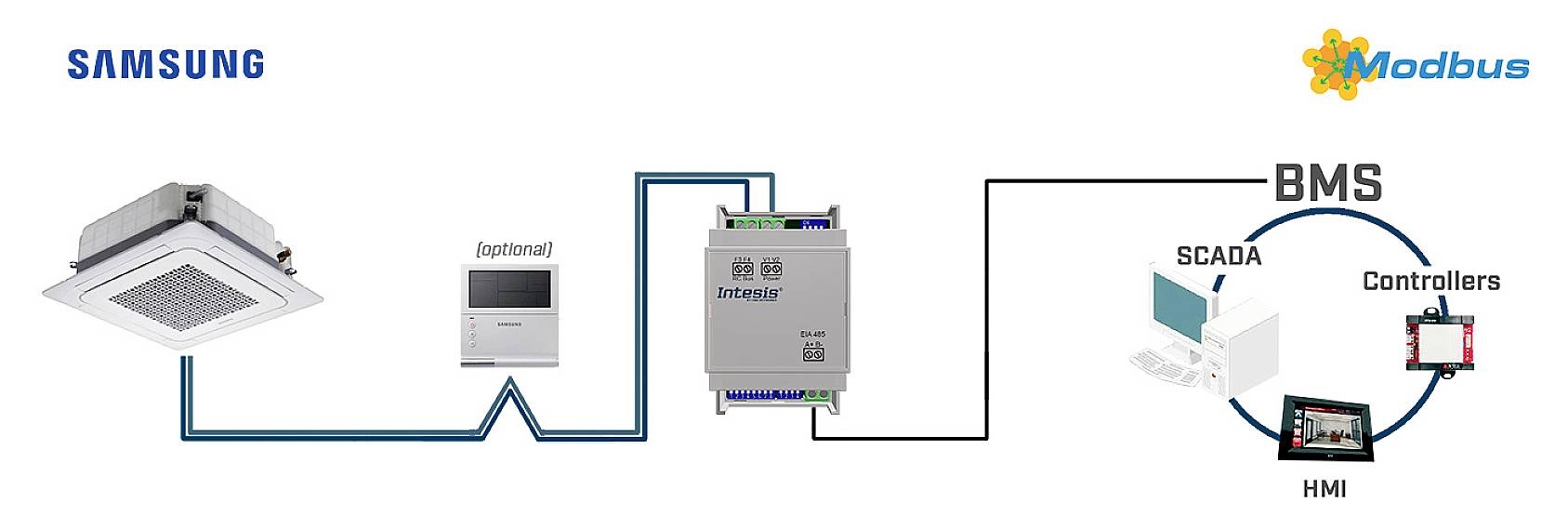

The Samsung Modbus Gateway enables fully bi-directional communication between Samsung NASA air conditioners and Modbus RTU (RS-485) networks.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Intesis Gateway
- User manual
- (Power supply not included)
Hints
Please check the compatibility of this product with your air conditioning system at compatibility.intesis.com
System requirements
- Windows
