Intratec MKEUGH60-MEDIA MKEUGH60-MEDIA Multimedia switchgear Flush mount

The future is smart home. Your home is full of multimedia systems, routers and panels that turn your four walls into a full-connected home. But where with all the multimedia devices, cables and channels? A lot of technology often means a lot of chaos & cable mess. A multimedia in-wall distributor is the suitable solution for this problem. The communication distributor of the DIXBOX-XT series helps you to create order and structure in your home network. This flush-mounted communication distributor is made of high-quality ABS and has an impact-resistant and powder-coated steel door. Ventilation slots provide for adequate cooling and for a better WLAN signal in your four walls. The perforated and continuous mounting plate with a 3.2mm hole made of galvanized stainless steel inside the multimedia distributor is ideal for mounting your communication systems, such as WI-Fi routers, switches and patch panels. The flush-mounted multimedia distributor has an protection class of IP40. It is therefore optimally suitable for indoor use. Depending on the requirements, the door can be mounted with either a left stop or a right stop. In addition to the distributor box, a pre-mounted, perforated steel plate is supplied, as well as suitable mounting material and a user manual.

FLUSH-MOUNTED MULTIMEDIA DISTRIBUTION BOX FOR SMART HOME APPLICATIONS

The communication distributors of the DISBOX-XT series have an IP40 protection class and are thus optimally suitable for use in all types of indoor rooms. The housing of the flush-mounted fuse box is made of high-quality acrylonitrile butadiene stirene (ABS) and thus conforms to the requirements of halogen-free, UV-stability and ROHS and REACH-conformity. The door and frame are made of steel sheet, which is powder coated in color RAL9003 (white). A total of 5 different housing sizes from 12 to 70 module slots are available in this series. The flush-mounted distributor has an installation depth of 87mm and 92mm including frame and door. All the necessary fixtures for flush mounting and alignment are available in the lower part of the housing. The cable entries can be realized via simple knockouts and broken out at the required places.

SCOPE OF DELIVERY AND EXTENSIVE ACCESSORIES

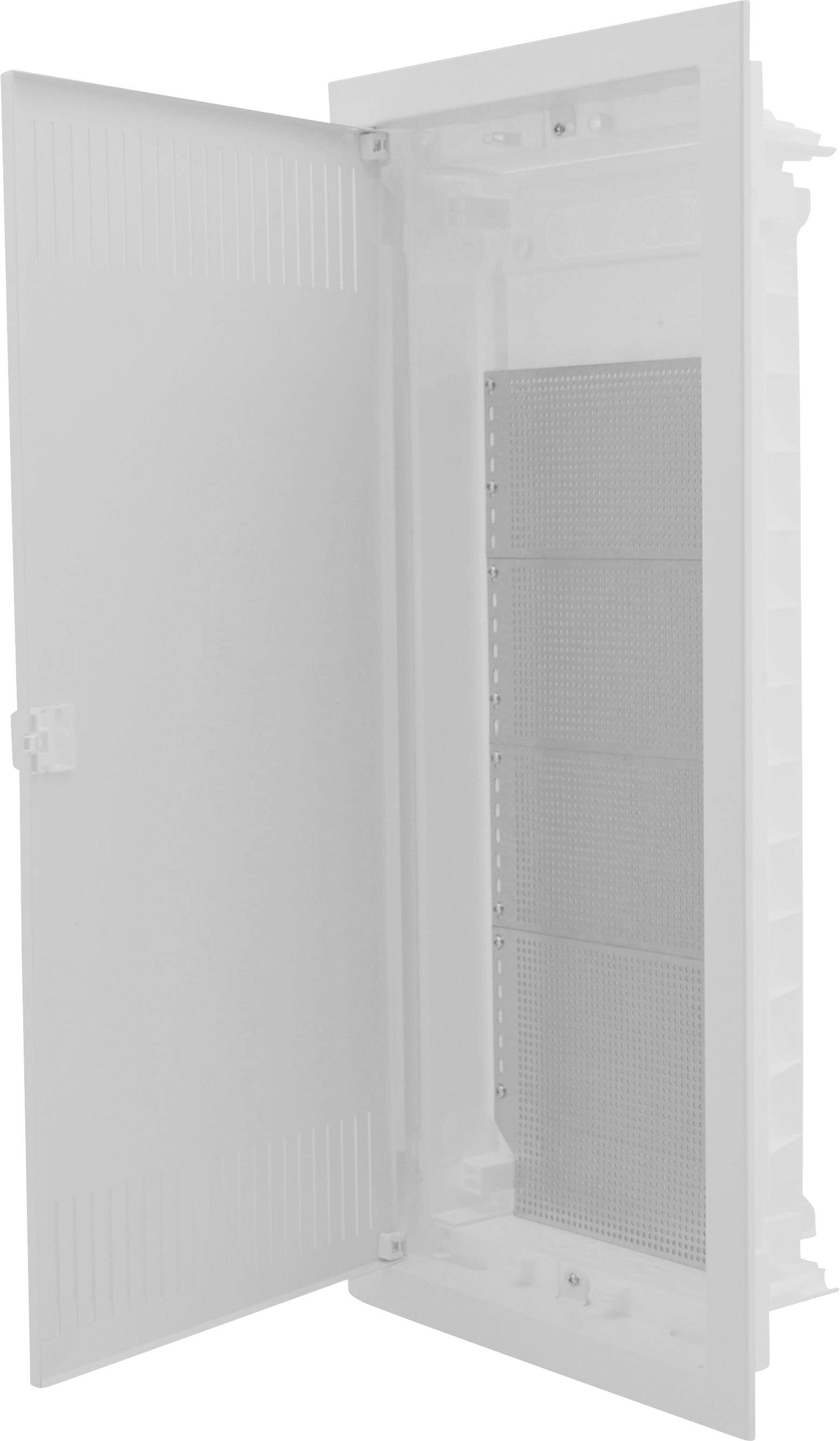

The scope of delivery of the DISBOX-XT series includes in addition to an extensive operating instructions also a mounting plate for the flexible attachment of routers or other smart home components. In addition to a universal holder for WLAN routers, vertical and horizontal connection angles and a very helpful 230V double Schuko socket are also available. The normal door lock can be replaced by a security lock on request, which protects access by unauthorized persons. All materials are UV-stable and halogen-free and tested according to applicable standards.
