Intratec MKFUGH36-MEDIA MKFUGH36-MEDIA Multimedia switchgear Flush mount
EAN:
Part number:
Item no:
Product type
Multimedia switchgear
Mounting type
Flush mount
Width
346 mm
Height
592 mm
Depth
92 mm
Highlights & Details

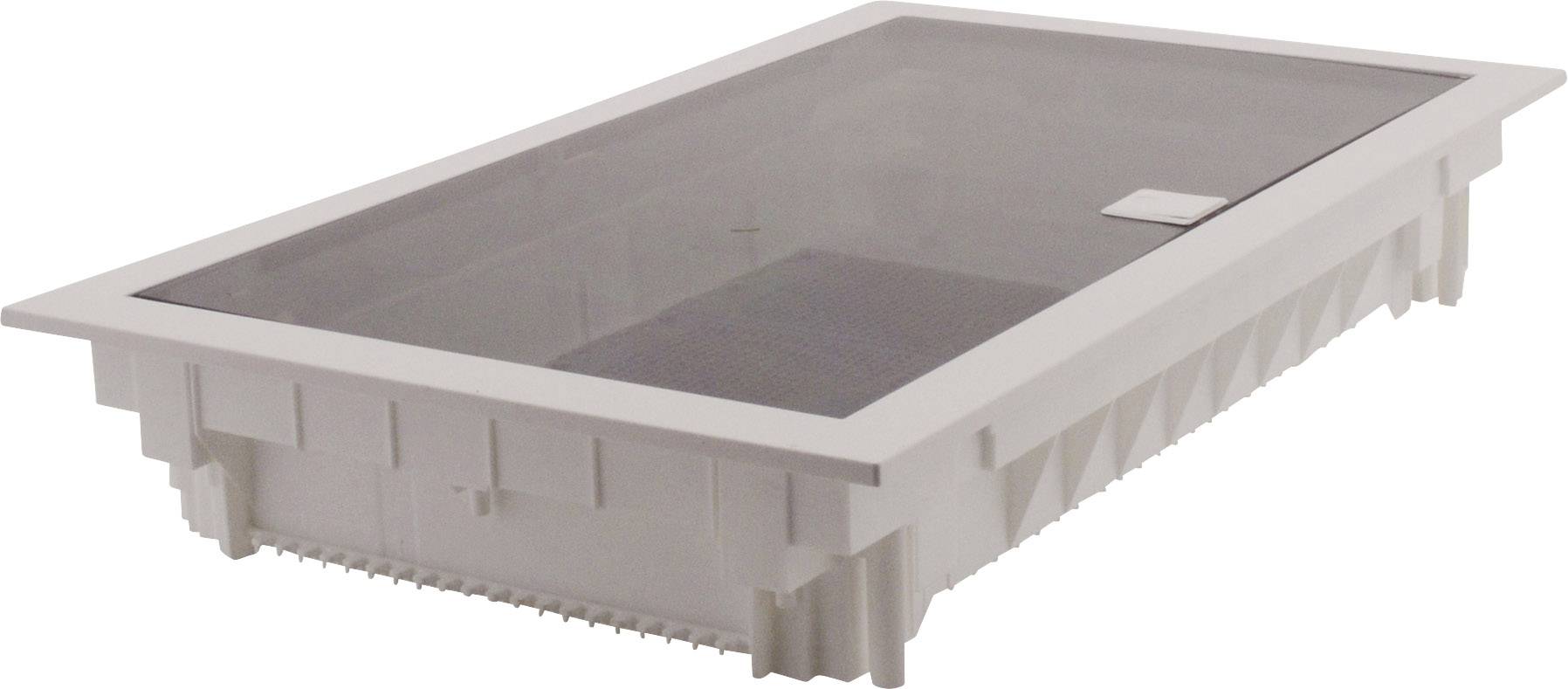

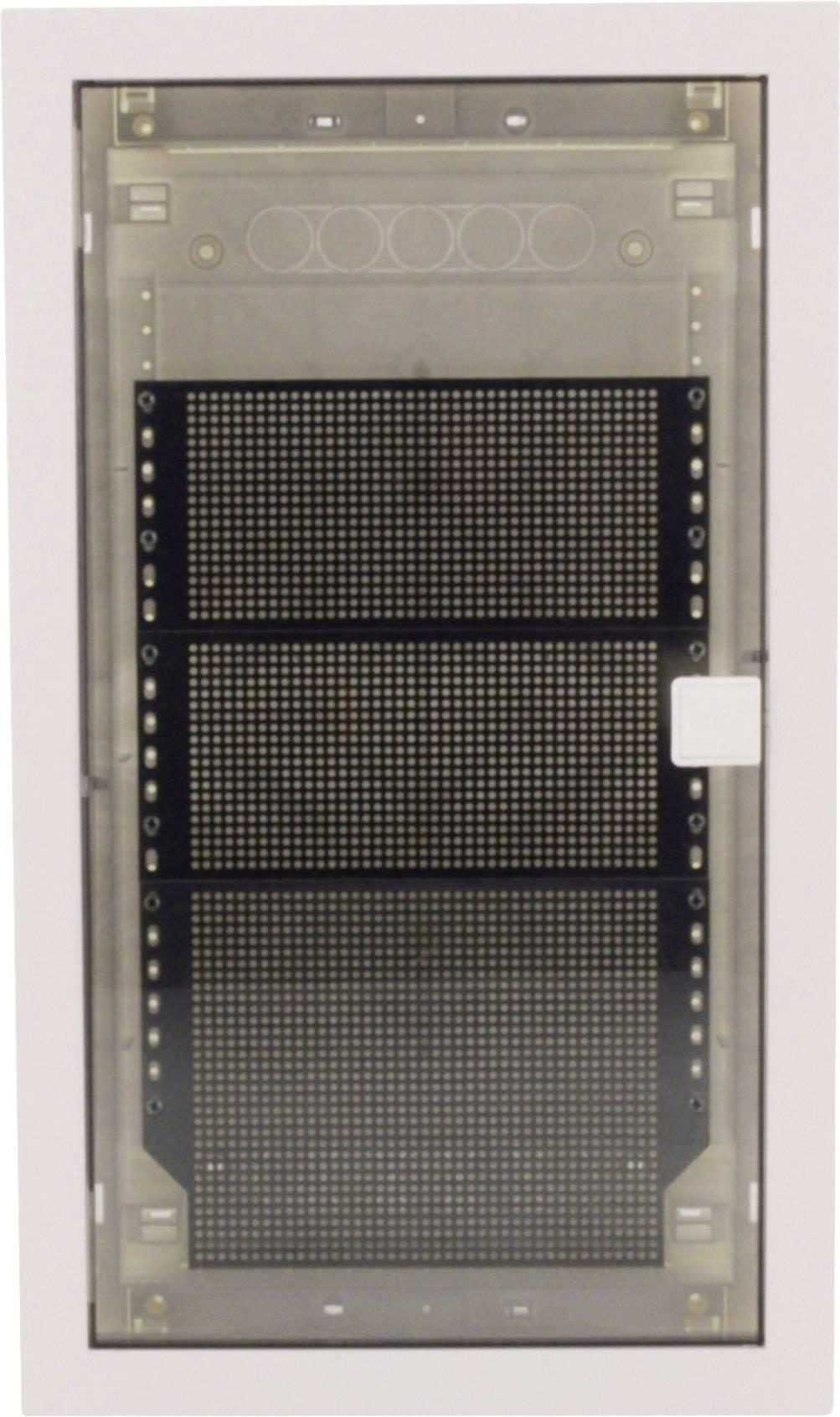

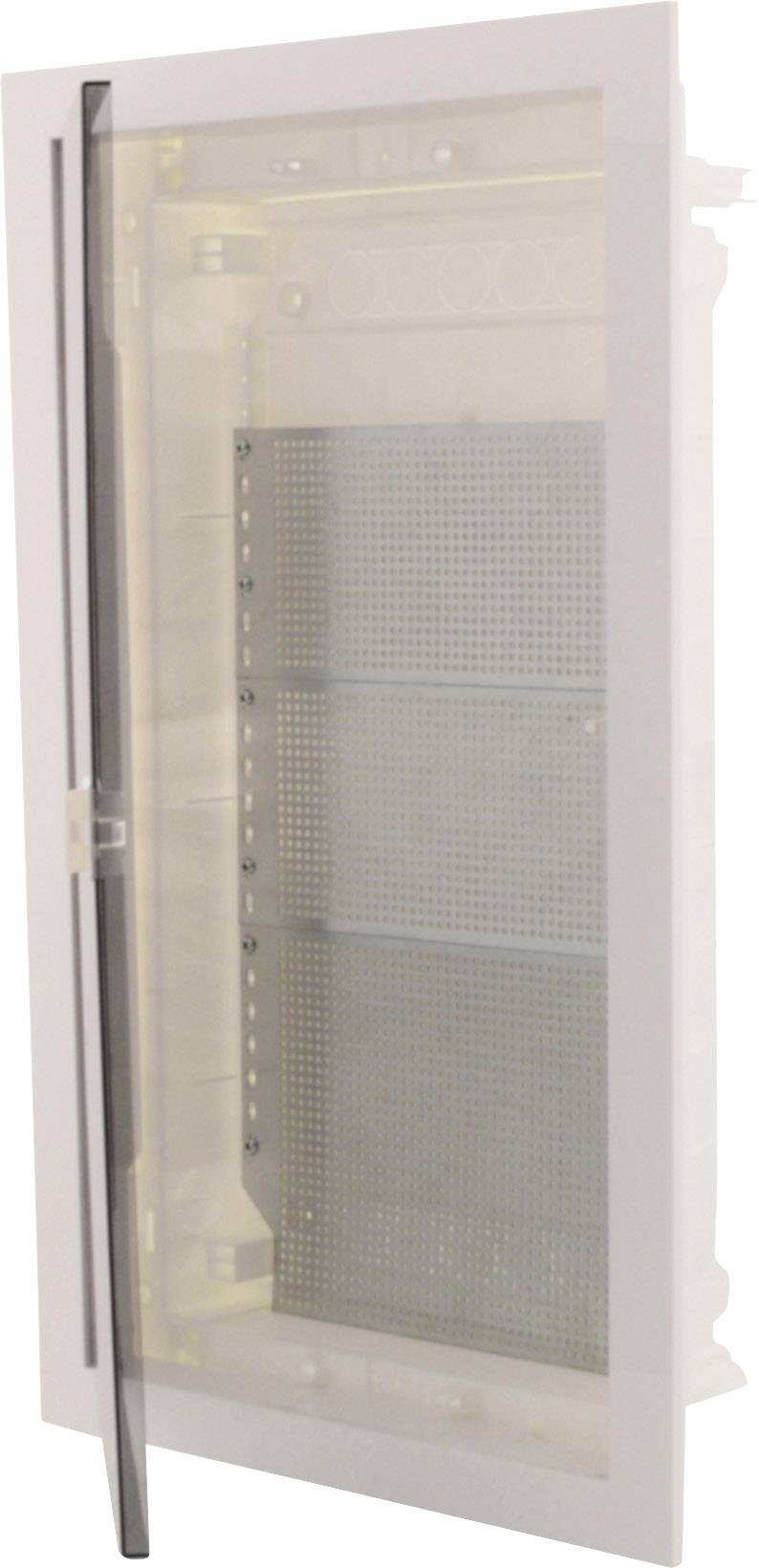

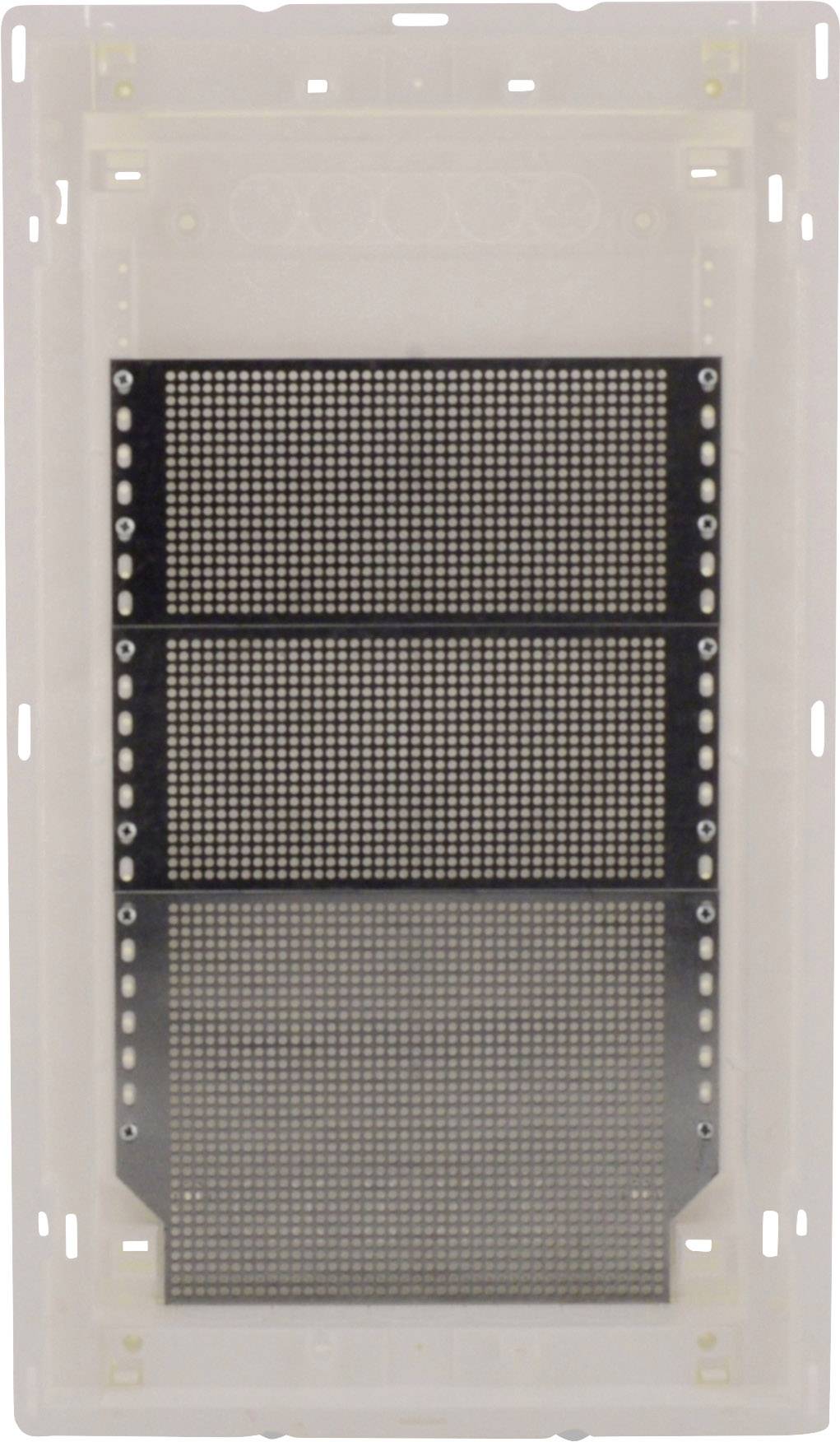

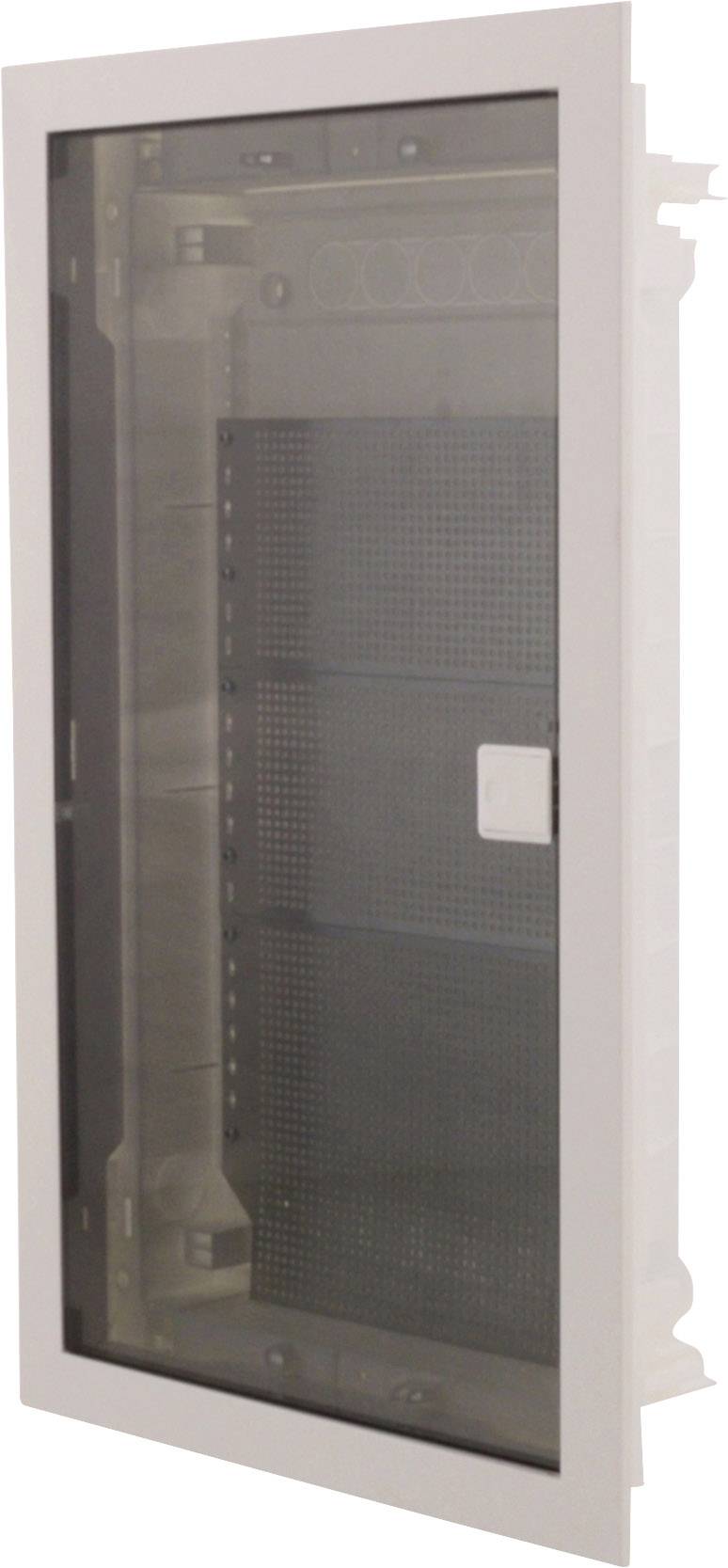

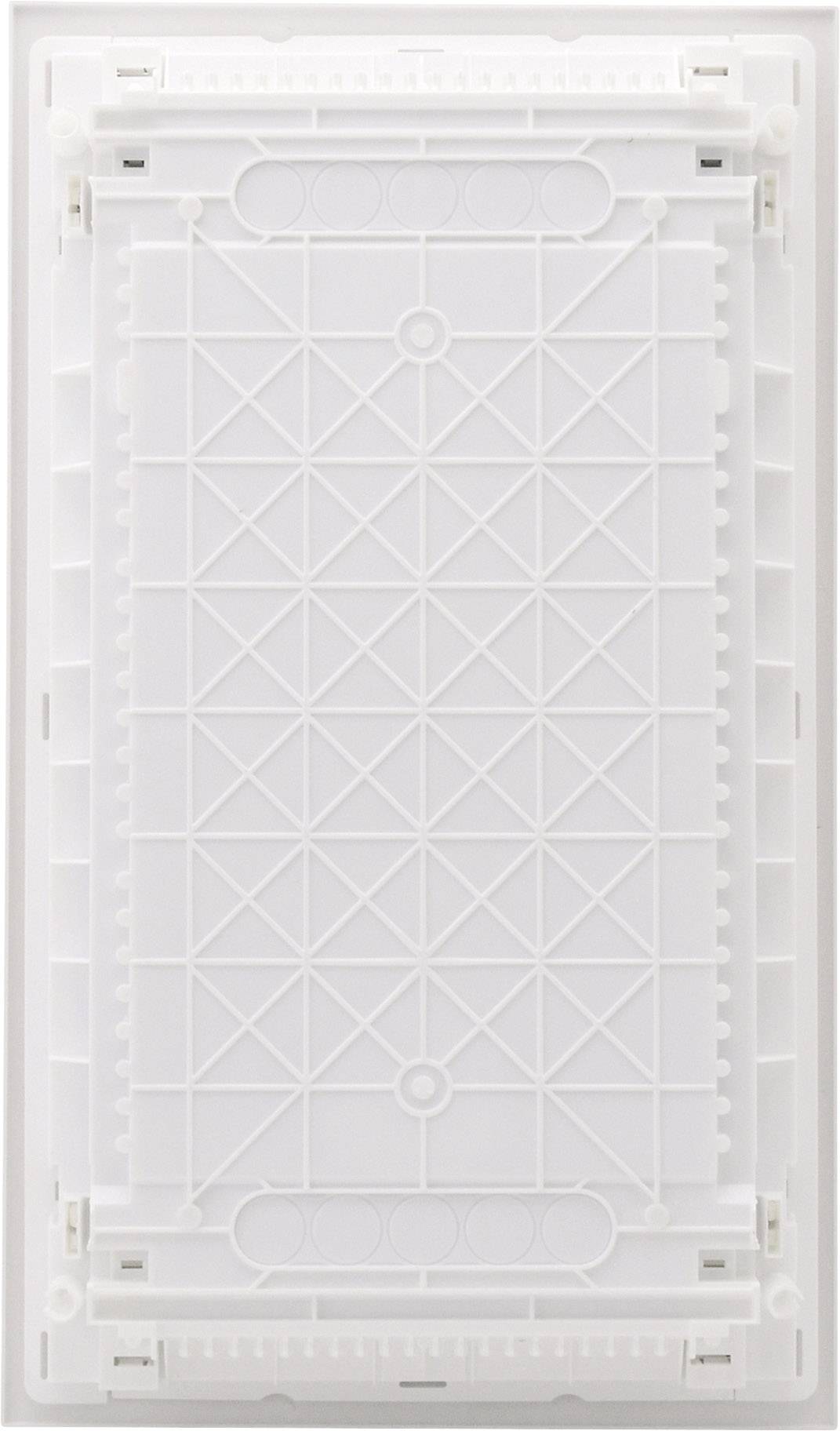

INTRATEC MKFUGH36-MEDIA flush-mounted multimedia distributor white
- Contains 1 pieces
Technical specifications
- Material lower part: ABS
- Material cover/door: Polycarbonate
- Colour: RAL 9003.
- Temperature range: -25°C – +60°C
- Shock resistance: IK07
- Protection class: IP40
- Product type
Multimedia switchgear
- with PE and N terminals
Yes
- Mounting type
Flush mount
- Factory colour
Signal white
- Width
346 mm
- Height
592 mm
- Dim
(W x H x D) 346 x 592 x 92 mm
- Depth
92 mm
- Content
1 pc(s)
IP40
- Material
Acrylonitrile butadiene styrene
Polycarbonate (PC)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2307371 Intratec MKFUGH36-MEDIA MKFUGH36-MEDIA Multimedia switchgear Flush mount
Description
PRODUCT DESCRIPTION
according to the modern and linear design of the DISBOX-G series, the ultra-flat front end fits almost invisibly into the building architecture. Fuse boxes are an important component of the house electrical system especially with modern architecture and modern smart home functions and therefore with the DISBOX-G series we offer a flush-mounted distribution box, which meets the highest design requirements. The fuse boxes of the DISBOX-T series have an IP40 degree of protection and are therefore optimally suitable for use in all types of indoor rooms. The flush-mounted fuse box is made of high-quality acrylonitrile butadiene stirene (ABS) and thus conforms to the requirements of halogen-free, UV-stability and ROHS and REACH-conformity. A total of 3 different housing sizes from 12 to 42 module slots are available in this series. In addition, a special multimedia distribution version is available for sizes with 24 and 36 modules. Each case size can be supplied with either a white or a transparent door, with the transparent door made of polycarbonate.
SCOPE OF DELIVERY AND EXTENSIVE ACCESSORIES
for the scope of delivery of the DISBOX-G series include not only extensive operating instructions and the insulated PE&N terminals but also all the necessary fixing screws, which enable a quick installation. We also install all required mounting rails type TS35 in the lower part of the housing. The number and length of the mounting rails depends on the defined number of module slots per housing. If individual module slots are not required, corresponding blind covers are also included in the standard delivery. In addition to the insulated screw terminals used as standard, double-row screw terminals or screwless terminal strips can also be supplied. The normal door lock can be replaced by a security lock on request, which protects access by unauthorized persons. All materials are UV-stable and halogen-free and tested according to applicable standards.
This text is machine translated.
according to the modern and linear design of the DISBOX-G series, the ultra-flat front end fits almost invisibly into the building architecture. Fuse boxes are an important component of the house electrical system especially with modern architecture and modern smart home functions and therefore with the DISBOX-G series we offer a flush-mounted distribution box, which meets the highest design requirements. The fuse boxes of the DISBOX-T series have an IP40 degree of protection and are therefore optimally suitable for use in all types of indoor rooms. The flush-mounted fuse box is made of high-quality acrylonitrile butadiene stirene (ABS) and thus conforms to the requirements of halogen-free, UV-stability and ROHS and REACH-conformity. A total of 3 different housing sizes from 12 to 42 module slots are available in this series. In addition, a special multimedia distribution version is available for sizes with 24 and 36 modules. Each case size can be supplied with either a white or a transparent door, with the transparent door made of polycarbonate.
SCOPE OF DELIVERY AND EXTENSIVE ACCESSORIES
for the scope of delivery of the DISBOX-G series include not only extensive operating instructions and the insulated PE&N terminals but also all the necessary fixing screws, which enable a quick installation. We also install all required mounting rails type TS35 in the lower part of the housing. The number and length of the mounting rails depends on the defined number of module slots per housing. If individual module slots are not required, corresponding blind covers are also included in the standard delivery. In addition to the insulated screw terminals used as standard, double-row screw terminals or screwless terminal strips can also be supplied. The normal door lock can be replaced by a security lock on request, which protects access by unauthorized persons. All materials are UV-stable and halogen-free and tested according to applicable standards.
This text is machine translated.
