1/2
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.25
10
8% = € 0.10
€ 1.15
25
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.25 / piece)
€ 1.25
plus VAT.
14-day return policy included
Highlights & Details

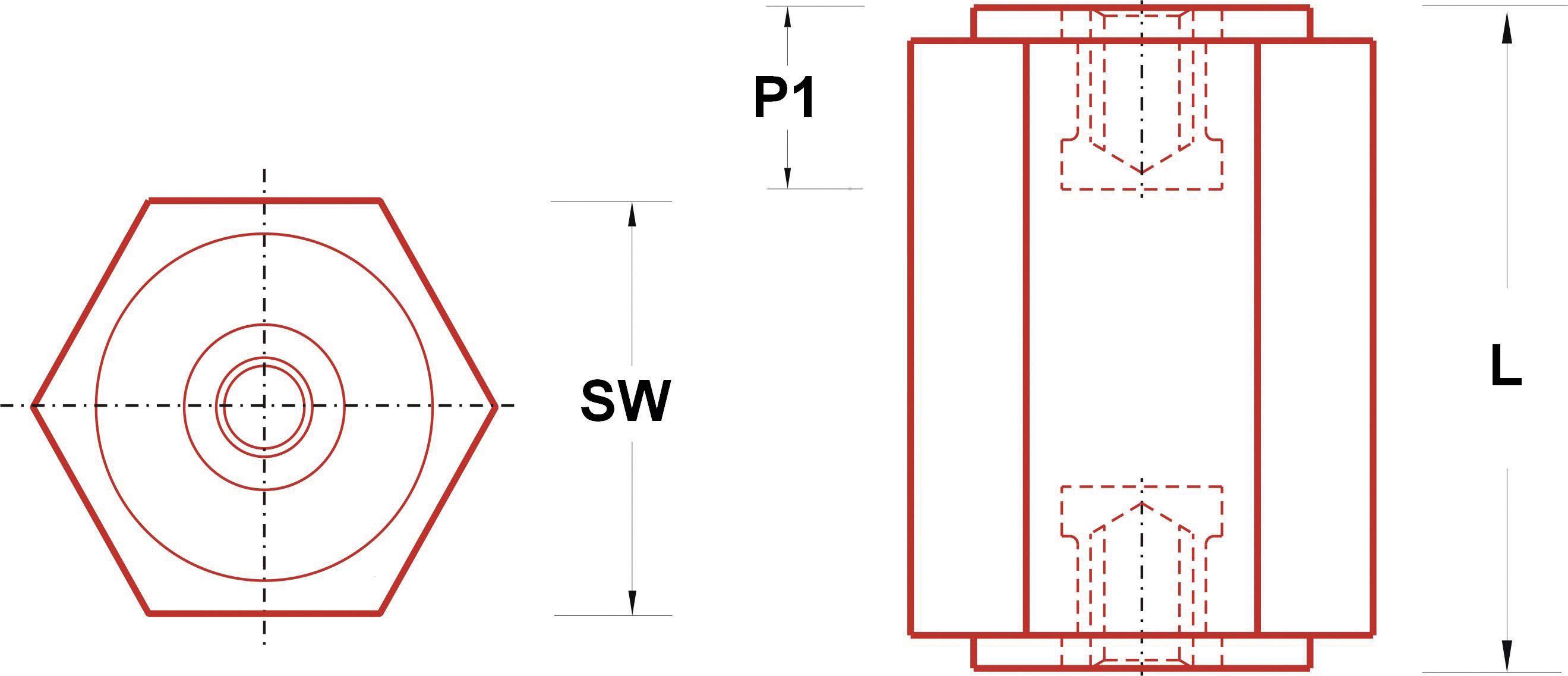

Insulator - hexagonal M6 - SW20
Our service for you
Technical specifications
- Product type
Insulated spacer
- Material
Polyester
- Spanner size
20 mm
- Internal thread
M6
- Length
25 mm
- Content
1 pc(s)
- Material properties
glass-filled
- Material (details)
Polyester, glass-filled
- Thread size
M6
Documents & Downloads
Datasheet
Datasheet 887493 IS20HH625 Insulated spacer (L) 25 mm M6 Polyester glass-filled 1 pc(s)
User & Safety Instructions
User & Safety Instructions 887493 IS20HH625 Insulated spacer (L) 25 mm M6 Polyester glass-filled 1 pc(s)
Description
Features
- With 2x internal threads
- Nominal voltage in V ( AC / DC ): 300 / 400 V
- Electric strength: > 10 kV/mm
- Creepage distances -Index (V): + 600 V
- Roll-over resistance (sec): + 180 s
- Impact strength (J/m): 250 J / m.
