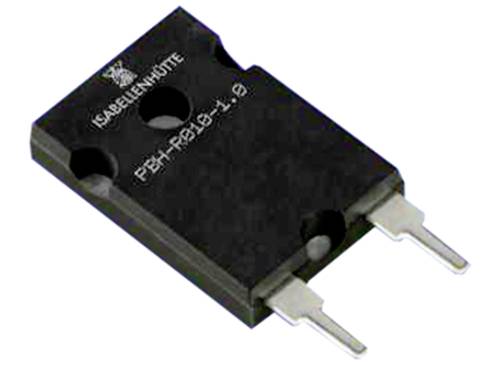

Isabellenhütte PBH-R010-F1-1.0 PBH-R010-F1-1.0 Metal film resistor 10 mΩ THT 10 W 1 % 1 pc(s)
EAN:
Part number:
Item no:
Product type
Metal film resistor
Resistance
10 mΩ
Power rating
10 W
Content
1 pc(s)
Type
THT
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Metal film resistor, 10 mΩ, 3 W, ±1 %
Our service for you
Technical specifications
- Design: Radial
- Design: Precision-metal-layer resistance
- Width 4.45 mm
- Height: 22.5 mm
- Length: 15.5 mm.
- Weight: 0.00464 kg
- Output: 3 W
- max. temperature: 125 °C
- Insulation voltage 500 V
- min Temperature -55 °C.
- Ohm resistance 10 mΩ
- Temperature coefficient 50 ppm/K
- Tolerance: ± 1 %
- Mounting THT
- Nominal load 10 W
- Product type
Metal film resistor
- Type
THT
- Resistance
10 mΩ
- Power rating
10 W
- Tolerance ±
1 %
- Temperature coefficient
50 ppm/K
- Length
15.5 mm
- Width
4.45 mm
- Height
22.5 mm
- Content
1 pc(s)

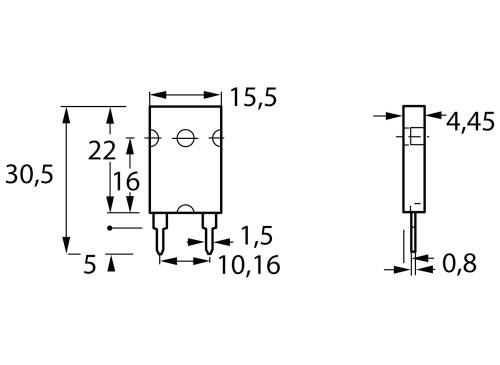

- Dim
(L x W x H) 15.5 x 4.45 x 22.5 mm
- RoHS-compliant
Yes
- Type
PBH-R010-F1-1.0
Documents & Downloads
Datasheet
Datasheet 3207996 Isabellenhütte PBH-R010-F1-1.0 PBH-R010-F1-1.0 Metal film resistor 10 mΩ THT 10 W 1 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3207996 Isabellenhütte PBH-R010-F1-1.0 PBH-R010-F1-1.0 Metal film resistor 10 mΩ THT 10 W 1 % 1 pc(s)
Description
Precision Metal Film Resistors 3,0/10 Watt Tolerance 1.0 % Series ISA-PLAN Type Isabellenhütte PBH..F1. Largely identical to the TO247 design for power transistors, with central mounting hole and large base plate for optimized heat transfer. Features * High pulse load * Excellent long-term stability * Low inductance applications * Power modules * Frequency converters * Switchable power supplies
