Isabellenhütte SMT-1R00-1.0 SMT-1R00-1.0 SMD resistor 1 Ω SMD 2817 5 W 1 % 50 ppm/K 1 pc(s)
EAN:
Part number:
Item no:
Product type
SMD resistor
Type
2817
Resistance
1 Ω
Power rating
5 W
Tolerance ±
1 %
Datasheet (PDF)
Number
Total (€ 1.67 / piece)
€ 1.67
plus VAT.
14-day return policy included
Highlights & Details
Resistance, metal foil, SMD 2817, 1 Ω, 5 W, ±1 %, SMT-1R00-1.0
Our service for you
Technical specifications
- Design SMD 2817
- Height: 0.8 mm
- Length: 7.1 mm.
- Weight: 0.00018 kg
- Output: 5 W
- max. temperature: 170 °C
- min Temperature -55 °C.
- Ohm resistance 1 Ω
- Technology: Metal foil
- Temperature coefficient ±50 ppm/K
- Tolerance: ± 1 %
- Product type
SMD resistor
- Type
SMD
- Type
2817
- Resistance
1 Ω
- Power rating
5 W
- Tolerance ±
1 %
- Temperature coefficient
50 ppm/K
- Length
7.1 mm
- Height
0.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
SMT-1R00-1.0
Documents & Downloads
Datasheet
Datasheet 3208042 Isabellenhütte SMT-1R00-1.0 SMT-1R00-1.0 SMD resistor 1 Ω SMD 2817 5 W 1 % 50 ppm/K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208042 Isabellenhütte SMT-1R00-1.0 SMT-1R00-1.0 SMD resistor 1 Ω SMD 2817 5 W 1 % 50 ppm/K 1 pc(s)
Description

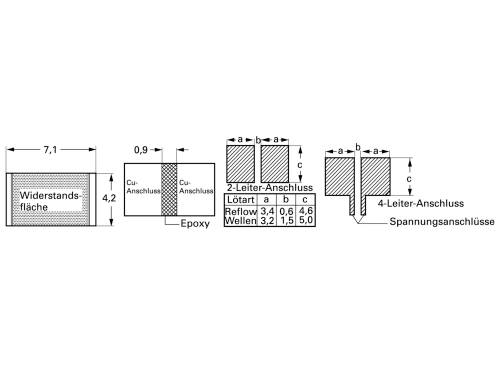

SMD precision resistors design 2817 2.0 to 5.0 Watt tolerance 1.0 % series ISA PLAN type Isabellenhütte SMT. Can be used as a two-wire resistor, four-wire connection to the solder pad. Ideal suitable for switched applications according to low inductance With load carrying capacity 5.0 W.
