Itec Thunderbolt™ 4 laptop docking station Thunderbolt 4 Intelligent Dual DS
EAN:
Part number:
Item no:
Highlights & Details

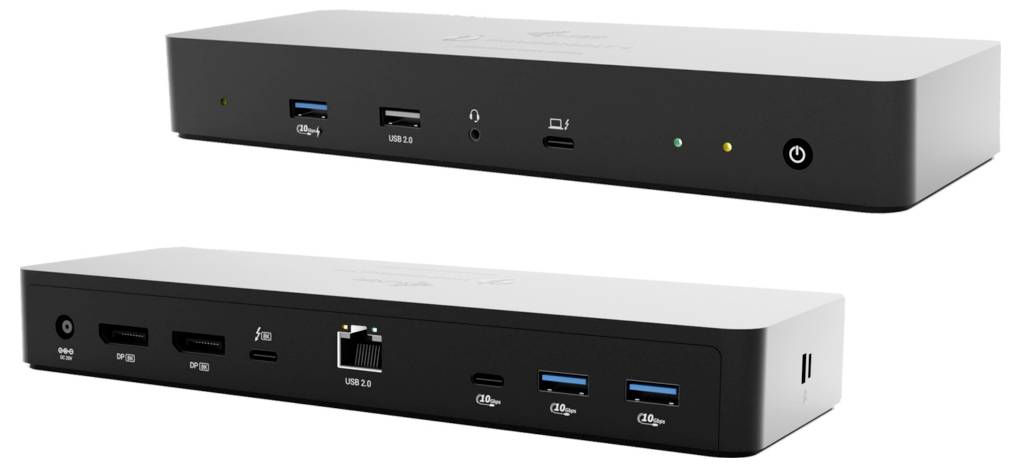

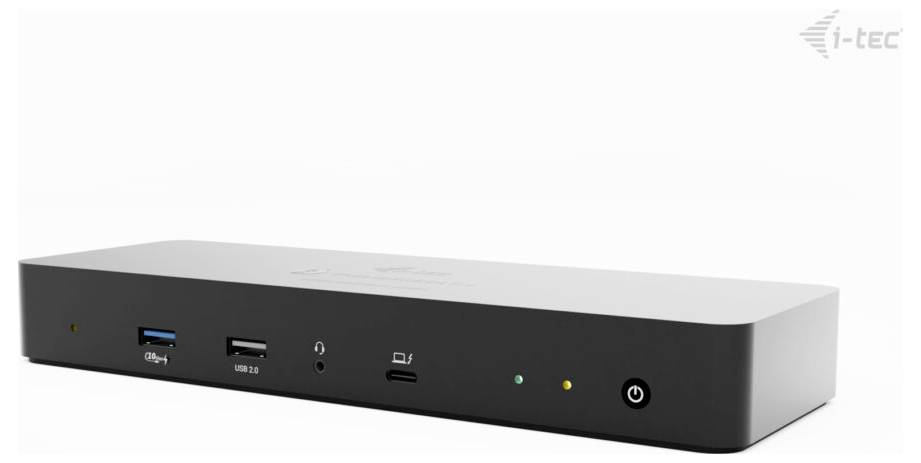

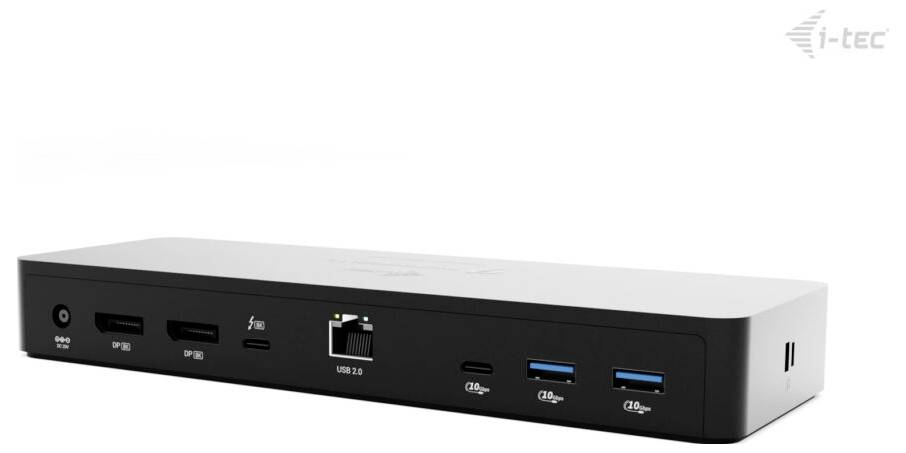

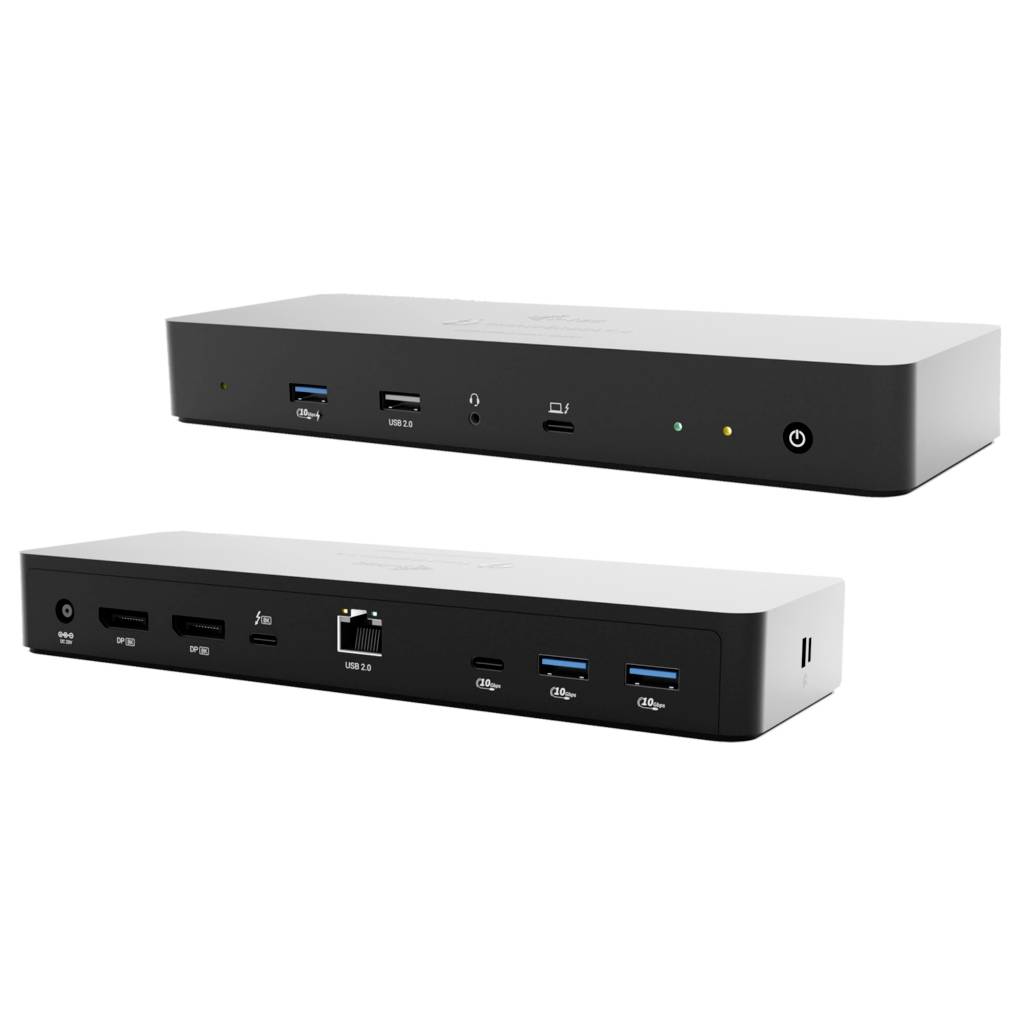

Itec TB4INTGDUAL4KDOCPD Thunderbolt™ 4 laptop docking station
- Connection A (or inputs): Thunderbolt 4
- Connecton B (or outputs):
- No. of supported monitors: 2
- Maximum resolution:
- Key features:
Technical specifications
- Data transfer rate 40 Gbps
- Supports other operating systems: Android, ChromeOS, iPadOS
- Product type
Thunderbolt™ 4 laptop docking station
- Type A
Thunderbolt 4
- Supported monitors
2
- Factory colour
Black
- Width
220 mm
- Height
30 mm
- Depth
75 mm
- Weight
295 g
- Dim
(W x H x D) 220 x 30 x 75 mm
- Frame rate
360 Hz
- No. of DisplayPort
2 x
- No. of USB A 2.0 ports
1 x
- No of. USB type A 3.1 /3.2 2nd gen
3 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- Supported OS
Android
- Charging method (Power Delivery)
with USB Power Delivery
- Max. output current
6.75 A
- Output voltage
20 V
- 10/100/1000 Mbps ports
1 x
- PSU power
135 W
- Transfer type
Corded
- Ethernet LAN
yes
- Cable lock slot
yes
- DC-in jack
yes
- Card reader integrated
no
- USB Power Delivery up to
90 W
- Manual
yes
- Thunderbolt 4 ports quantity
2
- Thunderbolt 4 cable length
1 m
- Maximum digital resolution
7680 x 4320 p
- On/off switch
yes
- Power cable length
1.5 m
- Combo headphone/mic port
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3736912 Itec Thunderbolt™ 4 laptop docking station Thunderbolt 4 Intelligent Dual DS
Description
Experience a breakthrough in docking technology with a powerful, universal docking station designed for complete remote management. The dedicated LAN port allows IT administrators to control the docking station from anywhere*. The remote management software is available as an optional add-on and can be purchased at any time. Of course, the docking station is fully functional even without this software; only the remote management functions are then not available. And the best part: Management works without a host connection – you only need power and a LAN connection. NOTE: The software is only available for Windows computers.
A powerful next-generation Thunderbolt" 4 docking station that provides up to two external 4K monitors or a single 8K screen with image signals. Compatible with virtually all notebooks that have USB-C**, USB4- or Thunderbolt" 3/4/5 ports and supports all major operating systems.
With multiple USB ports (including USB 3.2 Gen 2 with speeds of up to 10 Gbps), a Thunderbolt" port for 8K video or ultra-fast 40 Gbps data transfer and reliable high-speed LAN connection, this docking station is the ideal solution for demanding professionals. It also supports a power supply of up to 90 W, so that your notebook or tablet is always charged.
- Connect a single 8K screen or up to two external monitors with resolutions up to 4K**.
- Power supply up to 90 W.

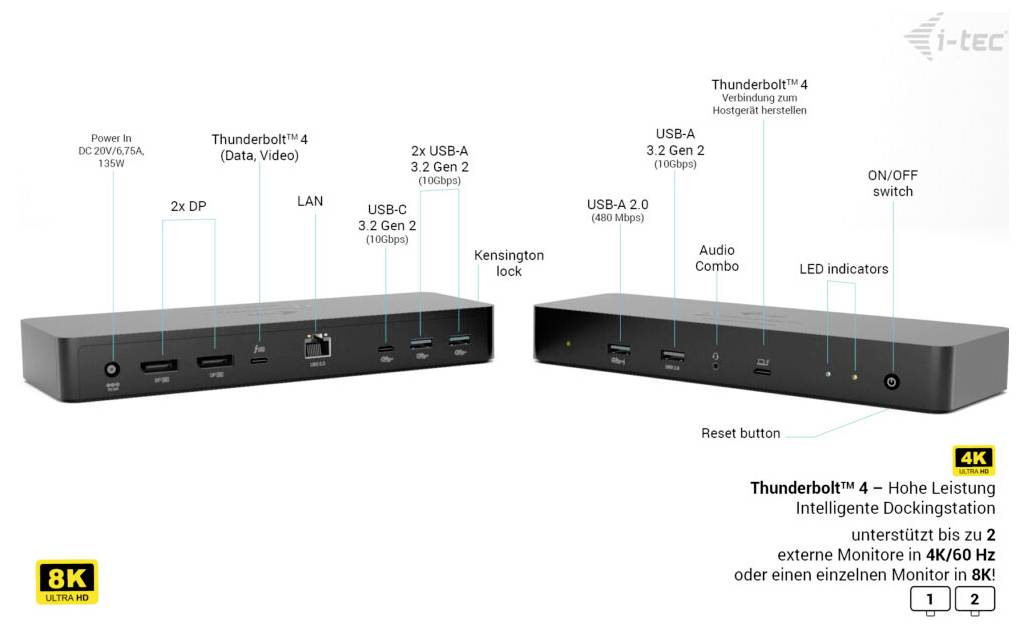

- 2× DisplayPort and 1× Thunderbolt" 4 port available
- 5× USB ports: 1× USB-A (10 Gbps, BC 1.2 rapid charging), 2× USB-A (10 Gbps), 1× USB-A (2.0) and 1× USB-C (Gen 2, 10 Gbps)
- Intelligent Gigabit Ethernet (RJ-45) provides reliable high-speed 10/100/1000 Mbps connections and seamless remote management capabilities
- Combined audio/microphone jack
- Kensington lock for theft protection, Ideal for shared offices or public areas
- The power switch on the docking station allows maximum energy savings
- Supports Windows 10/11, MacOS, iPadOS, Android, ChromeOS and Linux (latest versions)
* Because of the functionality of Thunderbolt technology, i-tec DockMate can manage the docking station itself (for example, remote power on/off, planned power save modes, or firmware updates), but cannot directly control individual ports such as USB, LAN, audio or display outputs.
** Only one external monitor is supported when connected via a USB-C connector.
This text is machine translated.
A powerful next-generation Thunderbolt" 4 docking station that provides up to two external 4K monitors or a single 8K screen with image signals. Compatible with virtually all notebooks that have USB-C**, USB4- or Thunderbolt" 3/4/5 ports and supports all major operating systems.
With multiple USB ports (including USB 3.2 Gen 2 with speeds of up to 10 Gbps), a Thunderbolt" port for 8K video or ultra-fast 40 Gbps data transfer and reliable high-speed LAN connection, this docking station is the ideal solution for demanding professionals. It also supports a power supply of up to 90 W, so that your notebook or tablet is always charged.
- Connect a single 8K screen or up to two external monitors with resolutions up to 4K**.
- Power supply up to 90 W.
- 2× DisplayPort and 1× Thunderbolt" 4 port available
- 5× USB ports: 1× USB-A (10 Gbps, BC 1.2 rapid charging), 2× USB-A (10 Gbps), 1× USB-A (2.0) and 1× USB-C (Gen 2, 10 Gbps)
- Intelligent Gigabit Ethernet (RJ-45) provides reliable high-speed 10/100/1000 Mbps connections and seamless remote management capabilities
- Combined audio/microphone jack
- Kensington lock for theft protection, Ideal for shared offices or public areas
- The power switch on the docking station allows maximum energy savings
- Supports Windows 10/11, MacOS, iPadOS, Android, ChromeOS and Linux (latest versions)
* Because of the functionality of Thunderbolt technology, i-tec DockMate can manage the docking station itself (for example, remote power on/off, planned power save modes, or firmware updates), but cannot directly control individual ports such as USB, LAN, audio or display outputs.
** Only one external monitor is supported when connected via a USB-C connector.
This text is machine translated.
Features

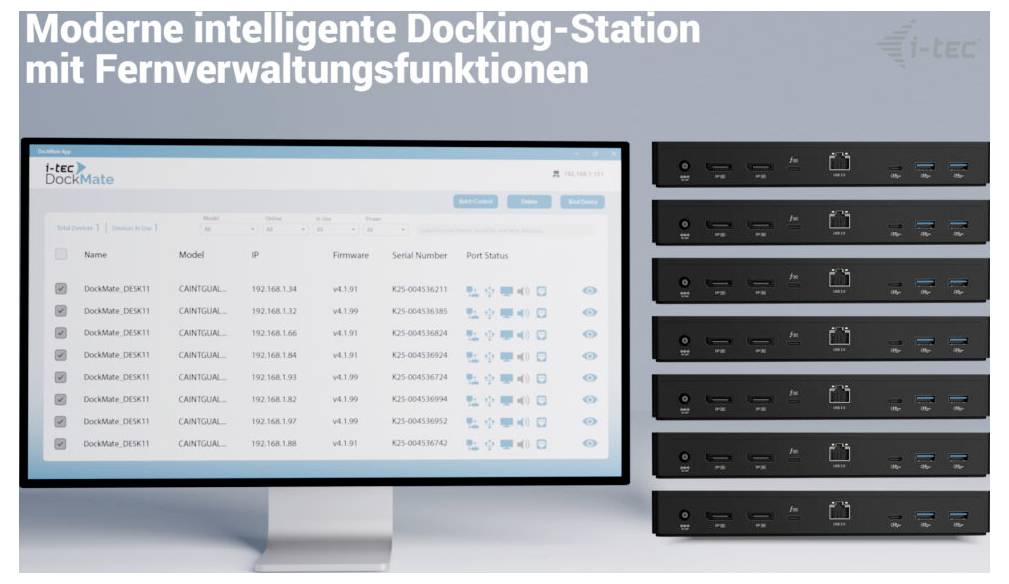

- A ground-breaking docking station with complete remote management function
- This powerful, universal docking station has a dedicated LAN port that allows complete remote control from anywhere, up to single port management. Management works without a host connection – only a power supply and a LAN connection are required.
- Remote management software (for Windows) is available as an optional add-on and can be purchased at any time. Of course, the docking station works without this software – the only difference is that no remote management functions are available.
- Compatible with all modern notebooks with Thunderbolt™ 3/4/5, USB4 or USB-C ports.
- Supports resolutions of up to 8K or two 4K displays with refresh rates of up to 60 Hz.

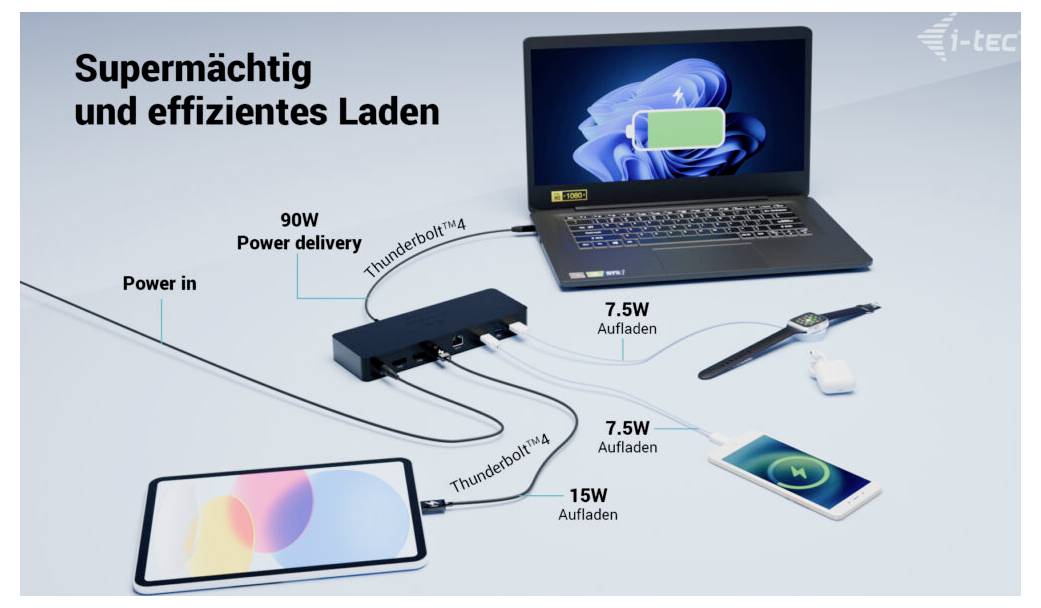

- Provides up to 90 W of power to a connected notebook or tablet.

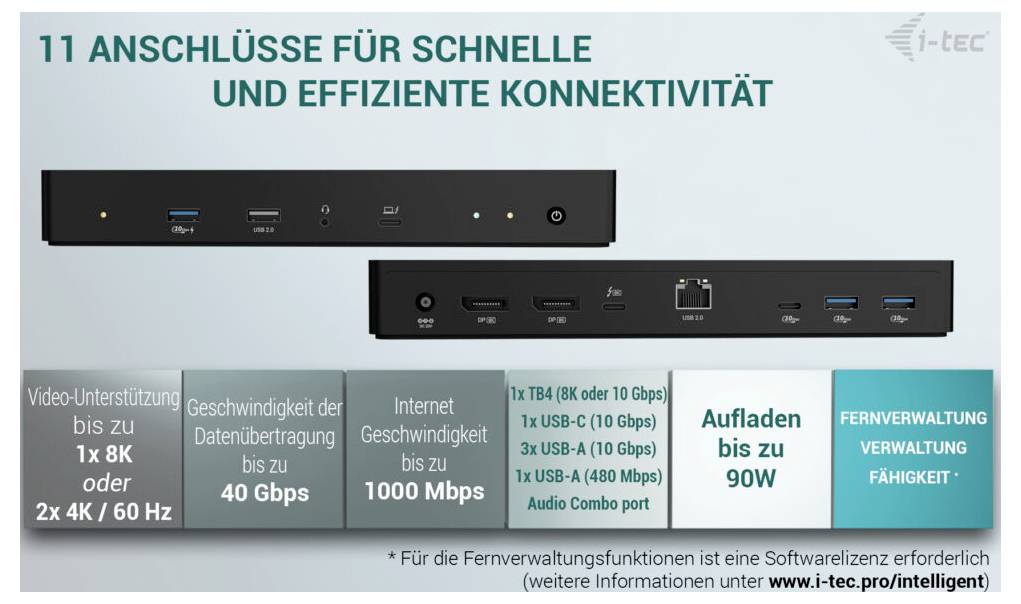

- Provides versatile connectivity with 1× Thunderbolt™ 4 port and 5× USB ports (1× USB-C, 4× USB-A) for easy integration of devices and peripherals.
- Offers lightning-fast data transfer speeds of up to 40 Gbit/s (≈4 GB/s).
- Intelligent Gigabit-Ethernet provides for ultra fast 10/100/1000 Mbit/s-network connections with advanced remote management functions.
- The 3.5 mm combined audio/microphone socket supports headsets and other audio devices with built-in microphones.
