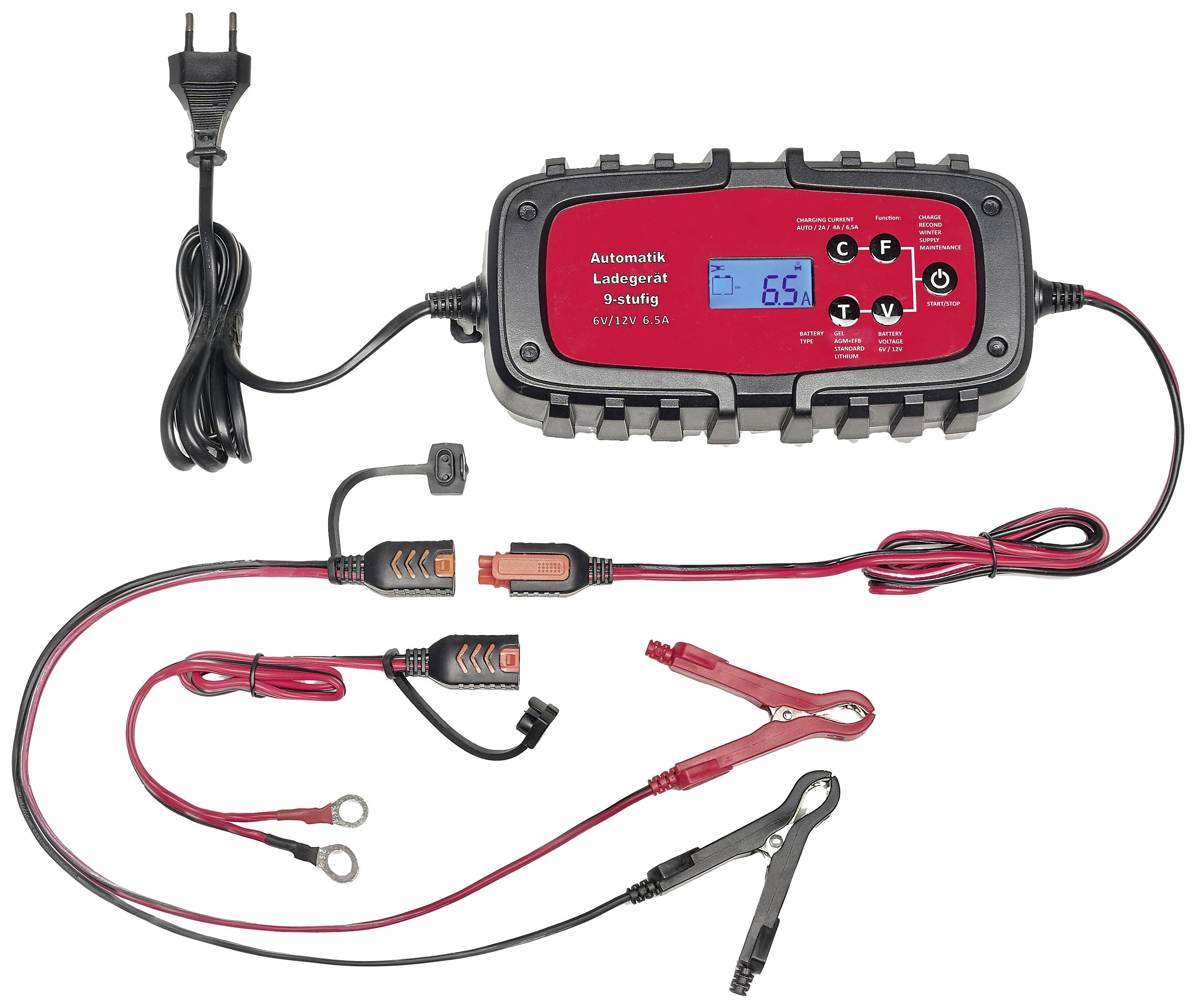

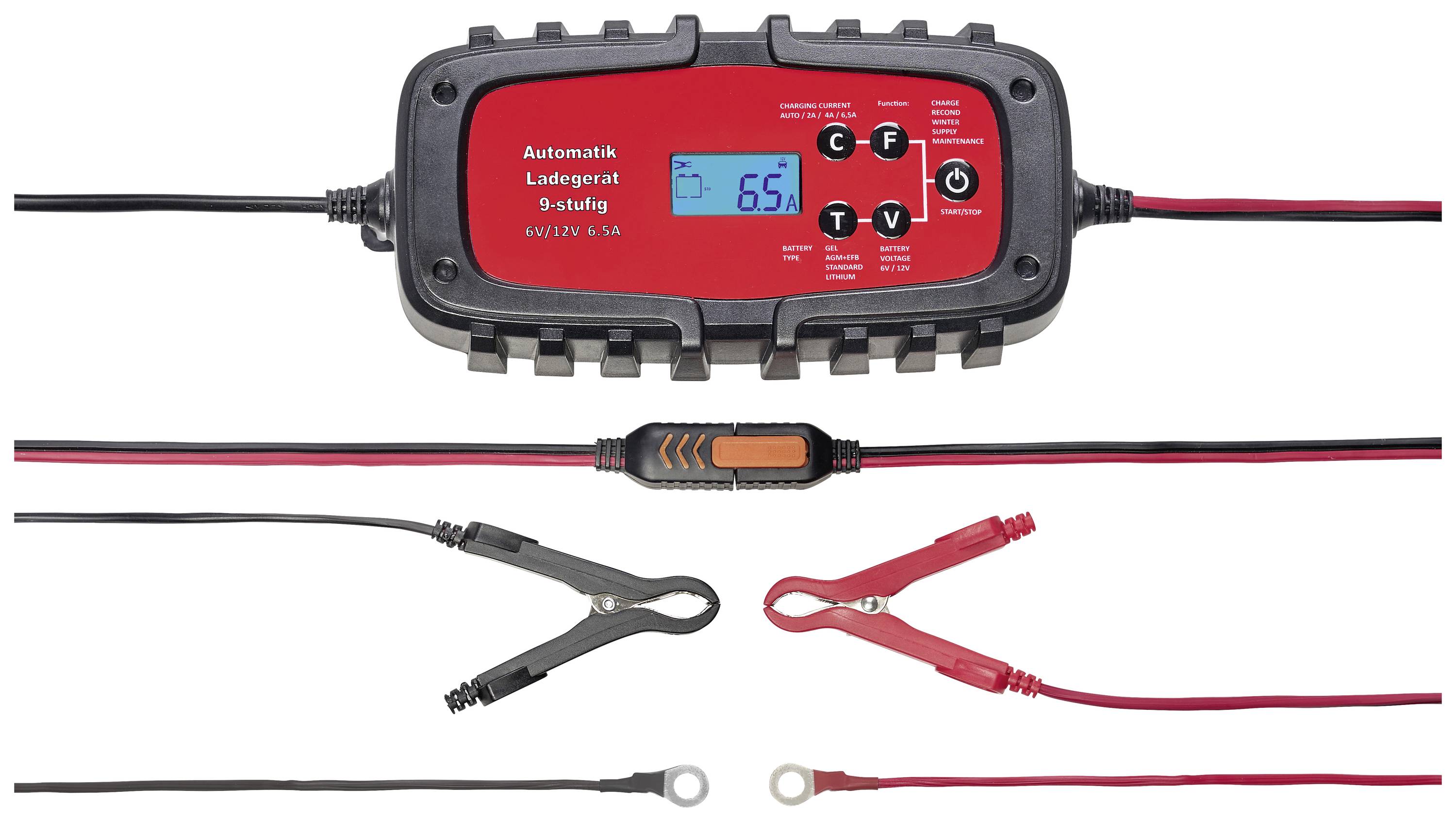

IWH 075901 075901 Automatic charger 12 V, 6 V 2 A, 4 A, 6.5 A
EAN:
Part number:
Item no:
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 3 Piece(s) available
Highlights & Details
6.5A fully automatic battery charger 6/12V
- For car and motorcycle; suitable for all types of batteries;9 steps intelligent charging cycle; Soft Start; Start / Stop suitable
- This text is machine translated.
Technical specifications
- Nominal AC input voltage 220-240V,50Hz
- Product type
Automatic charger
- Dim
(W x H x D) 275 x 128 x 135 mm
- Battery voltage
12 V
6 V
- Operating voltage
230 V / AC
- Suitable for
VRLA AGM
PbCa
SLA
Lead acid
VRLA AGM
Lithium
- Weight
850 g
- Features
Multiple charging modes
Battery life protection
Suitable for start-stop systems
Charge monitoring
- Charging current at 12 V
2 A
4 A
6.5 A
- Charging current at 6 V
2 A
4 A
6.5 A
- Width
275 mm
- Height
128 mm
- Depth
135 mm
IP65
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2491075 IWH 075901 075901 Automatic charger 12 V, 6 V 2 A, 4 A, 6.5 A
Description
Fully automatic 9-stage battery charger with microprocessor control. 9 steps intelligent charging cycle, 6V / 12V selection. Low battery activation voltage (1.5 V). Special safety design, no current output to the charging clamps when they are not connected to the battery. Memory charging function.
This text is machine translated.
This text is machine translated.
Features
- Special maintenance service mode for changing the battery
- IP 65
- Suitable for start/stop
- Soft start
- Memory function
- Preservation charging
- Processor-controlled
- Suitable for standard, AGM + EFB, gel, lithium
- Reverse Connect protection
- Short-circuit protection
- Overcharge protection
- Overheating and fire protection functions
- Error information on the LC display
- Charging mode with higher charging voltage at cold temperatures (below 10°C) or AGM batteries
- 12V Recover
- Charging voltage 16V is used to restore old, acid-coated or sulphated batteries with the help of higher voltage pulses
- 0.8 A low current charging mode to protect and maintain the battery
Scope of delivery
- Incl. Ring socket adapter
- Waterproof quick-release fastener
