IWH Handheld multimeter Digital
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Highlights & Details

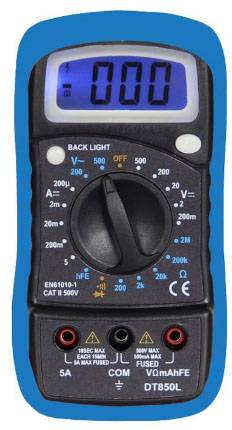

Digital multimeter
- Digital LCD display
Technical specifications
- Voltage reading range DC (min.)
200 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
500 V
- V AC reading range (min.)
200 V
- V AC reading range (max.)
500 V
- Amperage reading range DC (min.)
2 mA
- A DC reading range (max.)
10 A
- Reading range - resistance
200/2k/20K/200k/2M
- Basic accuracy
0.8 %
- Power supply (details)
9V battery
Manufacturer's standards (no certificate)
- Voltage metering
AC/DC
- Current reading
DC
- Type
019060
- Display
Digital
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2368150 IWH Handheld multimeter Digital
Description
AC/DC voltage & resistance measurement
Continuity beeper test
Diode and transistor test
HOLD function for saving the data/measurement
Digital - LCD - display with background lighting
Automatic polarity display
Low battery indicator
Ranging mode: Manual overload protection
DC - Voltage: 200mV / 2V / 20V / 200V / 500V ±
0.8%AC - VOLTAGE: 200V / 500V ± 1.2%
DC current 2 mA / 20 mA / 200 mA / 10A ± 1.4%
This text is machine translated.
Continuity beeper test
Diode and transistor test
HOLD function for saving the data/measurement
Digital - LCD - display with background lighting
Automatic polarity display
Low battery indicator
Ranging mode: Manual overload protection
DC - Voltage: 200mV / 2V / 20V / 200V / 500V ±
0.8%AC - VOLTAGE: 200V / 500V ± 1.2%
DC current 2 mA / 20 mA / 200 mA / 10A ± 1.4%
This text is machine translated.

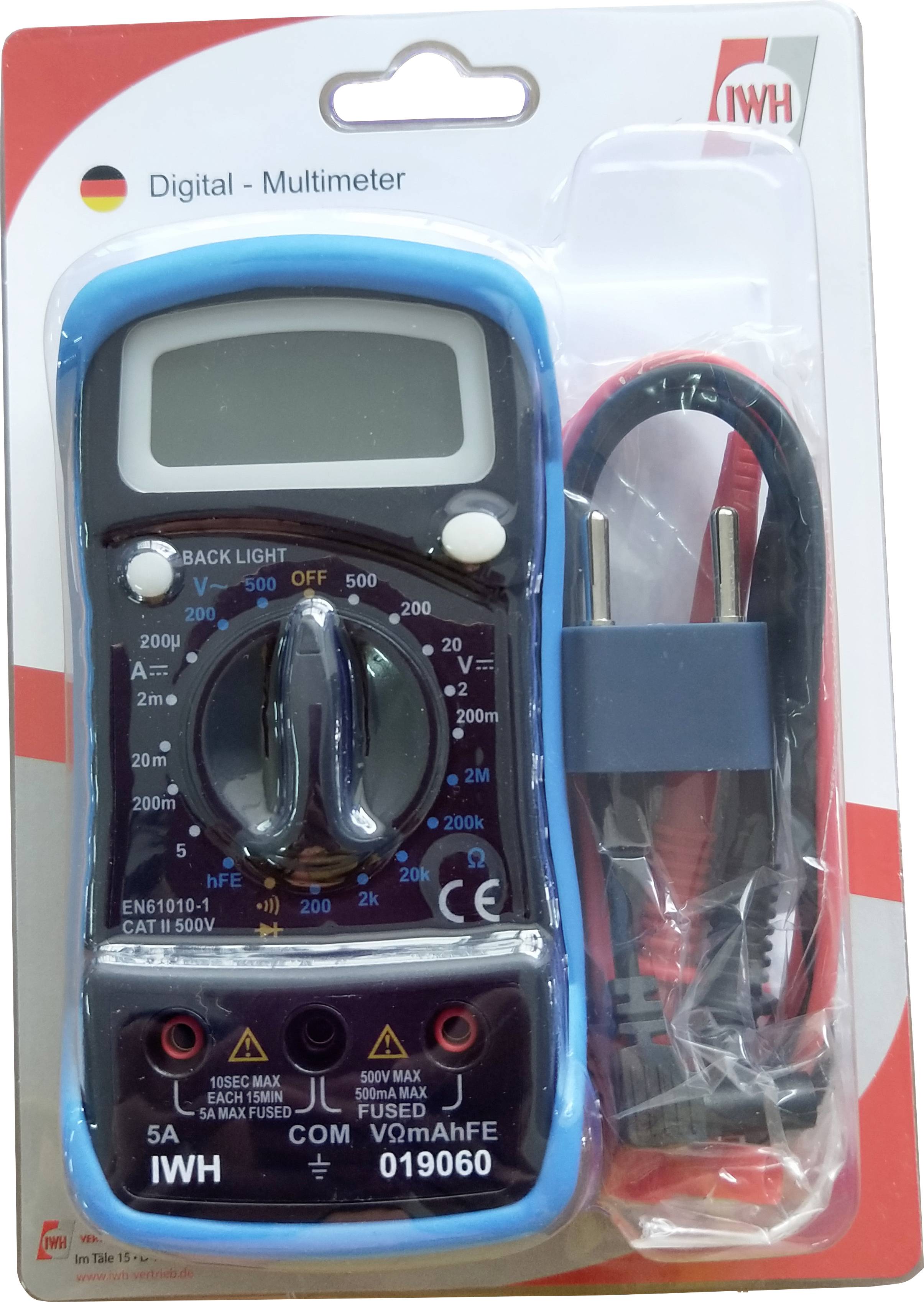

Scope of delivery
- Incl. protective cover
- Test socket
- 2 test leads
