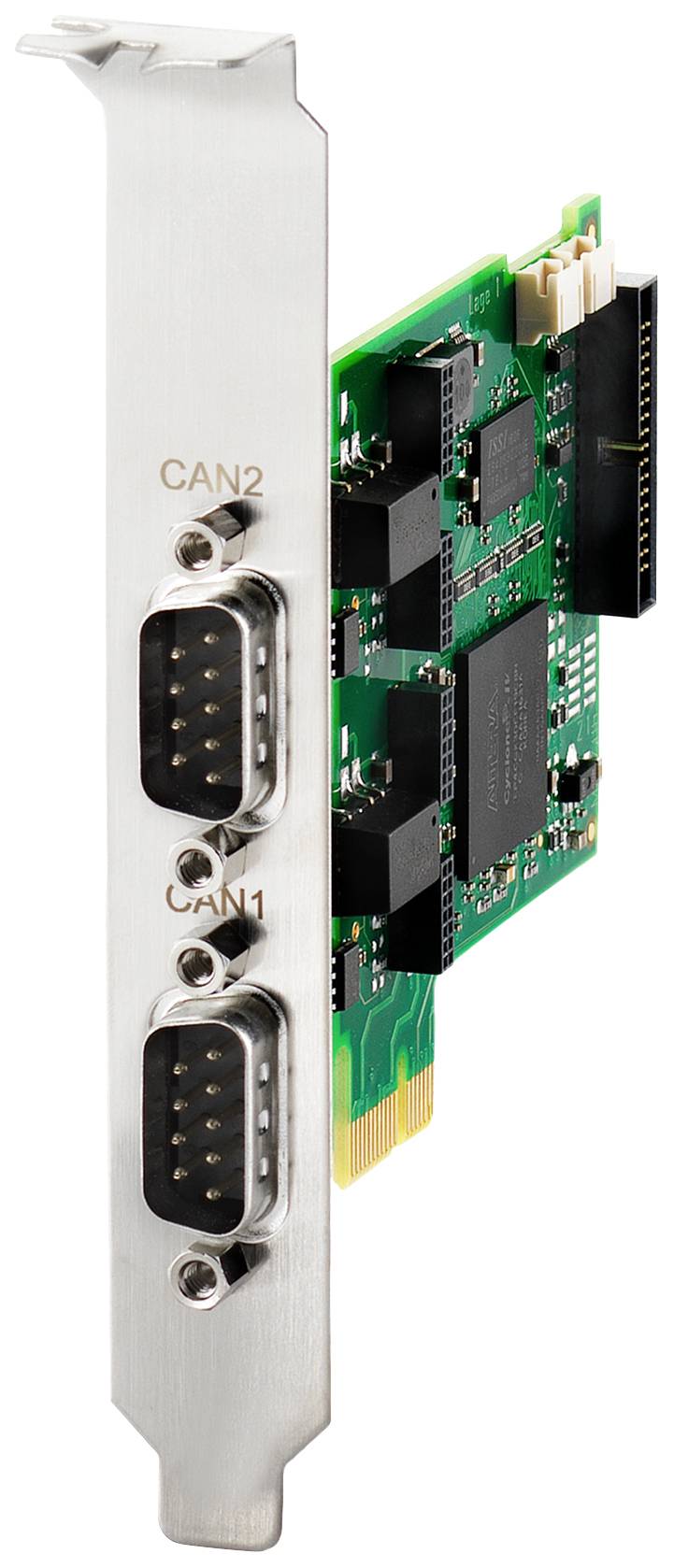

Ixxat 1.01.0233.22010 CAN-IB600/PCIe Interface card CAN bus, D-SUB9, PCIe 3.3 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,239.50 / piece)
€ 1,239.50
plus VAT.
Only 1 Piece(s) available
Active CAN interface for PCI Express
Highlights & Details
- Active CAN interface with 32-bit microcontroller
- Two CAN channels (high-speed CAN or CAN FD)
- Galvanic isolation of the CAN interface
- Can Low-Speed (fault tolerant CAN, ISO 11898-3) via optional extension
- LIN via optional extension
- Uniform driver packages for all IXXAT CAN and CAN-FD interfaces enable easy change of the PC interface type

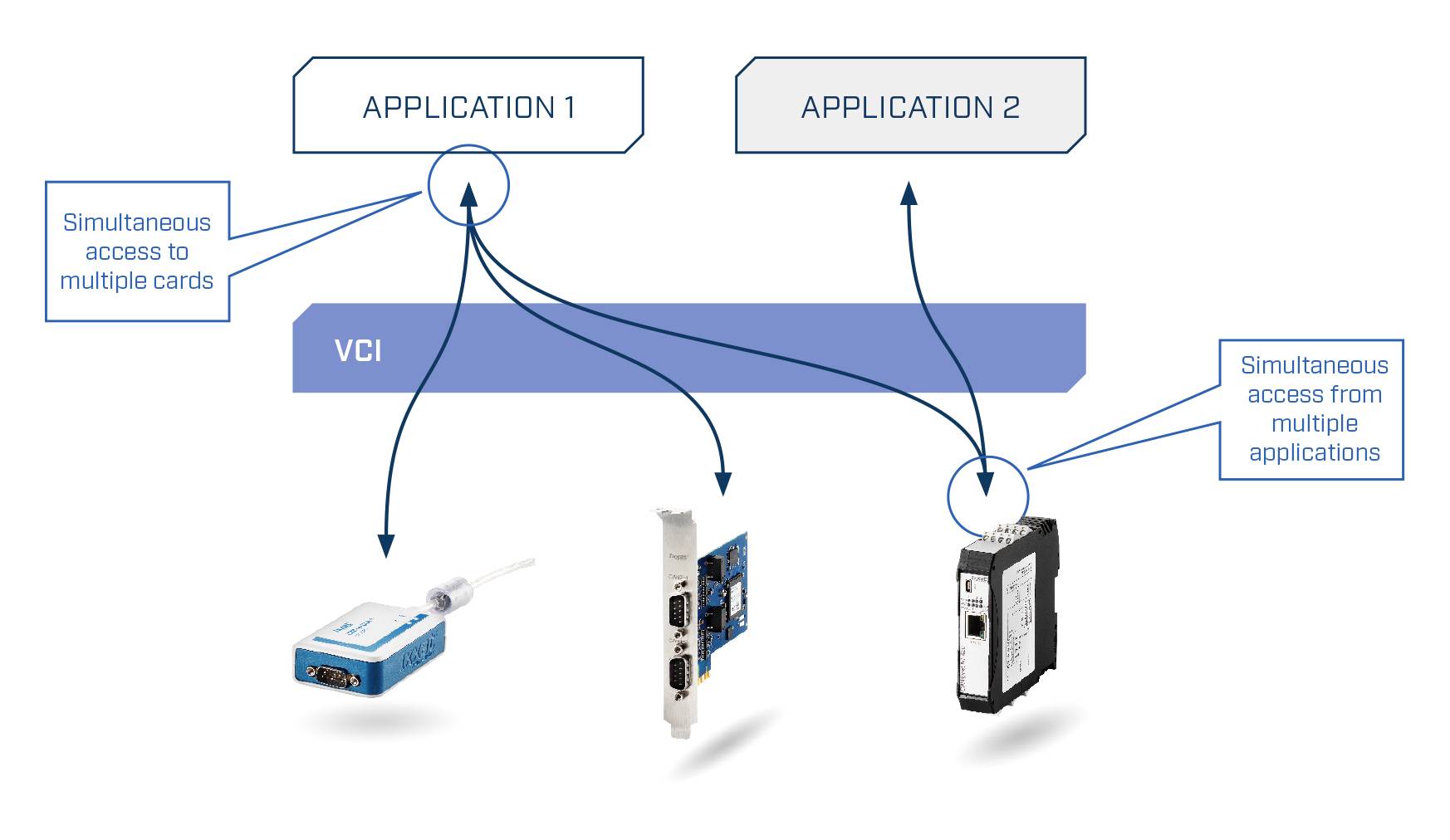

- Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, intimate and VxWorks
Technical specifications
- Can interface: 2 CAN interfaces; CAN FD or CAN 2.0 A/B; Sub-D9 plug according to CIA 303-1, galvanic decoupling (1 kV, 1 sec.).
- Product type
Interface card
- Interfaces
CAN bus
D-SUB9
PCIe
- Type
CAN-IB600/PCIe
- Operating voltage
3.3 V
- Max. operating temperature
70 °C
- Min. operating temperature
0 °C
- Operating temperature
0 up to 70 °C
- Dim
(W x H) 68.9 mm x 105 mm
- Max. current consumption
230 mA
- Height
105 mm
- Width
68.9 mm
- Manufacturer part #
1.01.0233.22010
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 1670252 Ixxat 1.01.0233.22010 CAN-IB600/PCIe Interface card CAN bus, D-SUB9, PCIe 3.3 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1670252 Ixxat 1.01.0233.22010 CAN-IB600/PCIe Interface card CAN bus, D-SUB9, PCIe 3.3 V 1 pc(s)
Description
With the CAN-IB 600/PCIe offers a CAN interface with a modern and highly modular HMS FD architectural concept. The interface is with up to two CAN channels available. Each channel can be optionally CAN FD or CAN 2.0 A/B to send and receive messages. By optional expansion modules is the full range of field buses, of CAN-FD (ISO, as well as non-iso format), CAN (ISO 11898-2), fault tolerant CAN (ISO 11898-3) up to LIN with a map is covered.
The CAN-IB 600/PCIe is an active interface and relieves the host computer for the communication significantly. This allows even large amounts of data on the card are pre-processed and stored.
If necessary, the number of interfaces through the use of multiple cards in a computer can be expanded.

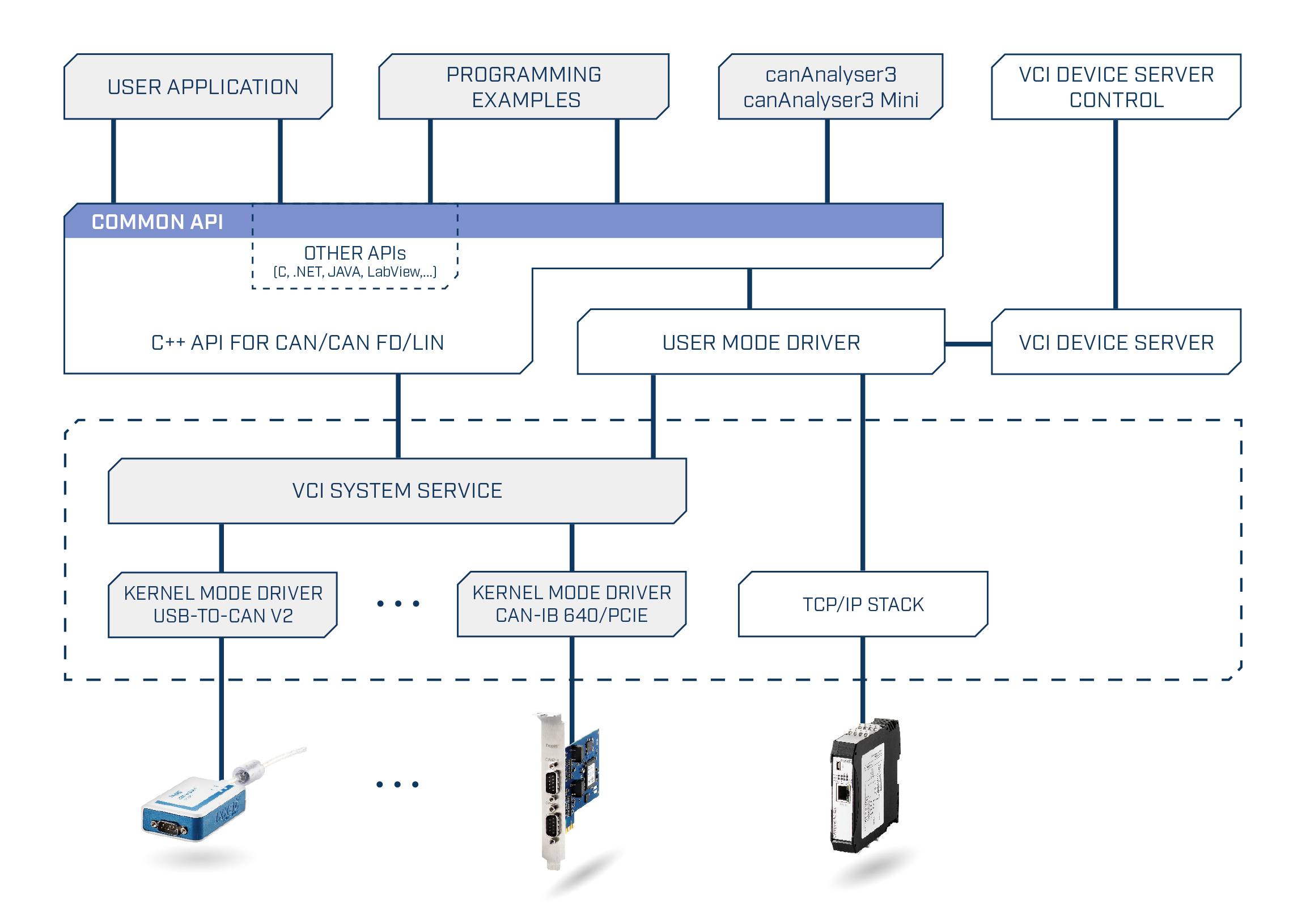

Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, intimate and VxWorks.
This text is machine translated.
The CAN-IB 600/PCIe is an active interface and relieves the host computer for the communication significantly. This allows even large amounts of data on the card are pre-processed and stored.
If necessary, the number of interfaces through the use of multiple cards in a computer can be expanded.
Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, intimate and VxWorks.
This text is machine translated.
Scope of delivery
- PC/CAN card
- CAN-driver VCI for Windows 2000, XP, Vista, Windows 7, Windows 8.
- Simple CAN-Bus Monitor" Cananalyzer Mini"
- User manual.
