Buy Ixxat 1.01.0332.42000 CAN@net NT 420 CAN bus CAN bus, Ethernet, USB 24 V DC 1 pc(s)

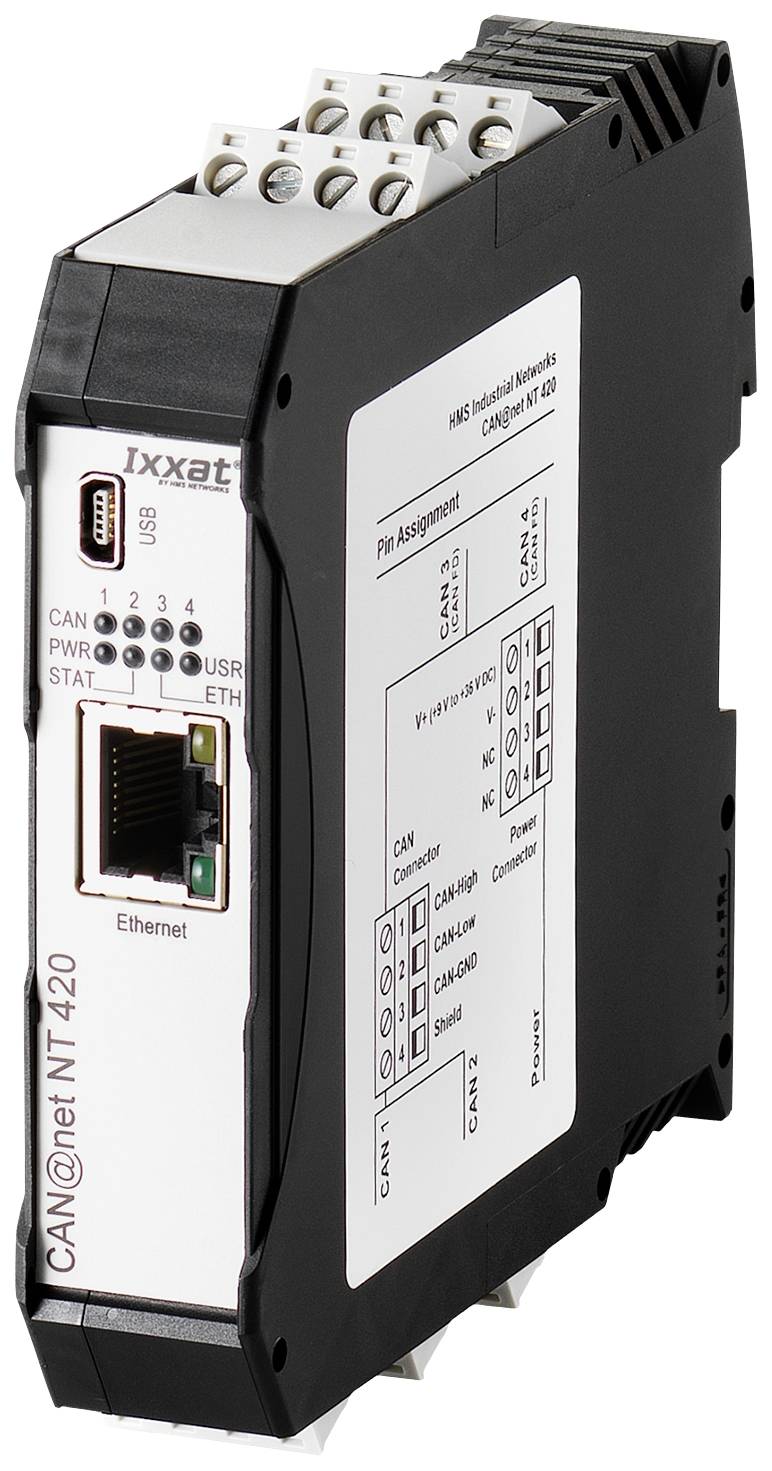

'CAN@net NT 420' module with Ethernet and USB interfaces, CAN bus connections on top. Device for industrial network integration.

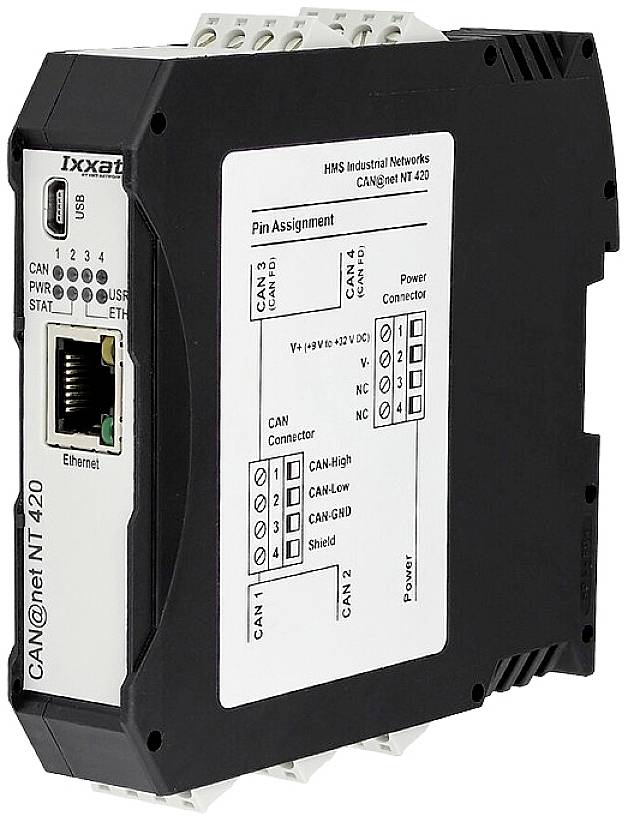

An industrial network device with connection points and Ethernet port, labelled 'CAN@net NT 420' by HMS Industrial Networks.

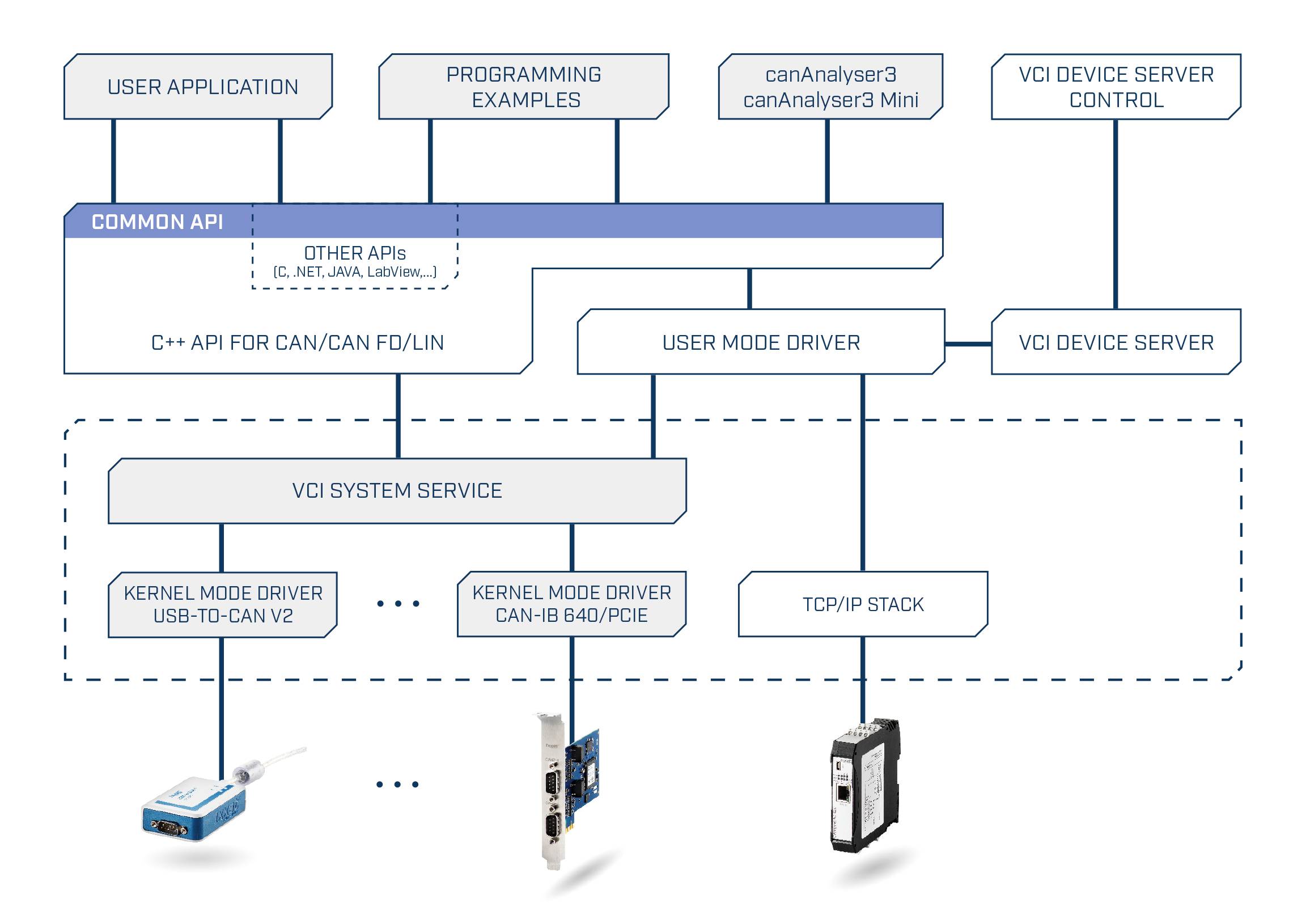

Block diagram of a software architecture: User application, programming examples and device drivers communicate via a common API with the VCI system service and VCI device server controls.

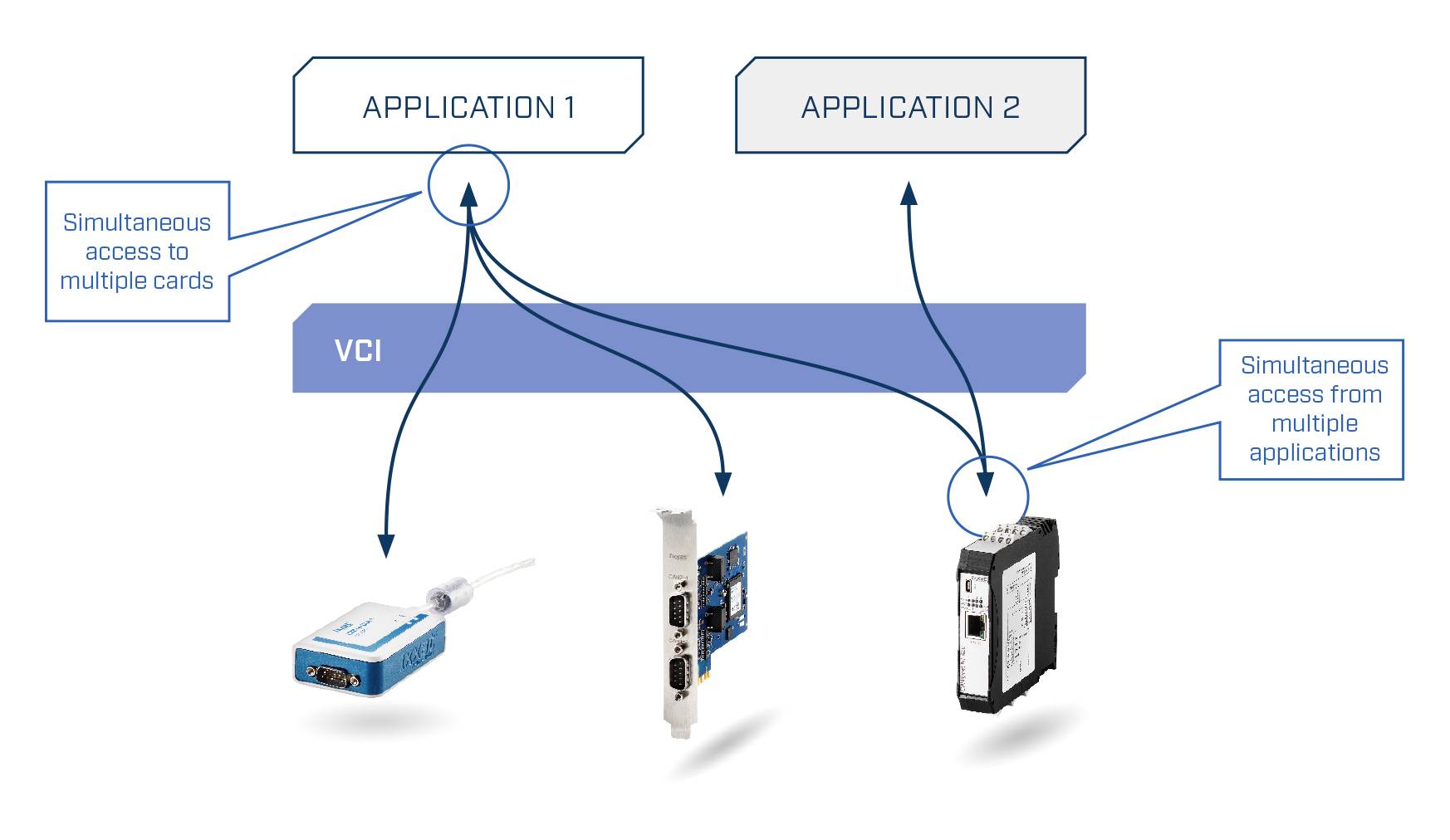

The diagram shows 'APPLICATION 1' and 'APPLICATION 2' simultaneously accessing multiple cards via VCI.

1/4

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 886.55 / piece)

€ 886.55

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Can@net NT 420 CAN Ethernet Gateway

4 x CAN channels (two CAN-FD)Powerful filter, ID translation, data mapping and multiplex functionalityMQTT support for easy cloud connectivity (Publisher and Subscriber)Execution of pre-defined actions with event-controlled "action rules"Program any action rules using LUAWindows configuration tool for easy device configuration via USB or EthernetAdjustable security levels for device access (configuration or firmware upload)Reliable use in harsh industrial environmentsBenefitsEasy coupling of CAN and CAN-FD systems and devicesBridging of large distances and simple system access via EthernetCost savings through simpler wiringExtension of system expansion as well as tree/star topologiesIncreased system reliabilityProtection by galvanic separation

Technical specifications

Max. Number of bus nodes: 120Can Bus Terminator: NoneCan bit rates: Standard CAN: 5 to 1000 kBit/s. Can-FD bit rates: Arbitrary rate up to 1000 kBit/s, data rate up to 8000 kbit/s. Data rates are verified by testing. User-defined bit rates are possible.Caution: The maximum data rate can be exceeded depending on the specific operating conditions (cable length, settings made, remote stations, etc.), but it cannot be reached either.Power supply: 9 V to 36 V DCPower consumption: Typically 110 mA (at 24 V input voltage) or 230 mA (at 12 V input voltage)Temperature range: Operating temperature -40 °C to +85 °C; storage temperature -40 °C to +85 °C.Galvanic insulation: 1 kV for 1 sec.CE, FCC, UL CERTIFICATIONHousing: Polyamide housing for DIN rail mountingProtection class: IP20Dimensions: Approx. 114.5 x 99 x 22.5 mm

Product type: CAN bus

Interfaces: CAN bus
Ethernet
USB

Type: CAN@net NT 420

Operating voltage: 24 V DC

Max. operating temperature: + 85 °C

Min. operating temperature: - 40 °C

Operating temperature: - 40 up to + 85 °C

Dim: (W x H) 115 mm x 99 mm

Max. current consumption: 230 mA

Height: 99 mm

Width: 115 mm

Manufacturer part #: 1.01.0332.42000

Current consumption: 110 mA

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2527030 Ixxat 1.01.0332.42000 CAN@net NT 420 CAN bus CAN bus, Ethernet, USB 24 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2527030 Ixxat 1.01.0332.42000 CAN@net NT 420 CAN bus CAN bus, Ethernet, USB 24 V DC 1 pc(s)

Description

The CAN@net NT is offered in three variants: A CAN@net NT 100 with a classic CAN channel and D-Sub 9 connectors, a CAN@net NT 200 with two classic CAN channels and a CAN@net NT 420 with four CAN channels, of which two channels can be switched between CAN and CAN-FD. All devices have three operating modes and can be used as a PC interface as well as a bridge and gateway.OPERATING MODESCan/CAN FD Ethernet GatewayIn gateway mode, the CAN@net NT can be accessed by different operating systems (e.g. Windows, Linux, VxWorks or QNX) and from embedded systems. This is done via a standard TCP/IP socket and a simple ASCII protocol. The CAN@net NT thus provides a simple and flexible access to CAN systems via a LAN or via the Internet as a CAN Ethernet gateway.PC interfaceThe supplied VCI driver for Windows can be used to operate the CAN@net NT like all IXXAT CAN PC interface cards. This means that all VCI-based IXXAT tools, such as the canAnalyzer, can be used with the CAN@net NT, but also customer-specific applications, which are created on the basis of the VCI driver. The VCI CAN driver offers the possibility to communicate with up to 128 CAN@net NT simultaneously.

This text is machine translated.
